MWM TCG 2020 V20 Open-Type Gas Engines – 4 Units - 2014

ReflowX SKU: REF-8115

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

New
OEM

MWM (Motoren-Werke Mannheim AG)
Equipment code

Power Generation
Total Price
Per Unit Price

$ 258,750.00

Short Description

Four MWM TCG 2020 V20 gas engines, open-type configuration. Manufactured in 2014 with approx. 35,000 operating hours. Units currently stored in Jakarta warehouse. Inspection available.

Description

MWM TCG 2020 V20 Open-Type Gas Engines – 4 Units (2014, 35,000 Hours)

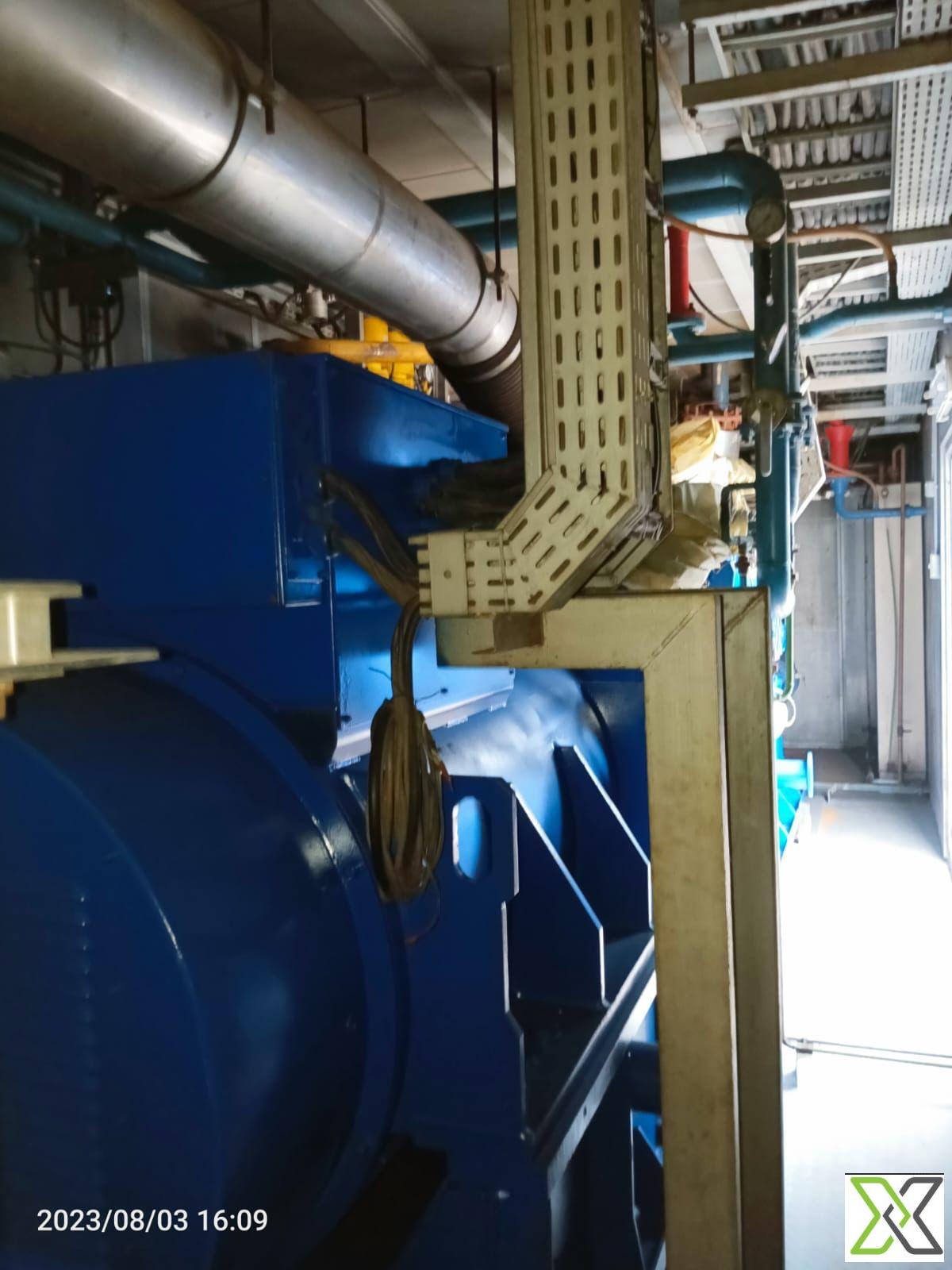

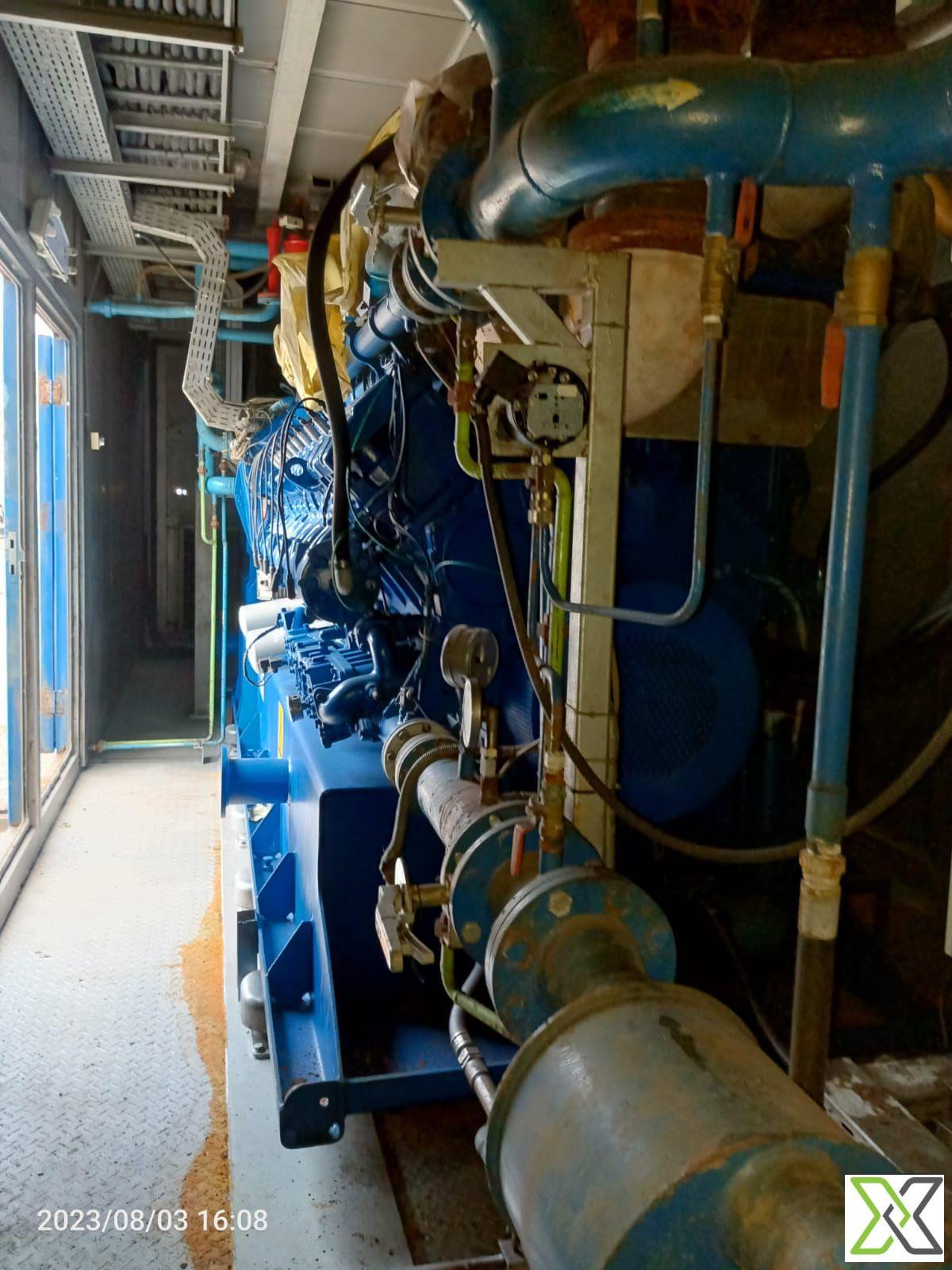

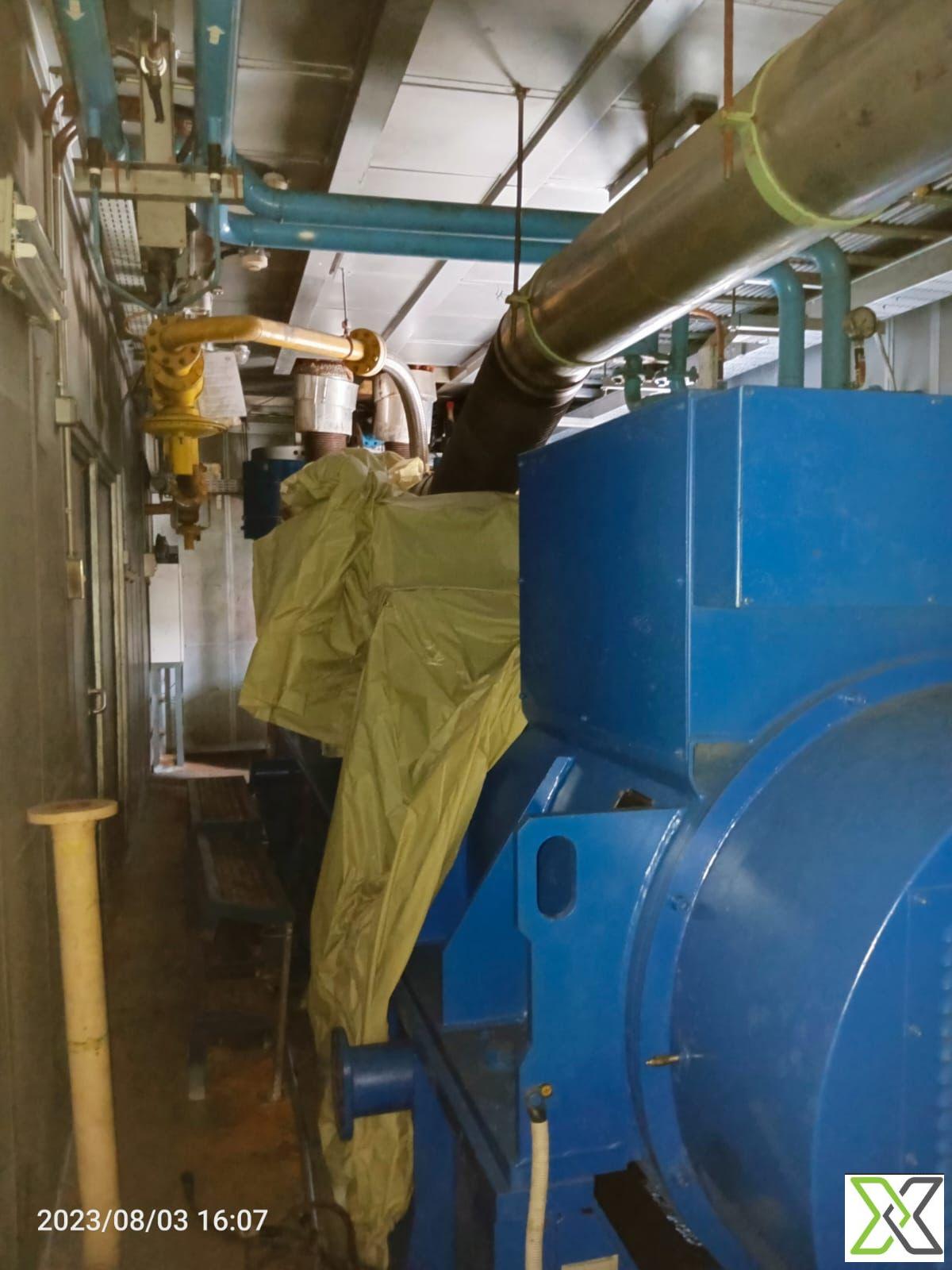

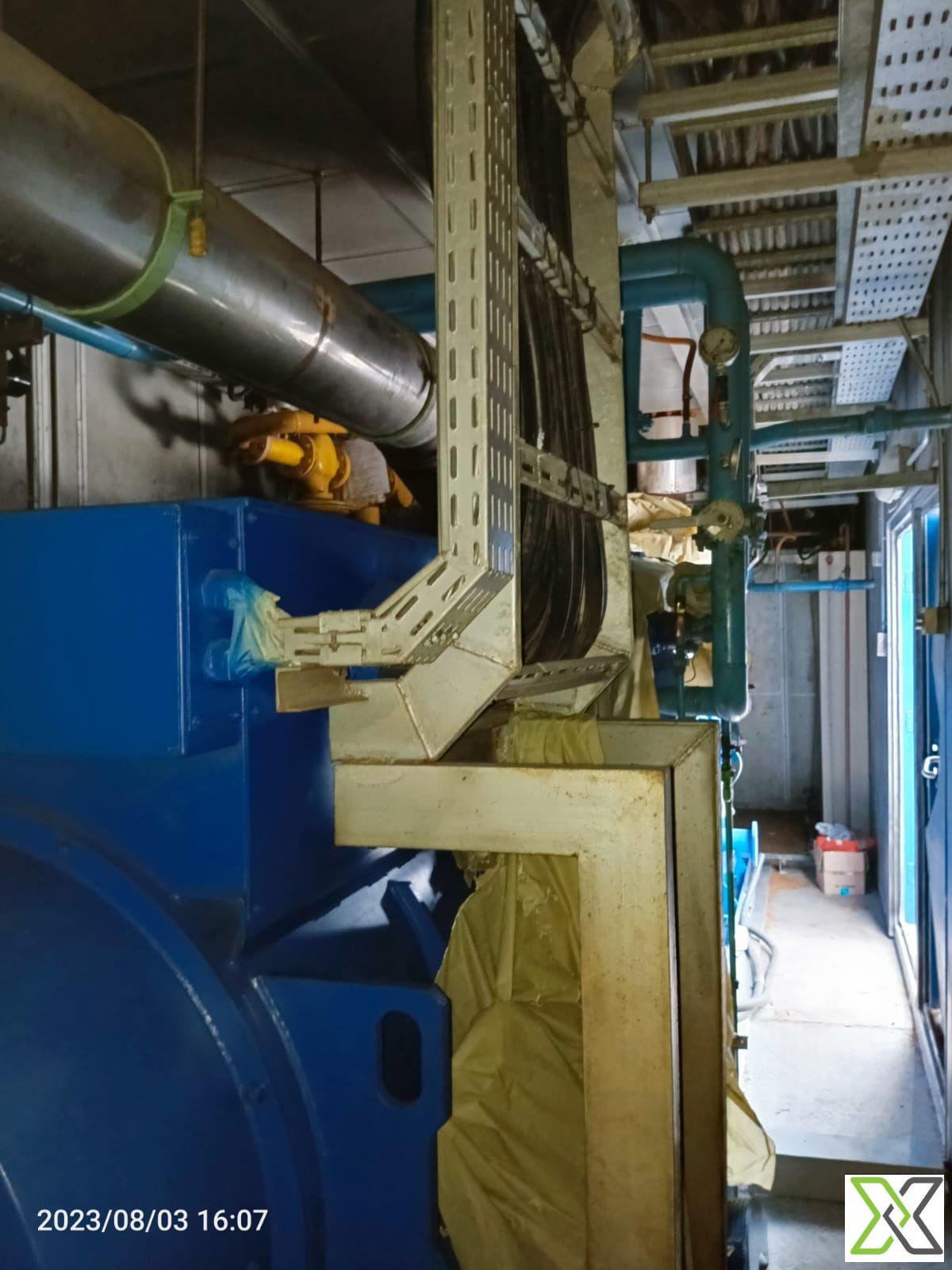

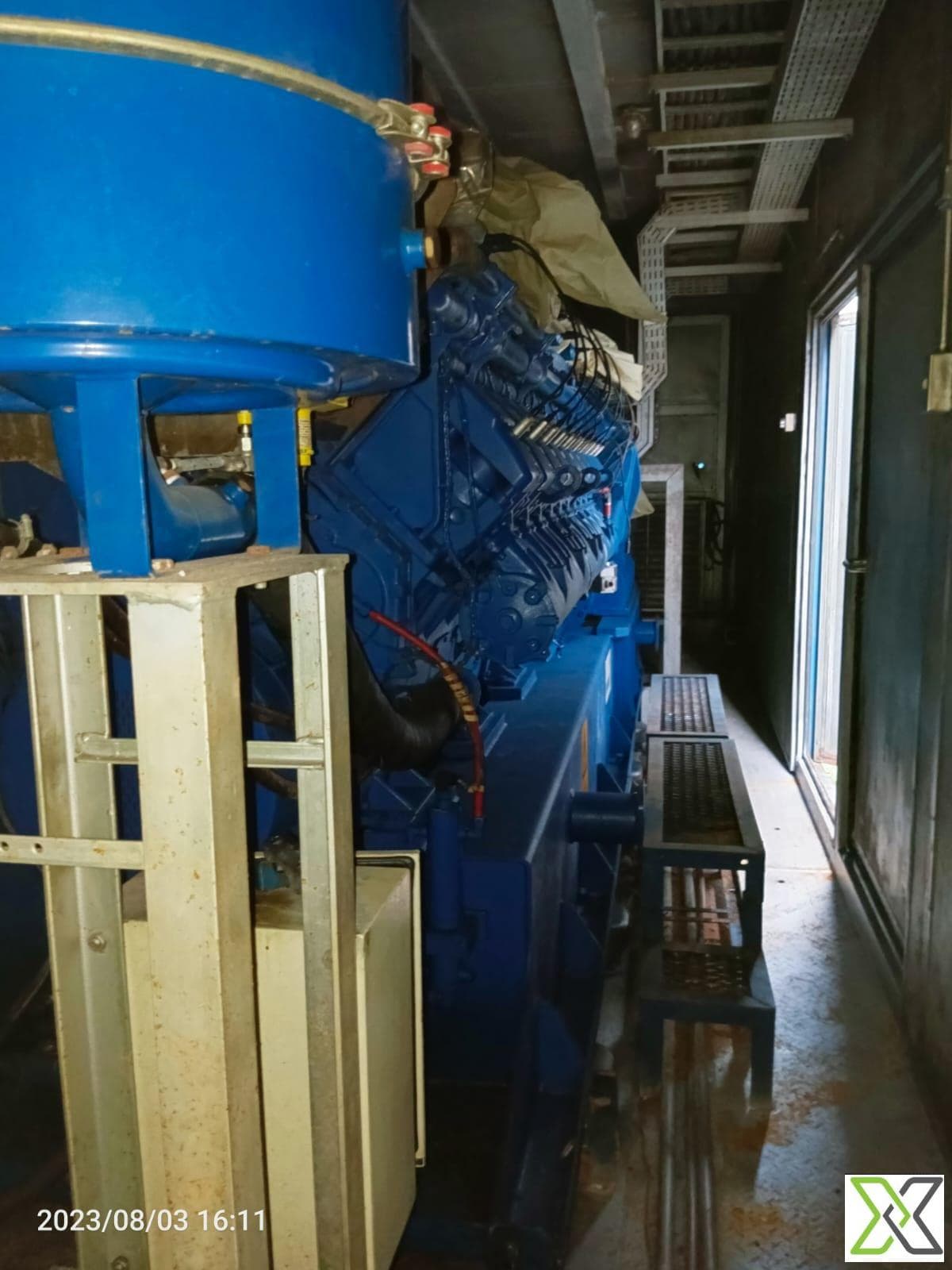

This offering includes four MWM TCG 2020 V20 gas engines in open-type configuration, built in 2014 and operated for approximately 35,000 hours. These V20 engines are engineered for high-performance power generation using natural gas, biogas, or landfill gas. The open-frame design allows for easy integration into custom installations where containerisation is not required. The units are presently stored in a secured warehouse in Jakarta, Indonesia, and are available for inspection upon request. These engines are suitable for industrial, utility, and continuous-duty applications where efficiency and reliability are critical.

Specifications:

– Manufacturer: MWM (Motoren-Werke Mannheim)
– Model: TCG 2020 V20
– Engine Type: 4-stroke, V20-cylinder gas engine
– Fuel Type: Natural Gas / Biogas / Landfill Gas
– Rated Output: ~2,300 kWe per engine (typical)
– Electrical Efficiency: Up to 45%
– Voltage Output: Configurable (typ. 400–11,000 V)
– Frequency: 50 Hz / 60 Hz
– Cooling System: Radiator or external circuit (open-type setup)
– Mounting: Open skid base (non-containerised)
– Control System: MWM TPEM or compatible
– Year of Manufacture: 2014
– Operating Hours: Approx. 35,000 per unit
– Condition: Used, warehouse stored
– Location: Jakarta, Indonesia
– Inspection: Can be arranged on request
– Quantity: 4 units

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	TCG 2020 V20
Year of Manufacturing	2014
Model Number	TCG 2020 V20
Year of Manufacturing	2014
Manufacturer Name	MWM (Motoren-Werke Mannheim)
Height	3.0 – 3.2 meters
Width	2.5 meters
Length	12.2 meters
Weight	38,000 – 40,000 kg
Usage Hours	35,000
Color	MWM Blue
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas, Biogas, Landfill Gas
Output Power	2,300 kWe per unit
Model Number	TCG 2020 V20
Year of Manufacturing	2014
Manufacturer Name	MWM (Motoren-Werke Mannheim)
Height	3.0 – 3.2 meters
Width	2.5 meters
Weight	38,000 – 40,000 kg
Usage Hours	35,000
Temperature Range	-15°C to +45°C
Voltage	400V to 11,000V
Color	MWM Blue
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas, Biogas, Landfill Gas
Output Power	2,300 kWe per unit
Speed	1,500 rpm
Direction of Rotation	Clockwise
Design Specification	4-stroke, turbocharged, charge-air cooled V20 gas engine
Normal Operating Temperature	80°C to 95°C
Explosion Protection Gas Group	IIA/IIB
Explosion Protection Temperature Class	T1–T3
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	-15°C
Operation Continuous Intermittent	Designed for Continuous Operation
Upper Limit Operating Temperature	+45°C
Number Of Shafts	1 (crankshaft)
Test Medium	Factory-tested with Natural Gas or Simulation Gas Mix
Test Pressure	Up to 8 – 10 bar
Turbine Cycle	Otto Cycle
Insulation Class	Class H

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
