MWM TCG 2032V16 Power Plant – 8 MW (2 x 4 MW) Dual-Fuel Generator Set - 2005

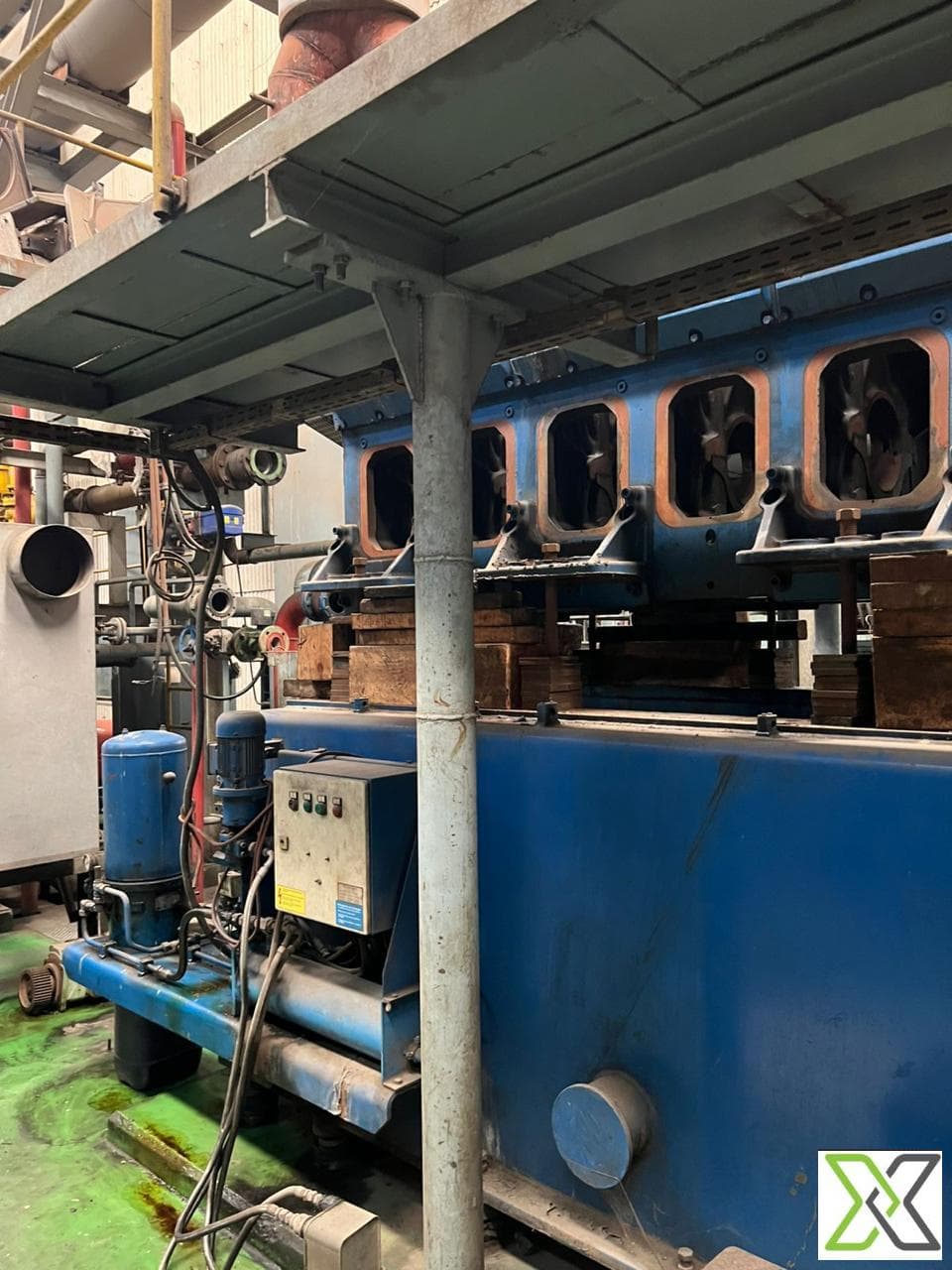

The MWM TCG 2032V16 Power Plant is a robust, high-output generator system designed for continuous or peak-load operations in industrial, utility, and remote settings. Installed in 2005, this configuration includes two V16-cylinder, four-stroke engines, each rated at 4,000 kW, delivering a total capacity of 8 MW.

Designed for dual-fuel operation, the TCG 2032V16 supports either natural gas or diesel, making it adaptable to variable fuel availability and site requirements. It is equipped with an advanced integrated control system that ensures automated operation, diagnostics, and performance optimization, contributing to high reliability and fuel efficiency.

With a compression ratio optimized per fuel type, water-cooling for thermal stability, and a forced lubrication system, this engine model is engineered for long service life and reliable operation under varying load conditions. The engines are compliant with regional emissions standards depending on configuration.

Specifications:

– Make: MWM (Motoren-Werke Mannheim)

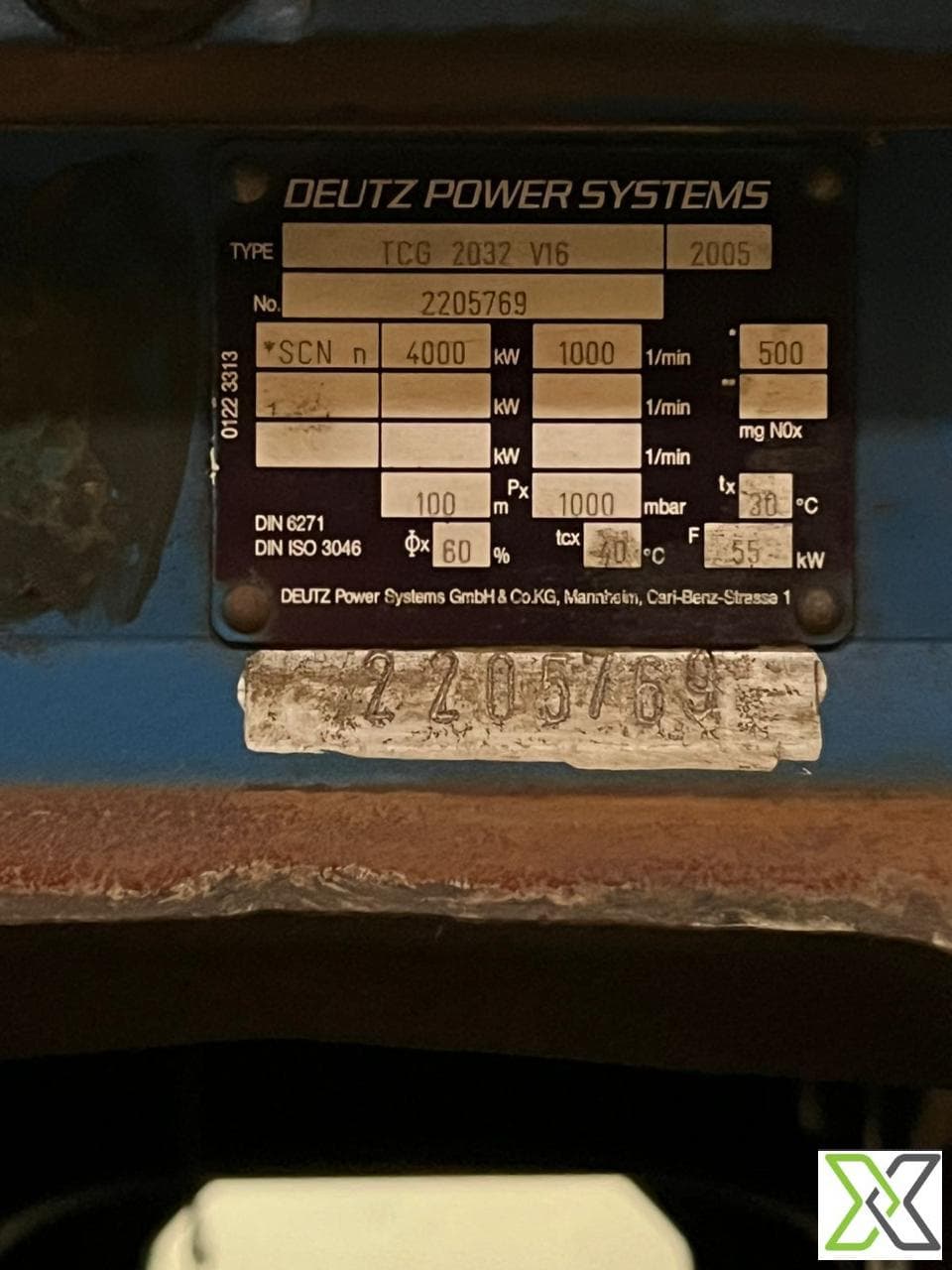

– Model: TCG 2032V16
– Engine Type: 4-stroke, V16-cylinder
– Number of Units: 2 engines
– Total Output Capacity: 8 MW (2 × 4,000 kW)
– Engine Speed: 1500 rpm (for 50 Hz operation)
– Fuel Type: Natural Gas or Diesel
– Cooling System: Water-cooled
– Emission Compliance: Meets local/regional emission regulations (varies by fuel and setup)

Engine Technical Details:
– Bore x Stroke: 160 mm × 190 mm
– Displacement per Cylinder: Approx. 33.5 liters
– Compression Ratio: Approx. 14:1 (Diesel), variable for gas
– Ignition System:
 – Diesel: Compression ignition
 – Gas: Spark ignition
– Lubrication System: Forced lubrication with oil pump

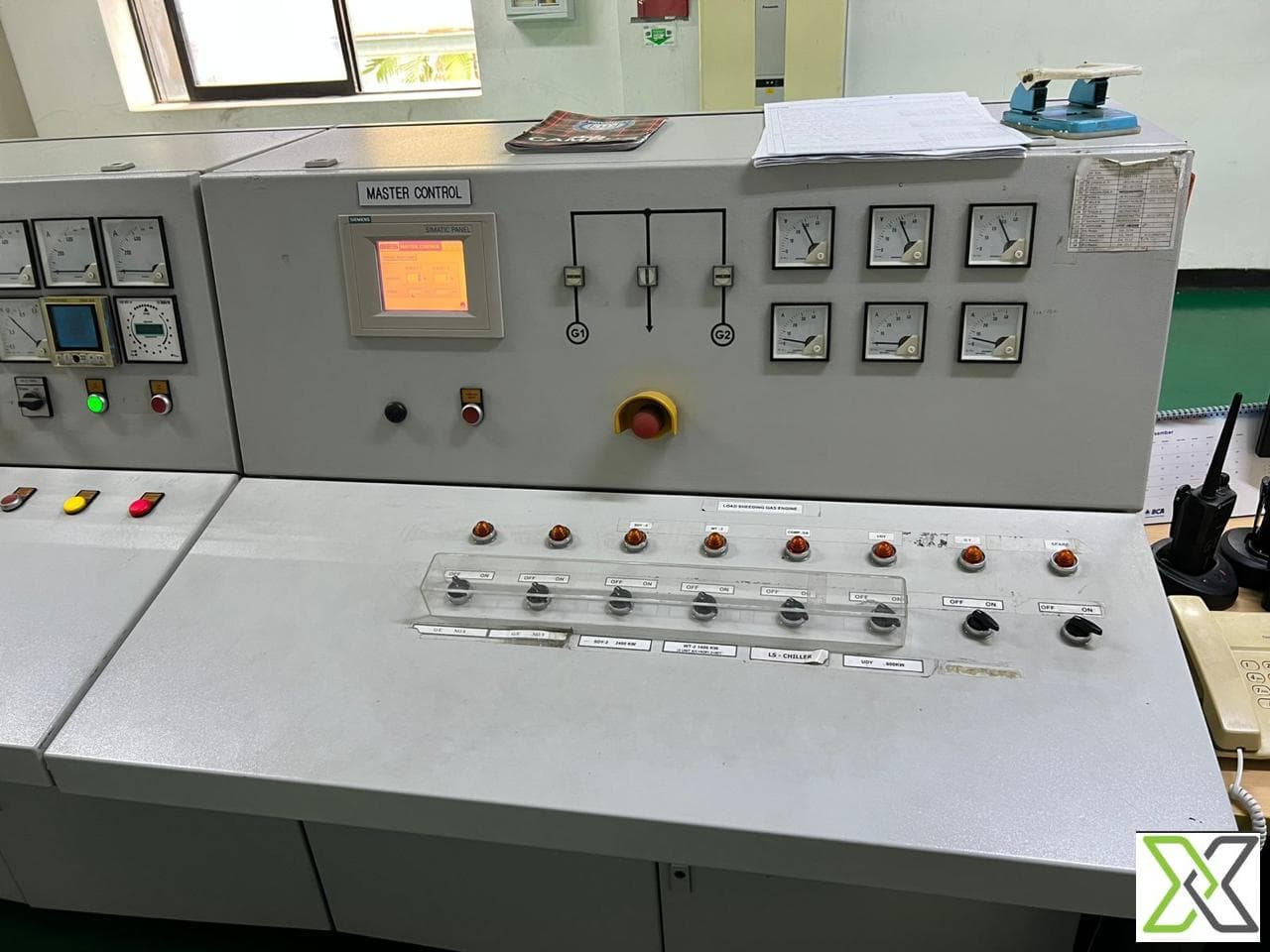

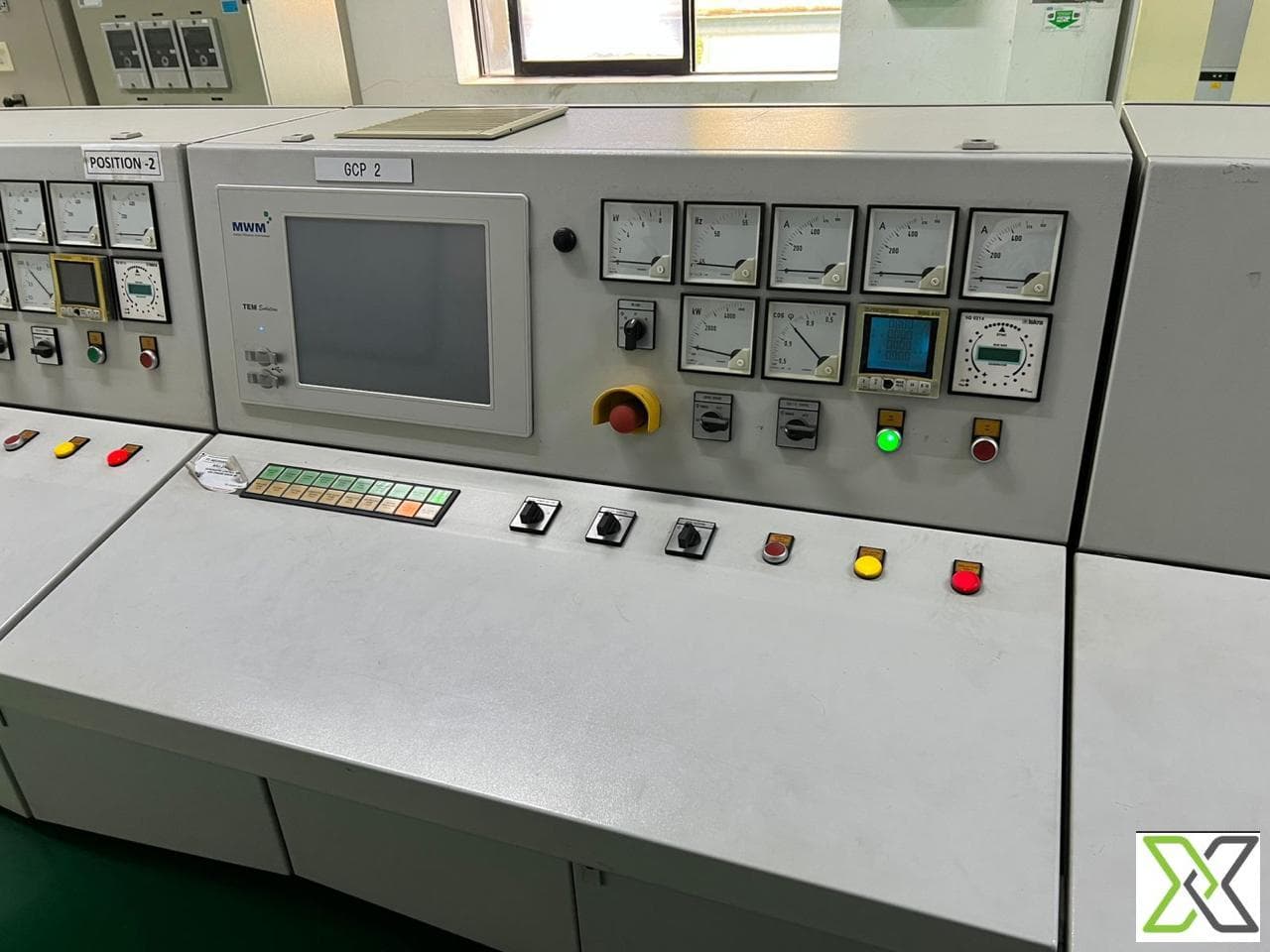

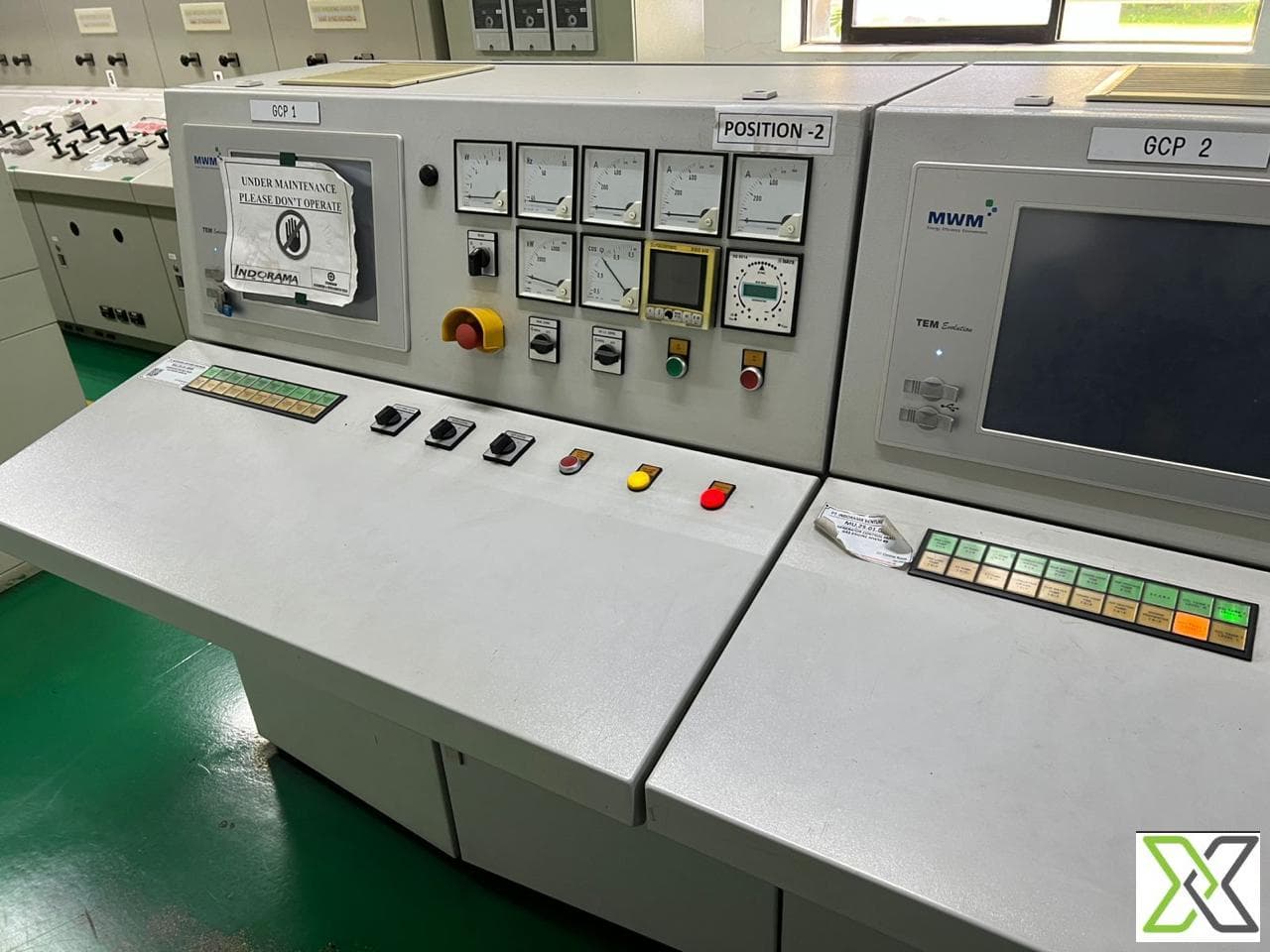

– Control System: Advanced MWM integrated automation system with remote monitoring, diagnostics, and performance management

Performance Data:
– Rated Output per Engine: 4,000 kW (~5,360 hp)
– Power Factor: Stable operation at part and full loads
– Fuel Consumption:
 – Gas: ~0.33–0.40 m³/kWh (depending on composition)
 – Diesel: ~0.23–0.27 L/kWh (depending on load and tuning)

Dimensions & Weight (Per Engine):
– Length: ~4,500 mm
– Width: ~2,000 mm
– Height: ~2,300 mm
– Weight: ~20,000–25,000 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
