Siemens SGT-400 DLE Combined Cycle Power Plant | 2x21 MW | Gas & Steam Turbines | 2017

Siemens SGT-400 DLE Combined Cycle Power Plant (CCPP) - 2017

ReflowX SKU: REF-6479

Product Details

  • Quantity
    2
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    China
  • Condition
    Surplus
  • OEM
    ReflowX
  • Equipment code
    Power Generation
  • Total Price
  • Per Unit Price
    $ 4,950,000.00
Whatsapp Chat With Seller

Description

FULL TECHNICAL SPECIFICATION

Siemens SGT-400 DLE Combined Cycle Power Plant (CCPP)

GENERAL INFORMATION

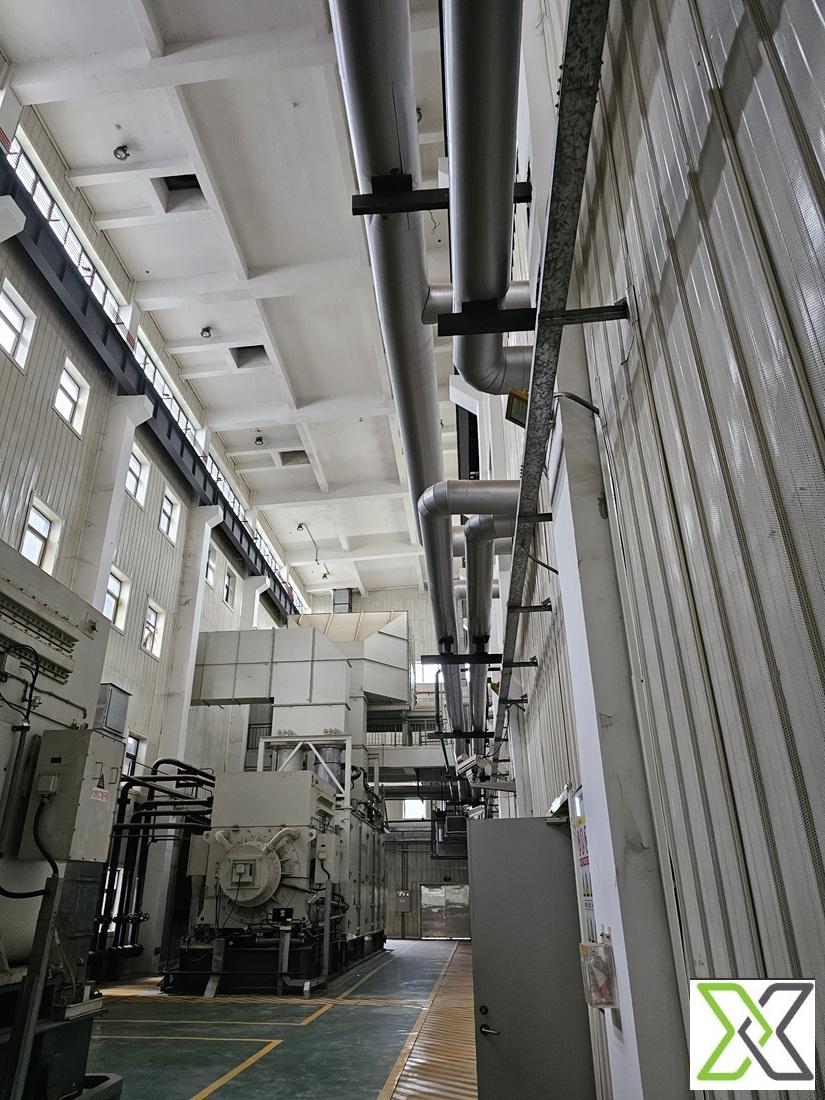

Plant Type: Combined Cycle Power Plant (CCPP)

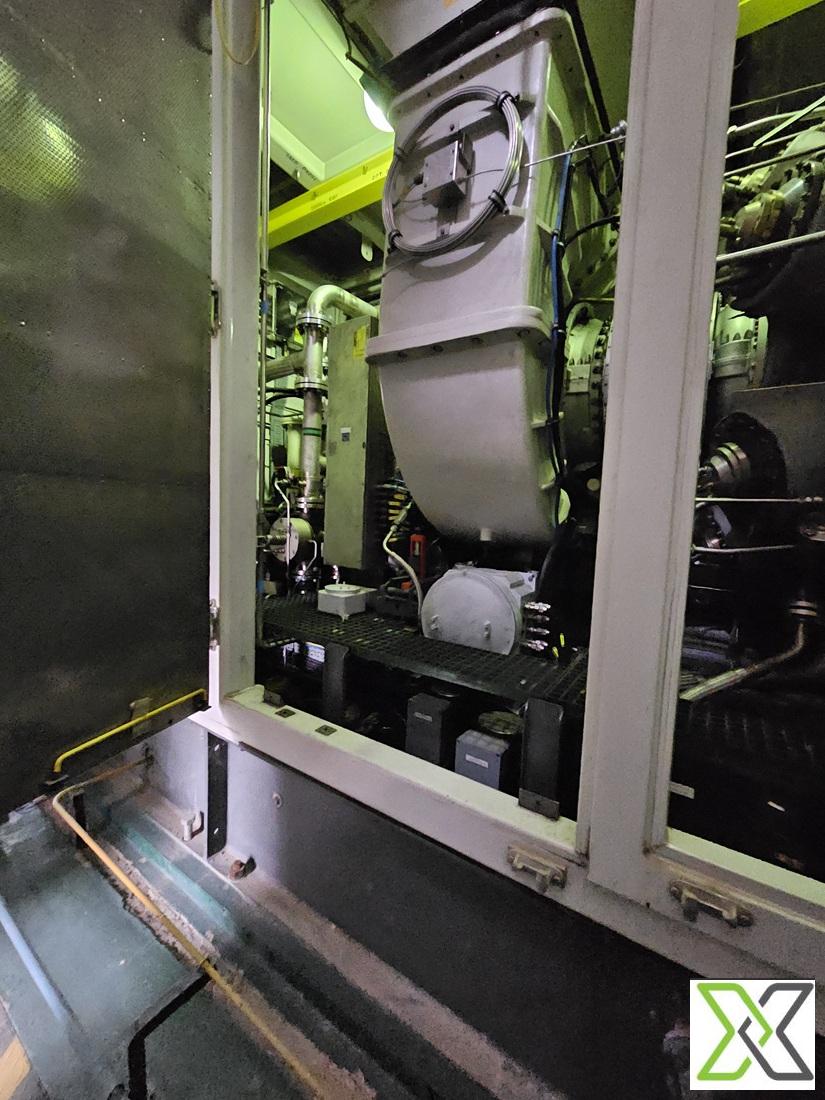

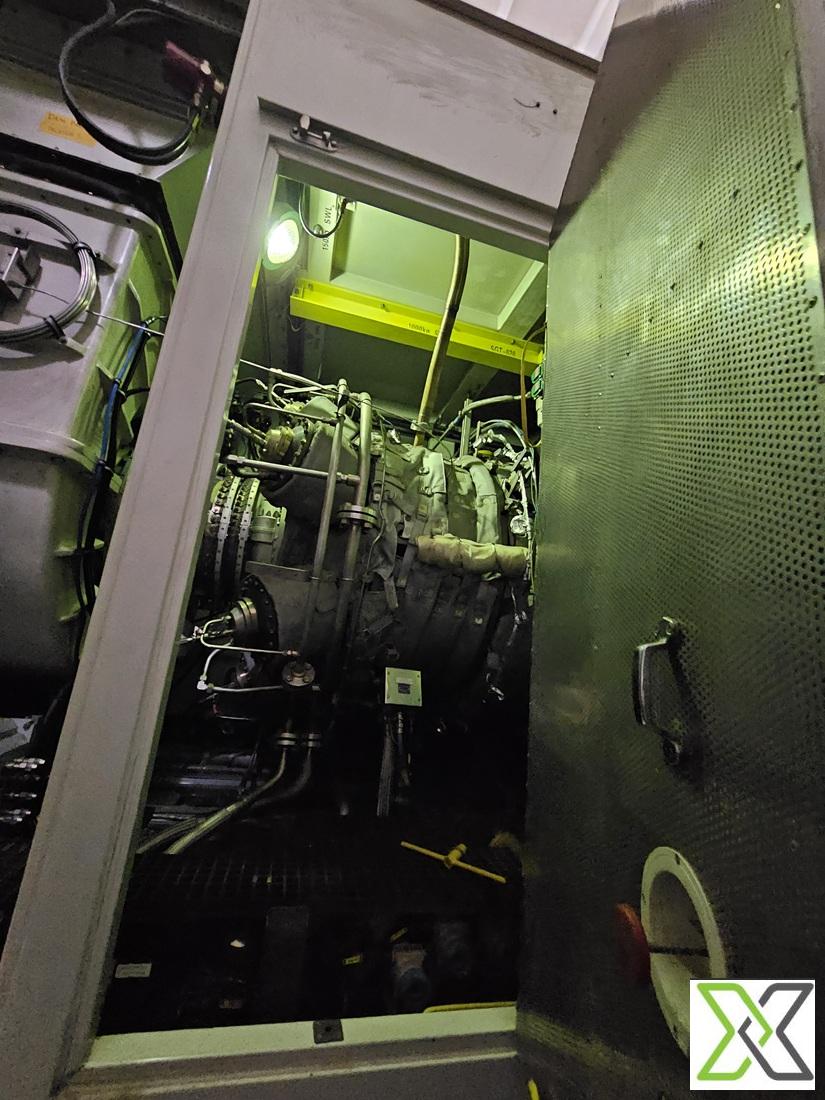

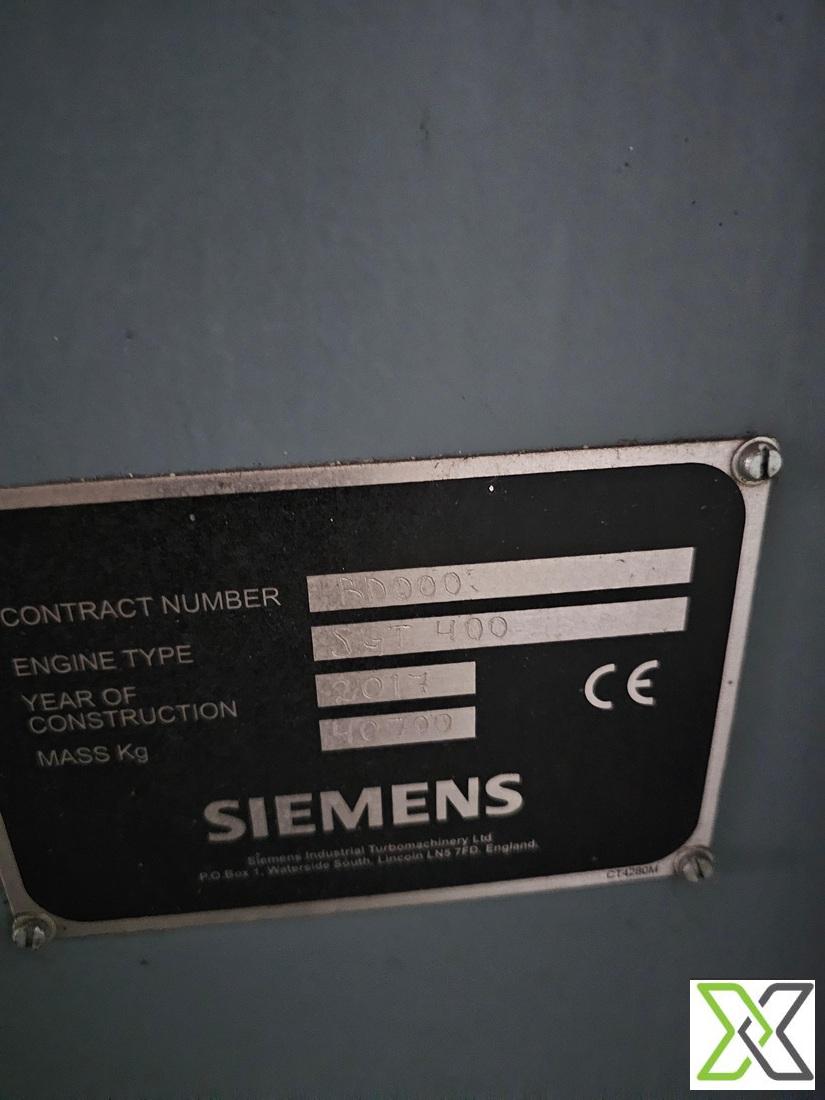

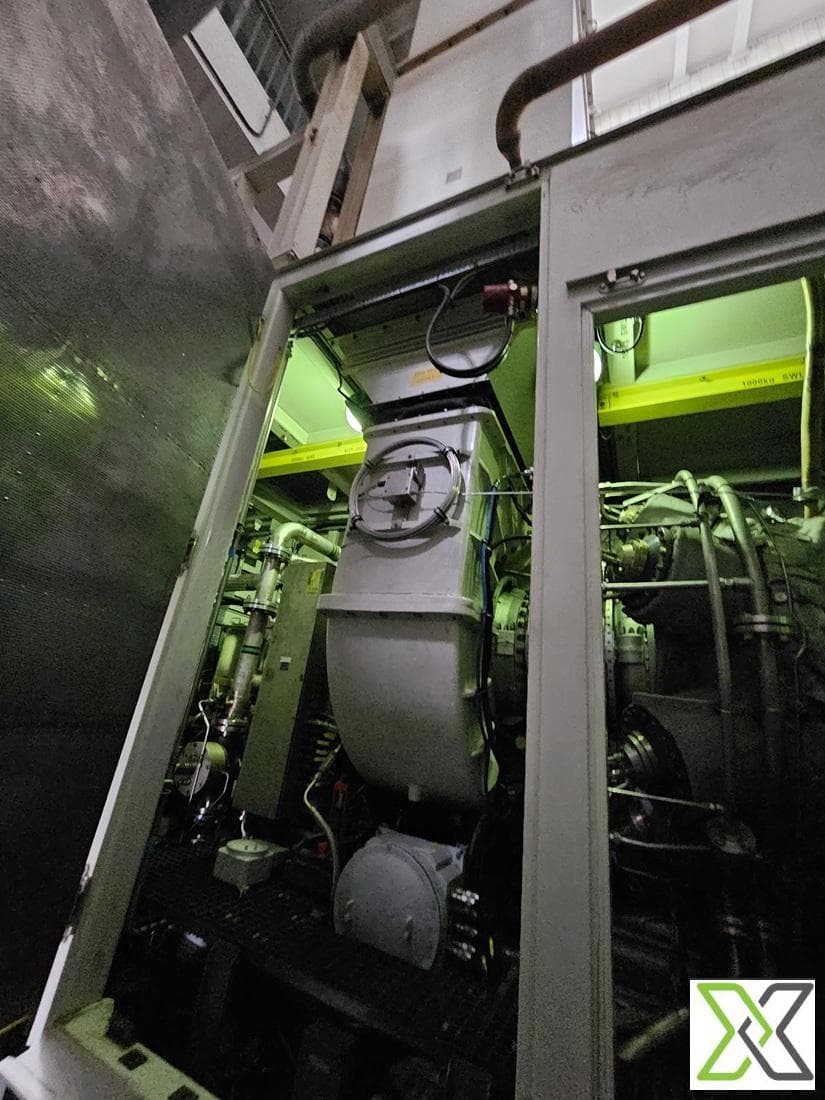

Main Gas Turbine Model: Siemens SGT-400 DLE

Year of Manufacture: 2017

Rated Voltage: 10.5 kV

Frequency: 50 Hz

Total Installed Power: 21 MW

Number of Plants: 2

OPERATING HOURS & STARTS

Operating Hours: 16,072 hours

Number of Starts: 101

PRIMARY FUEL

Fuel Type: Natural Gas

MAIN EQUIPMENT PACKAGE

Gas Turbine Generator: XEMC TFW15-2 (15 MW capacity)

Steam Turbine: C5-3.7/1.2

Steam Turbine Generator: QF-J6-2 (6 MW capacity)

Gear Box: Allen Gears

AUXILIARY & SUPPORTING SYSTEMS

Gearbox Unit

Alternator

Cooler System

Lubrication System

Additional Gas Equipment

Water Treatment Plant

Steam Tank

Steam Turbine (6 MW)

Heat Recovery Steam Generator (HRSG)

Steam Turbine Alternator

Exhaust Chimney

Tube System

Fire Fighting System

Power Transformer

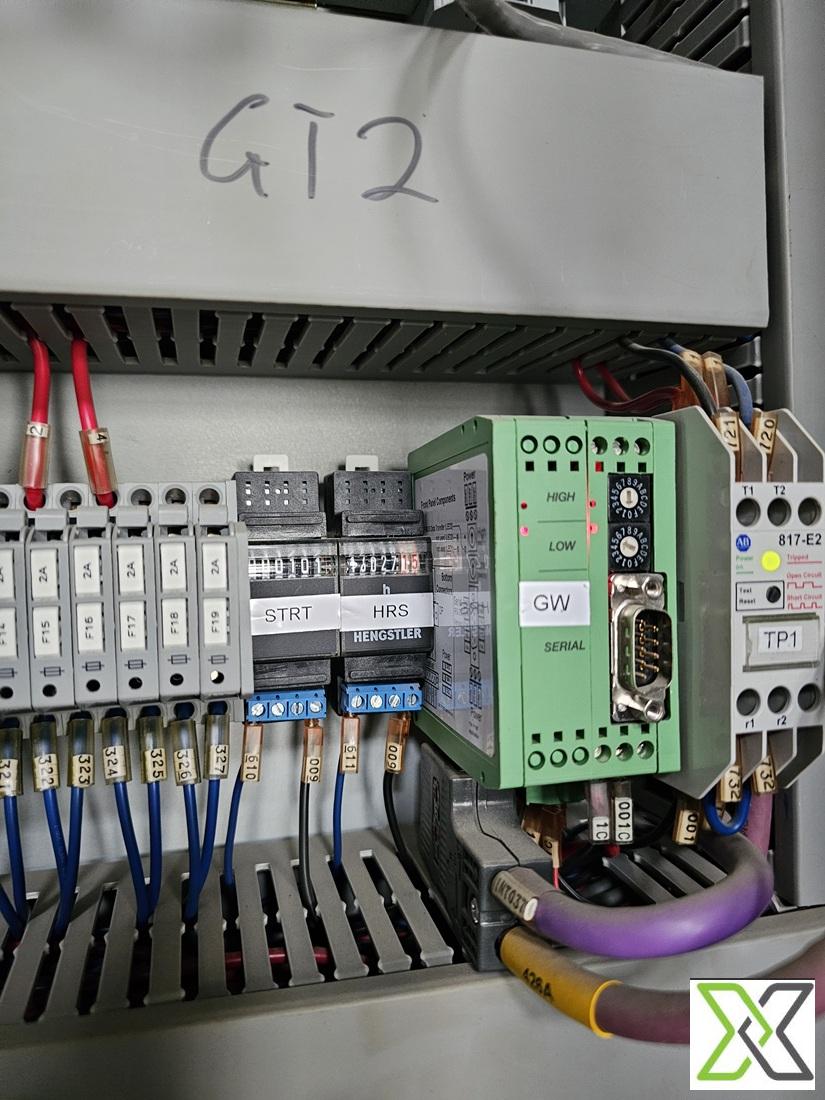

Control Room System

High Voltage Cabinet

Low Voltage Cabinet

Motor Control Center (MCC)

High Voltage Compartments

PLANT CAPACITY & BREAKDOWN

Gas Turbine Capacity: 15 MW (per unit)

Steam Turbine Capacity: 6 MW (per unit)

Combined Plant Output (Each): 21 MW

Total Plant Output (Both Units): 42 MW

SYSTEM VOLTAGE LEVELS

Generation Voltage: 10.5 kV

Auxiliary Systems Voltage:

High Voltage: as per HV cabinet rating

Low Voltage: as per LV cabinet rating

MCC Distribution: typically 400V/690V depending on motor loads

KEY FEATURES

Dry Low Emissions (DLE) combustion technology

Combined gas and steam cycle for higher efficiency

Natural Gas as primary fuel for clean power generation

Modular HRSG with integrated steam turbine generation

Modern lube, cooling, and fire protection systems included

Full auxiliary scope for independent power operation

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com



Technical Details

Model Number
Siemens SGT-400 DLE
Year of Manufacturing
2017
Model Number
Siemens SGT-400 DLE
Year of Manufacturing
2017
Usage Hours
16,072 hours
ISO 15926 Pt 4
7686
PCA RDS Code
RDS820799
CFIHOS ID
CFIHOS-30000534
Fuel type
Natural Gas
Output Power
35 MW
Model Number
Siemens SGT-400 DLE
Year of Manufacturing
2017
Usage Hours
16,072 hours
Voltage
10.5 kV
PCA RDS Code
RDS820799
CFIHOS ID
CFIHOS-30000534
Fuel type
Natural Gas
Output Power
35 MW
Speed
9,500 rpm
Design Specification
combined cycle operation
Normal Operating Temperature
15°C to 40°C
Explosion Protection Gas Group
Group II
Explosion Protection Temperature Class
T3
Explosion Protection Zone
Zone 1
Lower Limit Operating Temperature
-10°C
Operation Continuous Intermittent
Designed for continuous operation
Upper Limit Operating Temperature
40°C
Number Of Shafts
2 (Twin-shaft)
Test Medium
air or natural gas
Test Pressure
typically 30 bar
Turbine Cycle
Combined cycle operation
Insulation Class
Class F

General Terms

  • ReflowX and the seller retain the right to evaluate and approve offers.
  • Buyers should verify quantities and conditions upon delivery.
  • After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
  • All parties agree to adhere to ReflowX Terms and Conditions in transactions.
  • Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
