Description

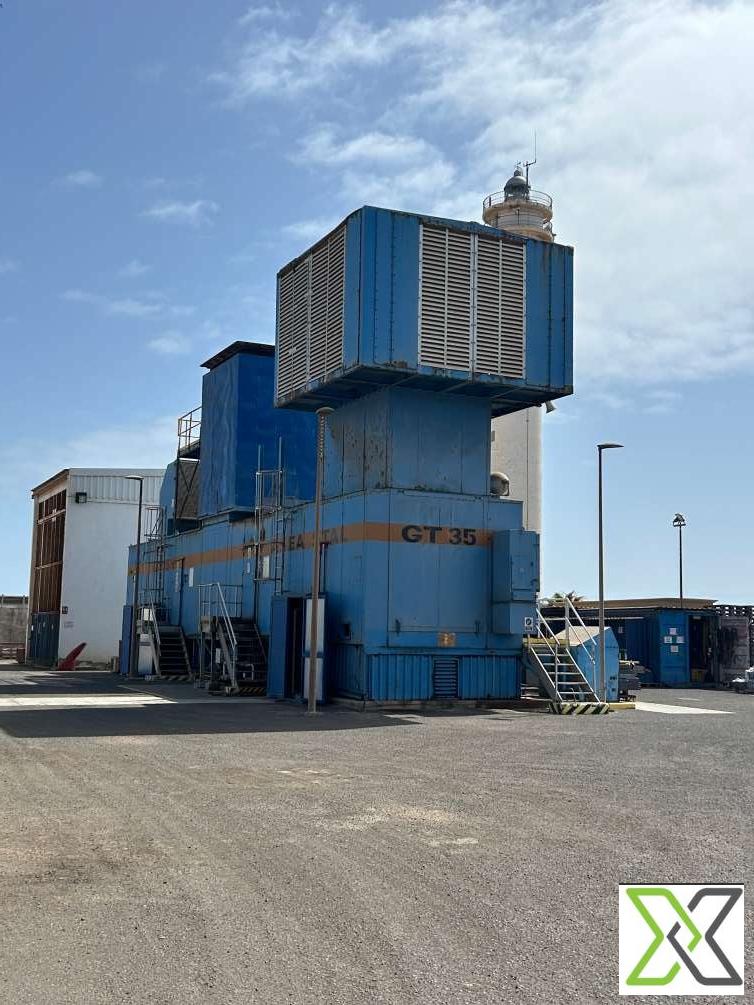

This listing consists of a Siemens SGT-500 industrial gas turbine power generation package, originally manufactured in 1986 and installed at a power plant in Spain. The turbine is configured for liquid fuel operation and includes the associated generator and transformer required for grid connection.

The gas turbine is coupled with an ASEA GTP 1050 EG synchronous generator and supported by a three-phase main transformer manufactured by OASA. The unit was designed for 50 Hz operation, with transformer voltages configured for 66 kV primary and 11.25 kV secondary output.

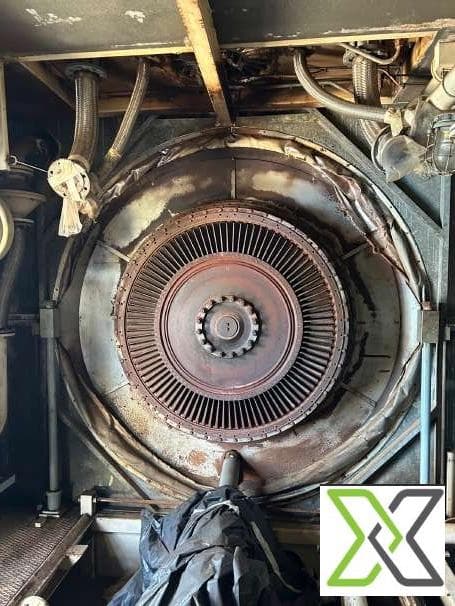

Operational records indicate the turbine accumulated approximately 49,218 operating hours and 7,000 starts at the time of the inspection performed in early 2023. During the inspection, technical personnel conducted visual examinations, dimensional checks, and non-destructive testing across major subsystems including the compressors, combustion chamber, turbines, bearings, and auxiliary systems.

The turbine package includes the primary power generation equipment together with auxiliary systems required for operation and grid connection. The system was previously installed as a complete liquid-fuel-fired power generation unit and is currently available for transfer or redeployment subject to overhaul or refurbishment evaluation.

Specifications
