Product Description

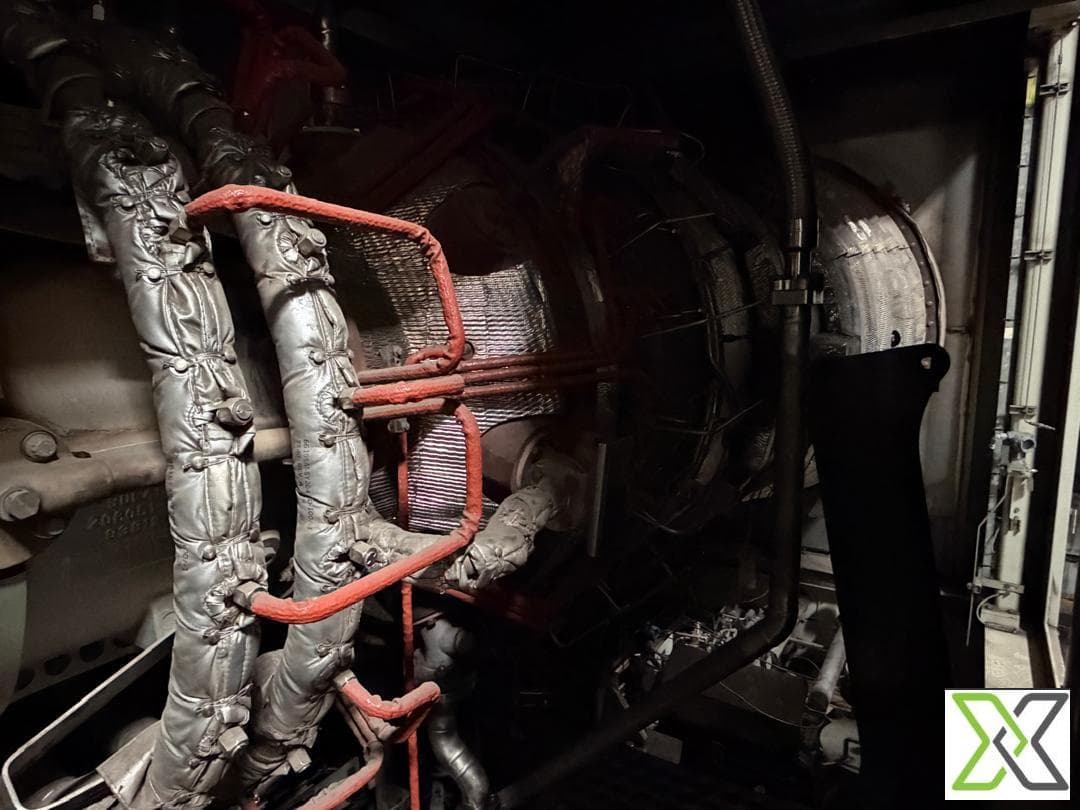

This listing consists of a Solar Titan 130 gas turbine generator package, configured as a mobile single-shaft unit complete with generator and auxiliary systems.

The unit was manufactured in 2015 and is designed for natural gas operation at 50 Hz frequency.

The turbine has accumulated 28,900 operating hours and 391 starts, and is currently in a shut-down condition. As outlined in the technical assessment, the unit is approaching its first major overhaul interval, which should be considered in any operational or commercial planning .

The system is supplied as a complete package including ABB generator, with key auxiliary systems integrated for operation. Internal inspection data such as borescope reports are not currently available.

Specifications

Technical Configuration

Compressor:

• 14 stages (6 variable stages)
• Pressure ratio: 17:1
• Flow rate: 47.8 kg/s
• Speed: 11,197 rpm

Combustor:

• Annular type
• Torch ignition (1 igniter)
• 21 fuel nozzles

Turbine:

• Reaction type
• 3 stages
• Turbine inlet temperature: 1,121°C
• Exhaust temperature: 475°C

Scope of Supply

The package includes:

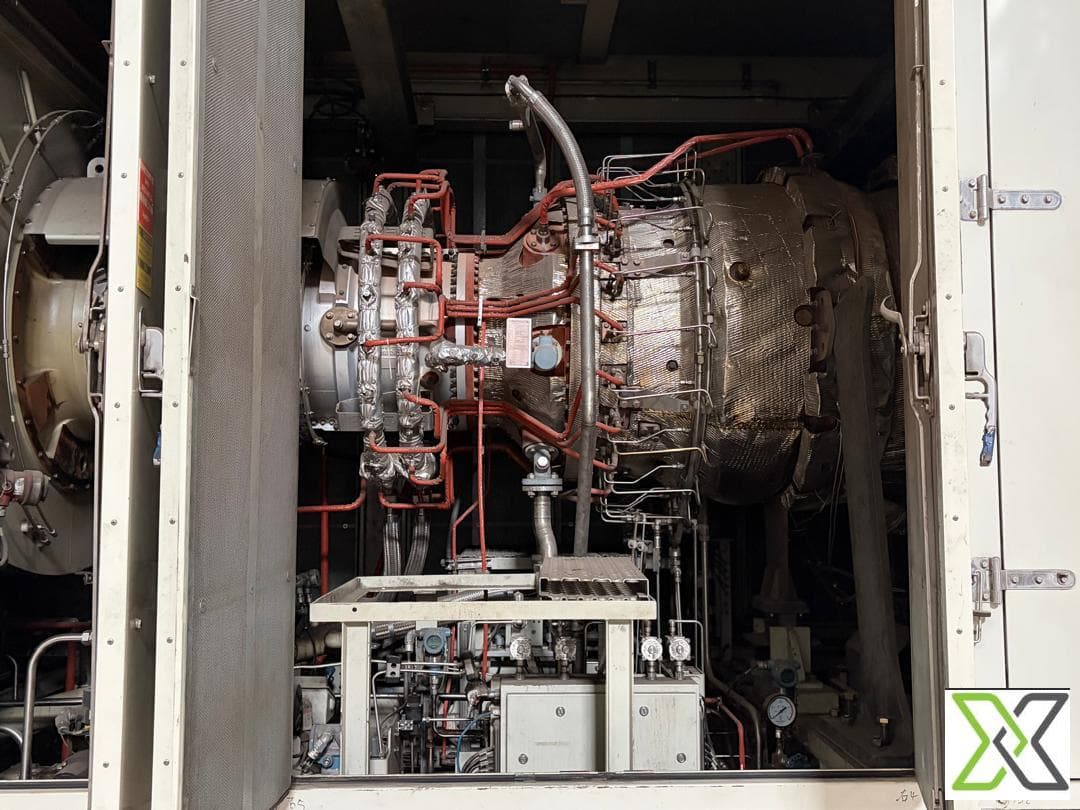

• Gas turbine core (compressor, combustor, turbine)
• Reduction gearbox with vibration monitoring system
• 11 kV, 50 Hz three-phase generator

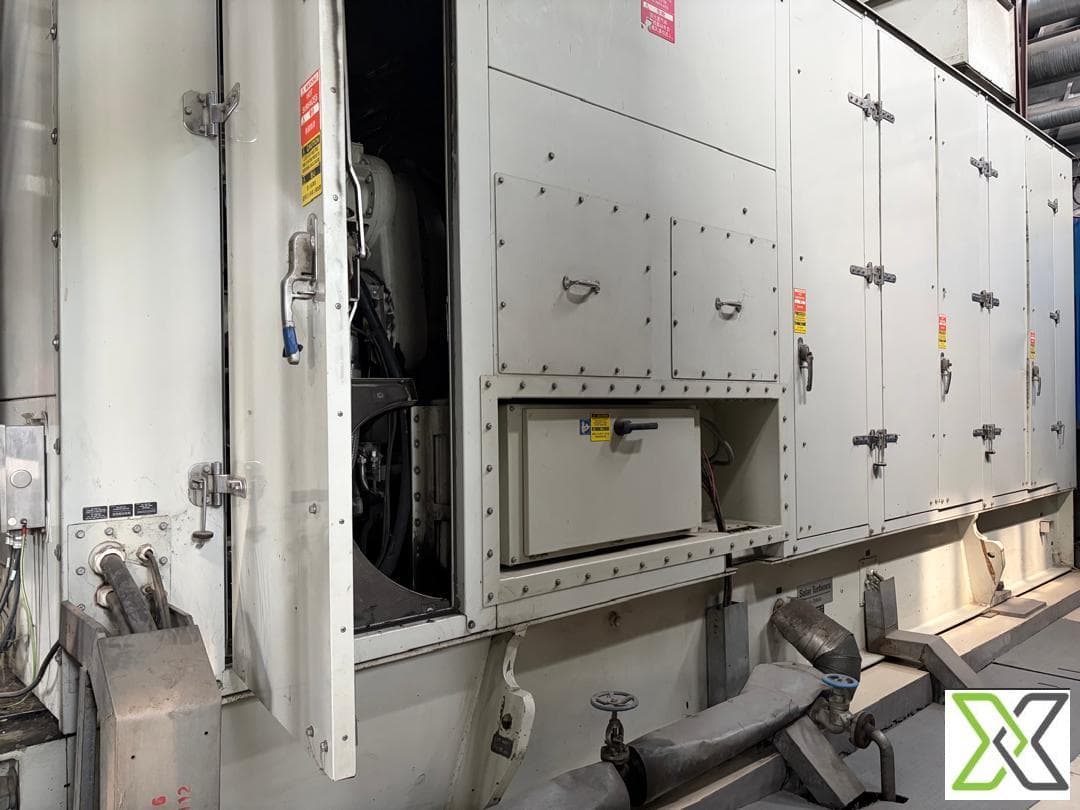

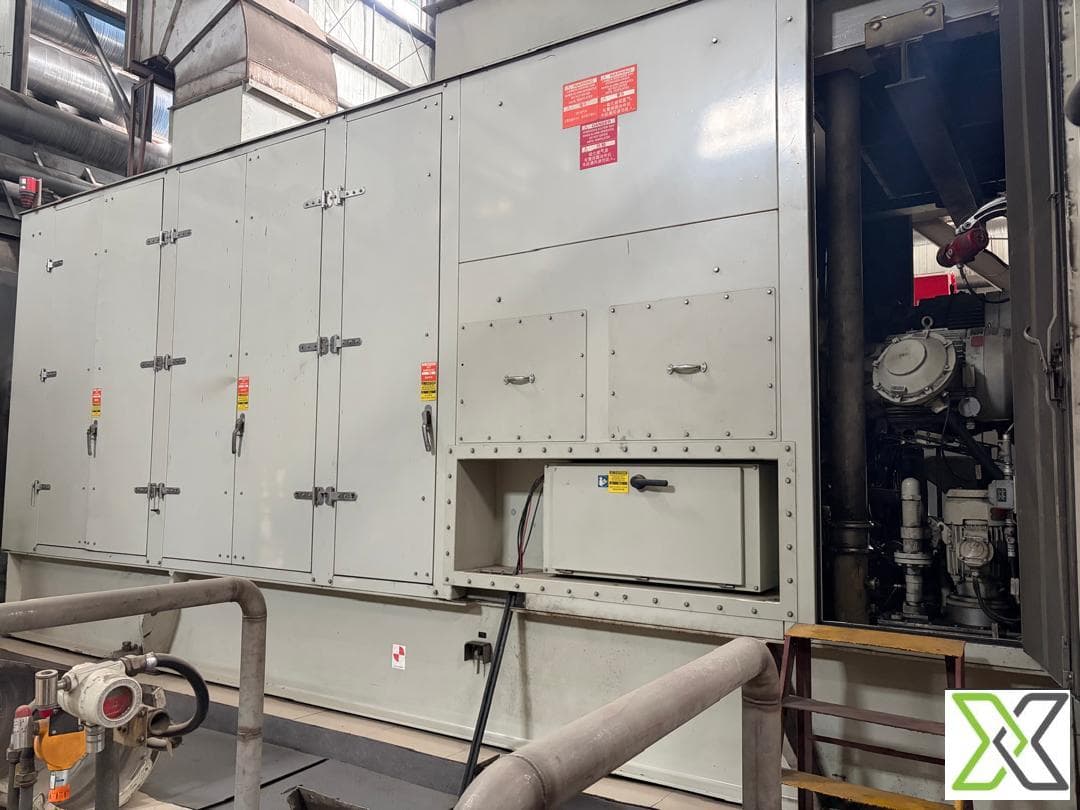

• Full turbine enclosure with H₂ and CO monitoring systems
• Lube oil system with headers and filtration

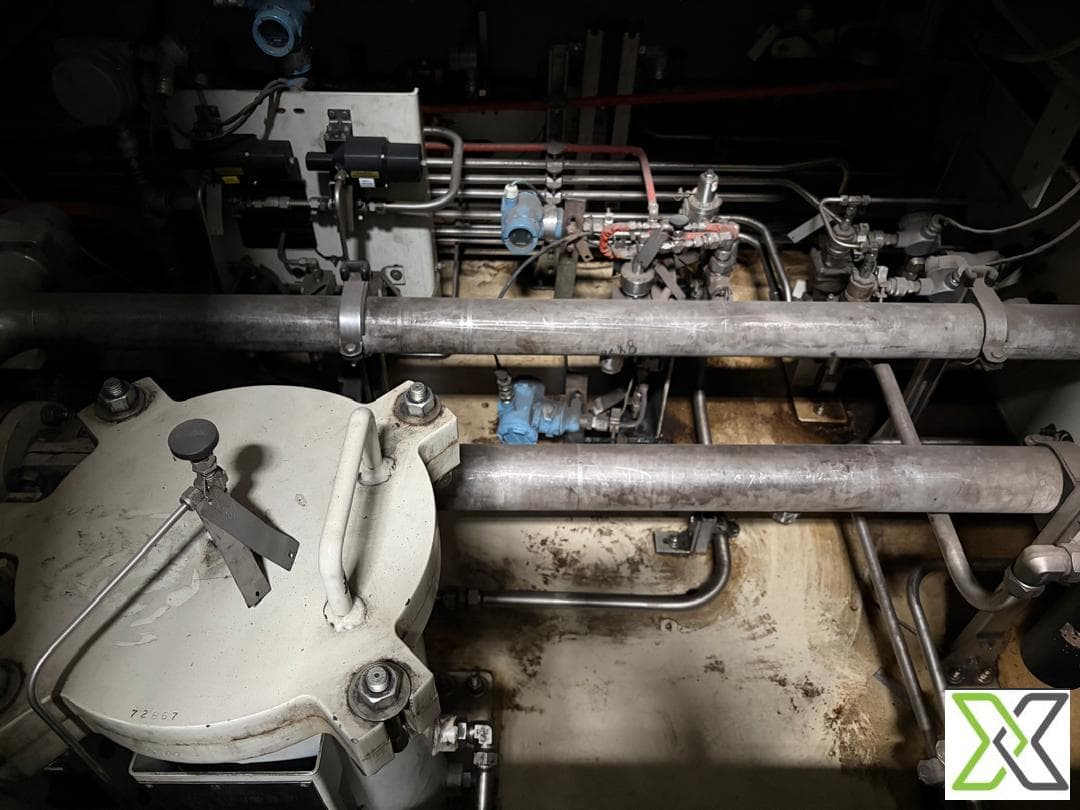

• Gas control and filtration system
• Nitrogen and air supply systems
