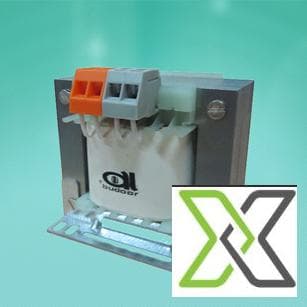

Low Voltage Power Transformer – Up to 50 kVA, Custom Voltage

ReflowX SKU: REF-4479

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Al Budoor Transformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Compact low voltage transformer up to 50 kVA, suitable for custom or standard voltages between 12V–690V. Built with high-grade silicon steel core, copper or aluminum windings, and optional enclosures up to IP54.

Description

Low Voltage Power Transformer – Up to 50 kVA, Custom Voltage

This low voltage power transformer is designed for flexible industrial, commercial, and power distribution applications. Offering a rated power capacity of up to 50 kVA, it supports standard voltages from 12V to 690V, with custom voltage configurations available to suit project-specific requirements.

Constructed using high-grade silicon steel laminations, the transformer delivers high efficiency with minimal losses. Windings are available in copper or aluminum, based on cost or performance preferences. Insulation is generally rated at Class F or H, suitable for demanding temperature and duty cycle environments.

A range of enclosure types is offered, including open type and metal enclosures (powder coated or galvanized). Protection classes from IP23 to IP54 ensure compatibility with indoor or semi-outdoor installations. Optional thermal overload protection adds operational safety and extends service life.

These transformers are built for low noise, high short-circuit strength, and are ideal where compact, custom, and efficient solutions are needed.

Specifications:

– Rated Power: Up to 50 kVA
– Input Voltage (Standard Range): 100V to 690V
– Output Voltage (Standard Range): 12V to 690V
– Custom Voltages: Available upon request
– Frequency:
– 50 Hz
– 60 Hz
– Dual Frequency (50/60 Hz)
– Other Frequencies on Request
– Core Material: High-grade silicon steel laminations
– Winding Material: Copper or Aluminum (as per project specification)
– Insulation Class: Typically F or H
– Enclosure Type:
– Open Type
– Metal Enclosure (powder coated or galvanized)
– Protection Class: IP23 / IP44 / IP54 (as required)
– Thermal Protection: Optional overload protection available
– Mechanical & Electrical Features:
– High efficiency, low loss
– High short-circuit withstand strength
– Low acoustic noise during operation

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	700 mm – 850 mm
Width	500 mm – 650 mm
Length	600 mm – 800 mm
Weight	220 kg – 300 kg
Usage Hours	00
Voltage	100V to 690V
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not Applicable
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Rated Primary Winding Voltage	220 V, 230 V, 400 V, 415 V, 480 V, 600 V AC
Rated Secondary Winding Voltage	110 V, 115 V, 120 V, 208 V, 220 V, 230 V AC
