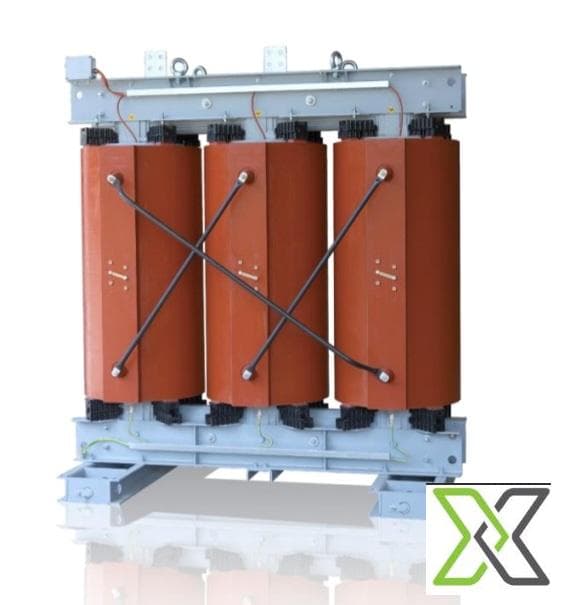

Standard Dry Type & Oil-Immersed Transformer

ReflowX SKU: REF-5169

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Cruxtransformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Versatile distribution transformer available in both dry type and oil-immersed versions, with IP00 or IP44 enclosures. Base-mounted or substation configuration with optional cooling fans and copper/aluminum windings.

Description

Standard Dry Type & Oil-Immersed Transformer

Long Description:
This multi-configuration distribution transformer is engineered for flexible deployment across industrial and commercial environments. It is available in Standard Dry Type or Oil-Immersed configurations, offering users the choice between open-frame IP00 or enclosed IP44 protection. Designed for stationary base-mounted setups or package substations, the unit can also be equipped with removable bi-directional rollers for improved mobility during installation or maintenance.

The core is constructed from high-grade, cold-rolled, grain-oriented silicon steel laminations, delivering high efficiency and minimal energy losses. Windings are offered in copper or aluminum, depending on project or cost requirements, and are vacuum impregnated to improve dielectric strength and thermal performance.

Cooling options include natural air (AN) for dry types and natural oil (ONAN) for oil-filled types. For higher loads, optional cooling fans with manual or automatic control systems can be added to enhance thermal management and maintain transformer integrity under demanding conditions.

Specifications:

– High-efficiency CRGO core for low core losses
– Multiple enclosure and mounting options
– Copper or aluminum windings as per user preference
– Forced cooling system available for enhanced capacity
– Suitable for integration into substations or enclosed panels
– Open-frame (IP00) for indoor panels, or IP44 for protected locations

– Transformer Type:
• Standard Dry Type Transformer
• Oil-Immersed Transformer
– Enclosure Protection:
• IP00 (Open Type – Indoor Applications)
• IP44 (Enclosed – Dust & Splash Proof)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	900 mm to 2500 mm
Width	800 mm to 2500 mm
Length	800 mm to 2800 mm
Weight	500 kg to 8,000 kg
Usage Hours	00
Voltage	400 V, 415 V, 11 kV
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not Applicable
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Insulation Class	Not Applicable
Rated Primary Winding Voltage	66 kV, 110 kV, 132 kV, 220 kV, 400 kV (Power)
Rated Secondary Winding Voltage	400 V, 415 V, 11 kV, 33 kV
