Cast Resin Dry-Type Transformer – 11kV/433V, 3-Phase, Indoor/Outdoor

ReflowX SKU: REF-5932

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

SEA Trasformatori S.p.A. (Italy)
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

High-capacity 4000 kVA cast resin dry-type transformer for 11kV/433V applications, with aluminium windings, GOES laminated core, and dual cooling options (AN/AF) for indoor or outdoor installations.

Description

Cast Resin Dry-Type Transformer – 11kV/433V, 3-Phase, Indoor/Outdoor

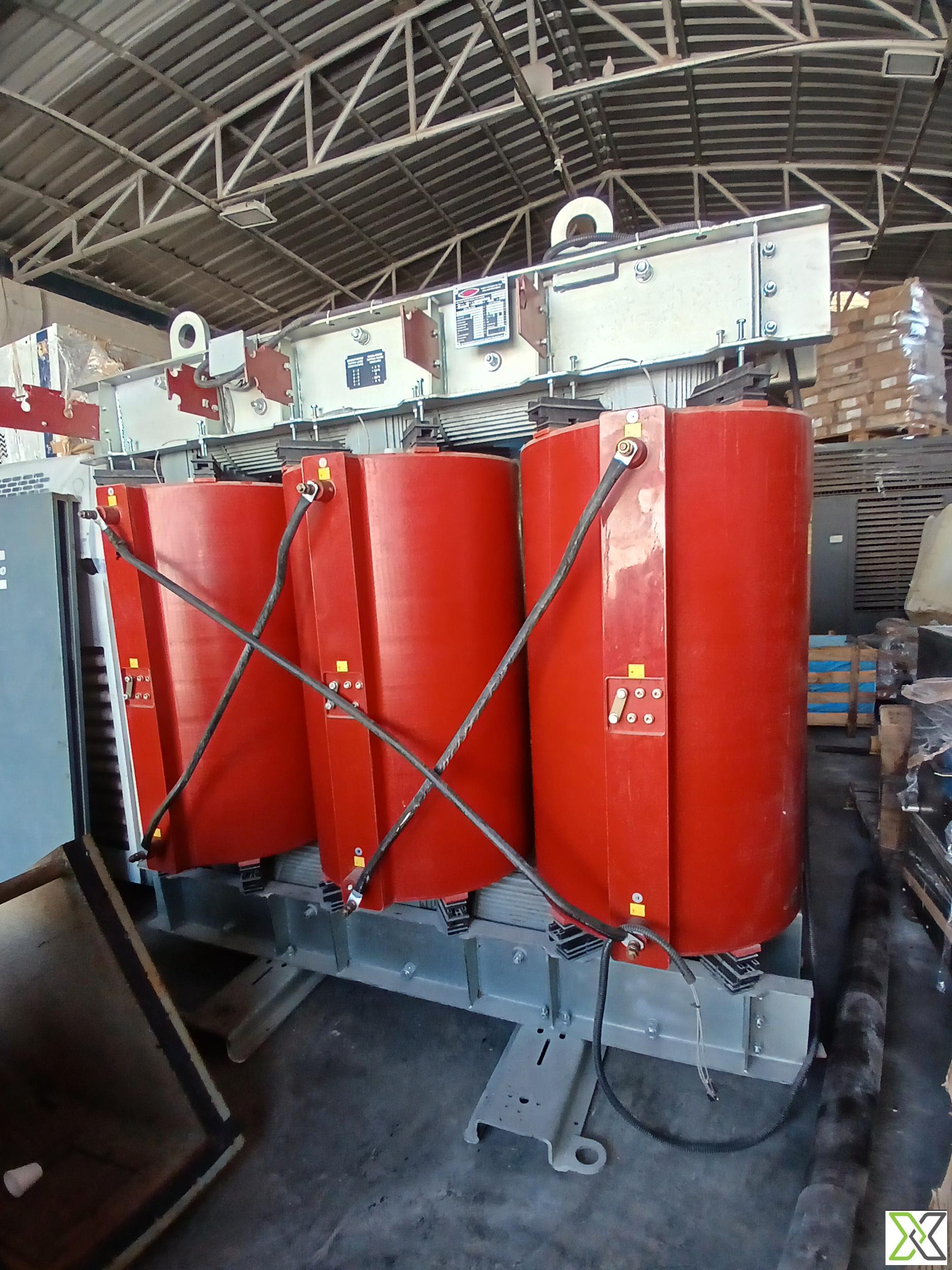

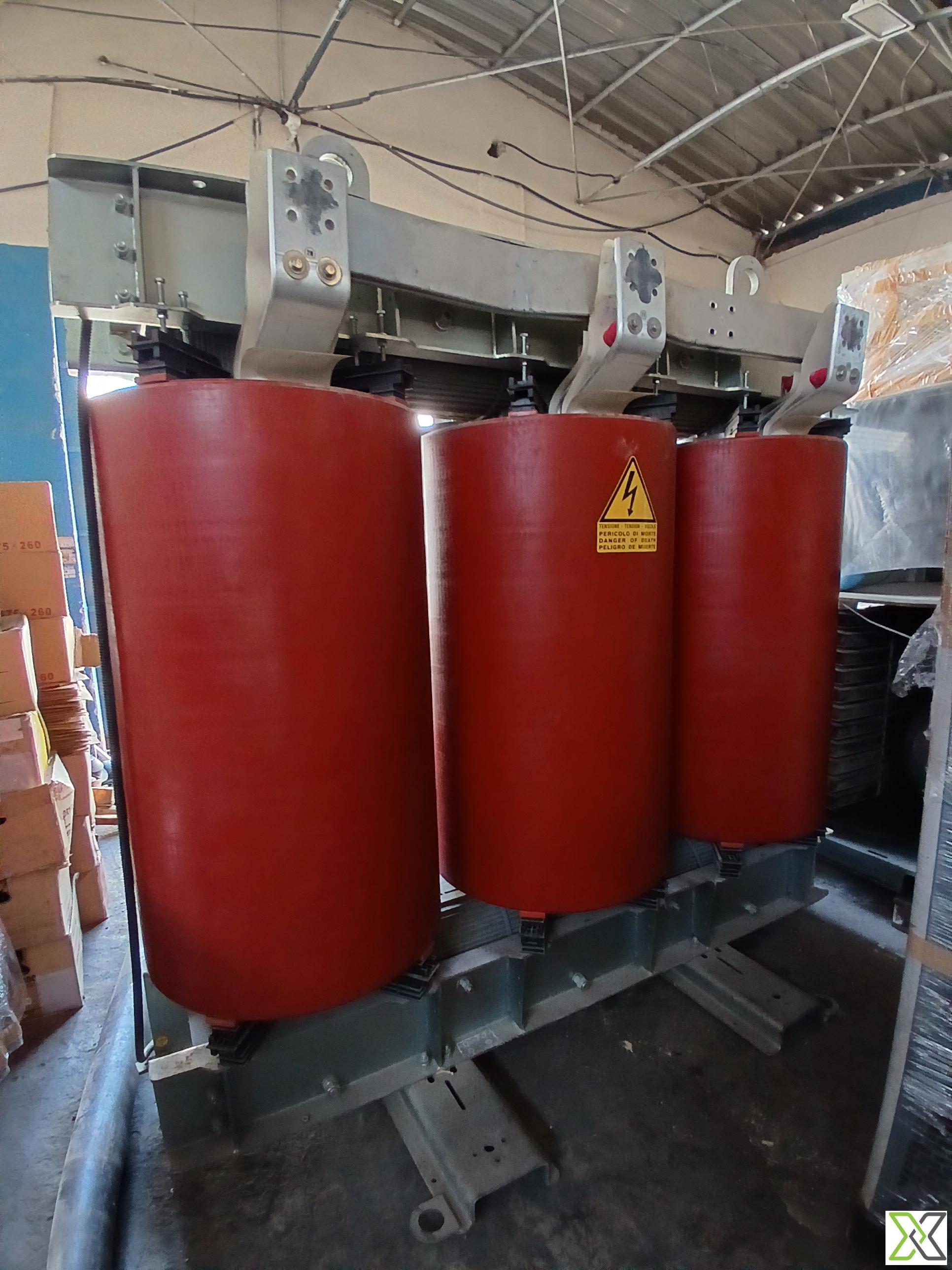

The 4000 kVA cast resin dry-type transformer is a three-phase, high-performance unit engineered for industrial, commercial, and utility applications. Designed for operation at 50 Hz, this transformer supports a primary voltage of 11 kV and a secondary voltage of 433 V, with a tap range of ±2 × 2.5% for voltage regulation. It features a cold-rolled, grain-oriented silicon steel (GOES) laminated core for low-loss performance, combined with aluminium windings to optimize cost-effectiveness and weight. The transformer offers AN (Air Natural) cooling with optional AF (Air Forced) for enhanced thermal management. Rated for both indoor and outdoor installation (with suitable enclosure), it uses Class F insulation and a Dyn11 vector group configuration. The unit achieves a PEI (Peak Efficiency Index) of 99.35% and demonstrates excellent thermal behavior with a winding temperature limit of 100°C. Built in 2019, the transformer has a short circuit impedance of 7.86% and features no-load losses of 6000 W and load losses at 120°C of 28300 W. It is ideal for high-efficiency power distribution in demanding environments.

Specifications:

– Transformer Type: Cast Resin Dry-Type Transformer
– Phase Configuration: 3-Phase
– Frequency: 50 Hz
– Power Rating: 4000 kVA
– Cooling Method: AN (Air Natural) / AF (Air Forced) optional
– Installation Type: Indoor or Outdoor (with enclosure)
– Core Type: Low-loss cold-rolled grain-oriented silicon steel (GOES) laminated core
– Year of Manufacture: 2019

– Rated Voltage: 11 kV
– Max Voltage: 12.28 kV

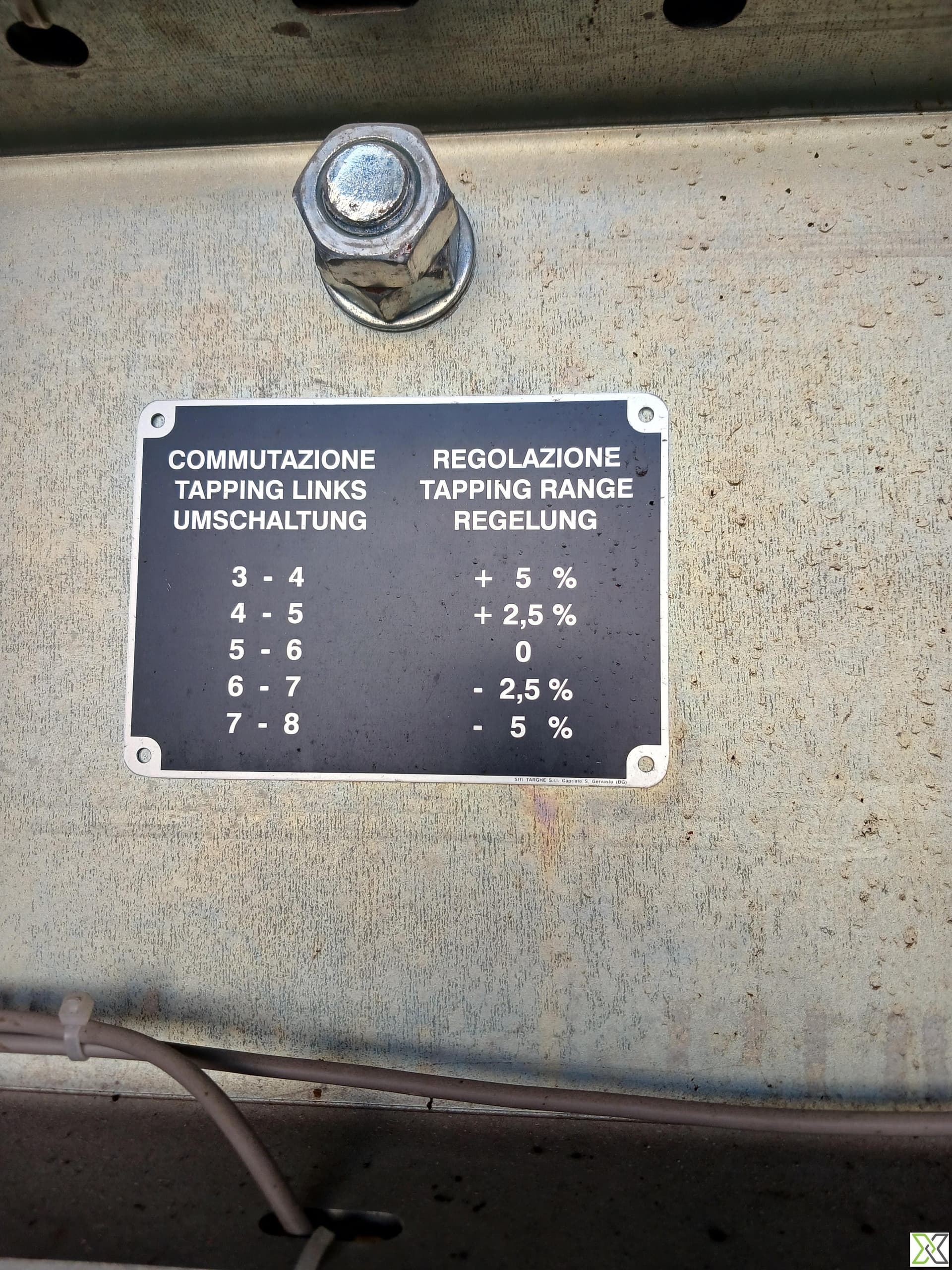

– Tap Range: ±2 × 2.5%

– Rated Voltage: 433 V
– Max Voltage: 533.3 V

– Insulation Class: F
– Winding Temperature Limit: 100°C
– Connection Symbol: Dyn11
– Short Circuit Impedance: 7.86 %

– No-load Loss (Po): 6000 W
– Load Loss at 120°C (Pk): 28300 W
– Total Losses (Pco): 0 W

– PEI: 99.35%
– kPEI: 46.05%

– Core Material: Grain-Oriented Electrical Steel (GOES)
– Conductor Material: Aluminium (Al)

– Transformer Mass: 9100 kg

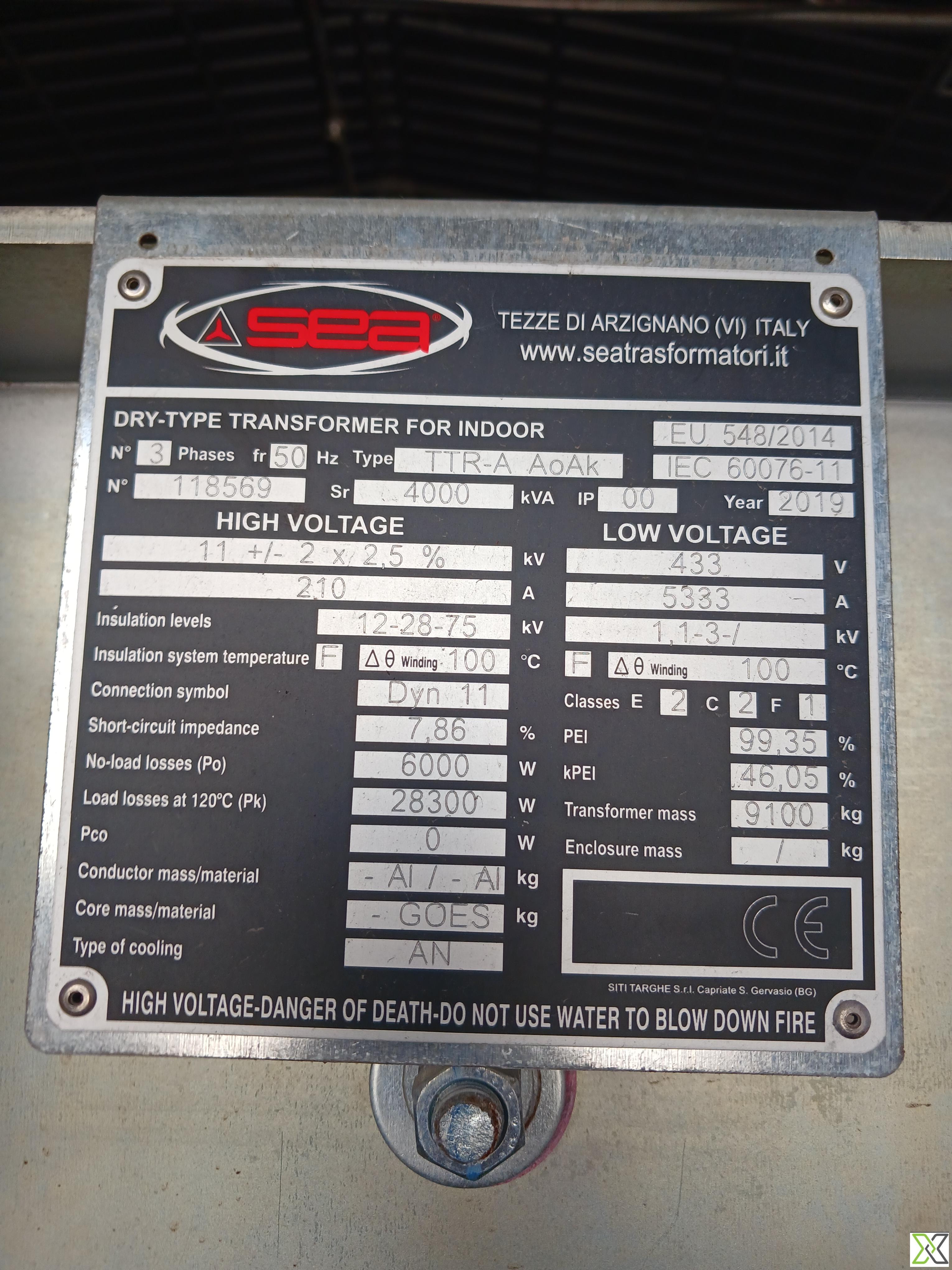

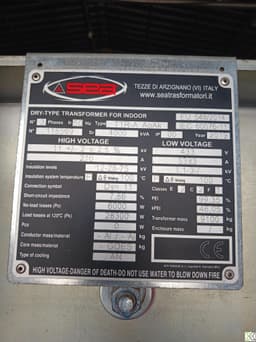

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2019
Height	2300 mm
Width	1700 mm
Length	2800 mm
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
Output Power	4000 kVA
IFC Class	IfcTransformer
Explosion Protection Gas Group	IIC
Explosion Protection Temperature Class	T4
Explosion Protection Zone	Zone 1 or Zone 2
Insulation Class	F (155°C) or H (180°C)
Rated Primary Winding Voltage	11 kV
Rated Secondary Winding Voltage	0.4 kV (400 V)
