Portable Transformer with Socket Distribution – Up to 80 KVA

ReflowX SKU: REF-8172

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Cruxtransformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Rugged portable transformer with multiple socket outlets, available up to 80 KVA. Configurable for single or three-phase input, with output voltages of 12V, 24V, 110V, or 230V. Offered in GRP (up to 5 KVA) or IP55 metal enclosures (5–80 KVA).

Description

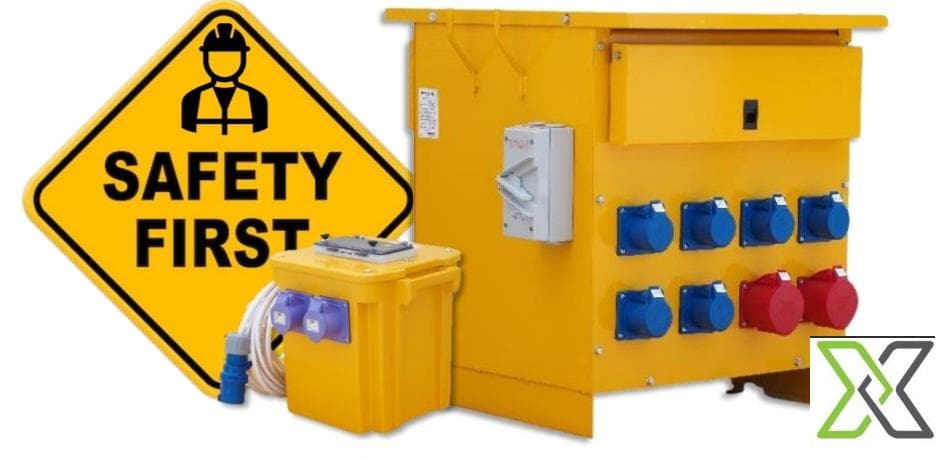

Portable Transformer with Socket Distribution – Up to 80 KVA

This portable transformer unit is engineered to deliver reliable, low-voltage power distribution across a variety of environments, including construction sites, industrial plants, outdoor installations, and temporary setups. Supporting capacities up to 80 KVA, this unit accepts single-phase (220V / 230V) and three-phase (380V / 400V / 415V / 440V) inputs, and delivers safe output voltages of 12V, 24V, 110V, or 230V, depending on application needs.

Units rated 1 KVA to 5 KVA are housed in GRP (Glass Reinforced Polyester) enclosures, which are lightweight, corrosion-resistant, and non-conductive, ideal for light-duty and portable use. Models above 5 KVA up to 80 KVA are enclosed in IP55-rated powder-coated metal enclosures, ensuring robust performance in outdoor and industrial environments.

The transformer features configurable socket panels, compatible with various socket types and protection ratings, including IP44 (splash-proof) and IP65 (dust-tight and water-jet proof). Input connection is provided via a cable and plug, while output configurations include cable glands or industrial male sockets.

Enclosure options include IP23, IP44, and IP55, offering scalable protection from light spray to full dust and water jet ingress.

Specifications:

– Portable transformer with integrated power distribution sockets
– Wide input compatibility with multiple voltage options
– Durable GRP or metal enclosure based on capacity
– Plug-and-play with included input cable and sockets
– Suitable for both indoor and outdoor use

– Capacity: Up to 80 KVA
– Input Voltages:
• Three-Phase: 380V / 400V / 415V / 440V
• Single-Phase: 220V / 230V
– Output Voltages: 12V / 24V / 110V / 230V

– Custom-built from 1 KVA to 80 KVA
– Wide socket compatibility with international standards
– Multiple IP-rated configurations available

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	1000 mm and 3000 mm
Width	800 mm and 2500 mm
Length	1200 mm and 4000 mm
Weight	300–800 kg
Usage Hours	00
Voltage	12V 24V 110V 230V
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 1 or Zone 2
Insulation Class	Class F (155°C) or Class H (180°C) insulation
Rated Primary Winding Voltage	1 KVA to 5 KVA
Rated Secondary Winding Voltage	5 KVA to 80 KVA
