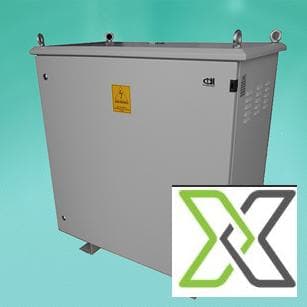

Distribution Transformer – Oil-Immersed or Dry Type

ReflowX SKU: REF-5785

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Albudoortransformer
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

High-capacity distribution transformer up to 3 MVA, designed for 33 kV primary systems with customizable secondary voltages. Available in oil-immersed or dry-type construction with ONAN/AN cooling and insulation Class A, F, or H.

Description

Distribution Transformer – Oil-Immersed or Dry Type

This up to 3 MVA distribution transformer is built to deliver dependable and efficient power across industrial, utility, and commercial networks. Designed with primary voltage up to 33 kV, it supports a wide range of secondary voltages including 400V, 415V, 11kV, and 13.8kV, with additional configurations available upon request to match specific system requirements.

The transformer is available in two robust formats — oil-immersed (ONAN cooling) and dry-type cast resin (AN cooling) — tailored to suit various environments and installation constraints. It supports both 50 Hz and 60 Hz operations, making it compatible with international grid standards. Insulation is available in Class A, F, or H, depending on thermal and safety considerations.

Manufactured in accordance with IEC 60076, BS EN 60076, and ANSI / IEEE C57.12 standards, this transformer ensures safety, longevity, and high performance in all operating conditions.

Specifications:

– Rated Power: Up to 3 MVA
– Primary Voltage: Up to 33 kV
– Secondary Voltage Options:
– 400 V
– 415 V
– 11 kV
– 13.8 kV
– Custom voltages on request
– Frequency: 50 Hz / 60 Hz
– Transformer Type Options:
– Oil-Immersed Transformer
– Dry Type (Cast Resin) Transformer
– Cooling Method:
– ONAN (Oil Natural Air Natural) for oil-immersed
– AN (Air Natural) for dry-type
– Insulation Class: A / F / H (application-dependent)
– Duty Cycle: Continuous (S1)
– Standards Compliance:
– IEC 60076
– BS EN 60076
– ANSI / IEEE C57.12

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	2200 mm – 3000 mm
Width	1400 mm – 2200 mm
Length	2000 mm – 3500 mm
Weight	3,000 kg – 6,000 kg
Usage Hours	00
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Optional T4
Explosion Protection Zone	Zone 2
Rated Primary Winding Voltage	Standard up to 33,000 V
Rated Secondary Winding Voltage	Common outputs: 11 kV, 6.6 kV, 3.3 kV, 400 V, or 230 V AC
