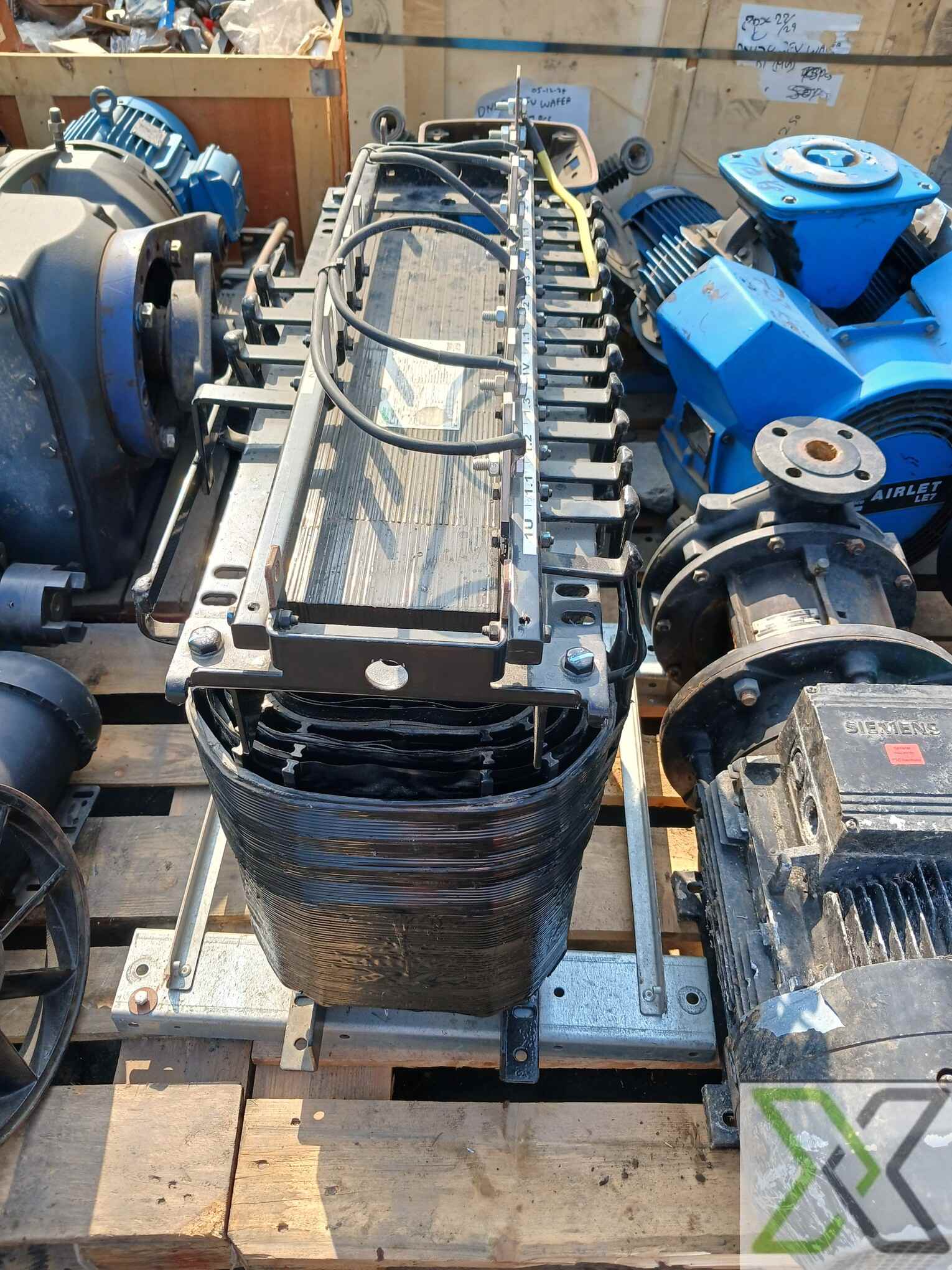

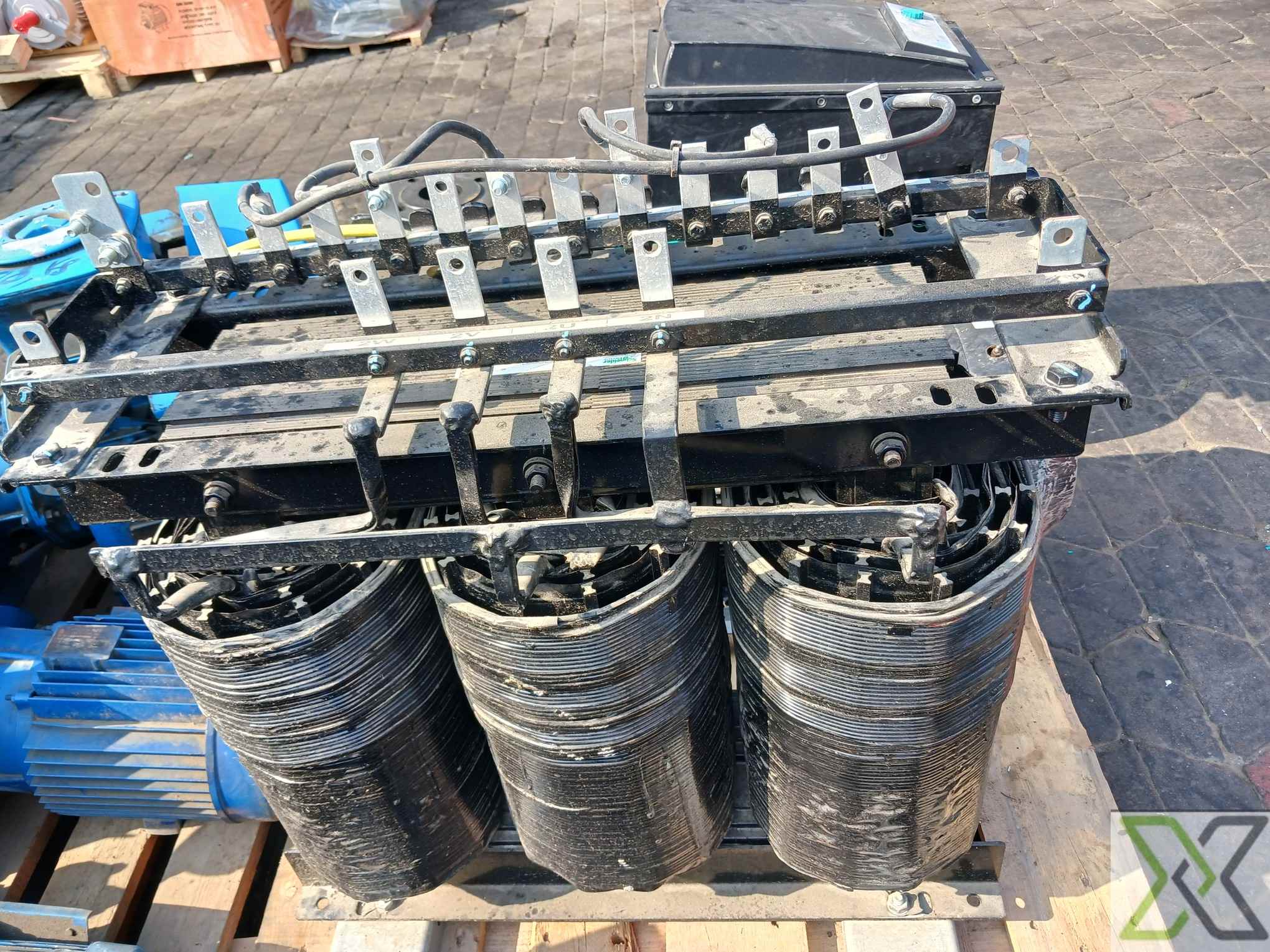

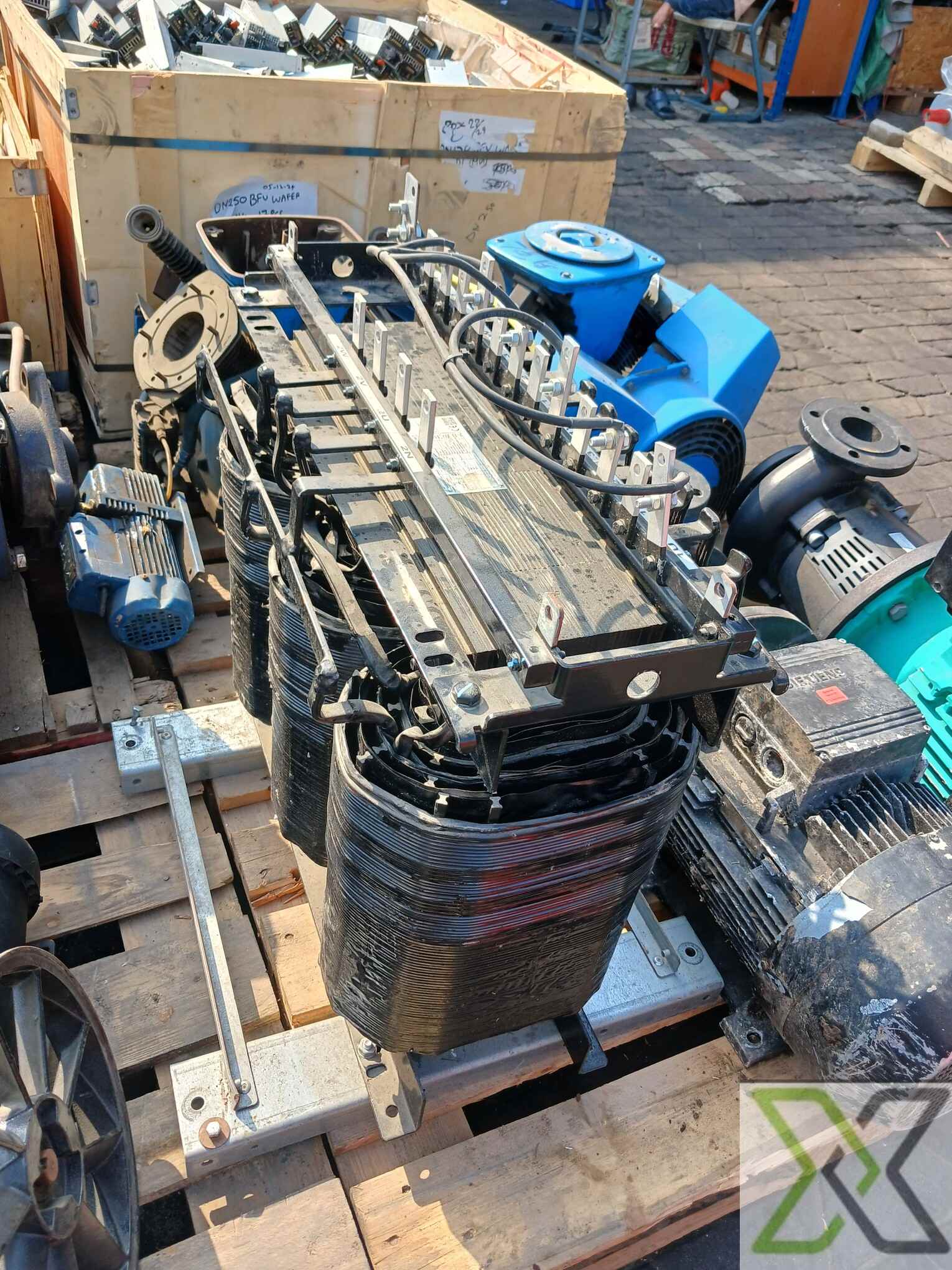

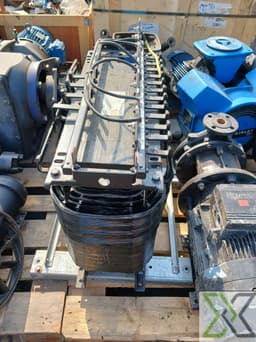

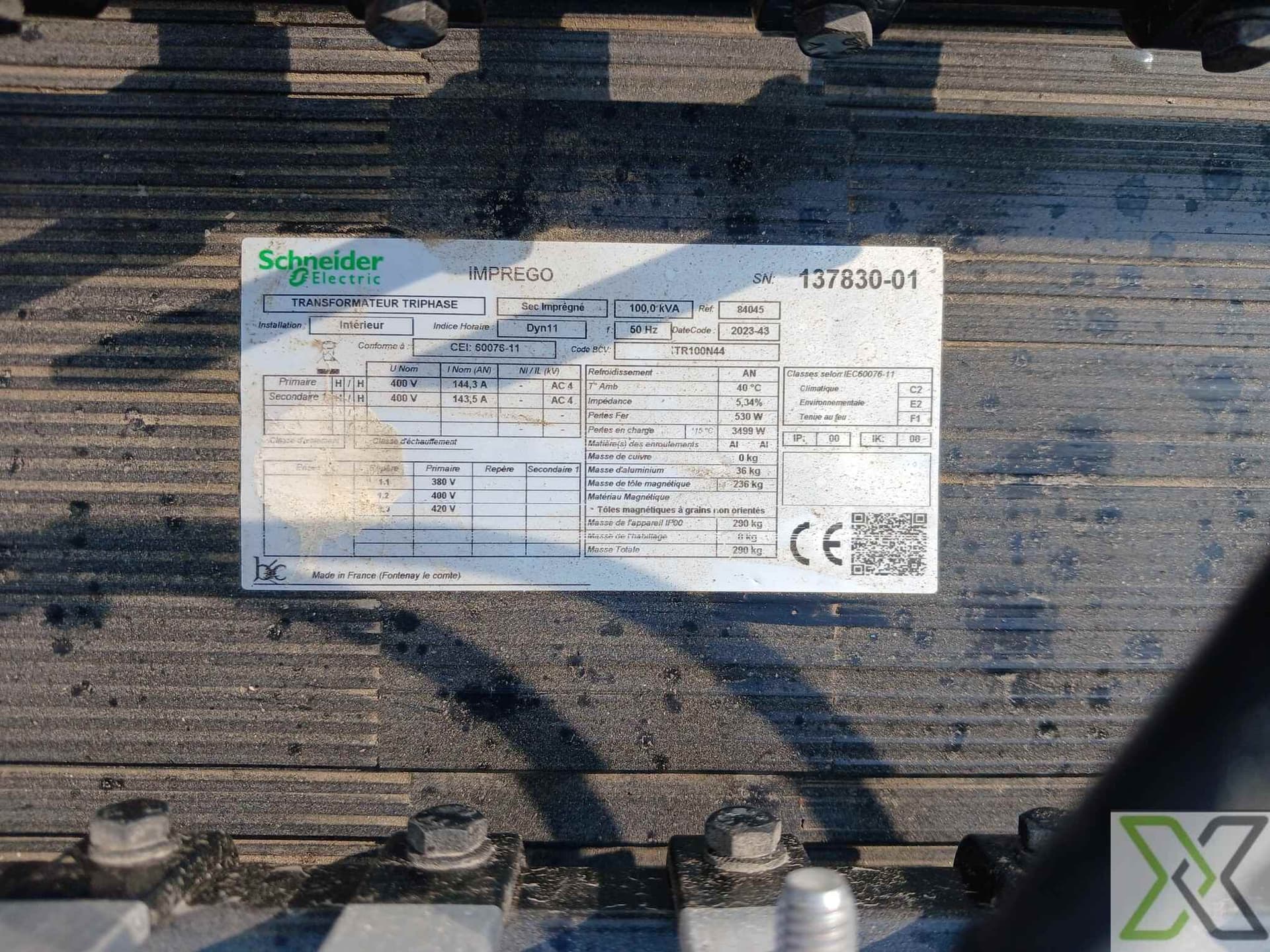

- Schneider Electric Three Phase Transformer IMPREGO
Description
Schneider Electric IMPREGO Transformer – Full Specifications
General Information
- Manufacturer: Schneider Electric
- Model: IMPREGO
- Type: Three-Phase Transformer
- Country of Manufacture: France
- Compliance: CE Marked, IEC 60076 Compliant
Electrical Specifications
- Power Rating: 37.5 kW
- Primary Voltage: 400V AC
- Secondary Voltage: 400V AC
- Current Rating: 135 A
- Frequency: 50-60 Hz
- Efficiency Class: High-Efficiency Industrial Transformer
Mechanical & Design Features
- Cooling Type: Dry-Type / Oil-Immersed (Confirm model variant)
- Insulation Class: Class F / Class H (Model-dependent)
- Protection Rating: IP23 / IP55 (Dependent on enclosure type)
- Core Material: High-Grade Silicon Steel Core
- Winding Material: Copper / Aluminum (Depending on specification)
- Mounting Type: Floor-mounted / Wall-mounted (Depending on configuration)
Environmental & Operational Conditions
- Operating Temperature Range: -20°C to +55°C
- Humidity Tolerance: Up to 95% non-condensing
- Noise Level: Low noise operation (≤ 60 dB at 1m distance)
Industrial Applications
✔ Power Distribution & Electrical Systems
✔ Industrial & Commercial Electrical Installations
✔ Automation & Control Systems
✔ Renewable Energy & Grid Integration
✔ Manufacturing & Heavy-Duty Applications
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Height | 750–850 mm |
|---|---|
| Width | 500–600 mm |
| Length | 600–700 mm |
| 180–220 kg | |
| Voltage | 400V AC |
| ISO 15926 Pt 4 | 3221 |
| PCA RDS Code | RDS643994 |
| CFIHOS ID | CFIHOS-30000362 |
| Output Power | 37.5 kW |
| IFC Class | IfcTransformer |
| Insulation Class | Class F or H |
| Rated Primary Winding Voltage | 400V AC |
| Rated Secondary Winding Voltage | 400V AC |
| UNSPSC Code | 39121002 |
