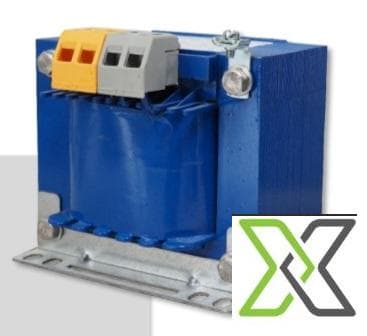

Control Panel Transformer – 10VA to 8000VA

ReflowX SKU: REF-7349

Product Details

Quantity

3
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Crux transformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Compact control transformer with wide voltage range (100–600V input, 12–600V output), rated 10VA to 8000VA. Class F/H insulation, IP00 protection, and panel/DIN rail mounting options.

Description

Control Panel Transformer – 10VA to 8000VA

This Control Panel Transformer offers reliable and space-efficient power conversion for control panels and industrial automation systems. Supporting an input voltage range of 100V to 600V and output voltage range of 12V to 600V, this transformer is highly adaptable across numerous applications.

With power capacity from 10VA to 8000VA, it accommodates low to medium loads. The transformer features Class F or H insulation for excellent thermal performance and durability under high-temperature conditions, and supports 50/60 Hz frequencies for global compatibility.

Designed for panel or DIN rail mounting, it simplifies installation in tight enclosures. The IP00 protection rating is ideal for use within enclosed panels. Terminal block connections allow straightforward, secure wiring during setup and maintenance.

Specifications:

– Wide voltage input/output flexibility for varied control system requirements
– Compact and space-saving design ideal for crowded control enclosures
– High-reliability insulation system rated Class F or H
– Operates on both 50Hz and 60Hz systems
– Compatible with both panel and DIN rail mounting standards
– Terminal blocks allow quick and simple wiring connections
– IP00 rating suitable for indoor panel integration

– Input Voltage Range: 100V – 600V
– Output Voltage Range: 12V – 600V
– Power Capacity: 10VA to 8000VA
– Frequency: 50 Hz / 60 Hz
– Insulation Class: F / H
– Ambient Temperature: Up to 50°C
– Operating Humidity: 45% to 85%, non-condensing
– Protection Degree: IP00
– Mounting Options: Panel Mount / DIN Rail Attachment
– Terminals: Terminal Block

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	70 mm – 300 mm
Width	40 mm – 250 mm
Length	60 mm – 280 mm
Weight	0.5 kg – 20 kg
Usage Hours	00
Voltage	100V – 600V
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
Output Power	12V – 600V
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not Applicable
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Rated Primary Winding Voltage	230 V, 400 V, 415 V
Rated Secondary Winding Voltage	12 V, 24 V, 48 V, 110 V, 230 V AC
