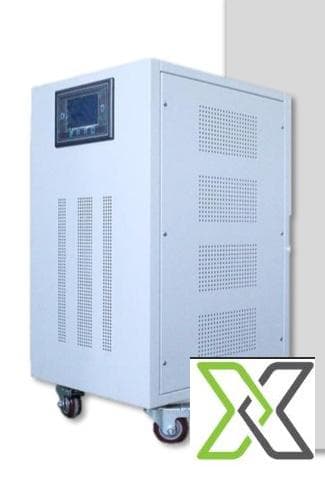

Single & Three Phase Servo Voltage Stabilizer – 1 KVA to 1000 KVA

ReflowX SKU: REF-2136

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Cruxtransformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Precision servo voltage stabilizer for single and three-phase applications, offering ±2% regulated output with input tolerance up to ±15%. Available in dry or oil type, with optional bypass switch and MCCB protection.

Description

Single & Three Phase Servo Voltage Stabilizer – 1 KVA to 1000 KVA

This servo-controlled voltage stabilizer is designed to deliver stable and regulated output voltage for both single-phase (230V) and three-phase (415V) systems, even under fluctuating grid conditions. It supports a wide input voltage tolerance of ±10% or ±15%, ensuring consistent operation for sensitive and critical electrical equipment.

The stabilizer delivers a precise output voltage of 230V or 415V ±2%, depending on the configuration. With power ratings from 1 KVA to 1000 KVA, it is suitable for a wide range of residential, commercial, and industrial applications.

Engineered with Class F or Class H insulation and capable of withstanding ambient temperatures up to 50°C, this unit ensures long-term reliability. The stabilizer is offered in both dry type and oil-immersed construction, with protection ratings starting at IP00 and customizable for higher IP grades upon request.

Optional features include bypass switch and MCCB protection, and connection configurations can be provided via terminals or busbars, offering flexibility during installation.

Specifications:

– High-accuracy voltage regulation (±2%)
– Wide input tolerance range for fluctuating supplies
– Oil or dry construction options for varying environments
– Optional bypass and MCCB for enhanced safety
– Suitable for indoor and custom outdoor enclosures

– Input Voltage:
• Single Phase: 230V ±10% / ±15%
• Three Phase: 415V ±10% / ±15%
– Output Voltage:
• Single Phase: 230V ±2%
• Three Phase: 415V ±2%
– Power Capacity: 1 KVA to 1000 KVA
– Insulation Class: F / H
– Ambient Temperature: Up to 50°C
– Protection Degree: IP00 standard (others on request)
– Connection Options: Terminals / Busbars

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	400-2000 mm
Width	300-1500 mm
Length	300-2000 mm
Weight	30-2000 kg
Usage Hours	00
Voltage	160–260 V, 295–480 V
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not Applicable
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Insulation Class	F (155°C) or Class H (180°C)
Rated Primary Winding Voltage	160–260 V, 295–480 V
Rated Secondary Winding Voltage	220 V ±1%, 400 V ±1%
