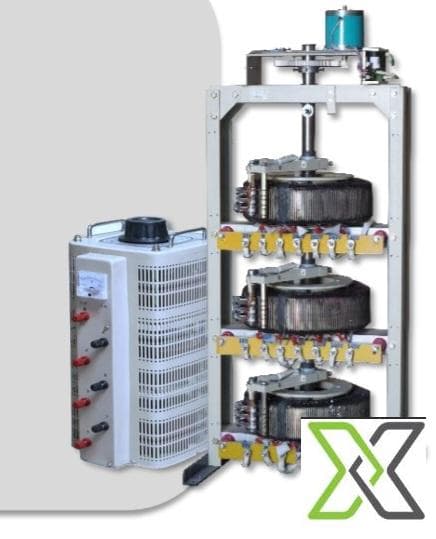

Single & Three Phase Variable Voltage Transformer – 1 KVA to 1000 KVA

ReflowX SKU: REF-9161

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Cruxtransformers
Equipment code

CFIHOS-30000362

Get Quotation Whatsapp

Short Description

Versatile variable voltage transformer with output adjustability for single and three-phase applications. Available in dry or oil type with power capacities up to 1000 KVA, and enclosure ratings from IP00 to IP65.

Description

Single & Three Phase Variable Voltage Transformer – 1 KVA to 1000 KVA

This variable voltage transformer is designed for precision control of AC voltage in both single-phase (230V) and three-phase (415V) systems. Output voltage is manually adjustable from 0 to 230V (single-phase) or 0 to 415V (three-phase), allowing flexible operation for test benches, control equipment, and regulated supply systems.

The transformer is available in dry type or oil-immersed construction, with power capacity ranging from 1 KVA to 1000 KVA (1 MVA), offering excellent scalability for industrial and laboratory use. Built to operate in ambient temperatures up to 50°C, it supports Class F or Class H insulation for reliable thermal performance.

For user protection and environmental adaptability, it can be configured in IP00 (open frame), IP23 (drip-proof), or IP65 (dust-tight, water-jet proof) enclosures. Output control can be achieved using a manual knob or an optional push-button interface for enhanced operator precision.

Specifications:

– Precision output voltage adjustment from 0 to full input
– Supports both single and three-phase supply systems
– Configurable for indoor lab use or rugged outdoor operation
– Scalable up to 1000 KVA for high-capacity applications
– Manual or push-button voltage regulation
– Multiple mounting and connection options for integration flexibility

– Input Voltage:
• Single Phase: 230V
• Three Phase: 415V
– Output Voltage:
• Single Phase: 0–230V (Variable)
• Three Phase: 0–415V (Variable)
– Power Rating: 1 KVA to 1000 KVA (1 MVA)
– Insulation Class: F / H
– Ambient Temperature: Up to 50°C

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	150 mm-1200 mm
Width	150 mm-1000 mm
Length	150 mm-1000 mm
Weight	50kg-500kg
Usage Hours	00
Voltage	230 V- 415 V
ISO 15926 Pt 4	3221
PCA RDS Code	RDS643994
CFIHOS ID	CFIHOS-30000362
IFC Class	IfcTransformer
Explosion Protection Gas Group	Not Applicable
Explosion Protection Temperature Class	Not Applicable
Explosion Protection Zone	Not Applicable
Insulation Class	Class B (130°C)
Rated Primary Winding Voltage	230 V, 415 V
Rated Secondary Winding Voltage	0–270 V,0–470 V
