Description

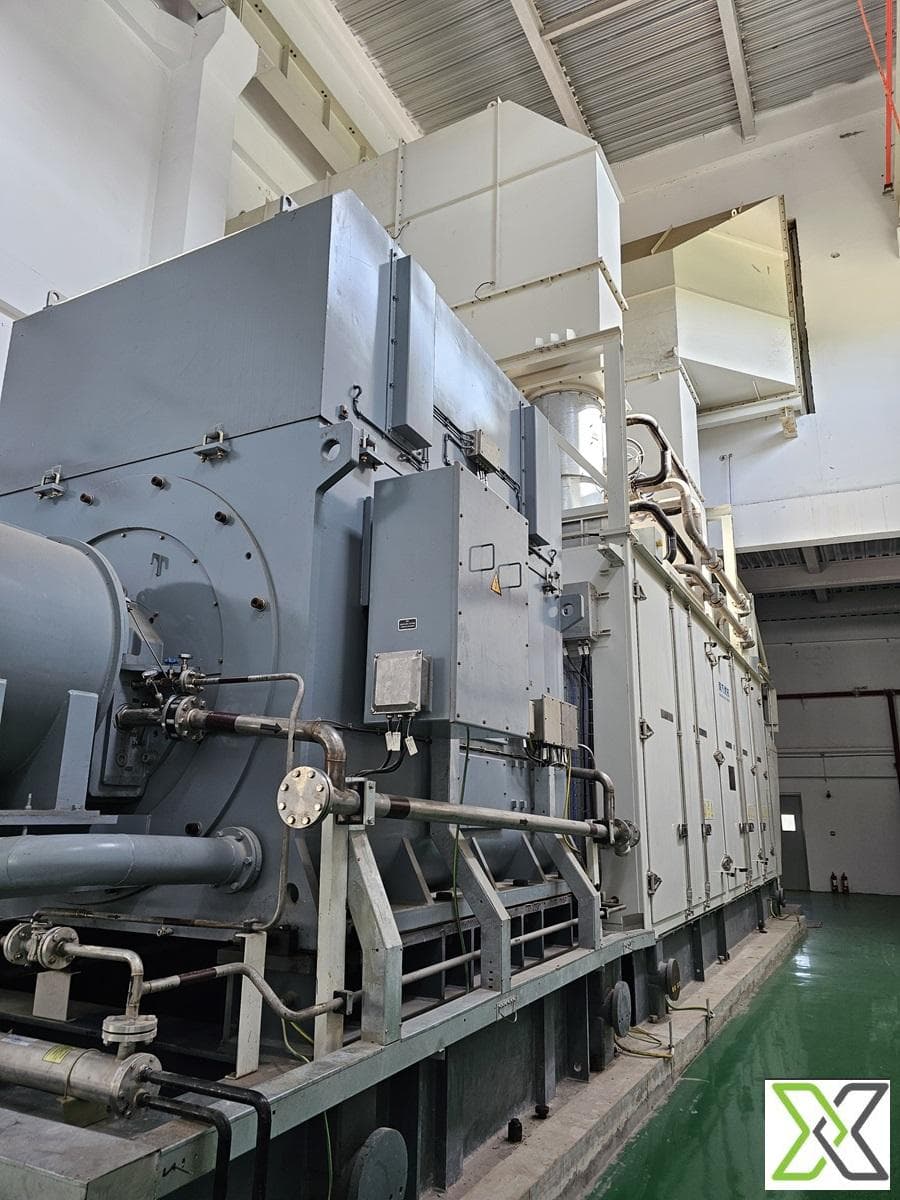

Siemens SGT-400 DLE — 14.4 MW Twin-Shaft Gas-Turbine Package (2019 • 242 h)
Quick Overview
Low-hour (≈242 h / 26 starts) 2019-manufactured Siemens Energy SGT-400 DLE gas-turbine set, suitable for mechanical-drive OR power-generation duties. Package is complete, factory-tested and stored indoors; ready for dispatch from Shanghai, China (FOB).
Key Technical Data
| Item | Value | |
|---|---|---|
| Nominal ISO output | 14.3 – 14.9 MW (simple-cycle, 15 MW variant) | |
| Voltage / frequency | 11 kV, 50 / 60 Hz | |
| Configuration | Twin-shaft, Dry-Low-Emissions (DLE) | |
| Gross simple-cycle efficiency | ≈ 35.6 % | |
| NOₓ emissions (gas-fuel) | ≤ 15 ppm @ 15 % O₂ | |
| Package weight | ~40 t (power-gen skid) | |
| Fuel | Natural gas |
Scope of Supply
SGT-400 twin-shaft gas turbine core with can-annular DLE combustor.
AC generator (11 kV class) or gear-coupling for mechanical-drive service – supplied to buyer’s final spec.

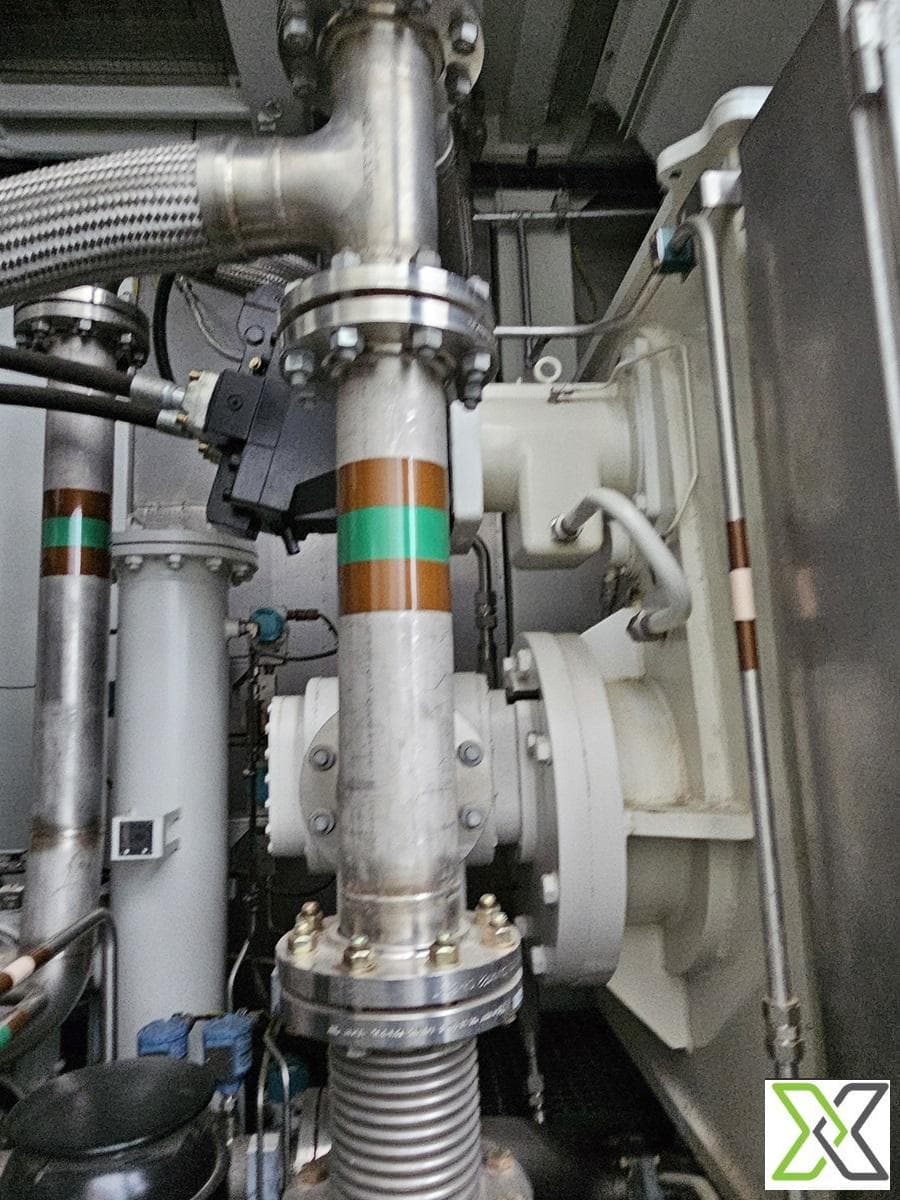

Modular skid packages: lube-oil, gas fuel, starter, ventilation & silencers.
Inlet filtration & exhaust stack with diverter damper.
Siemens PCS 7 / S7-400 control system with HMI and remote-monitoring capability.

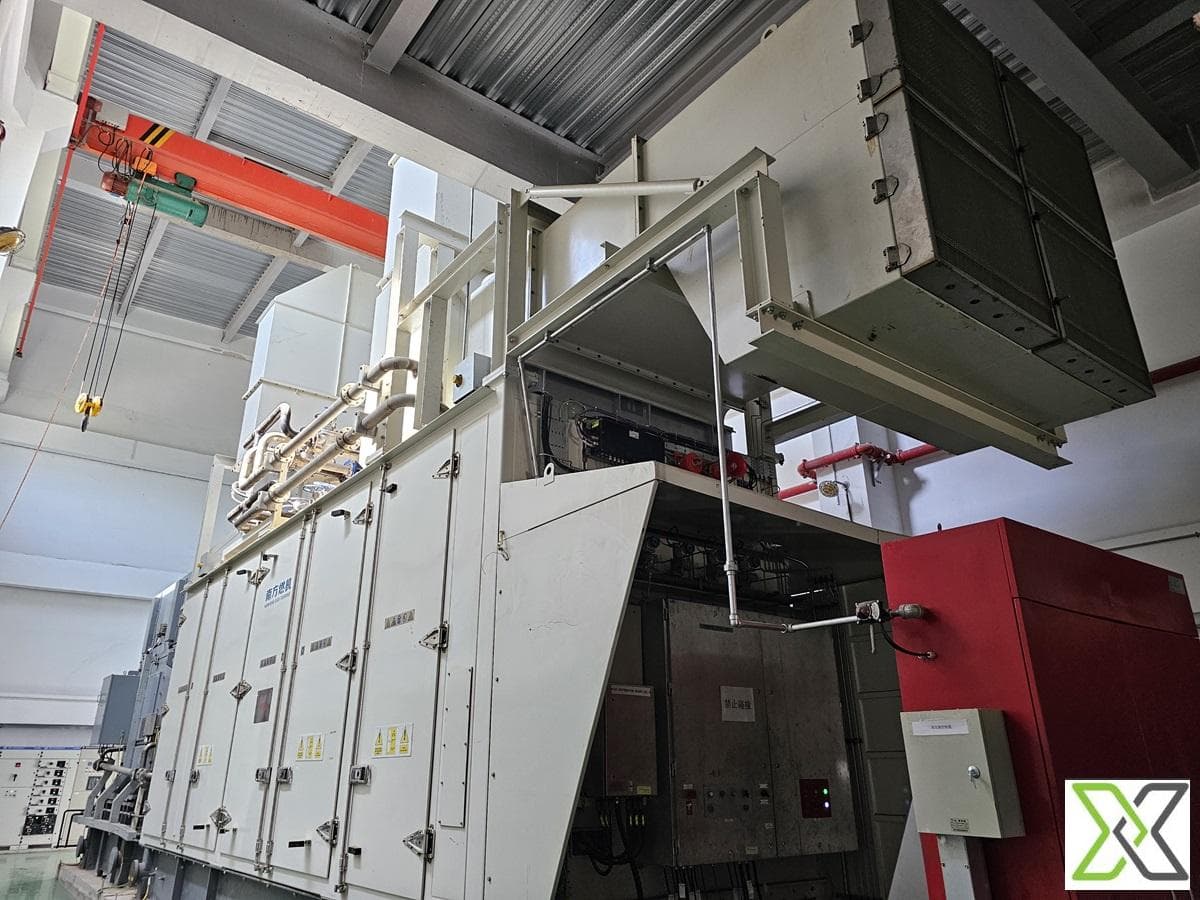

Fire & gas detection and CO₂ suppression installed in acoustic enclosure (85 dB(A) @ 1 m).
Complete technical library: P&IDs, wiring, QA records, factory test certificates.
Condition & Availability
Service history: Factory acceptance only (242 operating hours, 26 starts).
Year built: 2019 | Warranty: negotiable Siemens LTSA transfer possible.
Location: Shanghai free-zone warehouse — can be inspected virtually or in person.
Delivery term: FOB Shanghai Port – ready to ship in ≤ 4 weeks after receipt of L/C.
Pricing
$10,800,000 EXW China
Contact
Message via ReflowX for further information rfq@reflowx.com +971 50 384 6311
Technical Details
| Model Number | SGT-400 DLE |
|---|---|
| Year of Manufacturing | 2019 |
| Manufacturer Name | Siemens |
| Usage Hours | 242 |
| Fuel type | Natural gas |
