Cast Steel Pressure Relief Hoods – Model 53-OS-250, ANSI 250# Flanged

ReflowX SKU: REF-8563

Product Details

Quantity

5
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000653

Get Quotation Whatsapp

Short Description

Model 53-OS-250 cast steel pressure relief hoods with ANSI 250# flanged ends and red oxide coating for corrosion protection.

Description

Cast Steel Pressure Relief Hoods – Model 53-OS-250, ANSI 250# Flanged

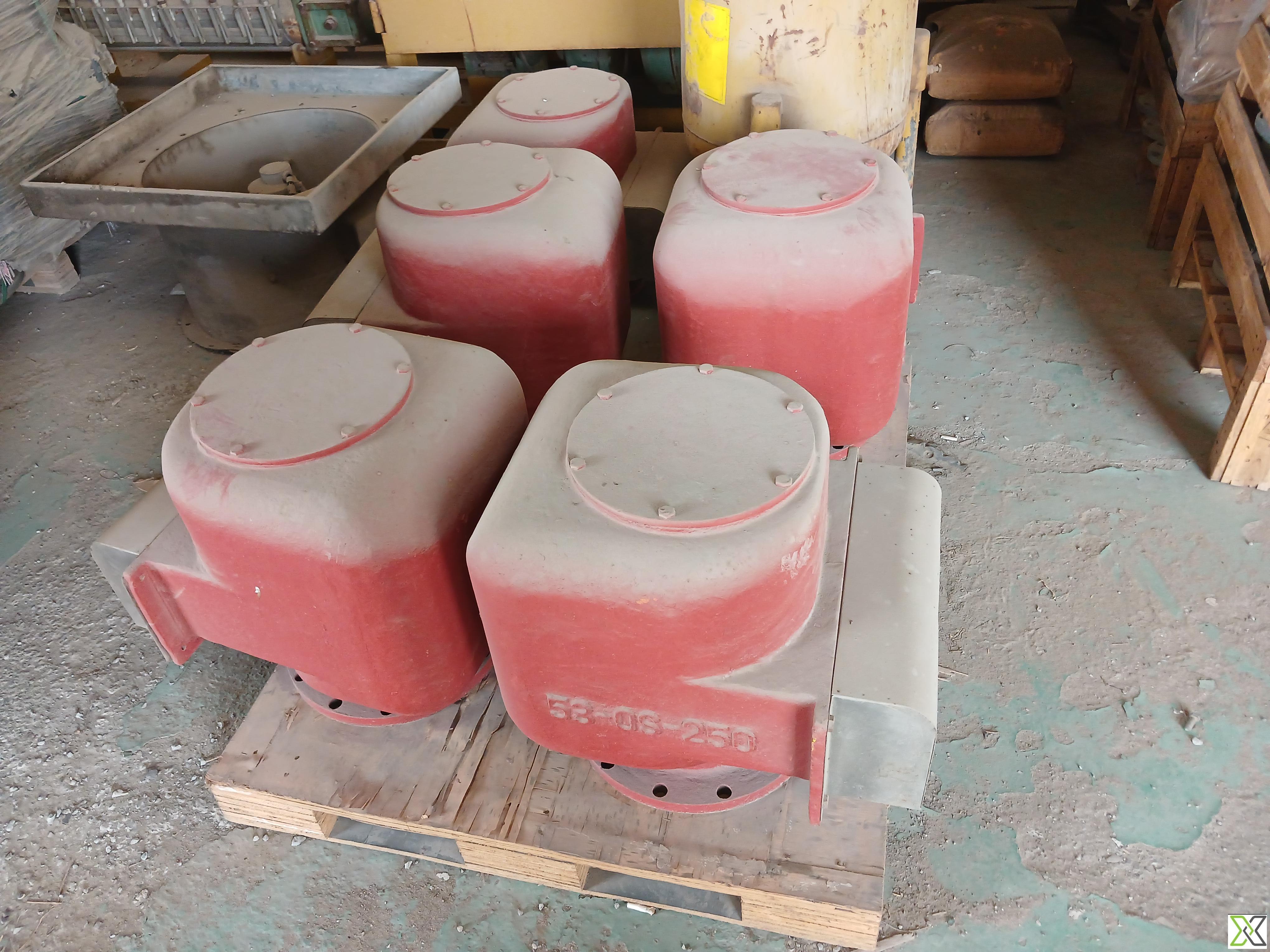

The 53-OS-250 Cast Steel Pressure Relief Hood is a robust outlet accessory designed for use in pressure relief systems on tanks, pipelines, or vent stacks. Constructed from durable cast steel, the hood is coated with red oxide primer to enhance resistance against corrosion in outdoor or industrial environments. The unit features an ANSI 250# flanged connection (estimated rating) for secure attachment to mating flanged components. This design helps deflect and safely direct vented gases or fluids away from critical equipment or personnel areas. Commonly used in refineries, storage depots, and chemical plants, this model is identifiable by its cast marking “53-OS-250”, typically found on the body.

Specification:

– Model Number (Casting): 53-OS-250
– Design Type: Pressure Relief Hood / Outlet Vent Cap
– Material: Cast Steel
– Flange Type: ANSI Flanged
– Pressure Class: Estimated ANSI 250#
– End Connection: Flanged – bolt circle dimensions per ANSI B16.5 (to be confirmed)
– Coating: Red oxide primer (corrosion-resistant)
– Application: Pressure/vacuum relief on tanks, piping venting, or discharge stacks
– Installation: Bolt-on flange mount
– Surface Finish: Coated, rough-cast steel body
– Markings: Model number cast on body (“53-OS-250”)
– Typical Orientation: Vertical vent termination or horizontal piping outlets
– Country of Origin: To be confirmed
– Estimated Size Range: Typically suited for 4"–12" nominal pipe flanges
– Inspection: Visual and dimensional checks – no internal moving parts
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	53-OS-250
Height	420–500 mm
Width	450–550 mm
Length	300–400 mm
Weight	55–75 kg
Color	Red
