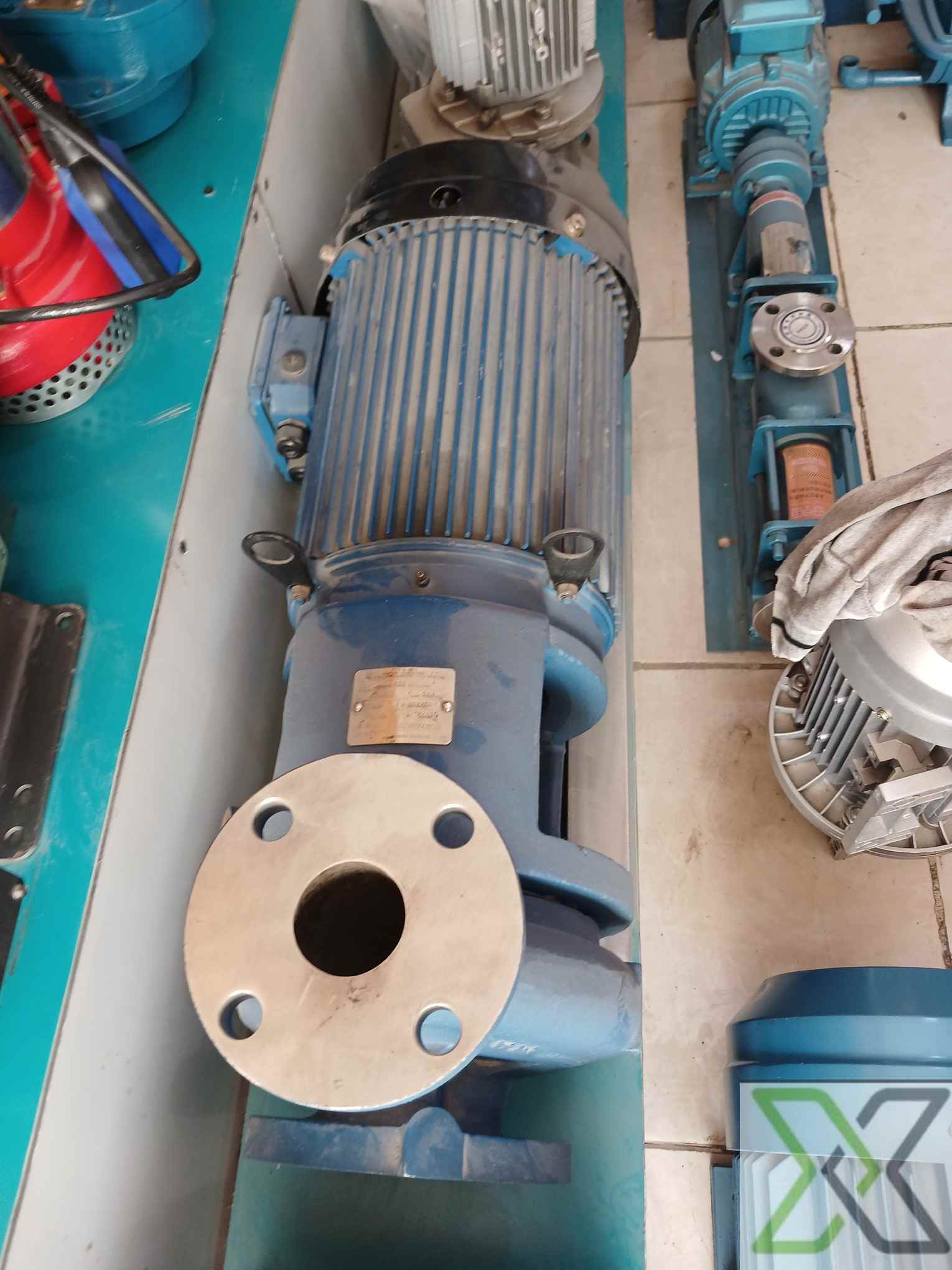

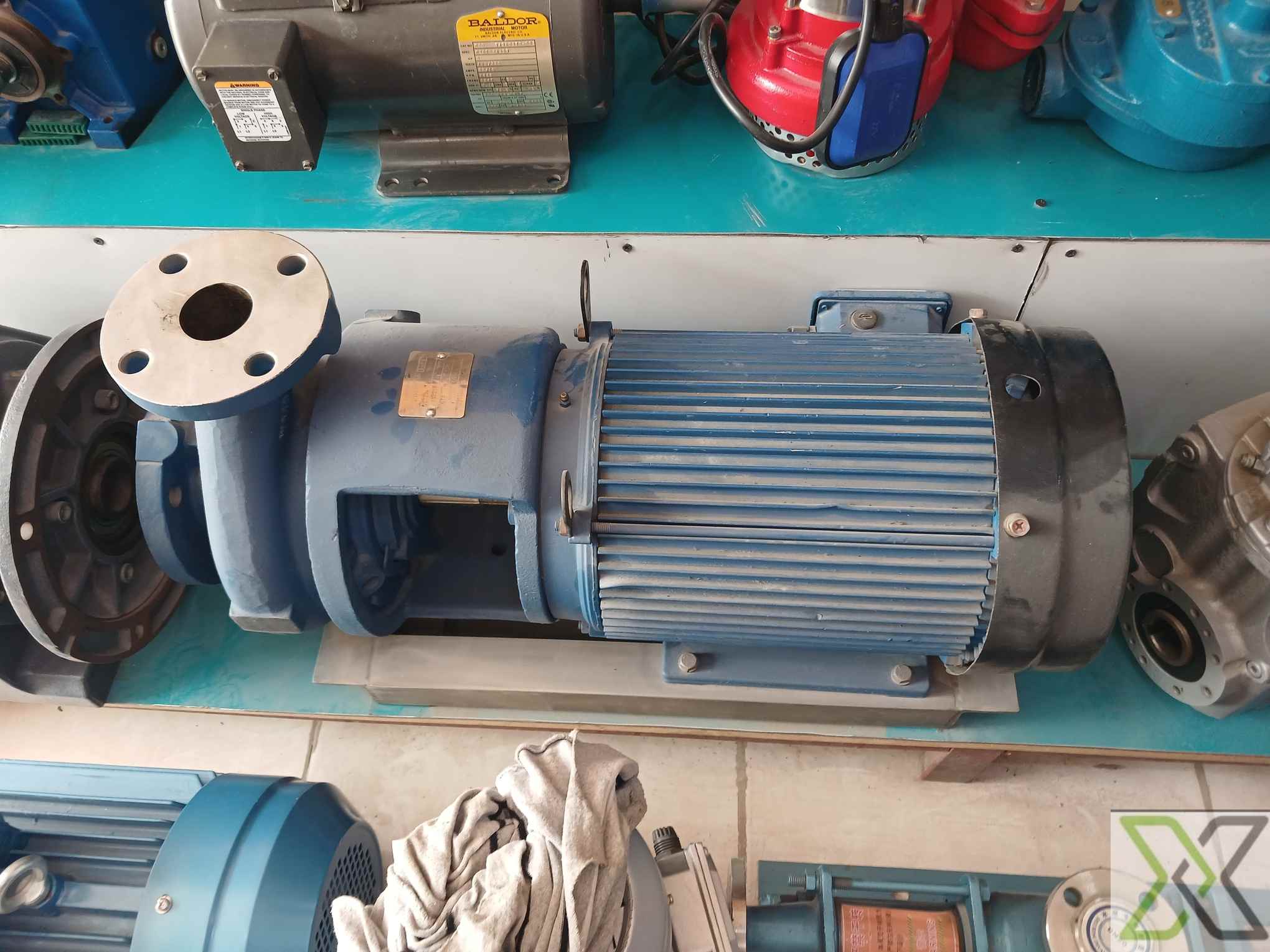

Centrifugal Pump - D1022 (D-Line Series)

ReflowX SKU: REF-4989

Product Details

Quantity

2
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Description

General Information

✔ Manufacturer: Worthington (Dresser Industries, USA) (Renowned for industrial fluid handling solutions)
✔ Model: D1022 (Part of Worthington’s D-Line series, known for high-performance pumping solutions)
✔ Series: D-Line (Designed for reliability and efficiency in industrial applications)
✔ Manufacturing Location: Chesapeake, Virginia, USA (Ensures high-quality engineering and production standards)
✔ Serial Number: 852289-F (Unique identification for tracking and maintenance purposes)

Performance & Operational Specifications

✔ Size: 3" x 2" x 6" (Indicating inlet size, outlet size, and impeller diameter respectively)
✔ Impeller Diameter: 5.06 inches (Optimized for medium-duty fluid transfer applications)
✔ Design Pressure: 275 PSI (Designed to handle moderate to high-pressure industrial applications)
✔ Flow Rate: Estimated 50 - 200 GPM (Depending on system requirements and application conditions)
✔ Total Dynamic Head (TDH): Up to 90 meters (approx. 295 feet) (Varies based on impeller selection and motor power)
✔ Pump Type: Centrifugal End-Suction Pump (Designed for smooth and efficient liquid transfer)

Electrical & Mechanical Specifications

✔ Motor Power: Typically 5 HP - 25 HP (Varies by installation setup and operating conditions)
✔ Speed: 1,750 RPM or 3,500 RPM (Depending on motor selection and application needs)
✔ Bearings: Heavy-duty, anti-friction bearings for extended operational lifespan
✔ Shaft Material: Stainless Steel (Corrosion-resistant for durability in harsh environments)
✔ Seal Type: Mechanical Seal / Gland Packing (Depending on configuration and fluid type)

Material & Build Quality

✔ Casing Material: Cast Iron / Bronze / Stainless Steel (Varies by model for compatibility with different fluids)
✔ Impeller Type: Enclosed Impeller (Optimized for efficiency and extended service life)
✔ Suction & Discharge Flanges: ANSI Standard Flanges (Compatible with industrial piping systems)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	D1022
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Lower Limit Operating Temperature	+5°C
Operation Continuous Intermittent	Continuous Operation
Upper Limit Operating Temperature	+85°C
Test Medium	Water
Test Pressure	1.5 × Design Pressure = approx. 413 PSI (28.5 bar)
Normal Operating Inlet Pressure	1 - 3 bar
Normal Operating Inlet Temperature	+10°C to +40°C
Normal Operating Outlet Pressure	3 - 8 bar
Orientation	Horizontal Installation
Upper Limit Design Pressure	275 PSI
UNSPSC Code	40151500
Upper Limit Design Temperature	+95°C
Upper Limit Operating Temperature	+85°C
Lower Limit Ambient Operating Temperature	-5°C
Lower Limit Design Temperature	0°C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	2 bar
Lower Limit Operating Volume Flow Rate	50 GPM
Pump Type	Centrifugal Pump
Upper Limit Ambient Operating Temperature	-5°C
Upper Limit Operating Inlet Pressure	4 bar
Upper Limit Operating Outlet Pressure	10 bar
Upper Limit Operating Volume Flow Rate	200 GPM
