Centrifugal Pump EUROFLO EU-65/26 - 2021

ReflowX SKU: REF-5740

Product Details

Quantity

3
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Description

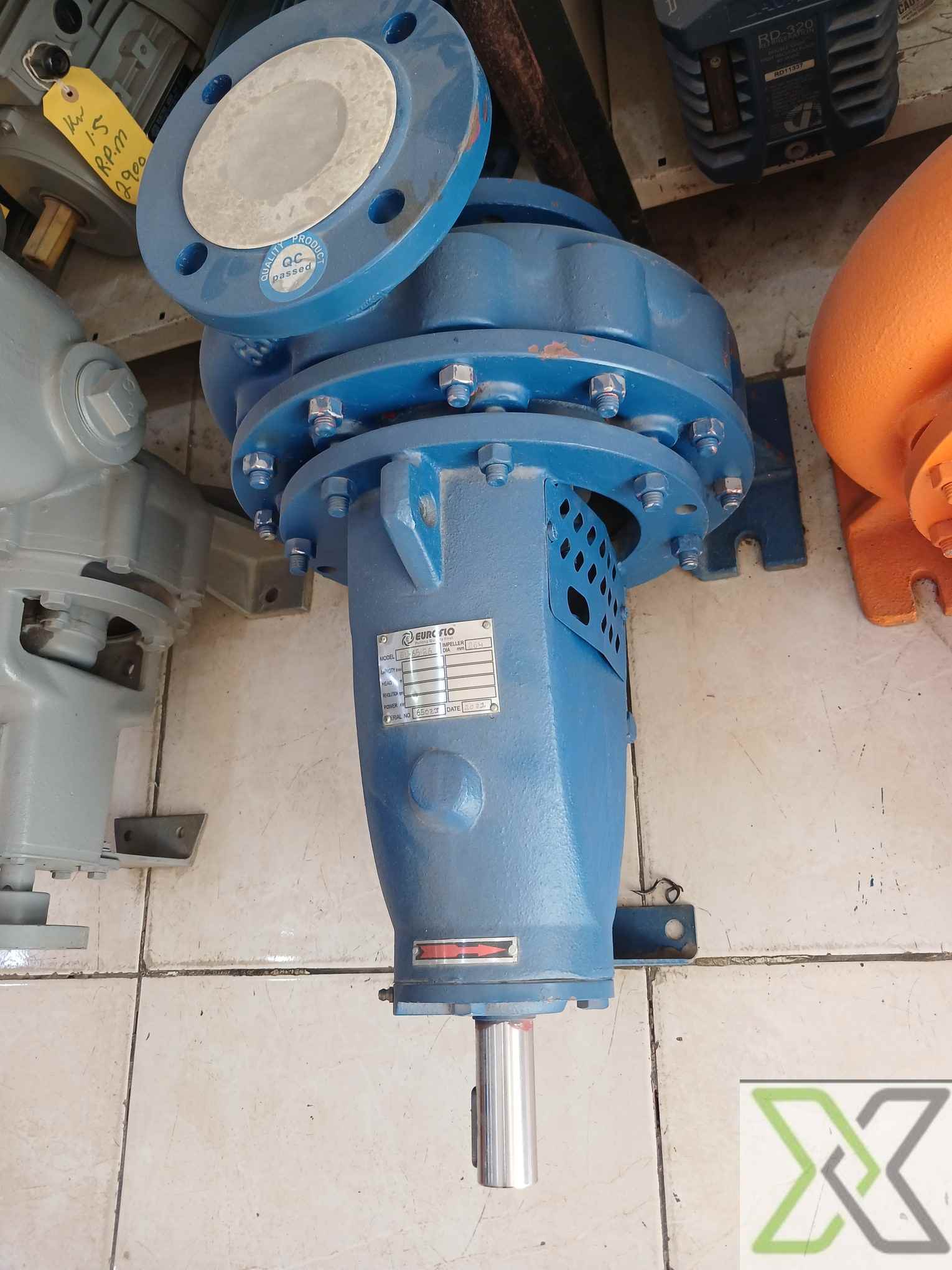

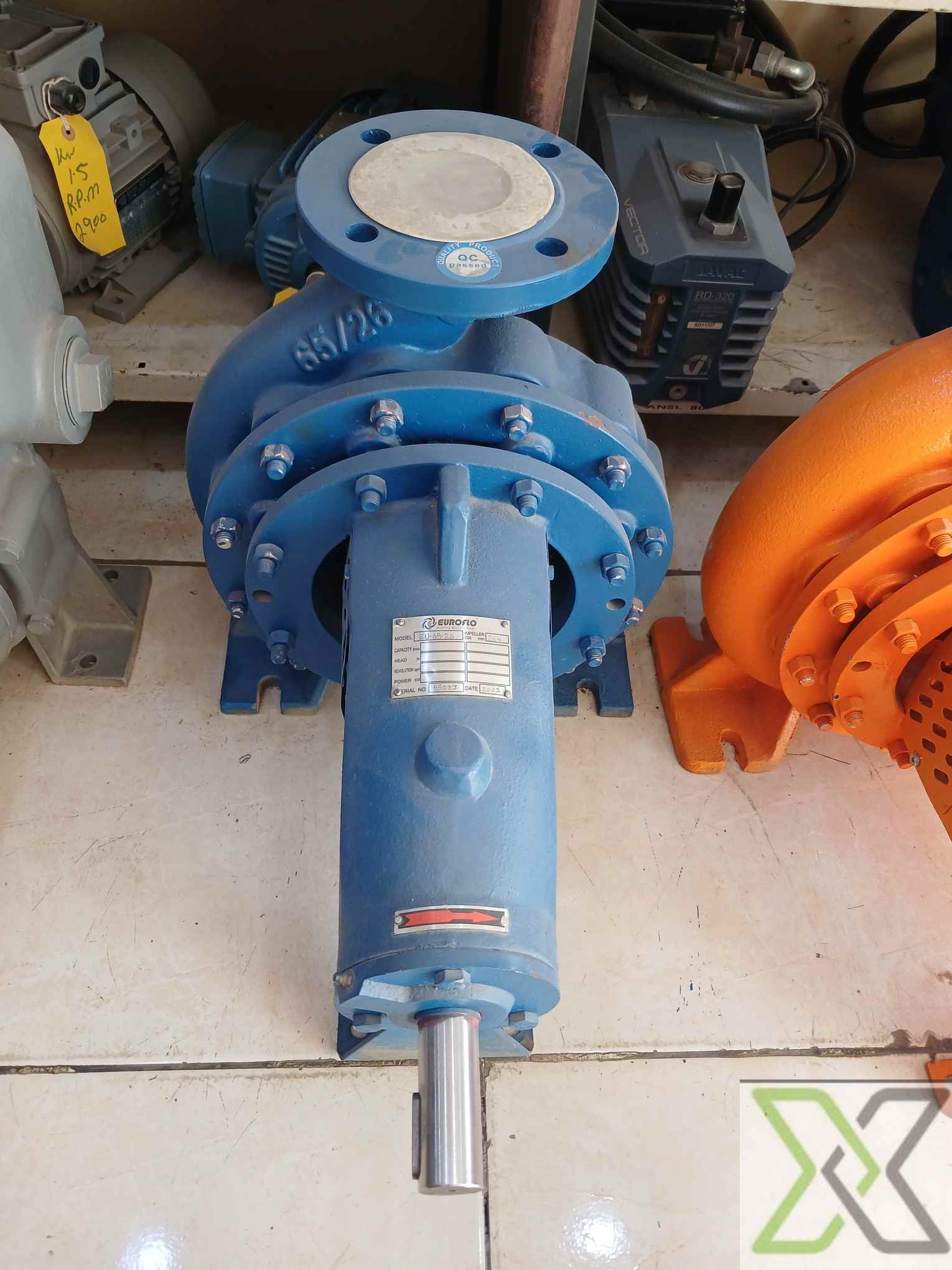

EUROFLO EU-65/26 – Centrifugal Pump Specification

General Information

✔ Manufacturer: EUROFLO (Renowned for industrial and commercial pumping solutions)
✔ Model: EU-65/26 (Indicates a 65mm (2.5-inch) inlet and possibly a 26-meter head rating, based on naming conventions)
✔ Serial Number: 6C835 (Unique identifier for production tracking)
✔ Manufacturing Date: 2021 (Relatively new unit, modern design features)

Performance & Operational Specifications (To be confirmed with manufacturer or detailed technical sheet)

✔ Capacity: Estimated between 50 - 120 m³/h (Based on common specifications for similar size pumps)
✔ Total Head: Likely between 20 - 40 meters (Depending on impeller design and system resistance)
✔ Impeller Diameter: 264 mm (Key determinant of flow rate and head pressure generation)
✔ Speed (RPM): Typically 1,450 RPM or 2,900 RPM (Varies based on motor configuration and fluid dynamics requirements)
✔ Power Rating: Estimated between 5.5 kW - 15 kW (Varies depending on operational head and flow rate requirements)

Mechanical & Electrical Specifications

✔ Motor Type: Electric Motor (likely three-phase for industrial applications)
✔ Pump Type: Centrifugal, Single-Stage (Common for EUROFLO’s industrial range)
✔ Seal Type: Mechanical Seal (Standard for reducing leaks and increasing efficiency)
✔ Shaft Material: Stainless Steel (Corrosion-resistant for longevity in harsh environments)

Material & Build Quality

✔ Casing Material: Cast Iron / Stainless Steel (Typical for EUROFLO’s industrial pumps)
✔ Impeller Type: Closed or Semi-Open (For optimal efficiency and fluid handling capabilities)
✔ Bearings: Heavy-duty industrial bearings for smooth operation
✔ Flange Standards: ANSI / JIS (For compatibility with various piping systems)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	EUROFLO
Year of Manufacturing	2021
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous
Test Medium	Water
Test Pressure	16 bar
Normal Operating Inlet Pressure	1 to 3 bar
Normal Operating Inlet Temperature	10°C to 60°C
Normal Operating Outlet Pressure	2 to 6 bar
Orientation	Horizontal End-Suction Configuration
Upper Limit Design Pressure	16 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+120°C
Lower Limit Ambient Operating Temperature	-10°C
Lower Limit Design Temperature	10°C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	1.5 bar
Lower Limit Operating Volume Flow Rate	5 m³/h
Pump Type	Centrifugal Pump
Upper Limit Ambient Operating Temperature	-10°C
Upper Limit Operating Inlet Pressure	6 bar
Upper Limit Operating Outlet Pressure	10 bar
Upper Limit Operating Volume Flow Rate	120 m³/h
