Desander Pump No. 1 – Tag No: V4022-PA810

Product Details

Quantity

1
Availability (Lead Time)

N/A
Product Location

Norway
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Heavy-duty Desander Pump for drilling solids separation. Tag No: V4022-PA810. Available from Norway as surplus stock in “as is” condition.

Description

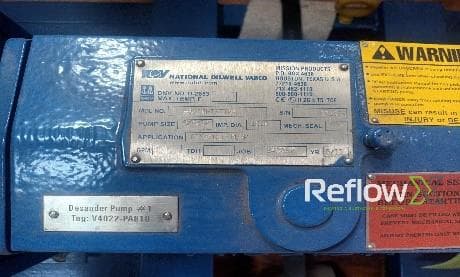

Desander Pump No. 1 – Tag No: V4022-PA810

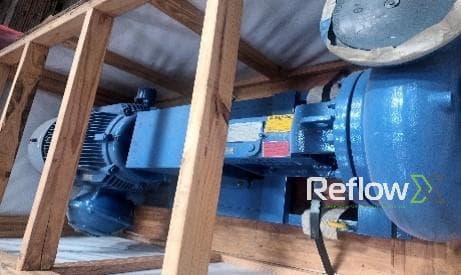

The Desander Pump No. 1 (Tag No: V4022-PA810) is a robust centrifugal pump designed for transferring drilling fluids containing abrasive solid particles. This pump plays a critical role in the desanding phase of solids control systems by feeding desander cyclones or hydrocyclones with pressurized drilling fluid to efficiently separate and discharge sand-sized particles.

Available as surplus stock in Norway, the pump is sold in its current "as is" condition, with no additional warranties or guarantees. It is suitable for integration into both onshore and offshore mud systems where solid-liquid separation is required for operational efficiency and equipment protection.

Specifications:

– Tag Number: V4022-PA810
– Type: Desander Pump (Centrifugal)
– Design Purpose: Solids-laden mud transfer to hydrocyclone separators
– Flow Rate (Typical): 20–50 m³/h
– Discharge Head: 20–40 m
– Pump Type: Horizontal centrifugal, single-stage
– Drive Motor Power: Approx. 7.5–15 kW (verify on motor nameplate)
– Voltage: 400–415 V AC, 3-phase
– Frequency: 50 Hz
– Impeller Material: Chrome Alloy Steel or Stainless Steel
– Casing Material: Cast Steel or Carbon Steel
– Seal Type: Mechanical seal
– Inlet/Outlet Size: Approx. 3” / 2” flanged (to be confirmed)
– Mounting: Skid-mounted baseplate
– Service Fluids: Drilling mud with sand and silt content
– Temperature Range: -10°C to +90°C
– Standards Compliance: API / ANSI / ASME (as applicable)
– Condition: Surplus stock – sold “as is”
– Availability: In stock
– Location: Norway
– Quantity Available: 1 unit

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
