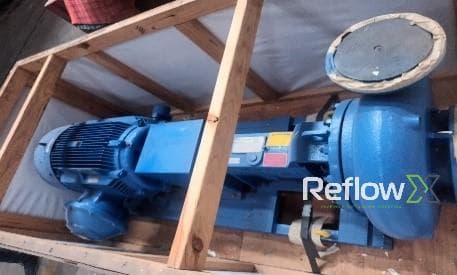

Desilter Pump No. 1 – Tag No: V4022-PA812

The Desilter Pump No. 1 (Tag No: V4022-PA812) is a specialized centrifugal pump used in solids control systems to feed drilling fluid into desilter cones (hydrocyclones). It plays a critical role in removing fine silt and clay-sized particles from drilling mud, thereby improving drilling efficiency and protecting downstream equipment.

This unit is part of surplus stock held in Norway and is offered for sale in its current “as is” condition, with no warranties or guarantees. It is particularly well-suited for oil and gas operations involving complex drilling fluid circulation systems.

 Specifications:

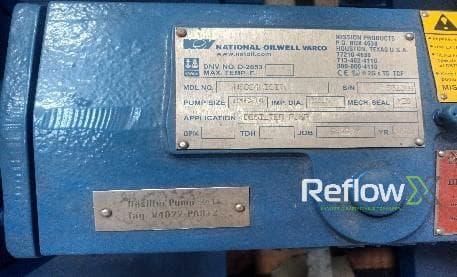

– Tag Number: V4022-PA812
– Type: Desilter Pump (Centrifugal)
– Purpose: Feeding desilter cones for fine solids separation
– Pump Configuration: Horizontal, single-stage centrifugal
– Flow Rate (Estimated): 30–75 m³/h
– Head Range: Approx. 15–40 meters
– Motor Power (Estimated): 11–22 kW
– Voltage: 400–415 V, 3-phase
– Frequency: 50 Hz
– Material Construction:
 – Casing: High-strength carbon steel or ductile iron
 – Impeller: Hardened steel or high chrome alloy
– Seal Type: Mechanical seal
– Suction/Discharge Size: Approx. 3" suction / 2" discharge flanged (TBC)
– Mounting: Baseplate-mounted or skid-mounted
– Compatible Fluids: Water-based and oil-based drilling muds with silt
– Operating Temperature Range: -10°C to +90°C
– Applicable Standards: API / ANSI / ASME standards (where applicable)
– Condition: Surplus stock – sold “as is”
– Availability: Stock item
– Location: Norway
– Quantity: 1 unit

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
