Korea Vacuum DRP-1300 Rotary Vane Pump – 1300 L/min

ReflowX SKU: REF-2108

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Korea Vacuum Limited
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

High-capacity Korea Vacuum DRP-1300 direct oil rotary vane pump delivering up to 1560 L/min. Equipped with a 3.7 kW motor, KF 40 connections, and built for continuous-duty industrial vacuum applications.

Description

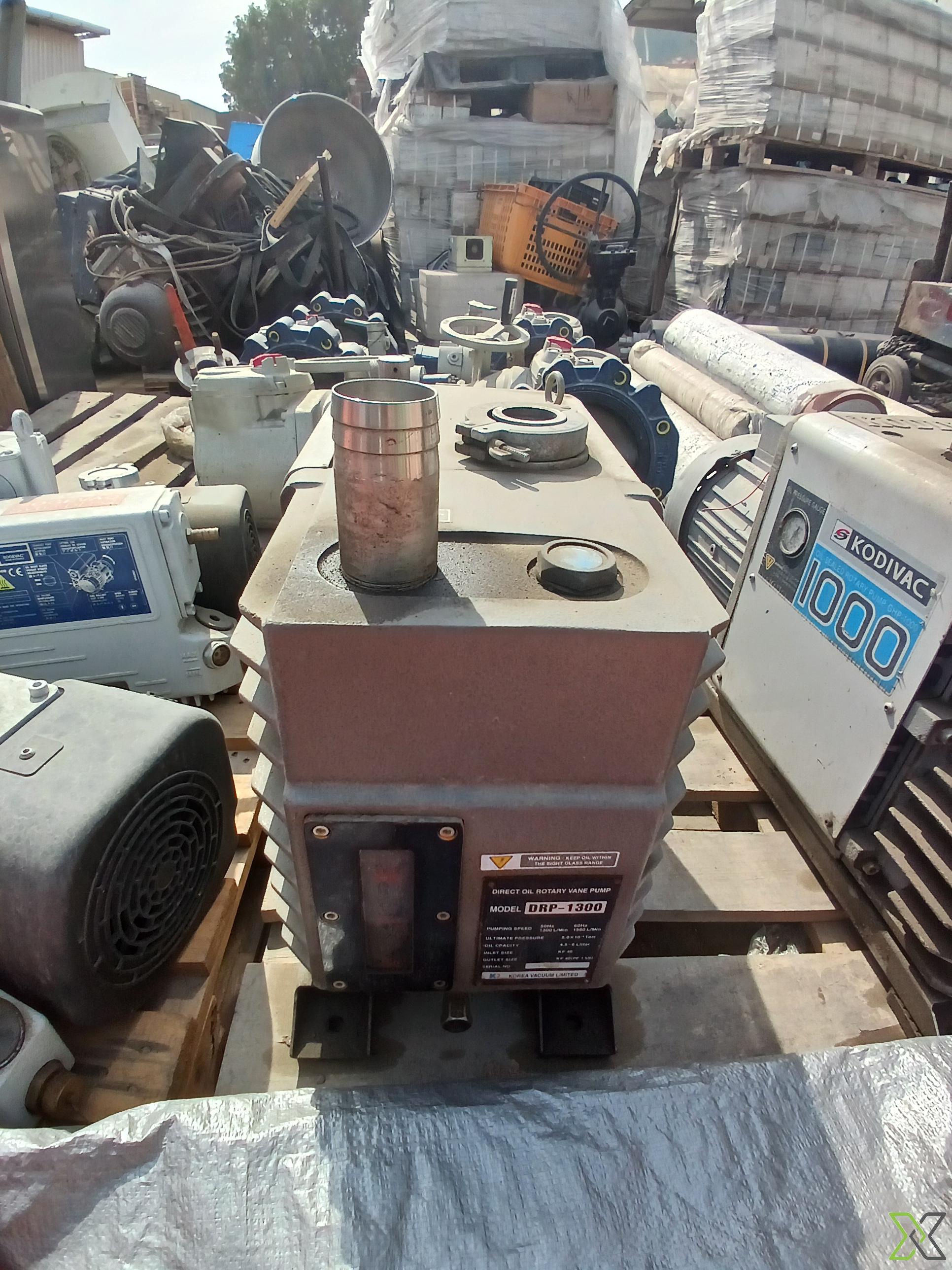

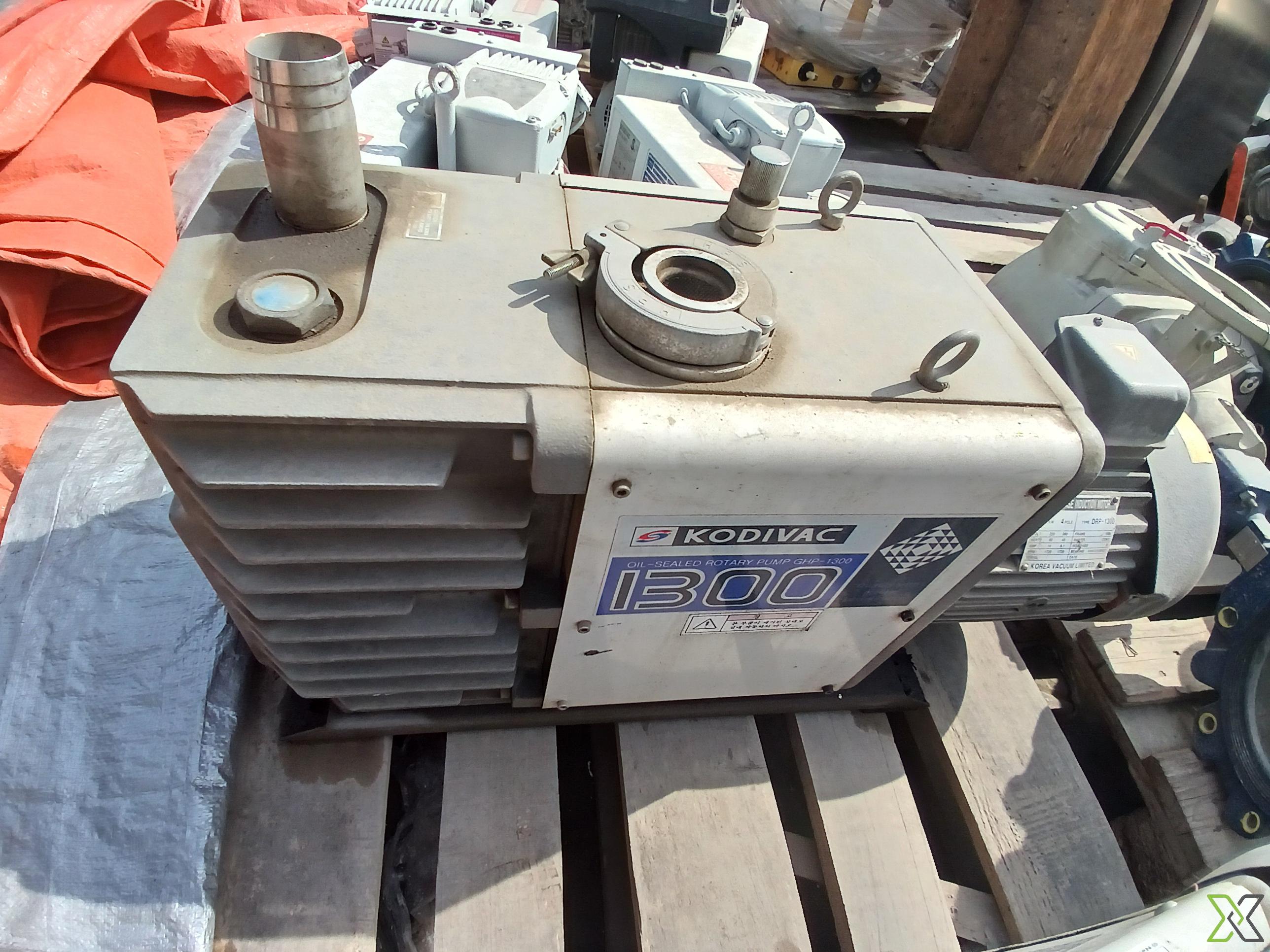

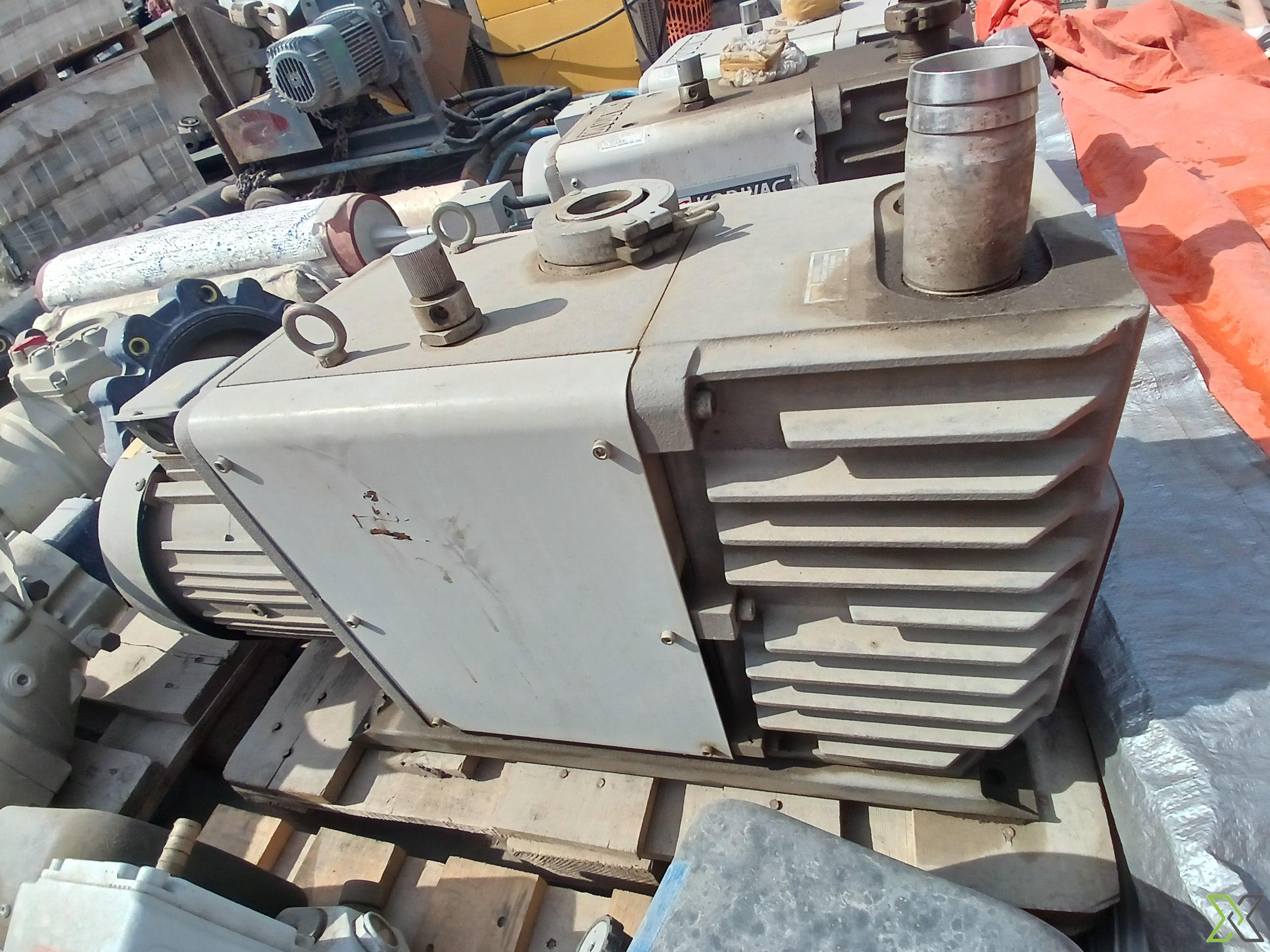

Korea Vacuum DRP-1300 Rotary Vane Pump – 1300 L/min

The DRP-1300 by Korea Vacuum Limited is a high-performance, direct oil rotary vane vacuum pump engineered for heavy-duty and continuous industrial use. Designed to deliver up to 1300 L/min at 50 Hz and 1560 L/min at 60 Hz, this pump provides efficient vacuum performance for manufacturing, process engineering, and scientific applications.

The pump achieves an ultimate pressure of 5.0 × 10⁻⁴ Torr, supported by an oil capacity of 4.5 to 6 liters. The unit features KF 40 standard connections for both inlet and outlet (with the outlet also marked as PF 1 1/2), making it compatible with a wide range of vacuum systems. Operators are advised to maintain oil levels within the sight glass range for optimal performance.

The integrated 3.7 kW motor operates at 220/380 V, 60 Hz, delivering 1720 RPM with a frame size of 100L. The system is designed for continuous duty, and includes class B insulation and precision 6206ZZ / 6205ZZ bearings for reliable and quiet operation.

Built for durability, reliability, and long-term industrial service, the DRP-1300 is a robust and CE-compliant solution for high-capacity vacuum requirements.

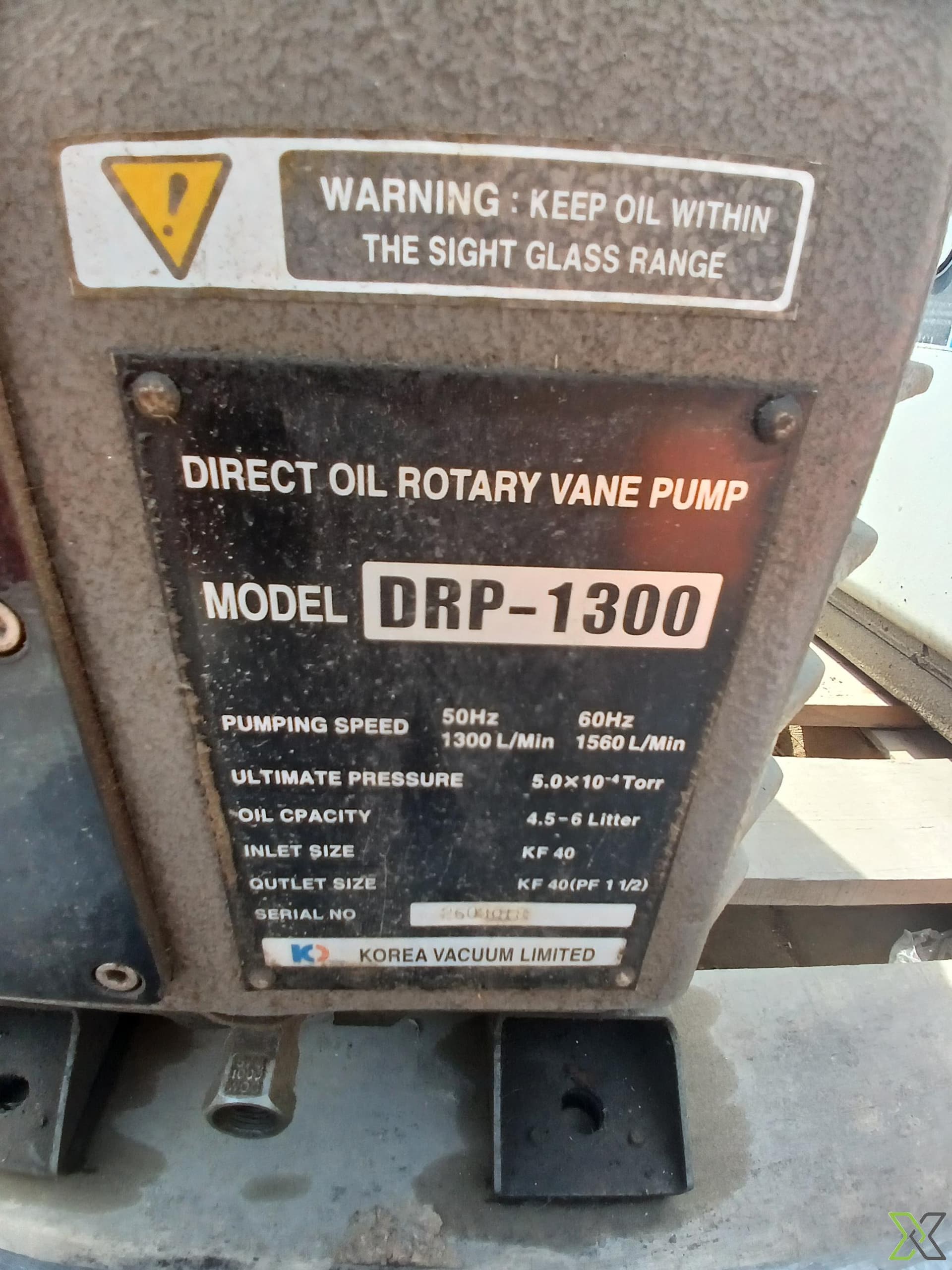

Specifications:

– Model: DRP-1300
– Type: Direct Oil Rotary Vane Vacuum Pump
– Manufacturer: Korea Vacuum Limited
– Serial Number: 25001018
– Pumping Speed:
• 1300 L/min @ 50 Hz
• 1560 L/min @ 60 Hz
– Ultimate Pressure: 5.0 × 10⁻⁴ Torr
– Oil Capacity: 4.5 – 6 Liters
– Inlet Size: KF 40
– Outlet Size: KF 40 (PF 1 1/2)
– Oil Level Indicator: Sight Glass
– Warning: Maintain oil within the sight glass range

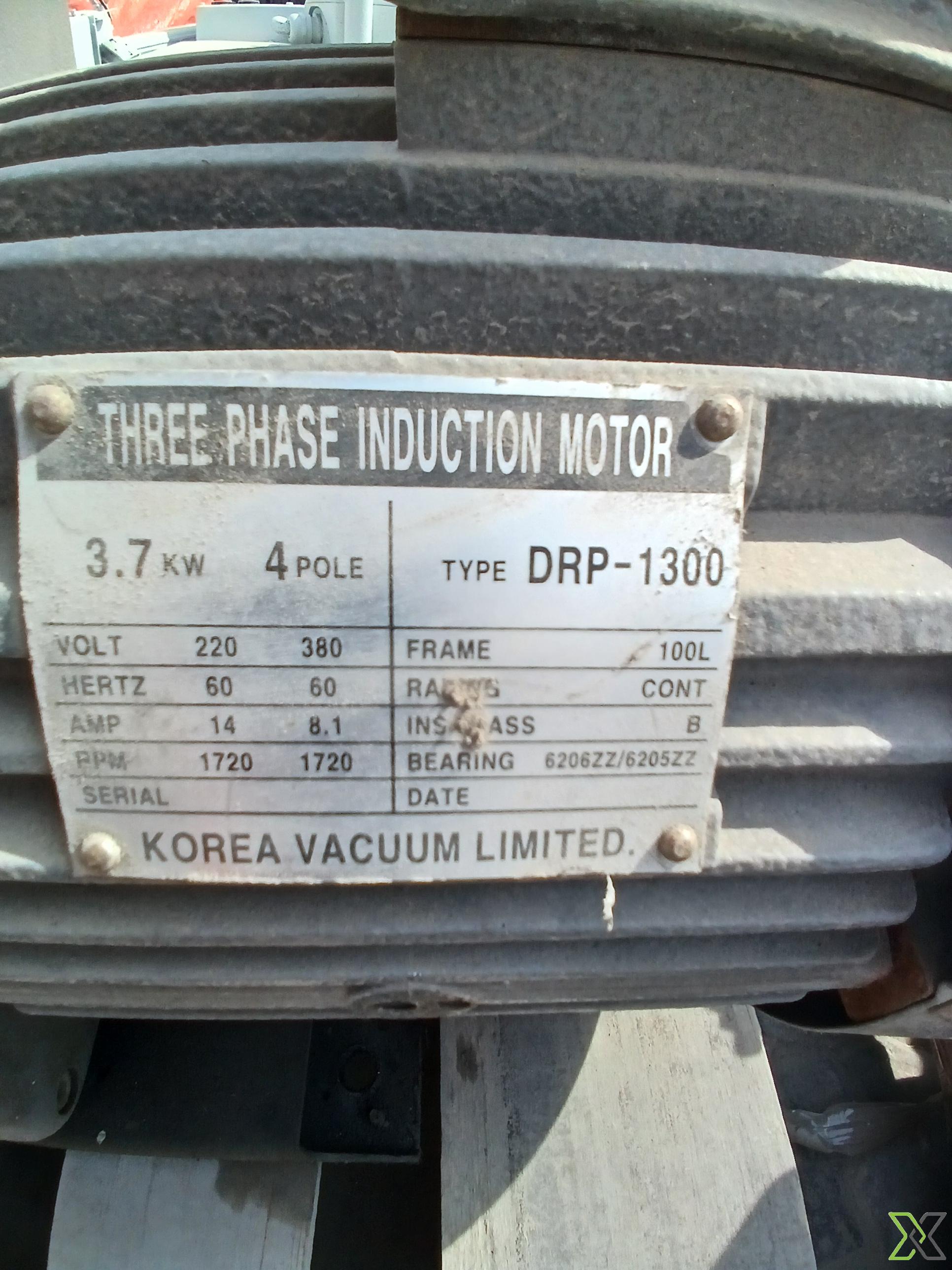

Motor Specifications:
– Power Rating: 3.7 kW
– Poles: 4
– Voltage: 220 / 380 V
– Frequency: 60 Hz
– Current Draw:
• 14 A @ 220V
• 8.1 A @ 380V
– Speed: 1720 RPM
– Frame Size: 100L
– Duty Rating: Continuous
– Insulation Class: B
– Bearings: 6206ZZ / 6205ZZ
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	DRP-1300
Usage Hours	00
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Lower Limit Operating Temperature	10°C
Upper Limit Operating Temperature	40°C
Test Medium	Air or inert gas
Normal Operating Inlet Pressure	~1013 mbar
Normal Operating Inlet Temperature	Typically 10°C to 40°C.
Normal Operating Outlet Pressure	Slightly above atmospheric due to internal pressure drop
Orientation	Horizontal installation.
UNSPSC Code	40151500
Upper Limit Operating Temperature	40°C
Lower Limit Ambient Operating Temperature	5°C
Lower Limit Operating Inlet Pressure	Approximately 1 mbar
Lower Limit Operating Outlet Pressure	Slightly above atmospheric
Lower Limit Operating Volume Flow Rate	Dependent on application
Pump Type	Direct Oil Rotary Vane Vacuum Pump.
Upper Limit Ambient Operating Temperature	40°C
Upper Limit Operating Inlet Pressure	(~1013 mbar
Upper Limit Operating Outlet Pressure	Slightly above atmospheric
Upper Limit Operating Volume Flow Rate	Approximately 1300 L/min
