Young Poong 3K 6x4-16 End Suction Centrifugal Pump

ReflowX SKU: REF-7255

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Young Poong Precision Ind. Co., Ltd. (under license from Duriron Company, USA)
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Horizontal single-stage centrifugal pump by Young Poong Precision (Model 3K 6x4-16), rated for 90 m³/hr at 25 m head. Features John Crane 151/361 mechanical seal, 20 HP direct-coupled motor, and CA6NM-compatible closed impeller, suitable for water, chemicals, hydrocarbons, and slurry handling.

Description

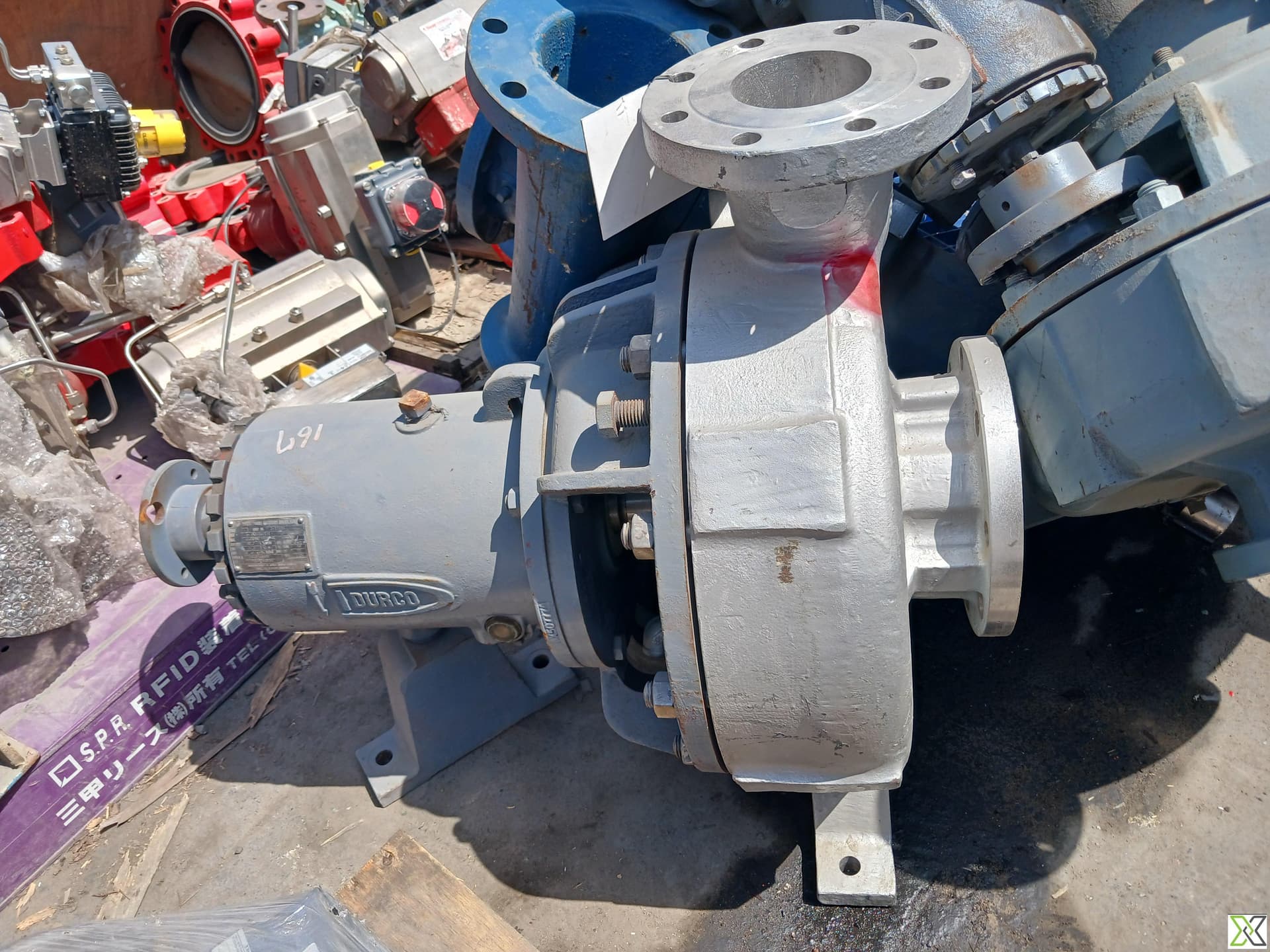

Young Poong 3K 6x4-16 End Suction Centrifugal Pump

The Young Poong 3K 6x4-16 end suction centrifugal pump, manufactured under license from Duriron Company (USA), is a robust, single-stage horizontal pump system engineered for handling water, chemicals, hydrocarbons, and abrasive slurries. It features a 6" suction inlet and 4" discharge outlet, a closed impeller likely suitable for CA6NM material applications, and a centerline discharge volute casing mounted on a grouted steel baseplate. The pump is powered by a 20 HP motor with a clockwise drive rotation and utilizes a John Crane 151/361 mechanical seal for reliable sealing in aggressive service. Designed to operate at up to 20 bar pressure with a flow rate of 90 m³/hr and a total dynamic head of 25 meters, this pump system is suitable for industrial fluid handling applications in challenging environments.

Specifications:

– Manufacturer: Young Poong Precision Ind. Co., Ltd.
– Under License From: Duriron Company, USA
– Model Number: 3K 6x4-16
– Type: End Suction Centrifugal Pump
– Configuration: Horizontal, single-stage
– Impeller Type: Closed impeller (CA6NM-compatible)
– Casing Type: Centerline discharge, volute casing
– Mounting Type: Foot-mounted on grouted steel baseplate

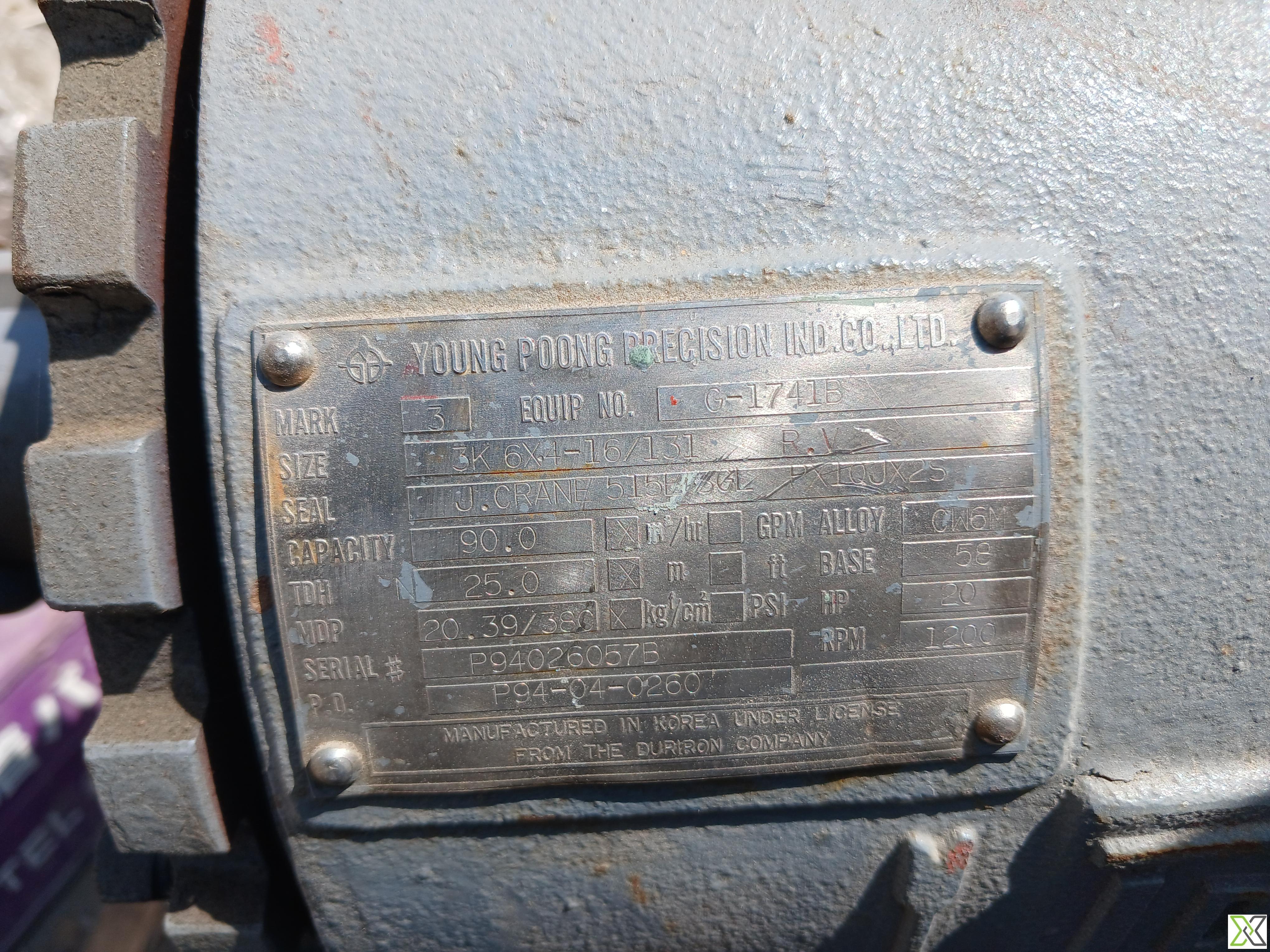

– Serial Number: P940260575
– P.O. Number: P04-9402260
– Capacity (Flow Rate): 90.0 m³/hr
– Total Dynamic Head (TDH): 25.0 meters
– Suction Size: 6” inlet
– Discharge Size: 4” outlet
– Suction Side Pressure: 20.39 PSI (1.4 bar)
– Discharge Side Pressure: 38.6 PSI (2.66 bar)
– Rotational Speed: 1200 RPM
– Direction of Rotation: Clockwise (viewed from motor side)
– Power Rating: 20 HP
– Voltage: Typically 400–480V (installation-dependent)
– Frequency: 50/60 Hz (assumed)
– Insulation Class: Class F or H (typical)
– Seal Type: John Crane 151/361 Mechanical Seal
– Bearings: Grease or oil-lubricated rolling element bearings
– Drive Type: Direct coupled (motor driven)
– Estimated Weight: 300–400 kg
– Design Temperature Range: -10°C to +120°C
– Ambient Temperature Range: -20°C to +55°C
– Design Pressure: Up to 20 bar
– Fluid Compatibility: Water, chemicals, hydrocarbons, slurries (material/seal dependent)

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Explosion Protection Gas Group	IIB
Explosion Protection Temperature Class	T4 (135°C max surface temp)
Explosion Protection Zone	Zone 1
Lower Limit Operating Temperature	-20°C
Operation Continuous Intermittent	Continuous
Test Medium	Water / Air / Nitrogen (as per test procedure)
Test Pressure	24 bar hydrostatic
Normal Operating Inlet Pressure	2 bar
Normal Operating Inlet Temperature	35°C
Normal Operating Outlet Pressure	6 bar
Orientation	Horizontal / Vertical
UNSPSC Code	40151500
Upper Limit Design Temperature	150°C
Lower Limit Ambient Operating Temperature	-20°C
Lower Limit Design Temperature	-30°C
Pump Type	End Suction / Vertical Inline / Multistage etc
Upper Limit Ambient Operating Temperature	55°C
