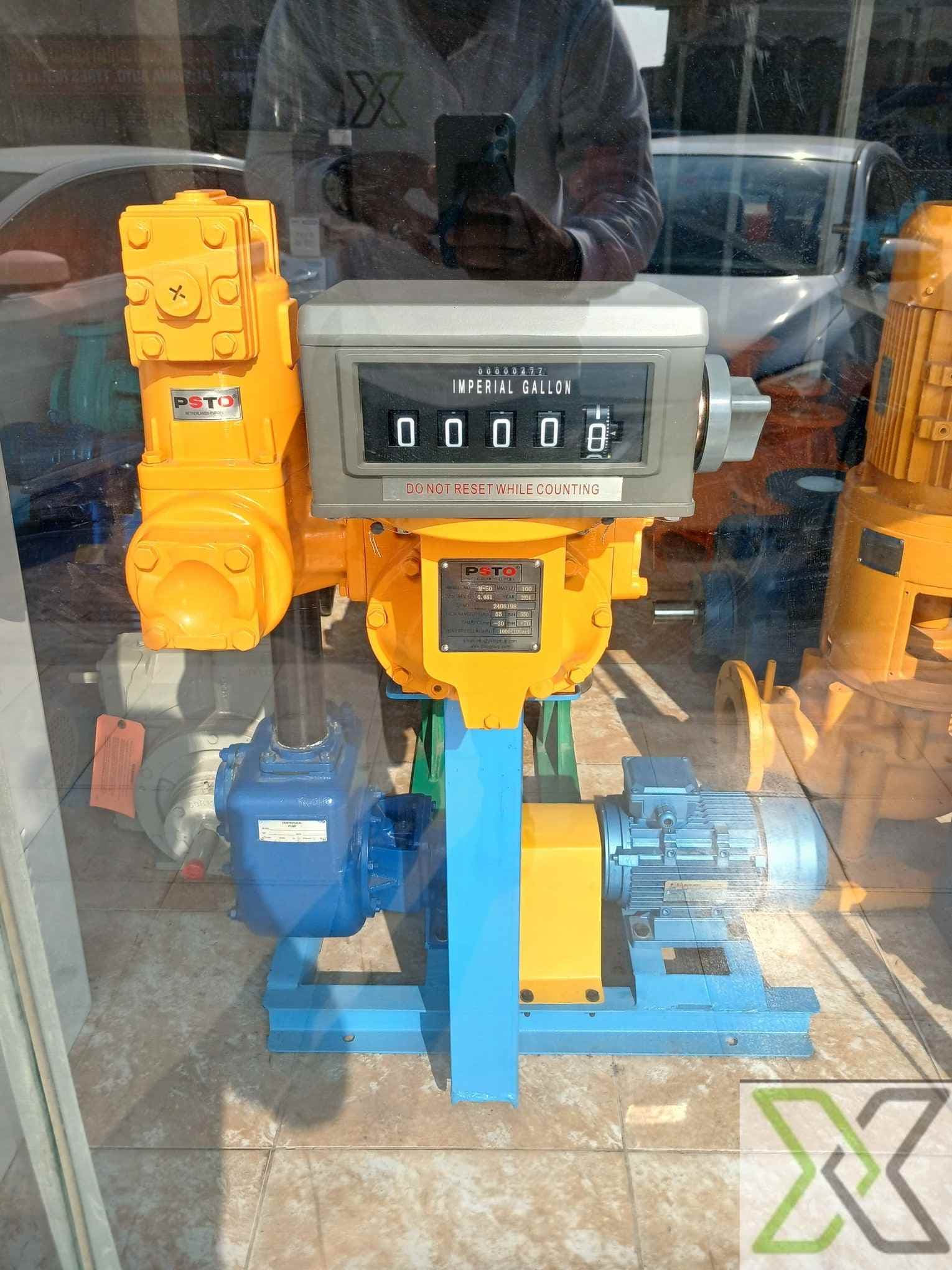

Fuel Flow Meter & Pump System M-50 Pump - 2024

ReflowX SKU: REF-6348

Product Details

Quantity

2
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Description

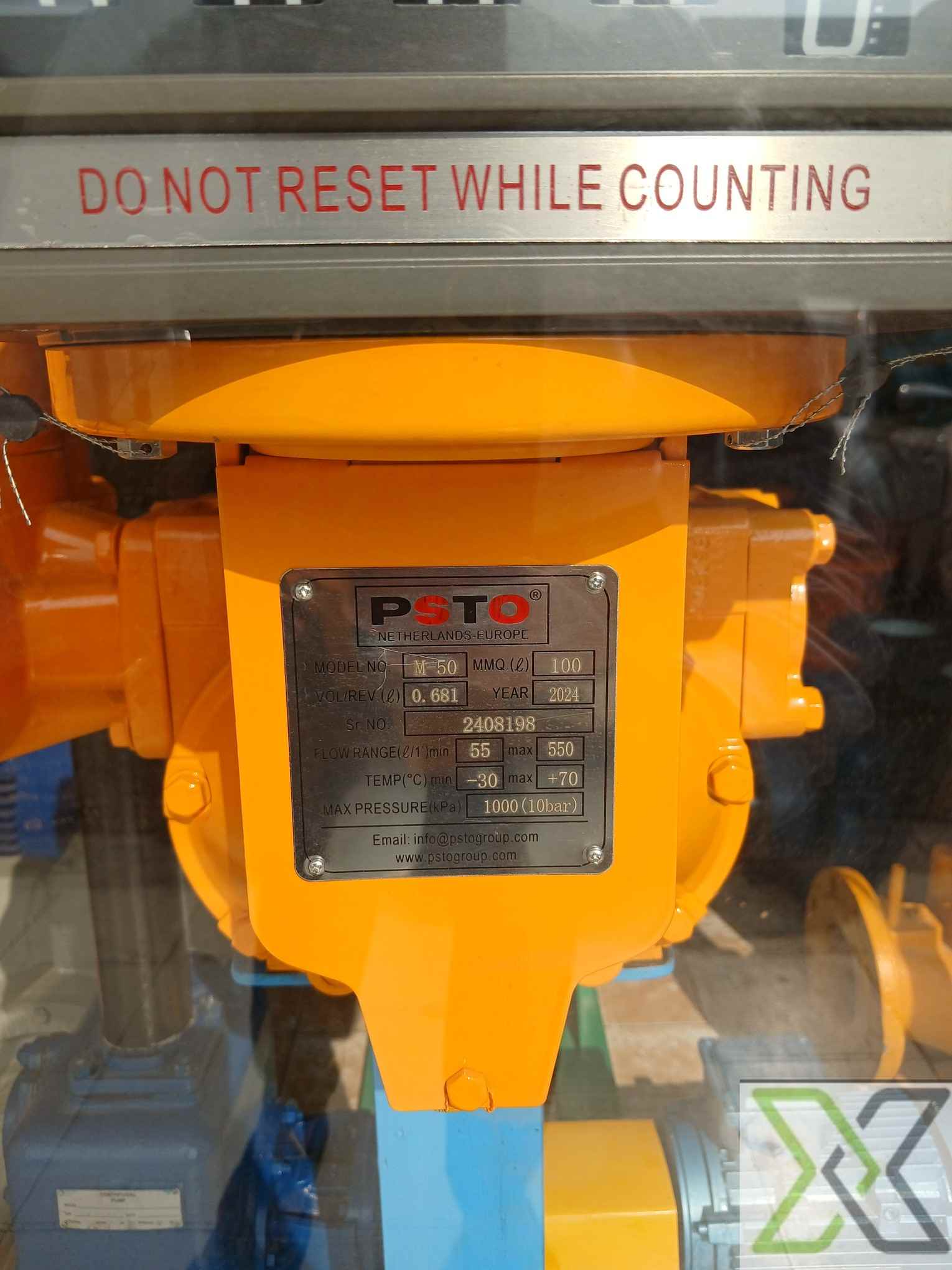

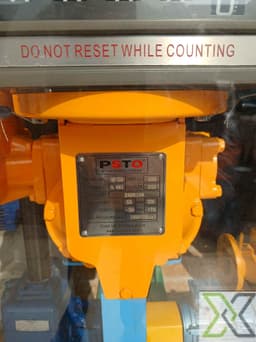

PSTO Netherlands Group – M-50 Pump Specifications

General Information

✔ Manufacturer: PSTO Netherlands Group (Renowned for industrial fluid handling solutions)
✔ Model: M-50 (Designed for medium-flow industrial applications)
✔ Serial Number: 2408198 (Unique production identifier for traceability)
✔ Year of Manufacture: 2024 (Latest model, built with modern engineering standards)

Performance & Flow Characteristics

✔ Volume per Revolution: 0.681 liters (Determines precision in controlled fluid transfer applications)
✔ Maximum Capacity: *100 liters (Total tank/reservoir capacity? Or per cycle? Clarification needed.)
✔ Flow Rate Range: 55 - 550 LPM (liters per minute) (Wide operating range for various industrial applications)
✔ Maximum Pressure: 1000 kPa (10 bar) (Suitable for medium-pressure fluid handling systems)
✔ Temperature Range: -30°C to +70°C (Built for both low-temp and high-temp environments, making it versatile for different industries)

Material & Mechanical Design

✔ Pump Type: Likely a Rotary Positive Displacement Pump (Based on volume per revolution specification)
✔ Sealing Mechanism: Mechanical Seals / O-Rings for Leak Prevention
✔ Casing Material: Possible Cast Iron, Stainless Steel, or Special Alloy (For corrosion and wear resistance, depending on application)
✔ Mounting Type: Horizontal / Vertical Configurations Possible (Depends on application requirements)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	M-50
Year of Manufacturing	2024
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Explosion Protection Zone	Safe Area Only
Lower Limit Operating Temperature	-30°C
Operation Continuous Intermittent	Continuous & Intermittent
Test Medium	Diesel or Light Fuel Oil
Test Pressure	12 bar
Normal Operating Inlet Pressure	1 to 2.5 bar
Normal Operating Inlet Temperature	5°C to 40°C
Normal Operating Outlet Pressure	3 to 6 bar
Orientation	Horizontal Preferred
Upper Limit Design Pressure	10 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+80°C
Lower Limit Ambient Operating Temperature	-30°C
Lower Limit Design Temperature	-35°C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	1.5 bar
Lower Limit Operating Volume Flow Rate	55 L/min
Pump Type	Rotary Positive Displacement Pump
Upper Limit Ambient Operating Temperature	+50°C
Upper Limit Operating Inlet Pressure	4 bar
Upper Limit Operating Outlet Pressure	10 bar
Upper Limit Operating Volume Flow Rate	550 L/min
