Grundfos TPE 100-130/4 | 78.2 m³/h | 12.2 m Head | 16 Bar Pump

Grundfos TPE 100-130/4 A-F-A-BAQE – Pumps

ReflowX SKU: REF-8275

Product Details

  • Quantity
    2
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    Grundfos (Made in Hungary)
  • Equipment code
    CFIHOS-30000550

Short Description

Manufacturer: Grundfos (Made in Hungary)

Description

General Information

Manufacturer: Grundfos (Made in Hungary)

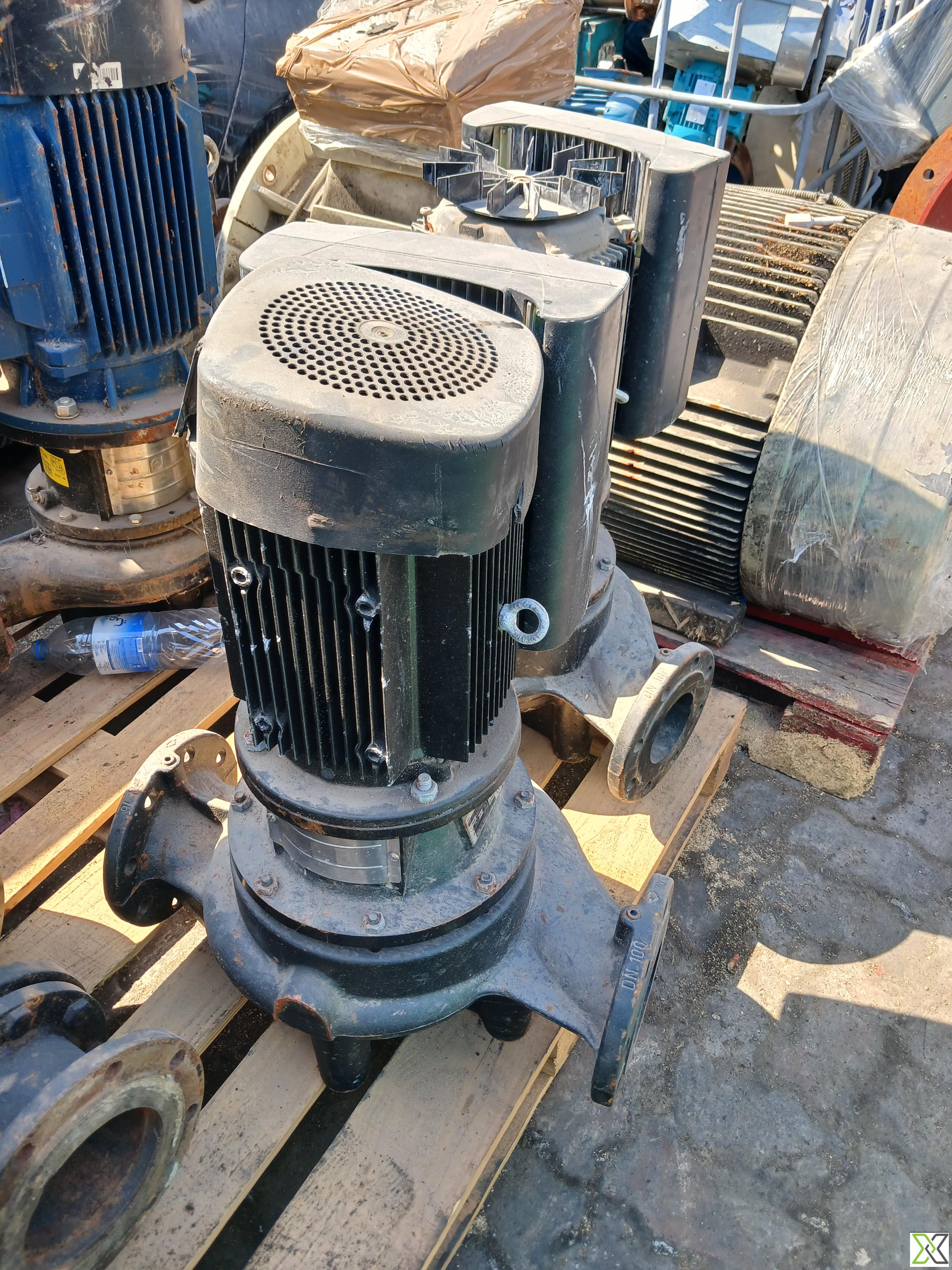

Pump Type: Vertical In-Line Centrifugal Pump (With integrated motor & frequency converter)

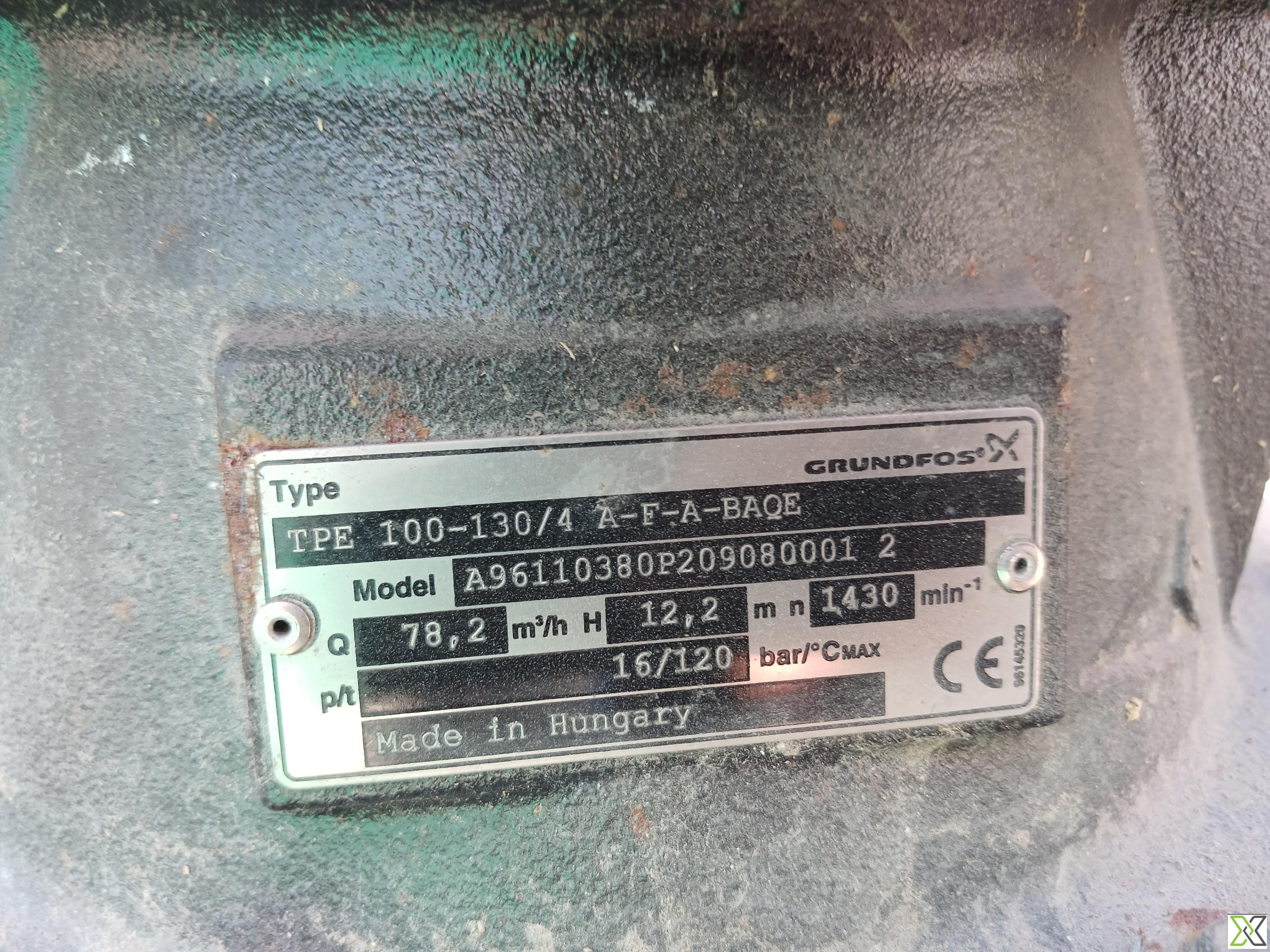

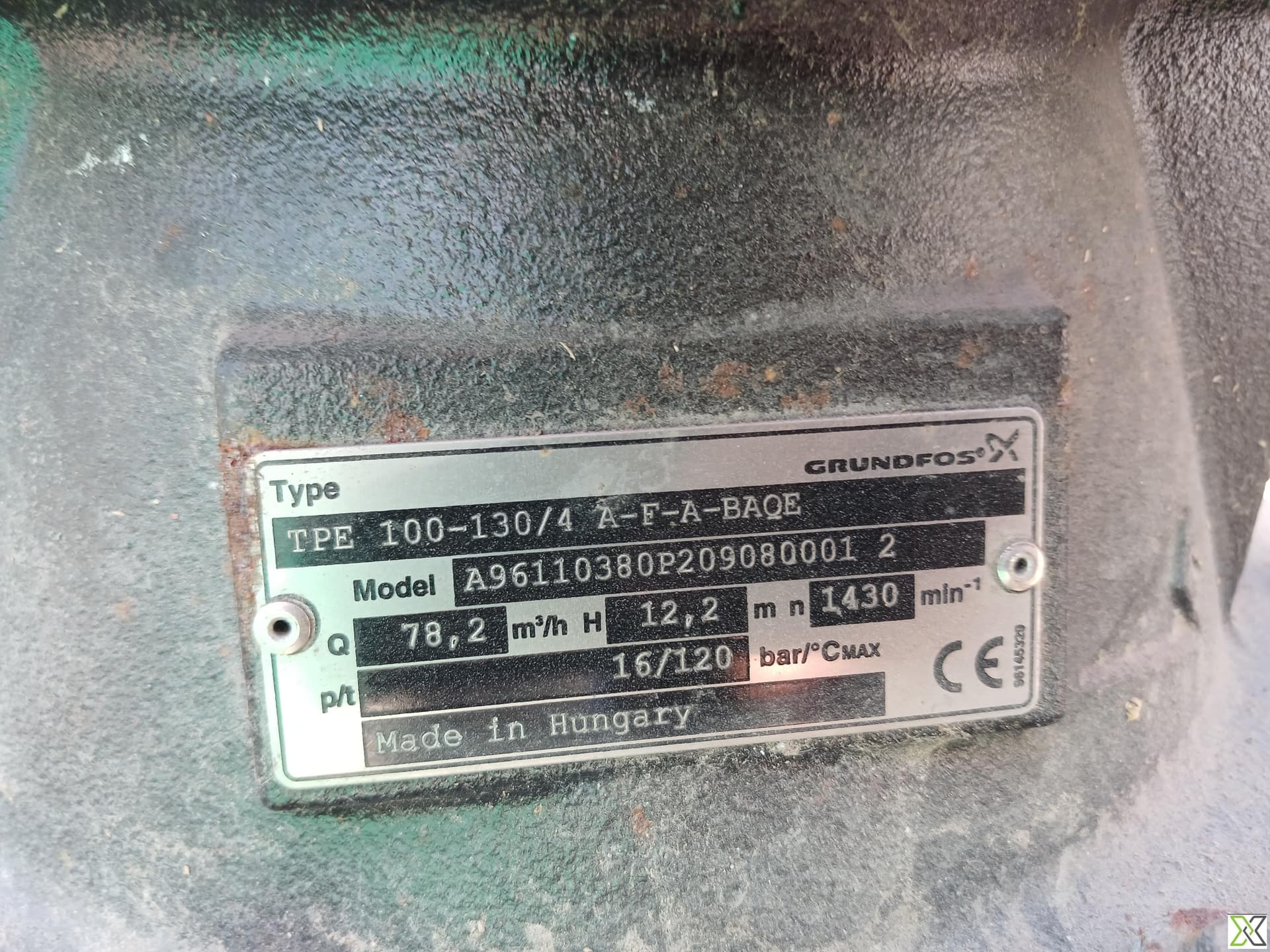

Model: TPE 100-130/4 A-F-A-BAQE

Model Number: A96110380P2090800012

Application: Industrial fluid circulation, HVAC, process cooling, and water supply systems

 Hydraulic Performance

Flow Rate (Q): 78.2 m³/h (Efficient fluid transfer capability)

Head (H): 12.2 m (Moderate pressure delivery for circulation applications)

Speed: 1430 RPM (4-pole motor with optimal energy efficiency)

Maximum Pressure: 16 bar (Suitable for high-pressure applications)

Maximum Temperature: 120°C (Handles high-temperature fluids efficiently)

 Mechanical Features

Pump Design: Vertical in-line configuration (Space-saving design for direct piping installation)

Construction Material: Likely Cast Iron / Stainless Steel (Corrosion-resistant for durability in industrial settings)

Bearings: High-quality bearings (Designed for low maintenance and extended operational life)

Seal Type: Mechanical seal (Ensures leak-free operation under varying conditions)

 Motor & Electrical Specifications

Integrated Motor: Yes (Frequency-controlled motor for energy efficiency and smooth operation)

Power Supply: Likely 3-phase 400V / 50Hz (Common industrial standard)

Efficiency Class: IE3 or higher (Designed for reduced power consumption and environmental sustainability)

 Standard Compliance

CE Certified (Complies with European safety and efficiency standards)

ISO 9906: Hydraulic performance standard for centrifugal pumps

IEC 60034: Motor efficiency and performance standard



For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number
TPE 100-130/4 A-F-A-BAQE
ISO 15926 Pt 4
7985
PCA RDS Code
RDS327239
CFIHOS ID
CFIHOS-30000550
Direction of Rotation
Clockwise
IFC Class
IfcPump
Explosion Protection Gas Group
Not applicable
Explosion Protection Temperature Class
Not applicable
Explosion Protection Zone
Not applicable
Lower Limit Operating Temperature
0 °C
Operation Continuous Intermittent
continuous and intermittent
Test Medium
Water
Test Pressure
Up to 16 bar
Normal Operating Inlet Pressure
Up to 16 bar
Normal Operating Inlet Temperature
20 °C (typical)
Normal Operating Outlet Pressure
Up to 16 bar
Orientation
Vertical in-line installation
UNSPSC Code
40151500
Upper Limit Design Temperature
120 °C
Lower Limit Ambient Operating Temperature
-20 °C
Lower Limit Design Temperature
0 °C
Pump Type
Single-stage, close-coupled, centrifugal in-line pump
Upper Limit Ambient Operating Temperature
50 °C
Upper Limit Operating Inlet Pressure
16 bar
Upper Limit Operating Outlet Pressure
16 bar
Upper Limit Operating Volume Flow Rate
78.2 m³/h
