- High Capacity Sea Water Supply Pump – 0 XS 21 D1
Description
Full Specifications
General Information:

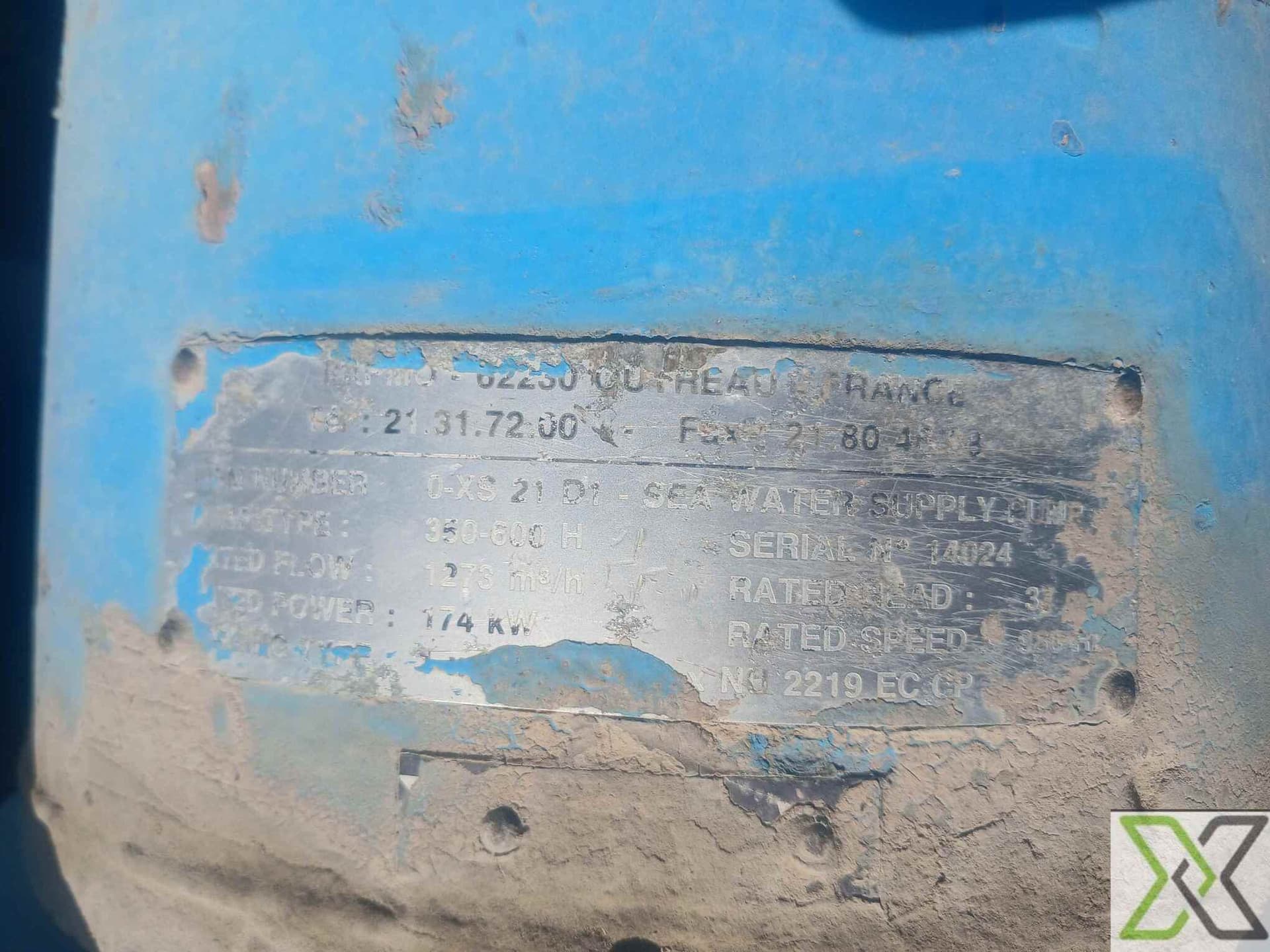

- Product Name: Sea Water Supply Pump
- Item Number: 0-XS 21 D1
- Pump Type: 350-600 H (High-Capacity Centrifugal Pump)
- Serial Number: 14024
- Application:
- Designed for sea water supply
- Suitable for desalination plants, marine applications, industrial cooling, and water transfer systems
Performance & Technical Data:
- Rated Flow: 1273 m³/h (high-volume water transfer)
- Rated Head: 31m (maximum pumping height)
- Rated Power: 174 kW (efficient and powerful operation)
- Rated Speed: 990 RPM (optimized for efficiency and reliability)
- Bearing Type: No. 2219 EC CP (high-performance industrial bearings for extended durability)
Construction & Design:
- Material:
- Likely corrosion-resistant stainless steel or specialized alloys for marine environments
- Impeller Type:
- Enclosed impeller for enhanced efficiency and high-performance water movement
- Seal Type:
- Mechanical seal or gland packing for superior leak prevention
- Suction & Discharge Size:
- Large-capacity inlet and outlet to support high flow rates (exact dimensions may vary)
- Drive Mechanism:
- Can be electric motor-driven or diesel-driven depending on operational needs
Operational & Efficiency Features:
- Efficiency: Optimized for low energy consumption and high reliability
- Environmental Resistance: Built to withstand harsh marine and industrial environments
- Cooling System: Designed for continuous operation with minimal maintenance requirements
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | 0-XS 21 D1 |
|---|---|
| ISO 15926 Pt 4 | 7985 |
| PCA RDS Code | RDS327239 |
| CFIHOS ID | CFIHOS-30000550 |
| IFC Class | IfcPump |
| Lower Limit Operating Temperature | +5°C |
| Operation Continuous Intermittent | Continuous |
| Upper Limit Operating Temperature | +45°C |
| Test Medium | Clean Seawater |
| Test Pressure | 5.0 bar |
| Normal Operating Inlet Pressure | 1.2 bar |
| Normal Operating Inlet Temperature | 25°C |
| Normal Operating Outlet Pressure | 4.4 bar |
| Orientation | Horizontal Base-Mounted |
| Upper Limit Design Pressure | 6.0 bar |
| UNSPSC Code | 40151500 |
| Upper Limit Design Temperature | +60°C |
| Upper Limit Operating Temperature | +45°C |
| Lower Limit Ambient Operating Temperature | 0°C |
| Lower Limit Design Temperature | 0°C |
| Lower Limit Operating Inlet Pressure | 0.5 bar |
| Lower Limit Operating Outlet Pressure | 2.5 bar |
| Lower Limit Operating Volume Flow Rate | 900 m³/h |
| Pump Type | Centrifugal (Sea Water Supply) |
| Upper Limit Ambient Operating Temperature | +50°C |
| Upper Limit Operating Inlet Pressure | 2.5 bar |
| Upper Limit Operating Outlet Pressure | 5.0 bar |
| Upper Limit Operating Volume Flow Rate | 1400 m³/h |
