- Oerlikon SOGEVAC SV 40/65 BIFC Vacuum Pump 2015
Description
Oerlikon SOGEVAC SV 40/65 BIFC Vacuum Pump - 2015
The Oerlikon SOGEVAC SV 40/65 BIFC is a robust vacuum pump engineered by Oerlikon Leybold Vacuum France, designed for continuous industrial duty. Manufactured in 2015 and bearing serial number 150165/2014, this unit is optimized for reliable, oil-sealed vacuum operation and includes a high-performance 3-phase Leroy Somer LS90L motor.
The pump is equipped with a 1.5 kW motor, supports 50/60 Hz frequency ranges, and operates within a voltage range of 180–264 V, delivering excellent operational flexibility. With a maximum absolute pressure of 1000 mbar in continuous operation, the unit uses Leybold LVO 120 oil for lubrication and heat dissipation.
Certified for international standards, the unit carries CE, RU AA, and cULus markings. The Leroy Somer LS90L motor delivers reliable performance with IP40 enclosure, thermal class Ta 40°C, insulation class F, and IEC 60034-1 compliance. It is ideal for use in general vacuum generation, laboratory systems, packaging, and light process industries.

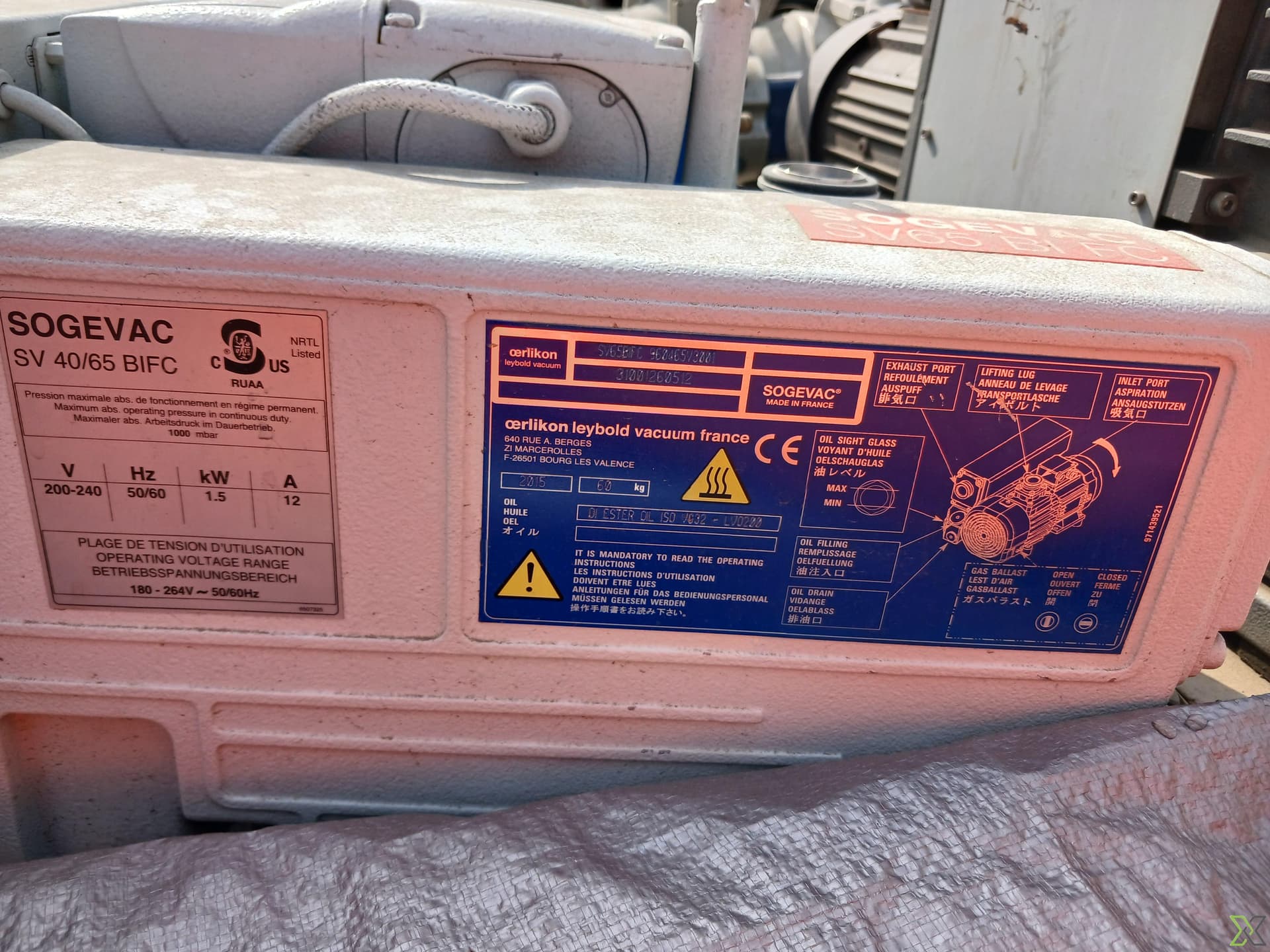

Specifications:
– Model: SOGEVAC SV 40/65 BIFC
– Manufacturer: Oerlikon Leybold Vacuum France
– Year of Manufacture: 2015
– Serial Number: 150165/2014
– Location of Manufacture: Bourg les Valence, France
– Voltage Range: 200–240 V
– Operating Voltage Range: 180–264 V
– Frequency: 50/60 Hz
– Power Rating: 1.5 kW
– Current Draw: 12 A
– Operating Mode: Continuous operation
– Max Absolute Pressure: 1,000 mbar
– Oil Type: Leybold LVO 120
– Markings: CE, RU AA, cULus
– Compliance: PED/CE conformity

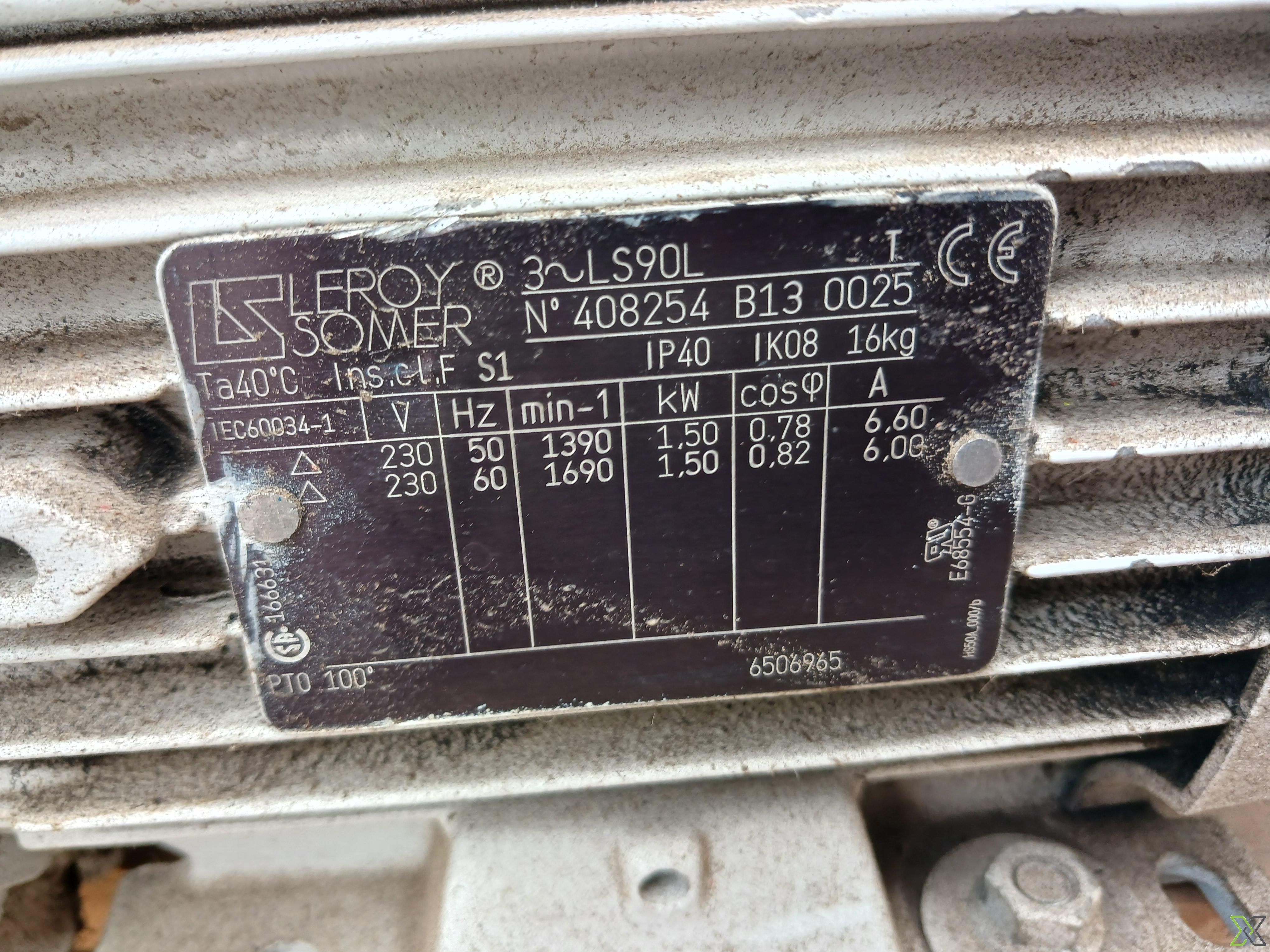

Motor Specifications:
– Brand: Leroy Somer
– Model: 3~ LS90L
– Serial Number: 408254 B13 0025
– Voltage: 230 V
– Frequency: 50 Hz / 60 Hz
– Speed: 1390 RPM (50 Hz), 1690 RPM (60 Hz)
– Power: 1.5 kW
– Current Draw: 6.6 A (50 Hz), 6.0 A (60 Hz)
– Efficiency (cos φ): 0.78 (50 Hz), 0.82 (60 Hz)
– Weight: 16 kg
– Enclosure Rating: IP40
– Impact Resistance: IK08
– Thermal Class: Ta 40°C
– Insulation Class: F
– Compliance: IEC 60034-1, CE marked
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | Model: SOGEVAC SV 40/65 BIFC |
|---|---|
| Year of Manufacturing | 2015 |
| ISO 15926 Pt 4 | 7985 |
| PCA RDS Code | RDS327239 |
| CFIHOS ID | CFIHOS-30000550 |
| IFC Class | IfcPump |
| Test Medium | Air or inert gas |
| Normal Operating Inlet Pressure | ~1013 mbar |
| Normal Operating Inlet Temperature | 10°C to 40°C |
| Normal Operating Outlet Pressure | Slightly above atmospheric due to internal pressure drop |
| Orientation | Horizontal installation |
| UNSPSC Code | 40151500 |
| Lower Limit Operating Inlet Pressure | Approximately 1 mbar |
| Lower Limit Operating Outlet Pressure | Slightly above atmospheric |
| Pump Type | Oil-sealed rotary vane, single-stage |
| Upper Limit Ambient Operating Temperature | 40°C |
| Upper Limit Operating Inlet Pressure | (~1013 mbar |
