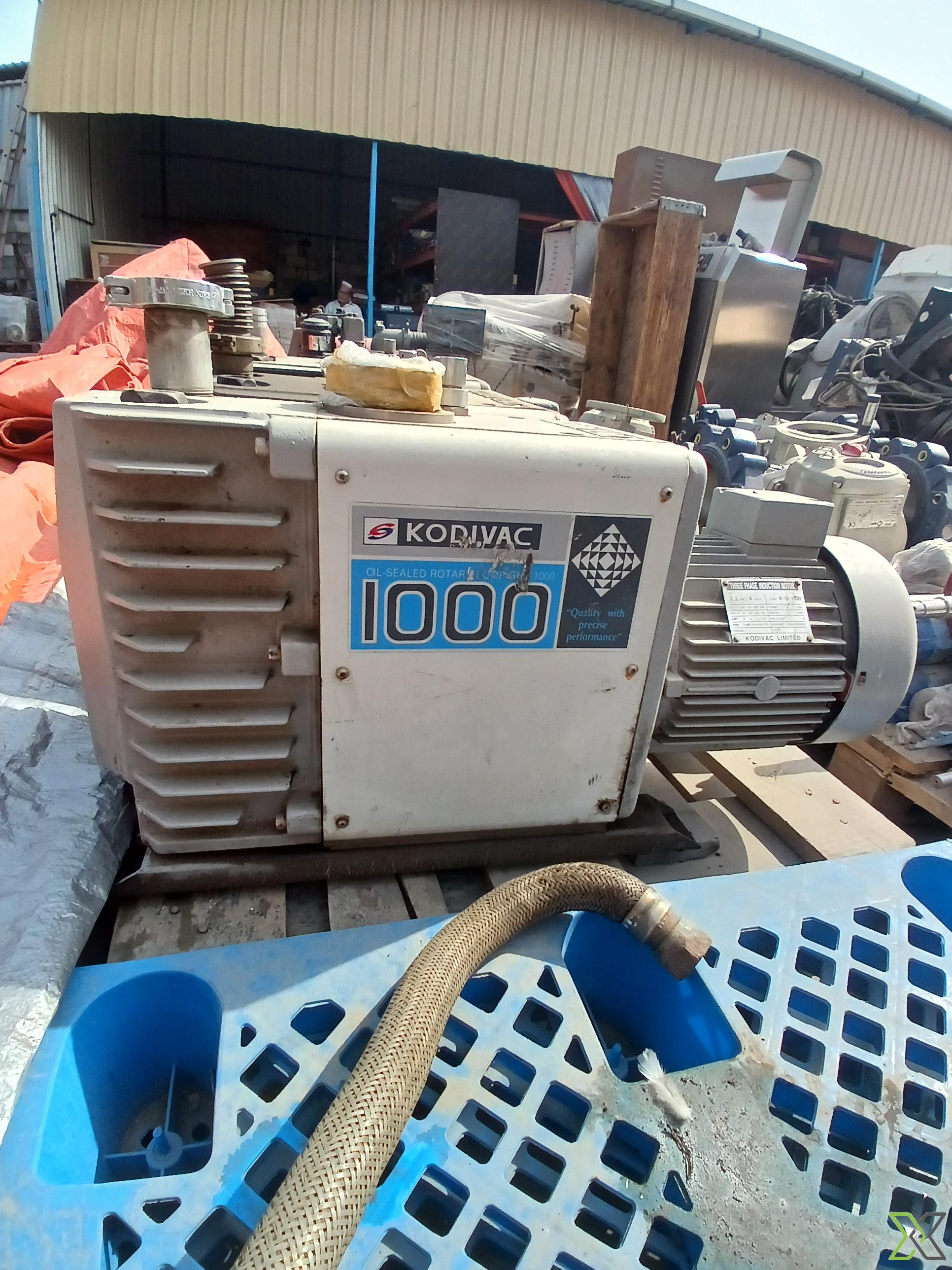

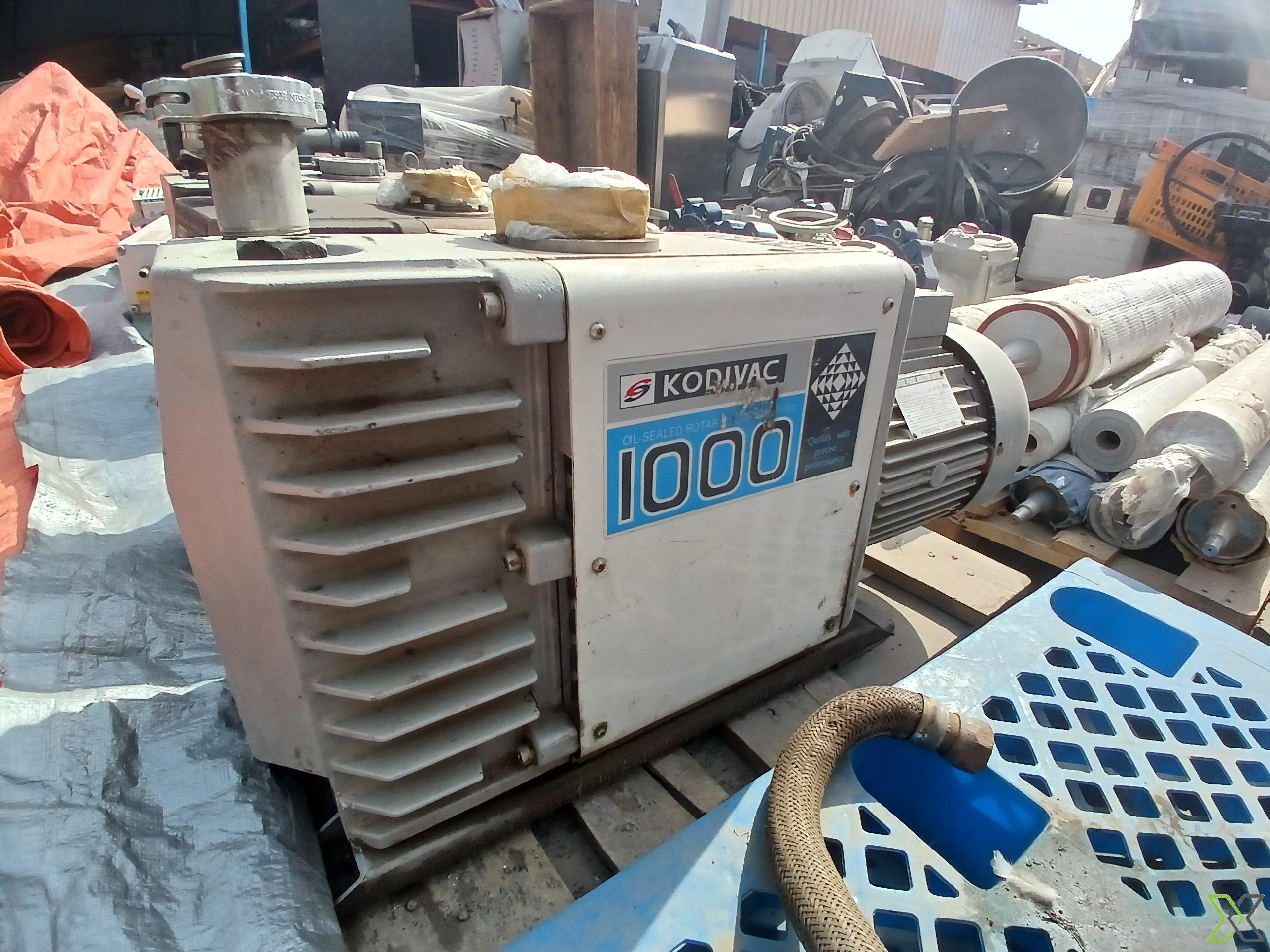

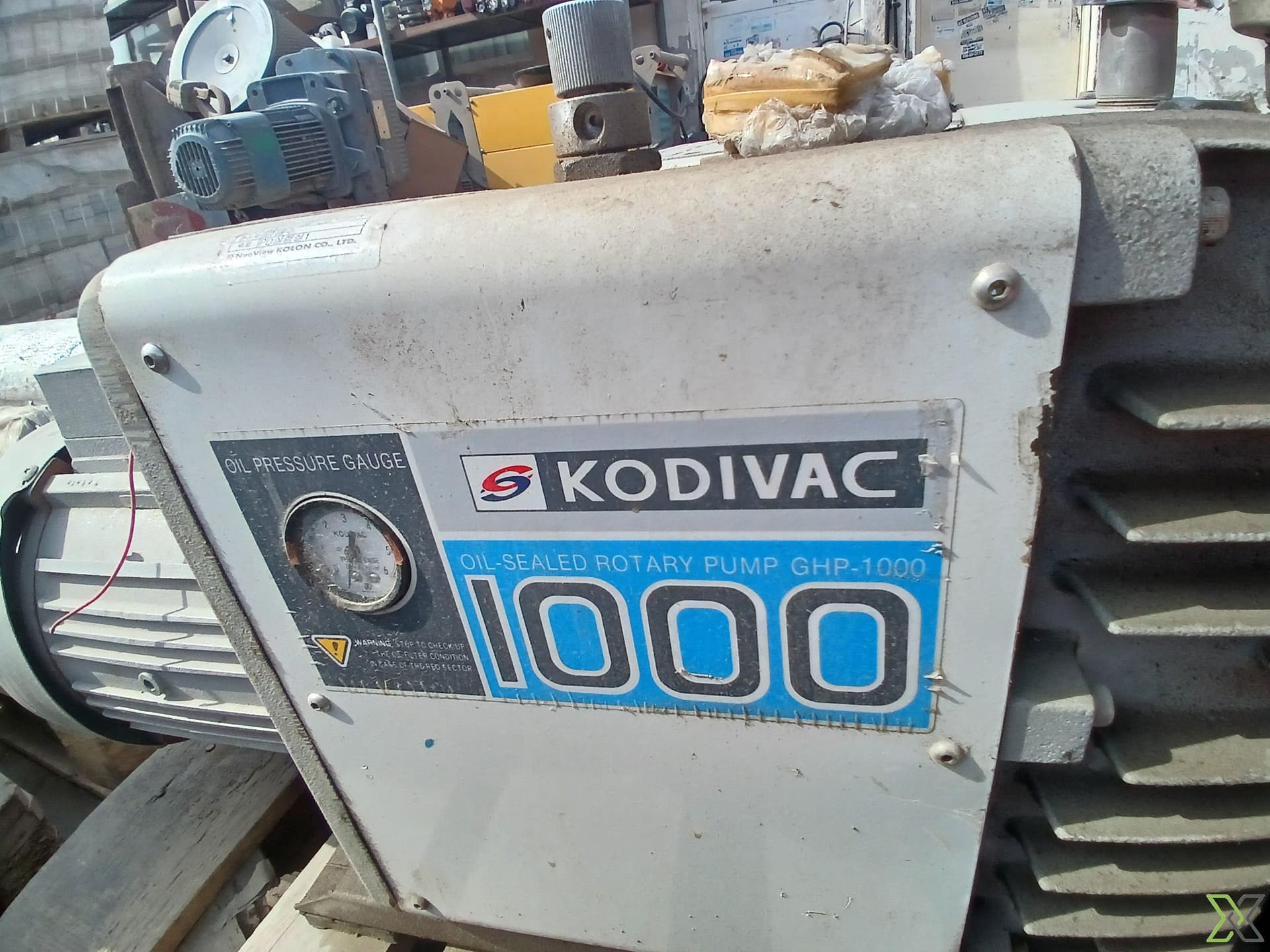

KODIVAC GHP-1000 Rotary Vacuum Pump – 1000 L/min

The KODIVAC GHP-1000 is a high-performance oil-sealed rotary vacuum pump designed for continuous industrial operation. Manufactured by KODIVAC CO., LTD., this unit delivers exceptional pumping speeds of 1000 L/min at 50 Hz and 1200 L/min at 60 Hz, making it ideal for demanding vacuum applications in manufacturing, process industries, and laboratories.

The pump reaches an ultimate pressure in the range of x10⁻⁴ Torr, allowing it to maintain high vacuum levels. It has an oil capacity of 4.8 liters and utilizes standardized oil seals with size specifications S: 32×45×8 mm and D: 35×50×8 mm, ensuring optimal sealing and lubrication performance.

Equipped with a 2.2 kW, 4-pole motor, the unit operates on multiple voltages (220/380 V) and supports both 50 Hz and 60 Hz frequencies, yielding speeds of 1450 RPM and 1720 RPM, respectively. The motor is housed in a 100L frame, features B-class insulation, and is rated for continuous duty.

This pump includes precision bearings (6206ZZ / 6205ZZ) and a warning system to maintain oil level within the sight glass range. With a strong build, reliable vacuum capability, and CE-compliant design, the GHP-1000 is suited for various industrial and laboratory vacuum processes.

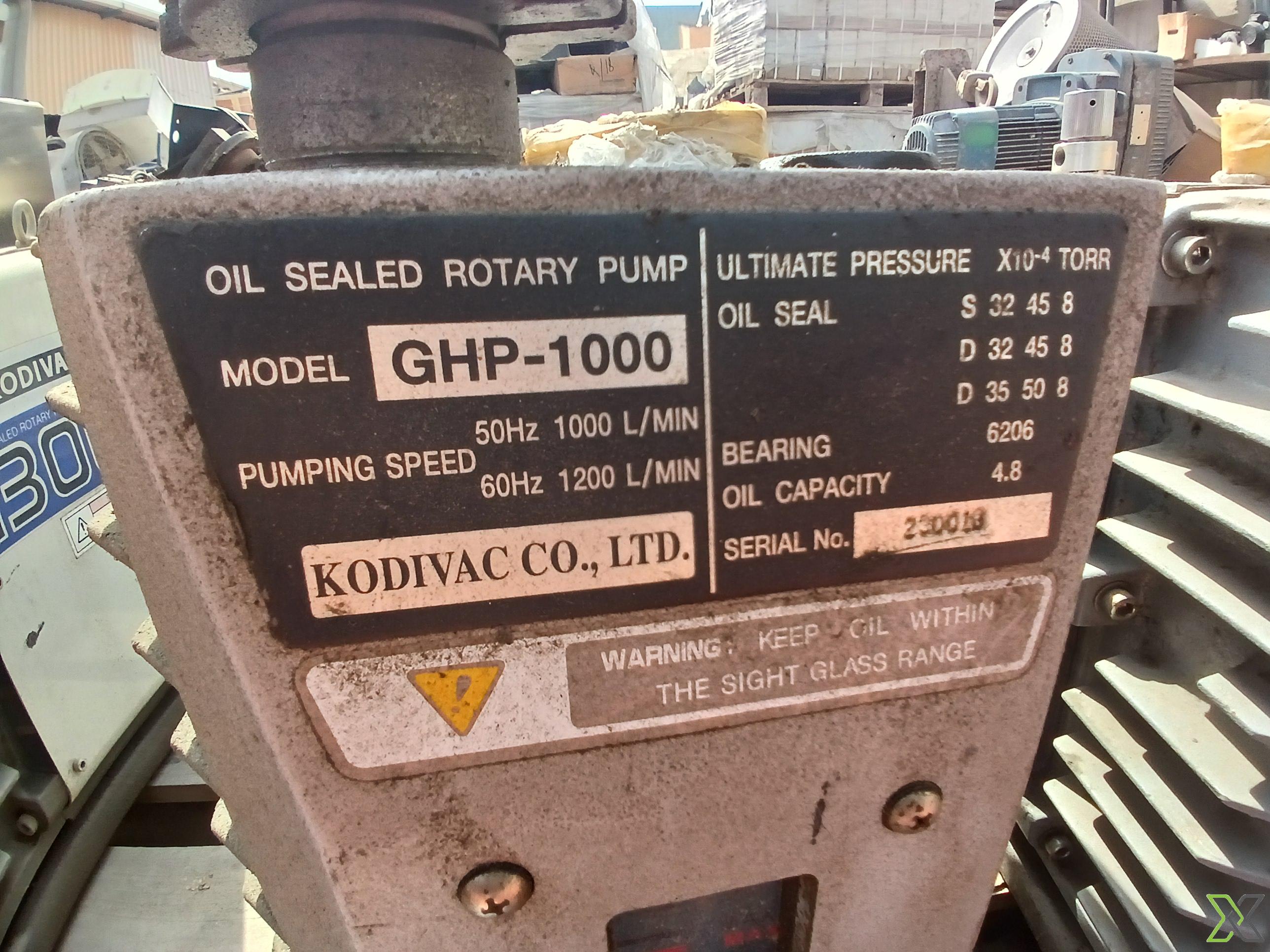

Specifications:

– Model: GHP-1000
– Alternate Type Code: K-G-1000
– Manufacturer: KODIVAC CO., LTD.
– Serial Number: 250010
– Pump Type: Oil-Sealed Rotary Vacuum Pump
– Pumping Speed:
  • 1000 L/min @ 50 Hz
  • 1200 L/min @ 60 Hz
– Ultimate Pressure: x10⁻⁴ Torr
– Oil Capacity: 4.8 L
– Oil Seal Sizes:
  • S: 32×45×8 mm
  • D: 32×45×8 mm
  • D: 35×50×8 mm
– Bearing Type (Pump): 6206

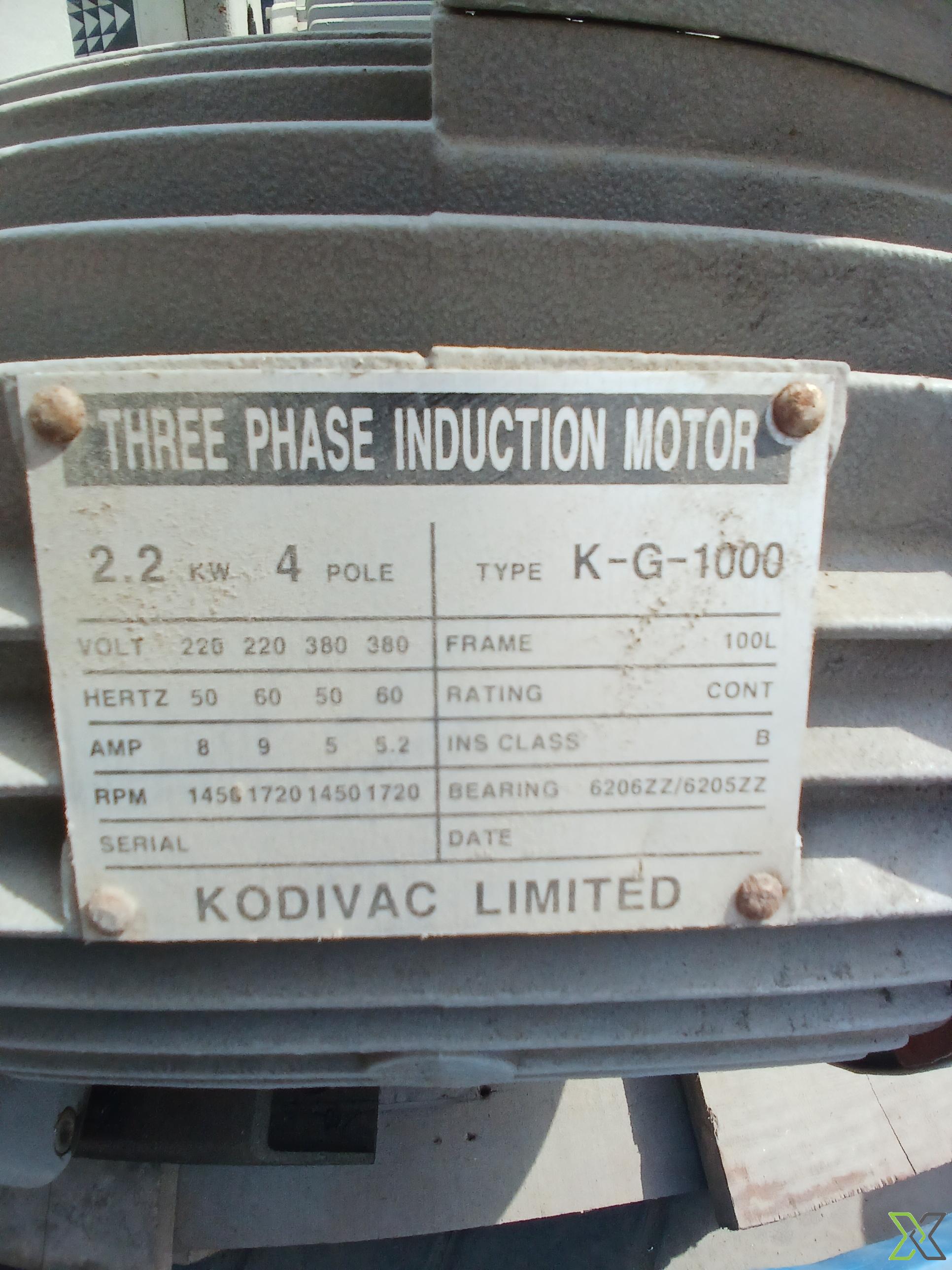

Motor Specifications:
– Motor Type: 2.2 kW, 4-pole
– Voltage: 220 / 220 / 380 / 380 V
– Frequency: 50 / 60 Hz
– Current: 8 A / 9 A / 5 A / 5.2 A
– Speed: 1450 / 1720 RPM
– Frame Size: 100L
– Duty Rating: Continuous
– Insulation Class: B
– Motor Bearings: 6206ZZ / 6205ZZ
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
