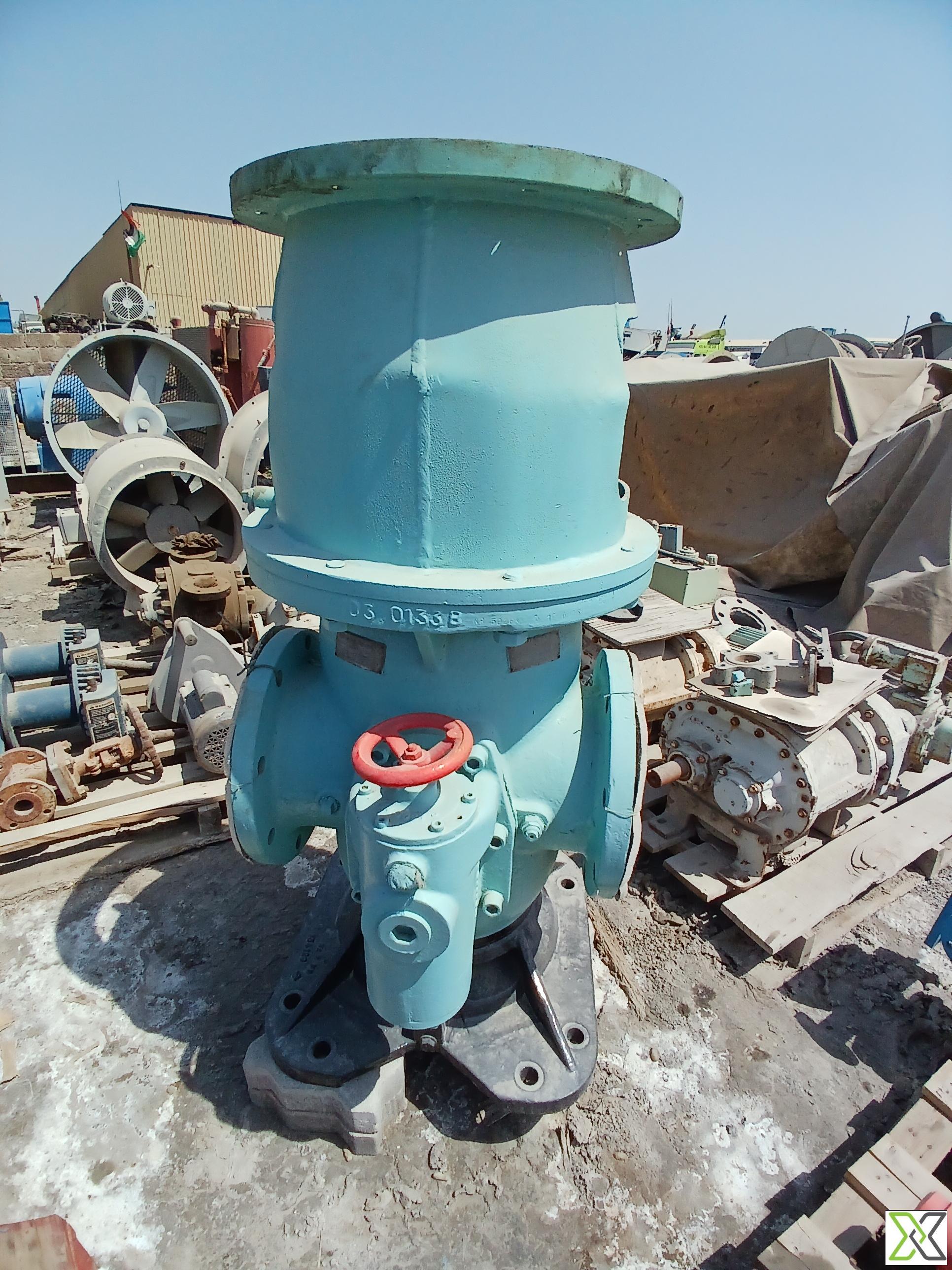

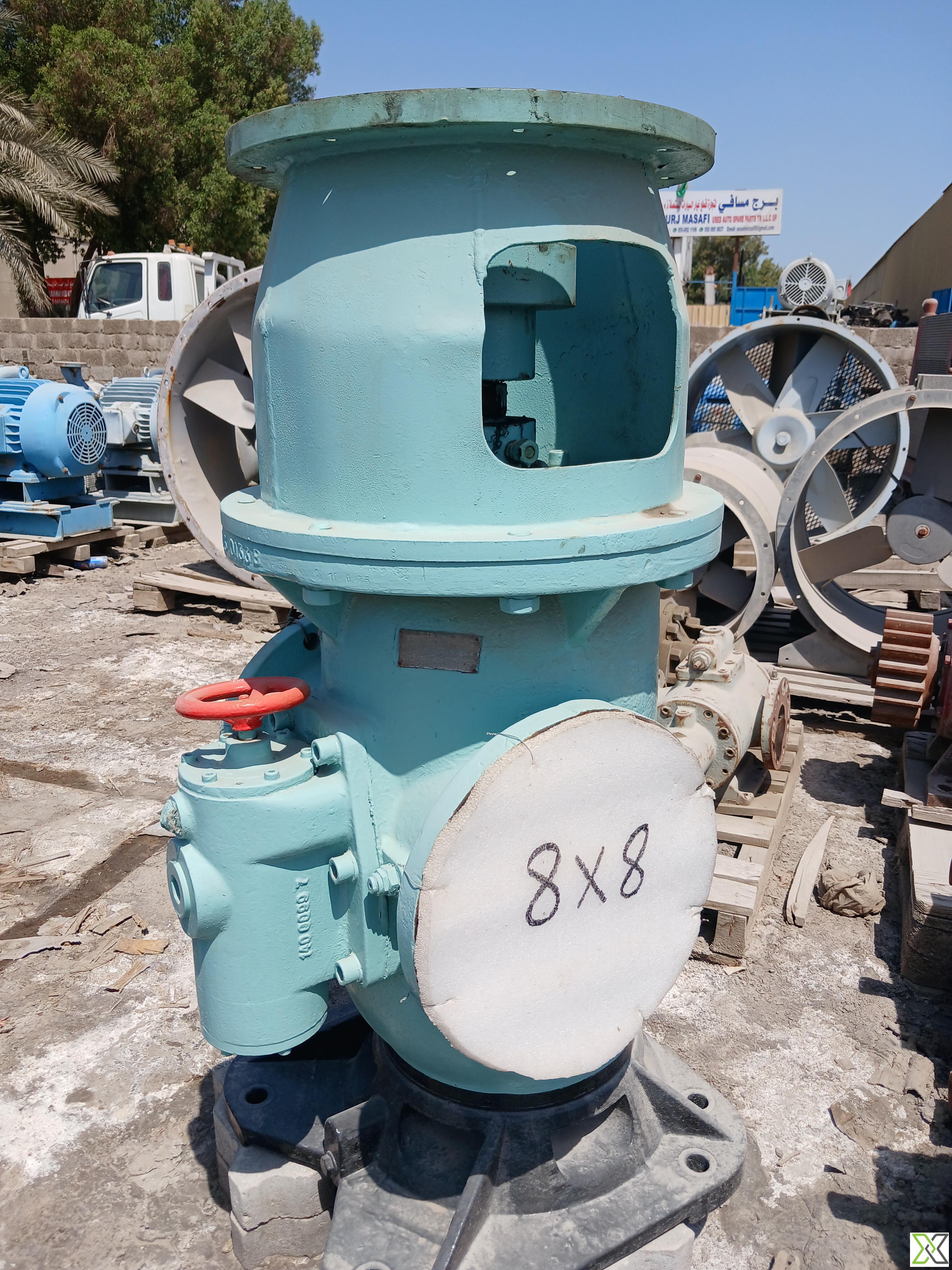

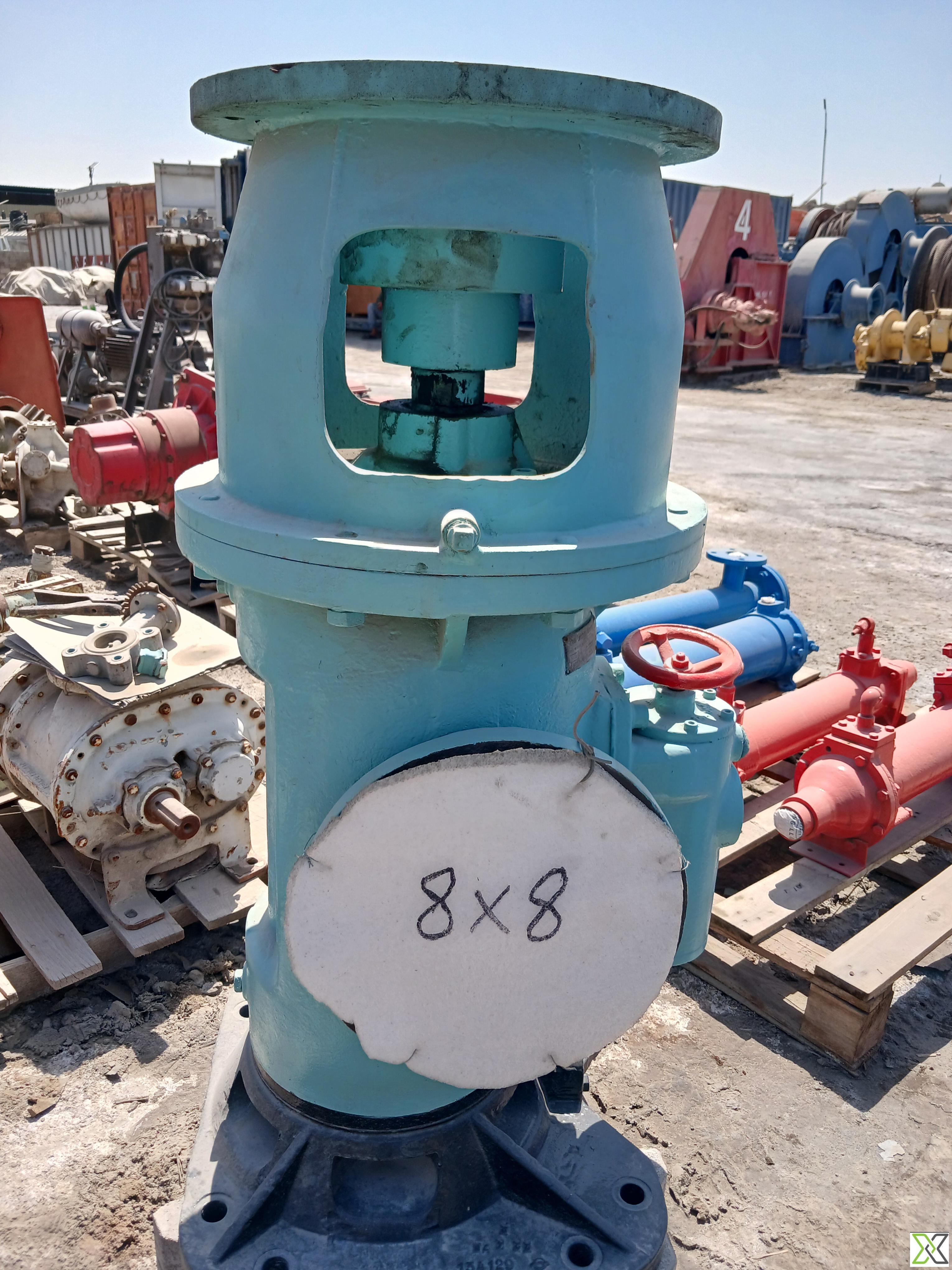

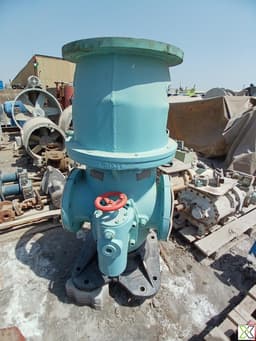

Paul Leistritz Vertical Inline Oil Pump – 8x8 Inch, 125 l/min

ReflowX SKU: REF-9046

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

High-efficiency vertical inline oil pump by Paul Leistritz with 8x8-inch inlet/outlet configuration, suitable for industrial oil circulation systems operating at speeds up to 1750 RPM.

Description

Paul Leistritz Vertical Inline Oil Pump – 8x8 Inch, 125 l/min
Description:

The Paul Leistritz Vertical Inline Oil Pump is a precision-engineered industrial pump designed for efficient oil transfer and circulation in demanding applications. Manufactured in Nürnberg-S, Germany, this pump features a vertical inline configuration and 8x8-inch flanged inlet and outlet connections for high-volume flow compatibility. With an approximate flow rate of 125 liters per minute and an operational speed range between 1450 to 1750 RPM, it is ideal for centralized lubrication systems, hydraulic power units, and thermal oil loops. Its compact design allows for seamless integration into skid-mounted or fixed industrial installations.

Specifications

– Manufacturer: Paul Leistritz
– Model/Type: Vertical Inline Oil Pump

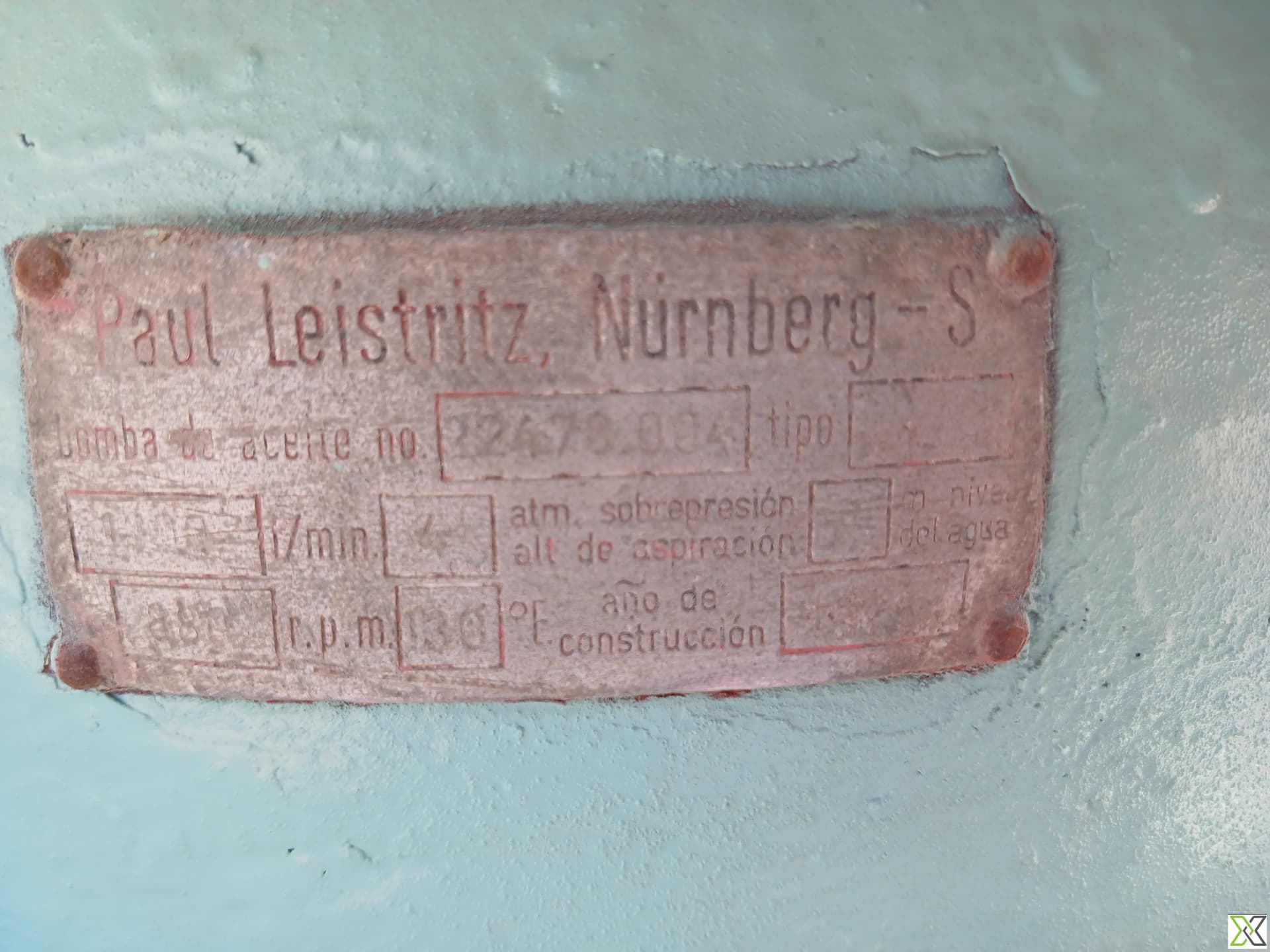

– Country of Manufacture: Nürnberg-S, Germany
– Inlet Size: 8 inches
– Outlet Size: 8 inches
– Flow Rate: Approx. 125 l/min (partially legible)
– Operating Speed: 1450–1750 RPM
– Pump Orientation: Vertical Inline
– Design Application: Industrial oil transfer
– Mounting: Baseplate-mounted
– Drive Type: Coupling to external motor (motor not included)
– Pump Housing Material: Likely cast steel or iron (subject to verification)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Vertical Inline Oil Pump
Manufacturer Name	Paul Leistritz
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+120°C
Test Medium	Lubricating or thermal oil
Test Pressure	16 bar
Normal Operating Inlet Pressure	0.5 to 1.5 bar
Normal Operating Inlet Temperature	40°C to 100°C
Normal Operating Outlet Pressure	3 to 6 bar
Orientation	Vertical Inline
Upper Limit Design Pressure	16 bar
UNSPSC Code	40151500
Upper Limit Operating Temperature	+120°C
Lower Limit Ambient Operating Temperature	-10°C
Lower Limit Design Temperature	-10°C
Lower Limit Operating Inlet Pressure	0.3 bar
Lower Limit Operating Outlet Pressure	2 bar
Lower Limit Operating Volume Flow Rate	20 l/min
Pump Type	External gear or screw-type inline oil circulation pump
Upper Limit Ambient Operating Temperature	+45°C
