Pedrollo F 65/125C Centrifugal Pump – 5.5 kW, 3-Phase, IP55

ReflowX SKU: REF-7234

Product Details

Quantity

10
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Italy
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

High-efficiency Pedrollo centrifugal pump model F 65/125C with 5.5 kW motor, 3-phase, 2900 RPM, and IE3 efficiency class. Designed for medium to high flow applications. Used unit made in Italy.

Description

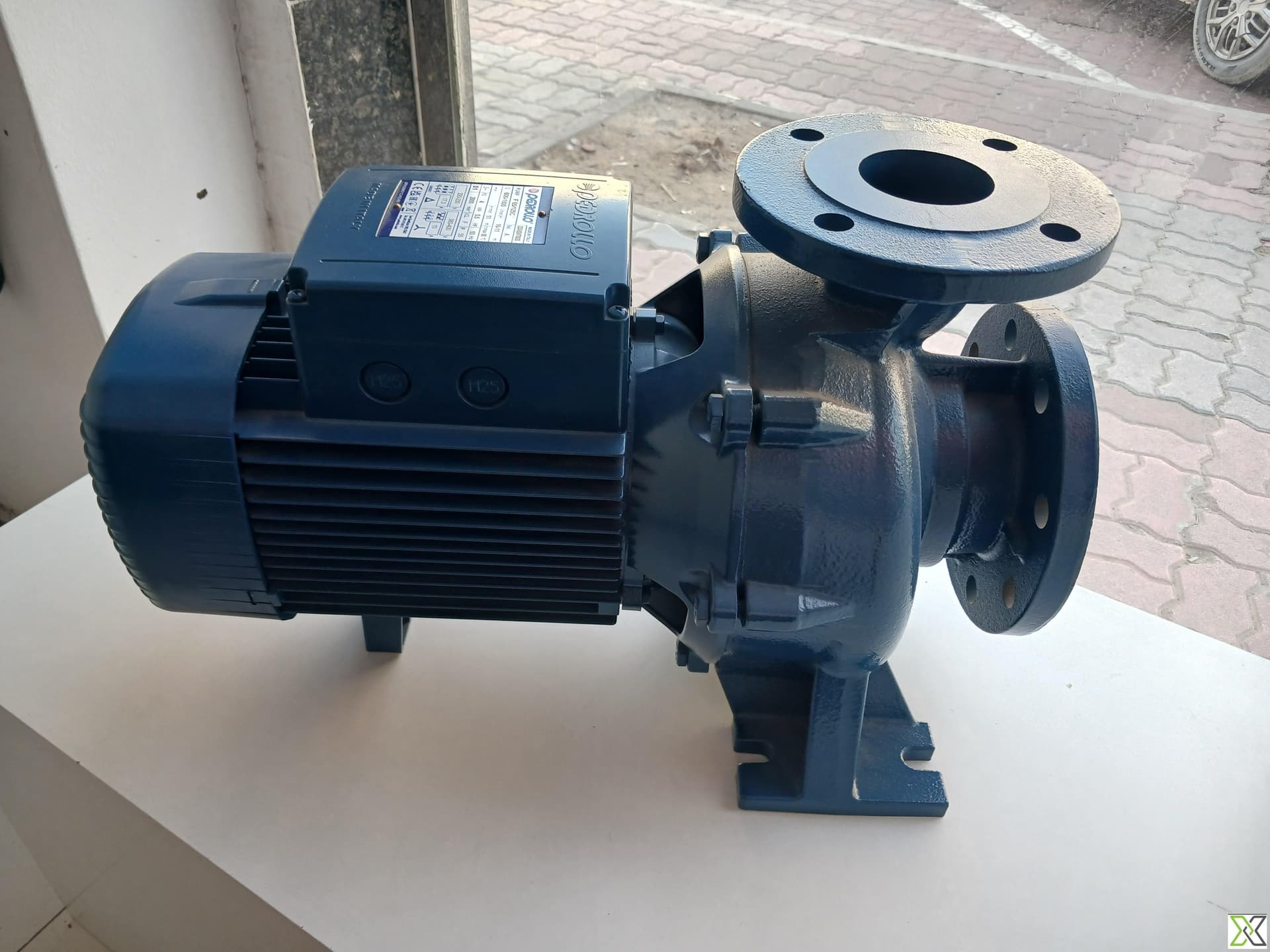

Pedrollo F 65/125C Centrifugal Pump – 5.5 kW, 3-Phase, IP55

The Pedrollo F 65/125C is a robust and efficient centrifugal pump engineered for continuous-duty operations in industrial and commercial applications. Driven by a 5.5 kW (7.5 HP) IE3 high-efficiency motor, the pump delivers a flow range between 600 and 1800 liters per minute, with a head range from 16 to 11 meters. Its durable construction and IP55 motor protection make it suitable for demanding environments. Operating on 3-phase power at either 220–230V or 380–400V, this pump runs at a high speed of 2900 RPM and supports liquid temperatures up to 90°C. It features insulation class F for thermal protection and long service life. Manufactured in Italy, this unit is offered in used but good operational condition.

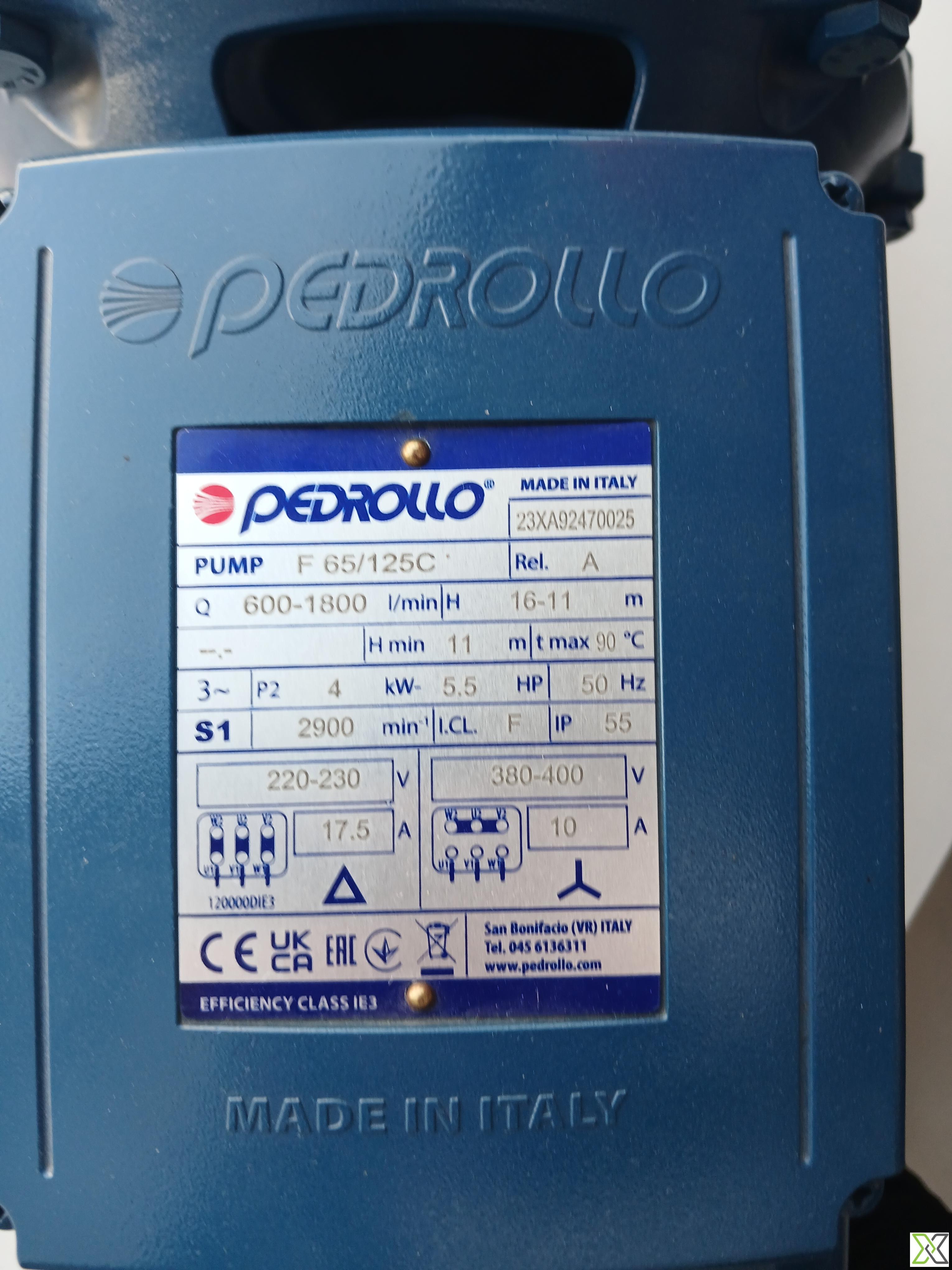

Specifications:

– Brand: Pedrollo
– Model: F 65/125C
– Flow Rate: 600–1800 L/min
– Head: 16–11 meters
– Power: 5.5 kW / 7.5 HP
– Voltage: 220–230V / 380–400V
– Frequency: 50 Hz
– Speed: 2900 RPM
– Phase: 3
– Protection Class: IP55
– Insulation Class: F
– Efficiency Class: IE3
– Max Liquid Temperature: 90°C
– Country of Manufacture: Italy
– Condition: Used

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	+5°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+90°C
Test Medium	Clean Water
Test Pressure	6 bar
Normal Operating Inlet Pressure	1.0 bar
Normal Operating Inlet Temperature	30°C
Normal Operating Outlet Pressure	1.6 bar
Orientation	Horizontal
Upper Limit Design Pressure	6 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+95°C
Upper Limit Operating Temperature	+90°C
Lower Limit Ambient Operating Temperature	-10°C
Lower Limit Design Temperature	0°C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	1.1 bar
Lower Limit Operating Volume Flow Rate	600 L/min (36 m³/h)
Pump Type	Centrifugal Pump
Upper Limit Ambient Operating Temperature	+50°C
Upper Limit Operating Inlet Pressure	4.0 bar
Upper Limit Operating Outlet Pressure	2.0 bar
Upper Limit Operating Volume Flow Rate	1800 L/min (108 m³/h)
