Pedrollo CPm 190 Centrifugal Pump – 1.5 kW, 2 HP, 30–140 l/min Flow

ReflowX SKU: REF-2894

Product Details

Quantity

30
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Italy
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

High-efficiency Pedrollo CPm 190 centrifugal pump delivering 30–140 l/min flow with a 1.5 kW motor, designed for continuous-duty liquid transfer applications up to 90°C.

Description

Pedrollo CPm 190 Centrifugal Pump – 1.5 kW, 2 HP, 30–140 l/min Flow

Description:

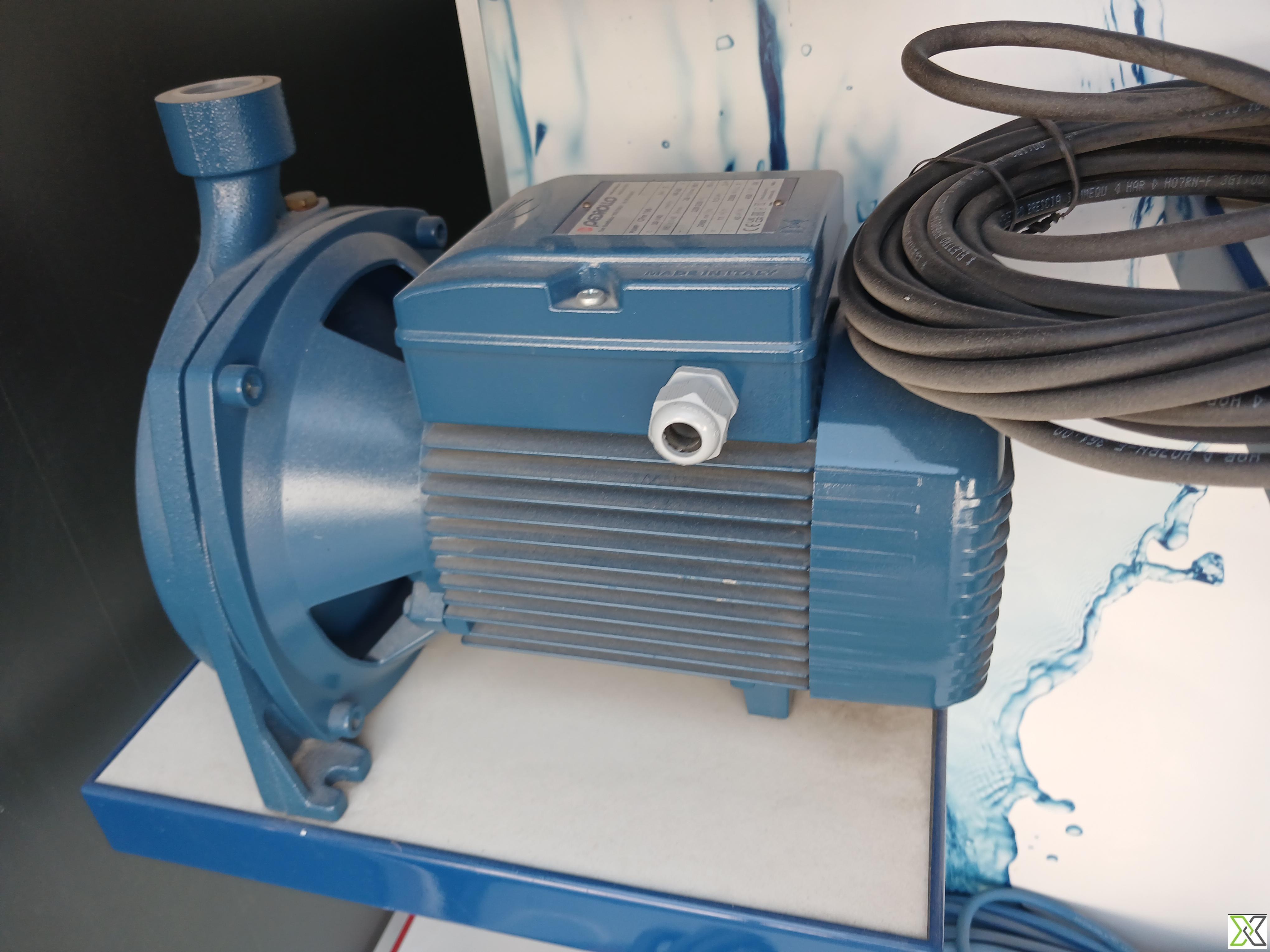

The Pedrollo CPm 190 is a compact and reliable centrifugal pump designed for clean water and non-aggressive liquids. Built with a 1.5 kW (2 HP) motor, the unit delivers a flow rate between 30 to 140 liters per minute at a head range of 26 to 46 meters. Operating at 220–230 V and 50 Hz, the pump runs at a nominal speed of 2900 RPM and is thermally protected for safe continuous operation. Its durable cast iron body with a blue enamel finish offers corrosion resistance and long service life. With Class F insulation and IP44 protection, the CPm 190 is ideal for domestic and light industrial use, where high performance and low maintenance are priorities.

Specifications

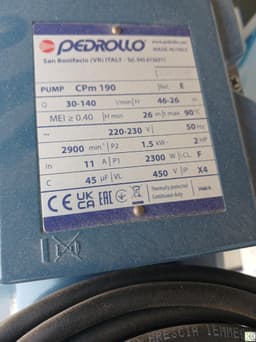

– Brand: Pedrollo
– Model: CPm 190
– Flow Rate (Q): 30–140 l/min
– Head Range (H): 26 – 46 m
– Minimum Head: 26 m
– Maximum Head: 46 m
– Motor Power (P2): 1.5 kW / 2 HP
– Voltage: 220–230 V
– Frequency: 50 Hz
– Input Power (P1): 2300 W
– Current (P1): 11 A
– Speed: 2900 RPM
– Capacitor: 45 µF / 450 VL
– Insulation Class: F
– Protection Class: IP44
– Thermal Protection: Yes (thermally protected for continuous duty)
– Max Liquid Temperature: 90°C
– Minimum Efficiency Index (MEI): ≥ 0.40
– Body Material: Cast iron casing, blue enamel finish
– Country of Manufacture: Italy

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CPm 190
Year of Manufacturing	Pedrollo
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	+5 °C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+90 °C
Test Medium	Clean water
Test Pressure	10 bar max
Normal Operating Inlet Pressure	1–2 bar
Normal Operating Inlet Temperature	Ambient to 40 °C
Normal Operating Outlet Pressure	2.6 to 4.6 bar
Orientation	Horizontal
Upper Limit Design Pressure	Approx. 8 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+90 °C
Upper Limit Operating Temperature	+90 °C
Lower Limit Ambient Operating Temperature	–10 °C
Lower Limit Design Temperature	–10 °C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	1 bar
Lower Limit Operating Volume Flow Rate	30 l/min
Pump Type	Horizontal
Upper Limit Ambient Operating Temperature	+40 °C
Upper Limit Operating Inlet Pressure	3 bar
Upper Limit Operating Outlet Pressure	4.6 bar
Upper Limit Operating Volume Flow Rate	140 l/min
