Pedrollo JCRm 1A Stainless Steel Jet Pump with EasyPress Controller – 0.75 HP, 48 m Head

ReflowX SKU: REF-2919

Product Details

Quantity

30
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Italy
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Durable stainless steel jet pump from Pedrollo with 0.75 HP power and EasyPress controller, providing 48 m head and automatic dry-run protection.

Description

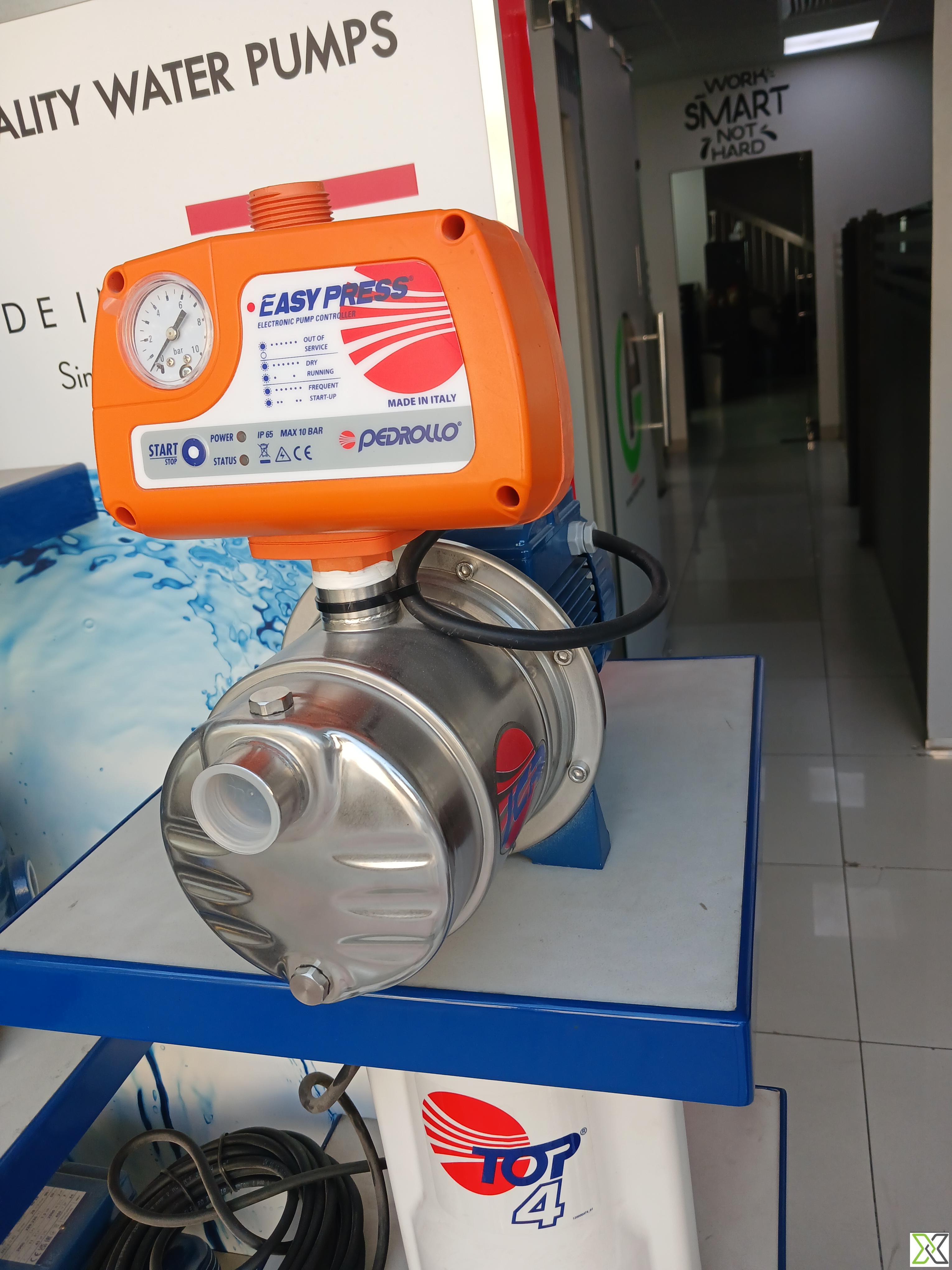

Pedrollo JCRm 1A Stainless Steel Jet Pump with EasyPress Controller – 0.75 HP, 48 m Head

Description:

The Pedrollo JCRm 1A is a compact and reliable stainless steel jet pump designed for clean water transfer and pressure boosting in domestic and light industrial systems. Powered by a 0.55 kW (0.75 HP) motor, it delivers a flow range of 5 to 60 liters per minute and a total head of up to 48 meters. The unit features thermal overload protection, Class F insulation, and IP44 protection for robust, continuous operation.
This pump comes integrated with the Pedrollo EasyPress Controller (Model 50066/215P), which provides automatic start/stop functionality, dry-run protection, and real-time pressure monitoring with an analog gauge. Manufactured in Italy, this system is ideal for consistent pressure management in residential supply lines, irrigation setups, and tank filling systems.

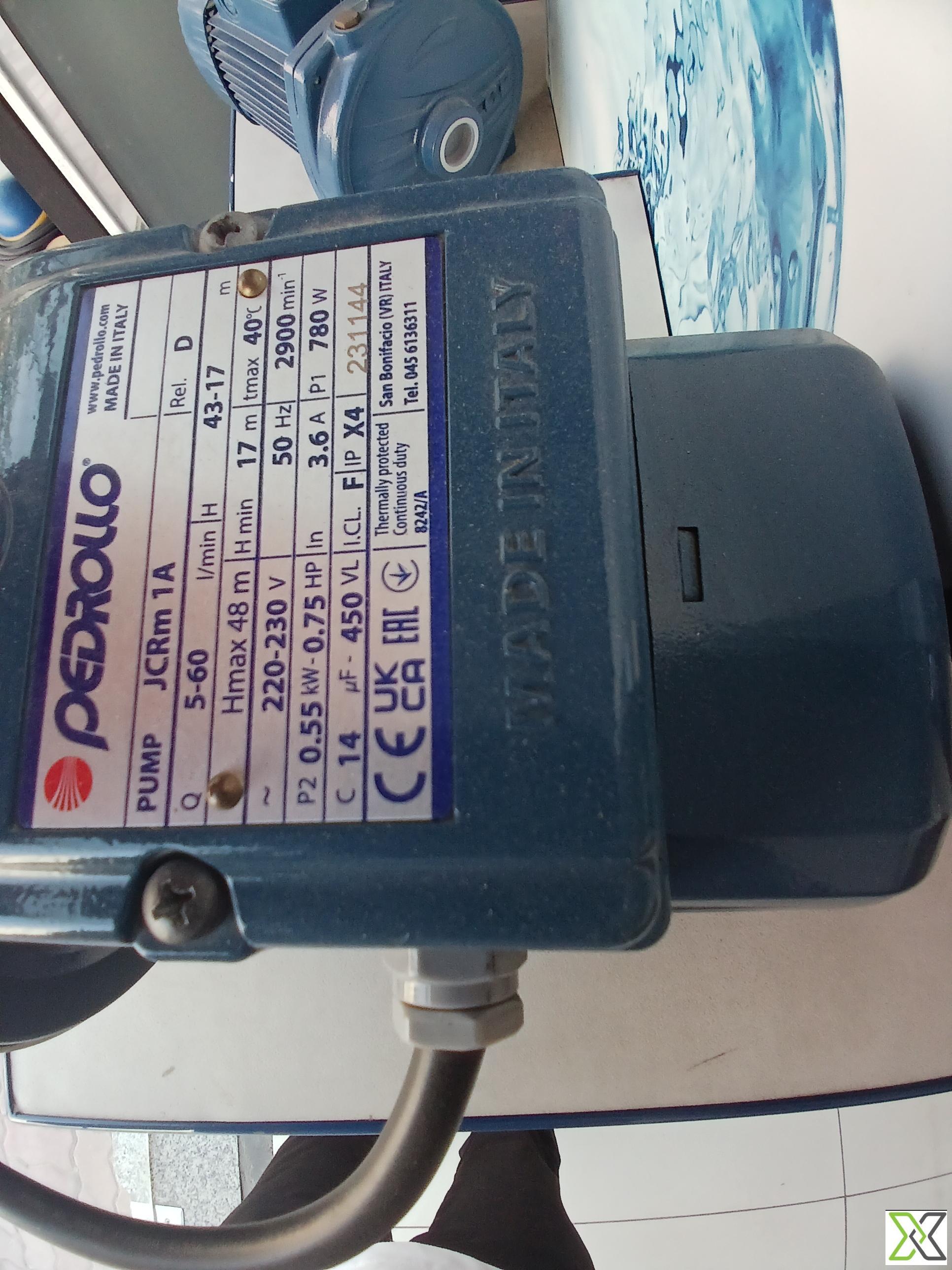

Specifications

Pump Unit:
– Brand: Pedrollo
– Model: JCRm 1A
– Power: 0.55 kW / 0.75 HP
– Voltage: 220–240 V
– Current: 3.6 A
– Frequency: 50 Hz
– Max Flow Rate (Q): 5 – 60 l/min
– Total Head (Hmax): 48 m
– Minimum Head (Hmin): 17 m
– Speed: 2900 RPM
– Protection Class: IP44
– Insulation Class: F
– Capacitor: 14 µF
– Thermal Protection: Yes (Continuous duty)
– Material: Stainless Steel
– Country of Manufacture: Italy

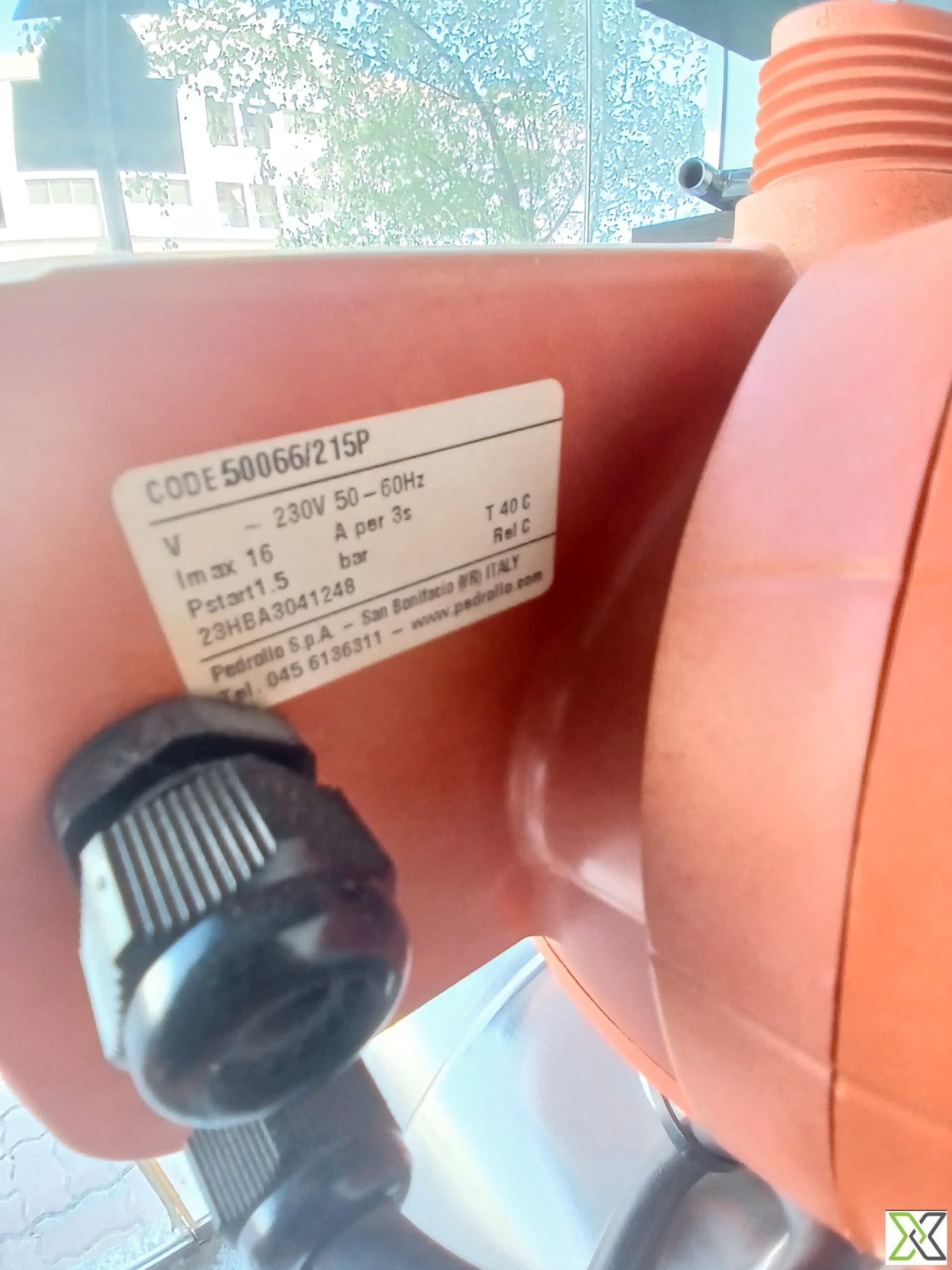

Controller Unit:
– Model: Pedrollo EasyPress
– Code: 50066/215P
– Rated Voltage: 230V, 50–60 Hz
– Start Pressure: 1.5 bar
– Max Current: 16 A
– Max Temperature: 40°C
– Functions:
– Automatic start/stop
– Dry-run protection
– Pressure monitoring with analog gauge
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JCRm 1A
Manufacturer Name	Pedrollo
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	+5 °C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+40 °C
Test Medium	Clean water
Test Pressure	7.2 bar
Normal Operating Inlet Pressure	0.5 – 1.5 bar
Normal Operating Inlet Temperature	+25 °C
Normal Operating Outlet Pressure	1.7 – 4.8 bar
Orientation	Horizontal
Upper Limit Design Pressure	7.5 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+40 °C
Upper Limit Operating Temperature	+40 °C
Lower Limit Ambient Operating Temperature	–5 °C
Lower Limit Design Temperature	–5 °C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	1.7 bar
Lower Limit Operating Volume Flow Rate	5 l/min
Pump Type	Horizontal Self-Priming Jet Pump
Upper Limit Ambient Operating Temperature	+40 °C
Upper Limit Operating Inlet Pressure	2 bar
Upper Limit Operating Outlet Pressure	4.8 bar
Upper Limit Operating Volume Flow Rate	60 l/min
