Pedrollo NKm 4/5 GE-N Submersible Multistage Pump – 1.1 kW, 67 m Head

ReflowX SKU: REF-3328

Product Details

Quantity

30
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Italy
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

High-performance Pedrollo NKm 4/5 GE-N submersible multistage pump delivering up to 120 l/min and 67 m head, ideal for deep water pumping applications.

Description

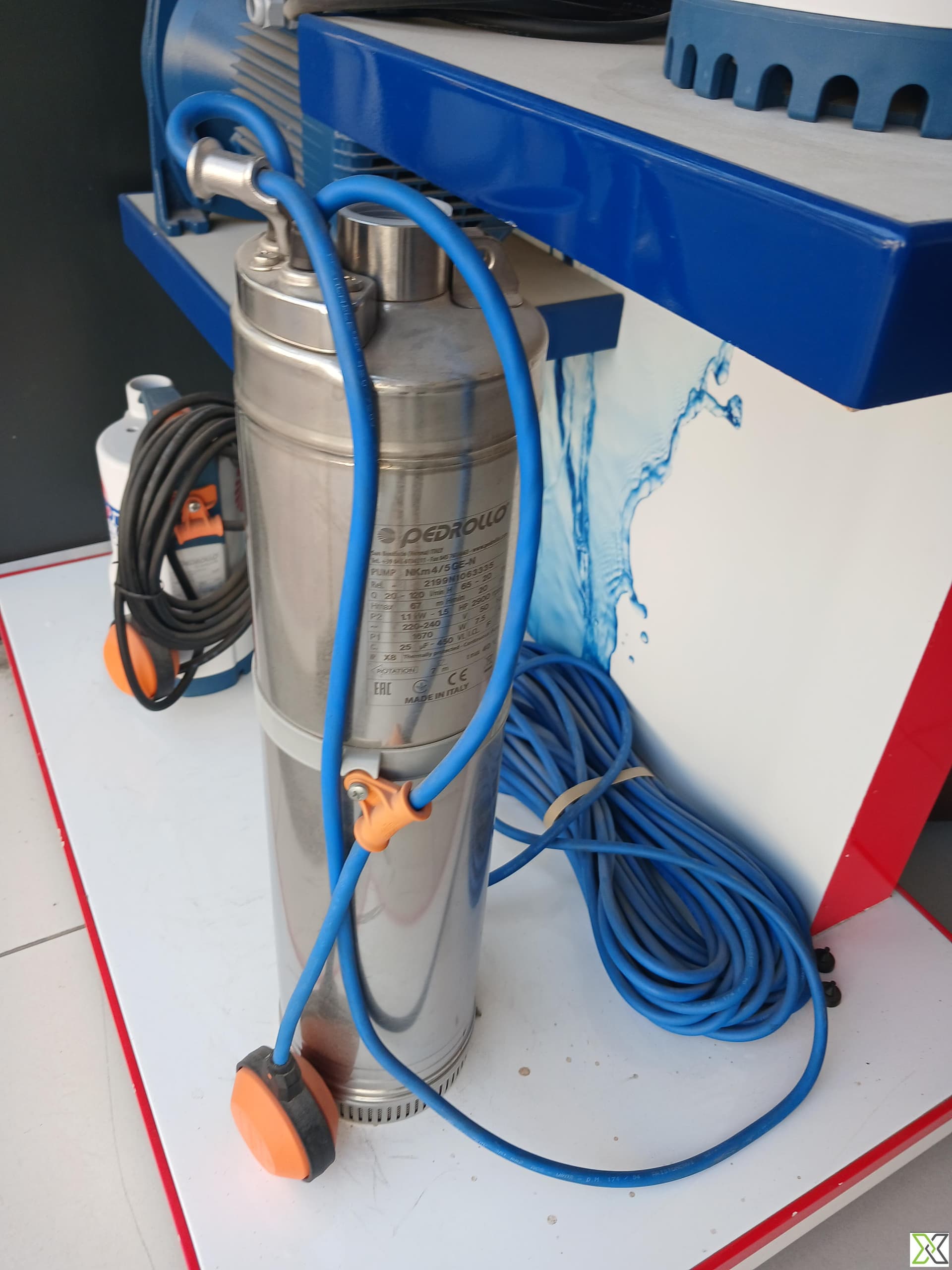

Pedrollo NKm 4/5 GE-N Submersible Multistage Pump – 1.1 kW, 67 m Head

Description:

The Pedrollo NKm 4/5 GE-N is a robust and efficient multistage submersible pump designed for the reliable transfer of clean water in deep wells and tanks. Powered by a 1.1 kW (1.5 HP) motor, this single-phase pump operates at 220–240 V and 50 Hz, delivering a variable flow rate of 20–120 liters per minute with a total head range of 20–65 meters, reaching a maximum head of 67 meters. Built for continuous operation, it features thermal protection, Class F insulation, and IPX8 protection for deep immersion up to 7 meters. With a speed of 2900 RPM and a durable Italian-made design, the NKm 4/5 GE-N is ideal for residential, agricultural, or industrial water lifting applications.

Specifications

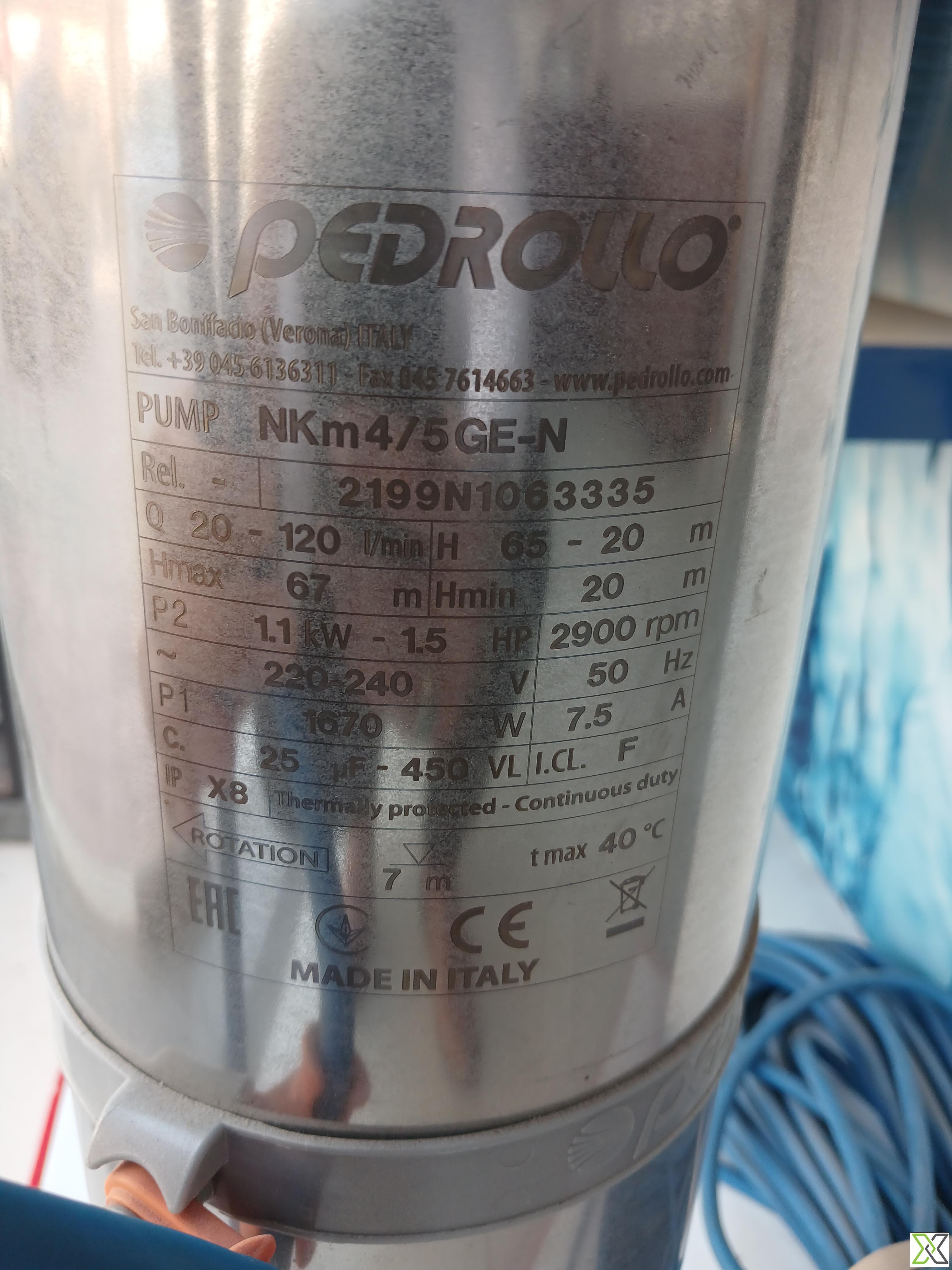

– Brand: Pedrollo
– Model: NKm 4/5 GE-N
– Serial Number: 2199N1063335
– Pump Type: Multistage Submersible Pump
– Flow Rate (Q): 20 – 120 l/min
– Total Head (H): 20 – 65 m
– Maximum Head (Hmax): 67 m
– Minimum Head (Hmin): 20 m
– Motor Power (P2): 1.1 kW / 1.5 HP
– Power Supply: 220 – 240 V / 50 Hz / Single-phase
– Current: 7.5 A
– Speed: 2900 RPM
– Capacitor: 25 µF / 450 VL
– Insulation Class: F
– Protection Class: IP X8
– Thermal Protection: Yes (Thermally protected for continuous duty)
– Max Liquid Temperature: 40°C
– Immersion Depth: 7 m
– Country of Manufacture: Italy
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	NKm 4/5 GE-N
Manufacturer Name	Pedrollo
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	+5 °C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+40 °C
Test Medium	Clean water
Test Pressure	10 bar
Normal Operating Inlet Pressure	0.7 bar
Normal Operating Inlet Temperature	+25 °C
Normal Operating Outlet Pressure	2–6.5 bar
Orientation	Vertical
Upper Limit Design Pressure	10 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+40 °C
Upper Limit Operating Temperature	+40 °C
Lower Limit Ambient Operating Temperature	–5 °C
Lower Limit Design Temperature	–5 °C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	2 bar
Lower Limit Operating Volume Flow Rate	20 l/min
Pump Type	Multistage Submersible Pump
Upper Limit Ambient Operating Temperature	+40 °C
Upper Limit Operating Inlet Pressure	1.5 bar
Upper Limit Operating Outlet Pressure	6.7 bar
Upper Limit Operating Volume Flow Rate	120 l/min
