Pedrollo Villabella 100M Pool/Water Circulation Pump – 1 HP, 18 m³/h

ReflowX SKU: REF-9427

Product Details

Quantity

50
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Spain
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

1 HP Pedrollo Villabella 100M circulation pump designed for swimming pools and water systems, featuring 18 m³/h flow, built-in pre-filter, and IP55 protection.

Description

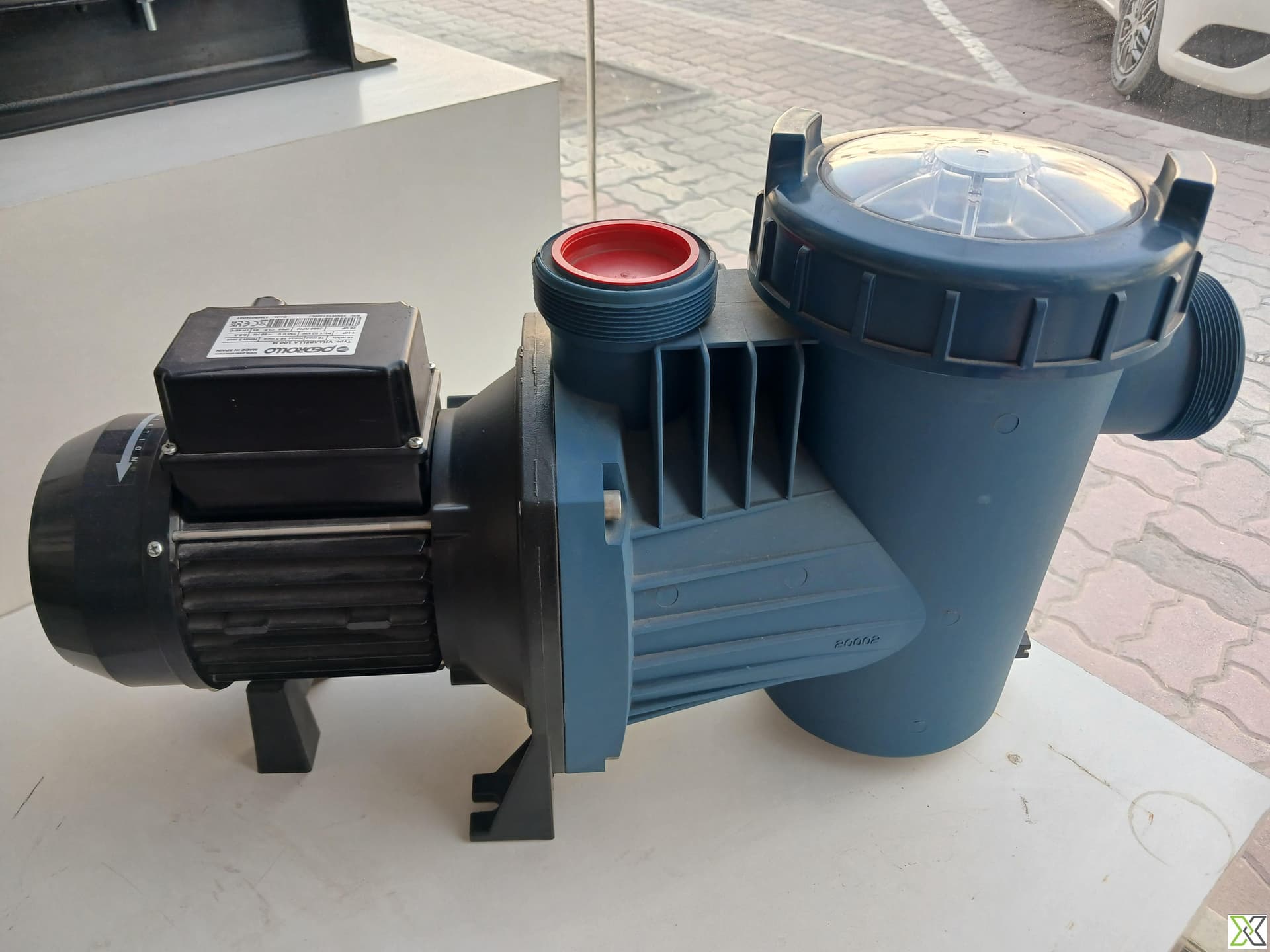

Pedrollo Villabella 100M Pool/Water Circulation Pump – 1 HP, 18 m³/h
Description:

The Pedrollo Villabella 100M is a high-performance centrifugal circulation pump specially developed for swimming pools and water transfer systems. Delivering a flow capacity of up to 18 m³/h and a maximum head of 16.3 meters, this unit ensures efficient water movement in residential and commercial pool setups. Powered by a durable 1 HP (1.02 kW) single-phase motor operating at 2850 RPM, the pump features IP55-rated protection, Class F insulation, and thermal overload protection rated for ambient conditions up to 40°C.
An integrated transparent-lid strainer housing ensures debris collection while facilitating maintenance. Built in Spain, the Villabella 100M is ideal for continuous-duty applications where reliability and easy servicing are key.

Specifications

– Brand: Pedrollo
– Model: Villabella 100M
– Power: 1 HP / 1.02 kW
– Voltage: 230 V (Single-phase)
– Frequency: 50 Hz
– Current: 5.5 A
– Capacitor: 25 µF
– Speed: 2850 RPM
– Max Flow Rate (Q): 18 m³/h
– Total Head (Hmax): 16.3 m
– Minimum Head (Hmin): 3 m
– Protection Class: IP55
– Insulation Class: F
– Thermal Protection: TF 40°C
– Duty Rating: Continuous (S1)
– Country of Manufacture: Spain
– Integrated Features: Built-in pre-filter/strainer with transparent lid, threaded inlet/outlet ports

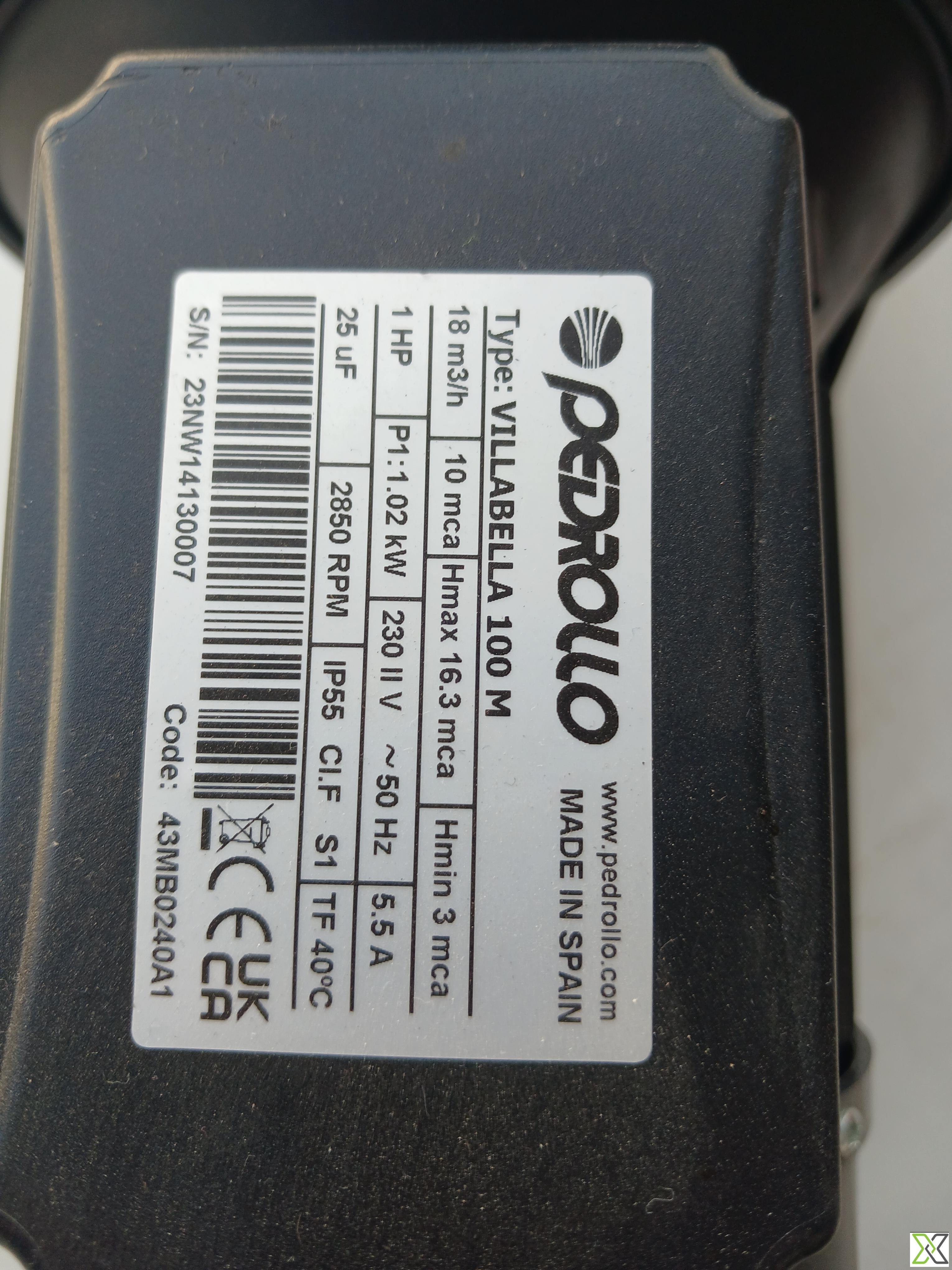

– Serial Number: 23NM14130007
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Villabella 100M
Manufacturer Name	Pedrollo
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	+5 °C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+40 °C
Test Medium	Clean water
Test Pressure	3.6 bar
Normal Operating Inlet Pressure	0.5 – 1.0 bar
Normal Operating Inlet Temperature	+10 °C to +30 °C
Normal Operating Outlet Pressure	0.3 – 1.6 bar
Orientation	Horizontal
Upper Limit Design Pressure	3.5 – 4 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+40 °C
Upper Limit Operating Temperature	+40 °C
Lower Limit Ambient Operating Temperature	0 °C
Lower Limit Design Temperature	0 °C
Lower Limit Operating Inlet Pressure	0.3 bar
Lower Limit Operating Outlet Pressure	0.3 bar
Lower Limit Operating Volume Flow Rate	4 m³/h
Pump Type	Centrifugal Pool Circulation Pump with Strainer
Upper Limit Ambient Operating Temperature	+40 °C
Upper Limit Operating Inlet Pressure	2 bar
Upper Limit Operating Outlet Pressure	1.63 bar
Upper Limit Operating Volume Flow Rate	18 m³/h
