Pressurized Booster Pump Set with Pedrollo Pump, Swates Expansion Tank & Powergas Control Panel

ReflowX SKU: REF-620

Product Details

Quantity

20
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Italy
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Compact dual-pump pressurized booster system featuring Pedrollo CPm 100 pumps, Swates 60L expansion tank, and Powergas automatic control panel for reliable water pressure regulation in residential or light commercial settings.

Description

Pressurized Booster Pump Set with Pedrollo Pump, Swates Expansion Tank & Powergas Control Panel

Description:

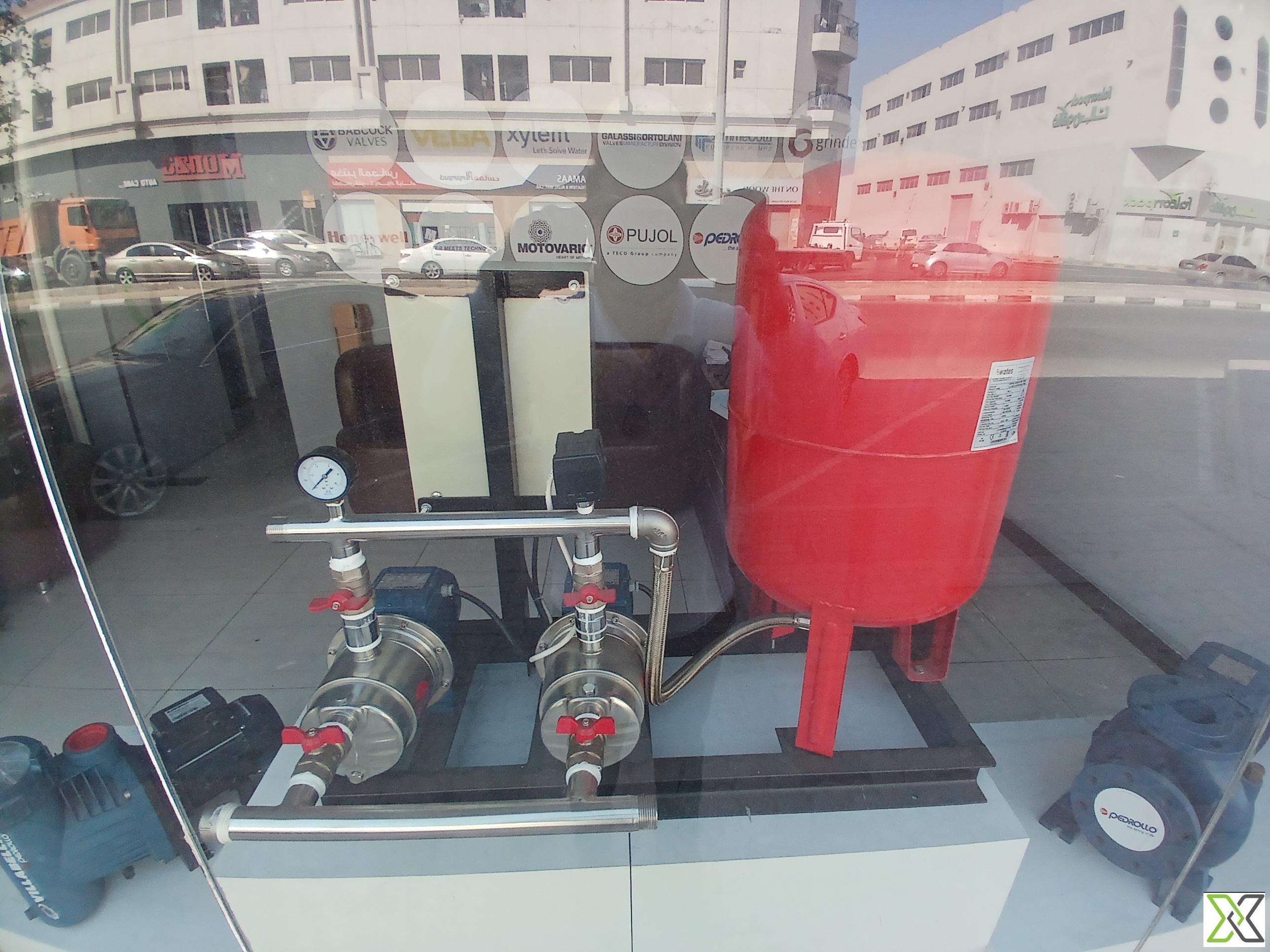

This complete pressurized booster pump set integrates two high-efficiency Pedrollo CPm 100 centrifugal pumps, a Swates K-202787 closed-type expansion tank, and a Powergas-branded control panel with manual/auto functionality. The pumps deliver a maximum flow of 60 L/min with a head of up to 38 meters, operating at 220–230V, 50 Hz, and 0.65 kW per pump. The expansion tank features a durable 60-liter EPDM bladder design, pre-charged to 2 bar, and suitable for working pressures up to 10 bar. The system is protected with overload, trip, and operational indicators, and is ideal for boosting domestic or small-scale building water pressure with safety and automation built-in.

Specifications

– System Type: Pressurized Booster Pump Set
– Operation Mode: Manual / Auto

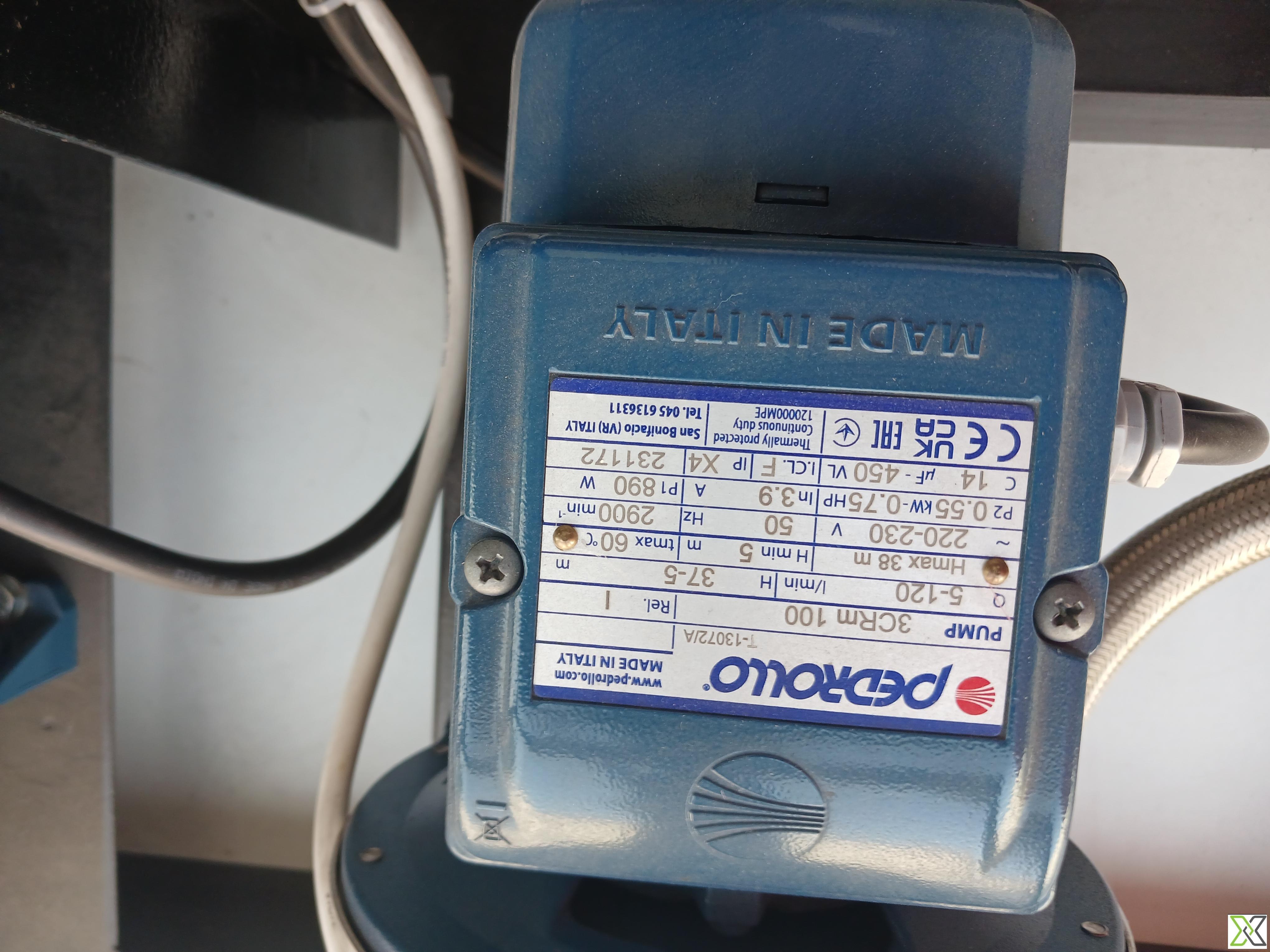

– Pump Brand: Pedrollo
– Pump Model: CPm 100
– Pump Type: Centrifugal A.C. Pump
– Power Rating: 0.65 kW / 0.75 HP
– Voltage: 220–230 V
– Current: 3.9 A
– Frequency: 50 Hz
– Maximum Flow Rate: 60 L/min
– Maximum Head: 38 m
– Speed: 2800 RPM
– Efficiency Class: IE2
– Insulation Class: F
– Enclosure Class: IP44
– Country of Origin (Pump): Italy

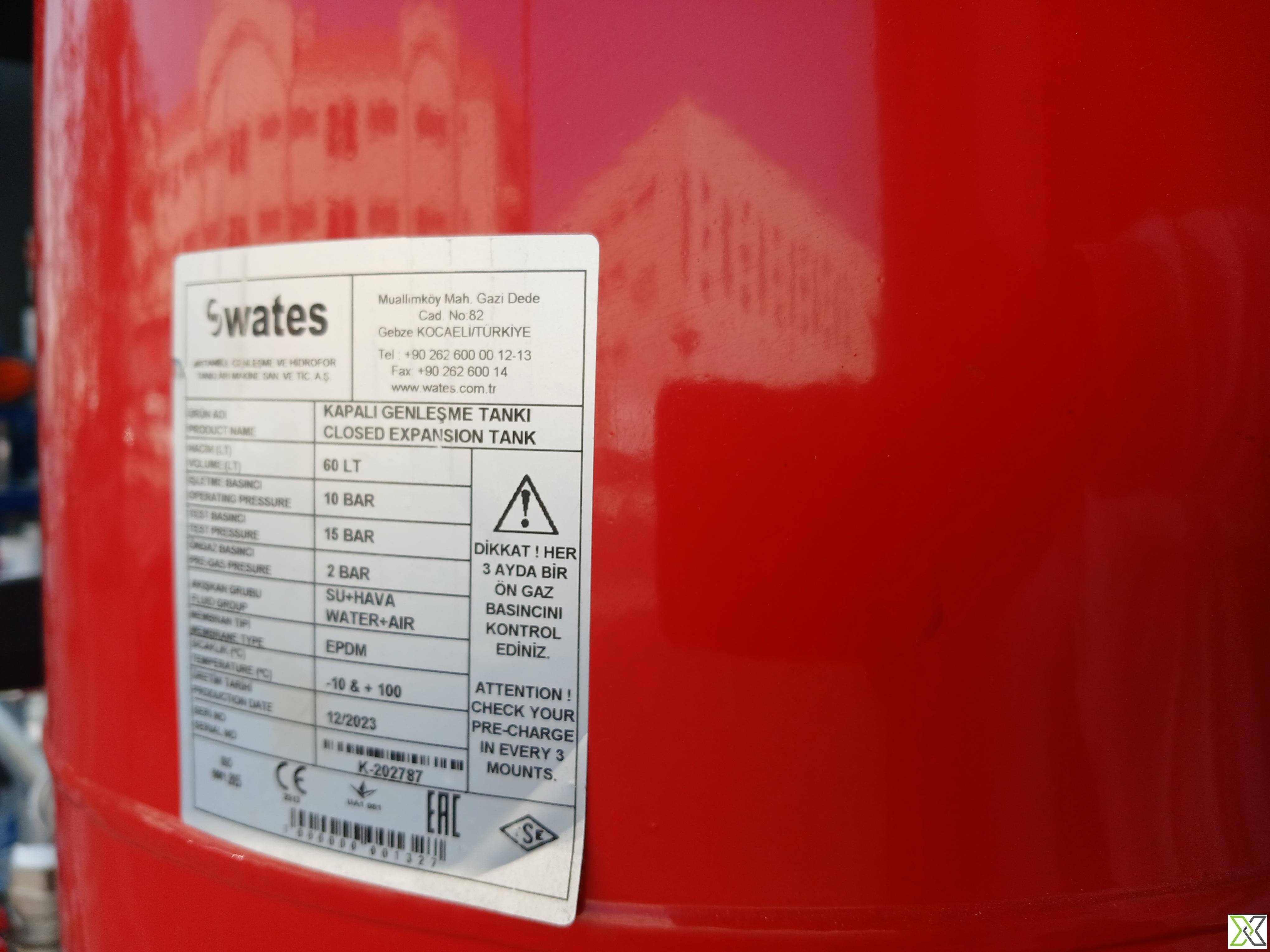

– Expansion Tank Brand: Swates
– Expansion Tank Model: K-202787
– Tank Type: Closed Expansion Tank
– Tank Volume: 60 Litres
– Max Working Pressure: 10 Bar
– Test Pressure: 15 Bar
– Pre-charge Pressure: 2 Bar
– Medium: Water + Air
– Bladder Material: EPDM
– Operating Temperature Range: -10°C to +100°C
– Country of Origin (Tank): Turkey
– Tank Manufacture Date: 12/2023
– Control Panel: Powergas
– Features: Dual pump control, status indicators, overload & trip protection
– Warning Label: "Danger – Don’t Touch"
– Mounting: Skid-mounted frame

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CPm 100
Year of Manufacturing	2023
Manufacturer Name	Pedrollo
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+100°C
Test Medium	Water + Air
Test Pressure	15 bar
Normal Operating Inlet Pressure	1–2 bar
Normal Operating Inlet Temperature	10–40°C
Normal Operating Outlet Pressure	3–4.5 bar
Orientation	Horizontal skid-mounted
Upper Limit Design Pressure	10 bar
UNSPSC Code	40151500
Lower Limit Ambient Operating Temperature	-10°C
Lower Limit Design Temperature	-10°C
Lower Limit Operating Inlet Pressure	0.5 bar
Lower Limit Operating Outlet Pressure	2 bar
Lower Limit Operating Volume Flow Rate	10 L/min
Pump Type	Centrifugal
Upper Limit Ambient Operating Temperature	+45°C
