Self-Priming Centrifugal Pump - 12B20-B

ReflowX SKU: REF-2280

Product Details

Quantity

2
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Description

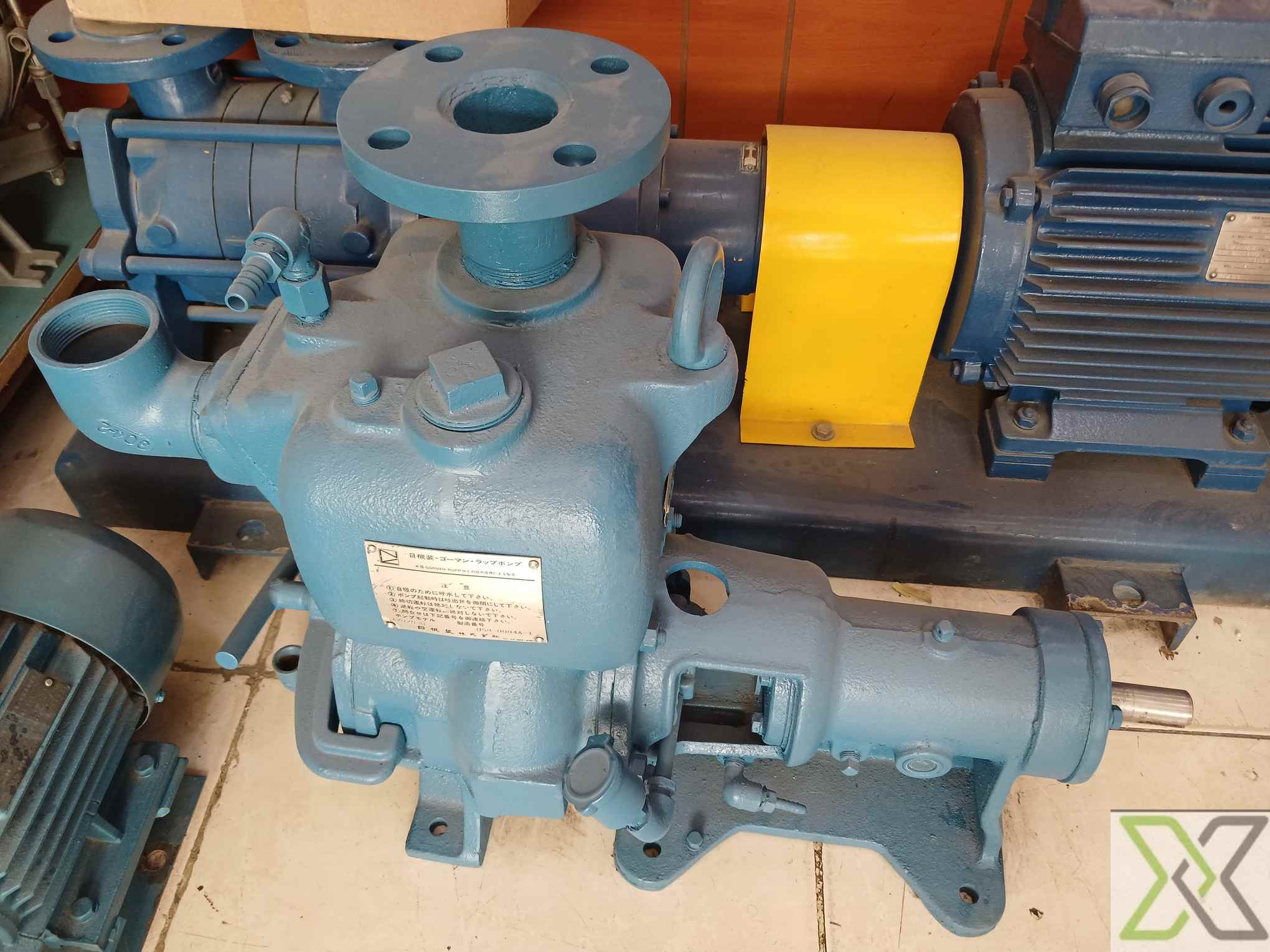

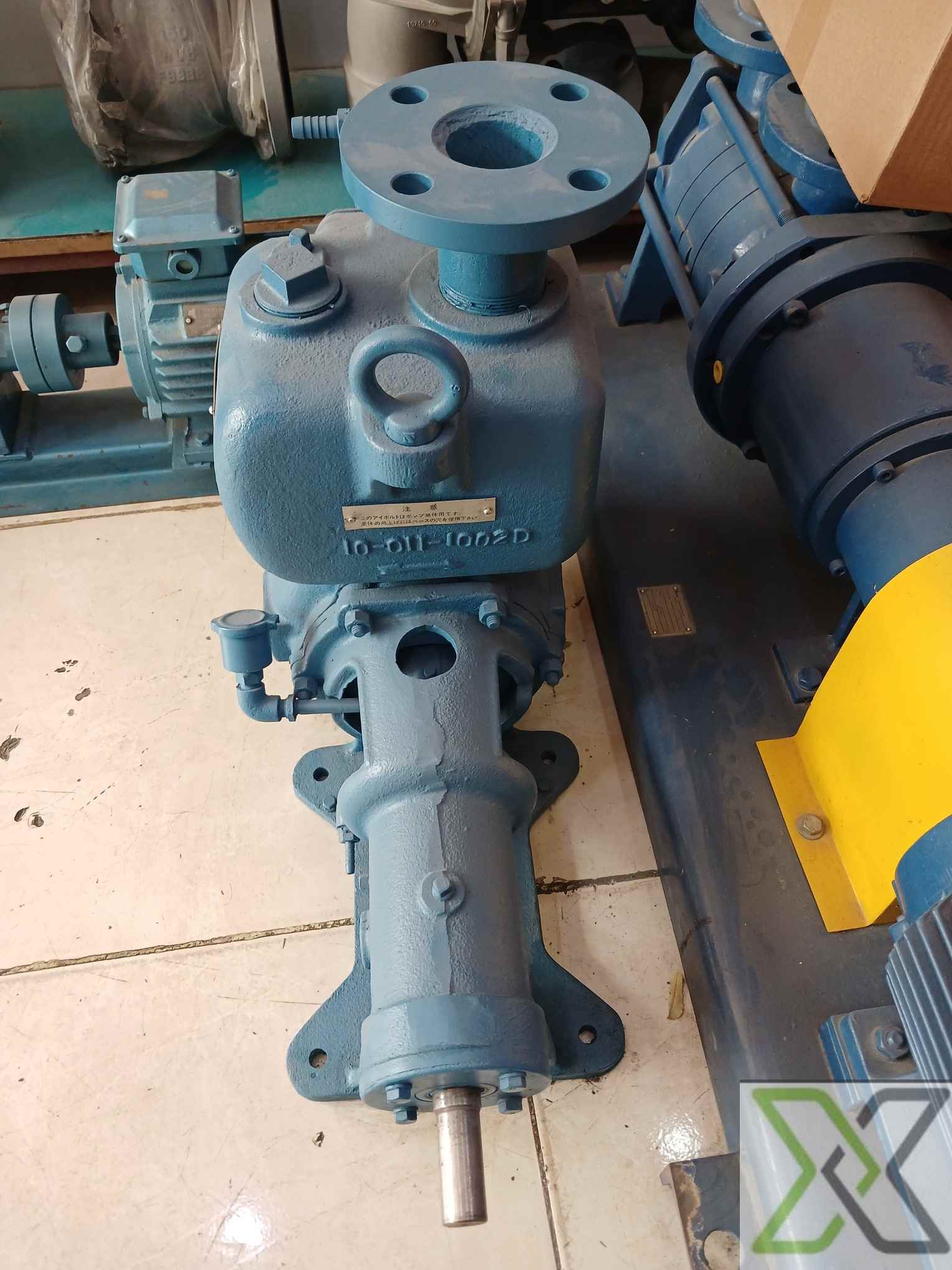

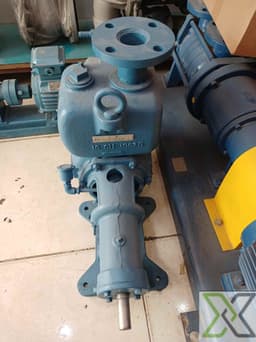

Self-Priming Centrifugal Pump (Model: 12B20-B)

1. General Information

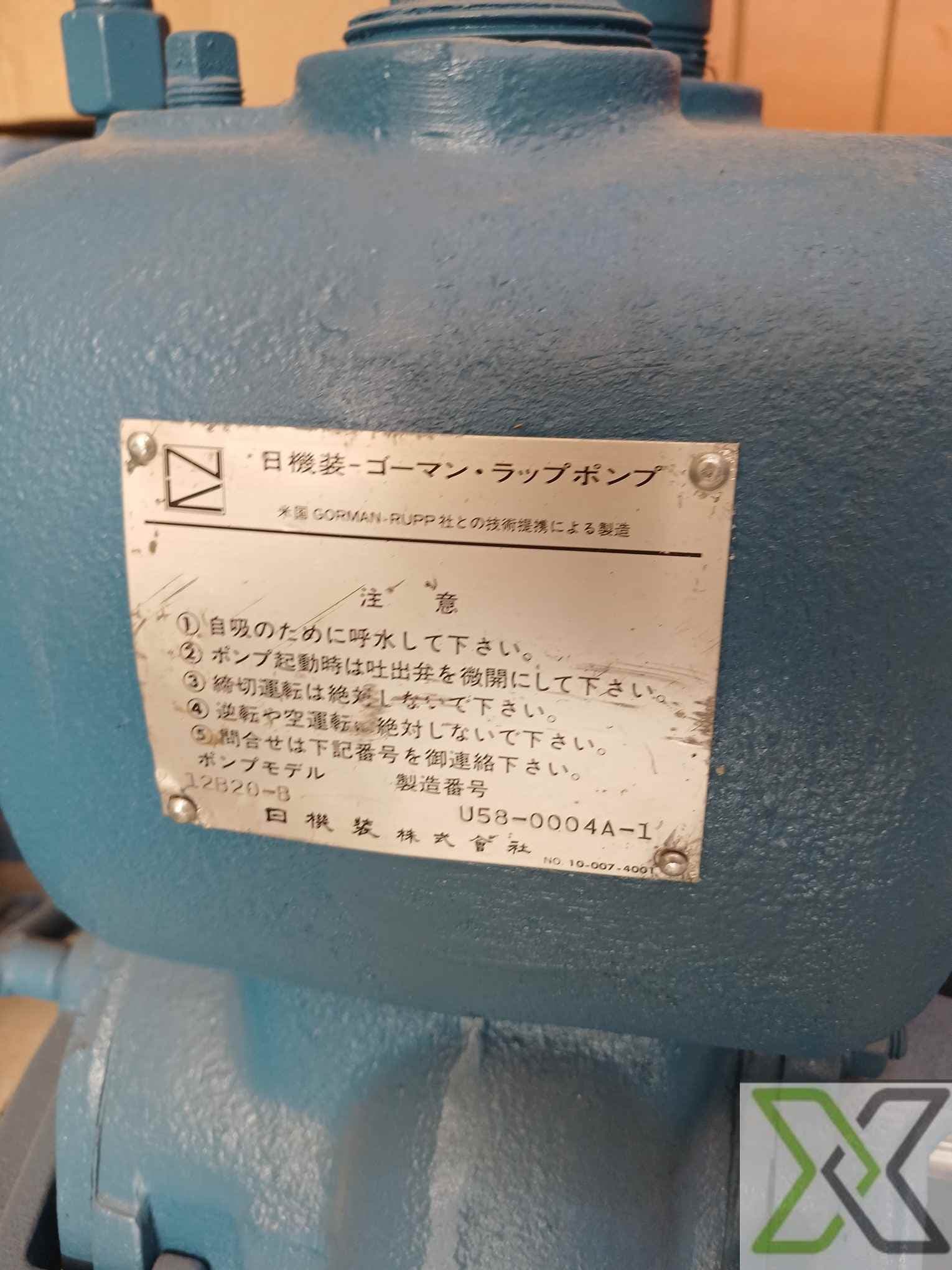

✔ Manufacturer: Nikkiso Co., Ltd.
✔ Technology Partner: Gorman-Rupp (USA) (Renowned for self-priming pump technology)
✔ Model: 12B20-B (Engineered for industrial fluid transfer applications)
✔ Serial Number: U58-0004A-1 (Unique identifier for tracking and maintenance)
✔ Production Reference: No. 10-007-4001 (Internal factory designation for quality control and records)
✔ Type: Self-Priming Centrifugal Pump (Designed for rapid startup without manual priming)

2. Performance & Operational Specifications

✔ Pump Type: Self-Priming Centrifugal Pump (Can automatically remove air from suction lines for seamless operation)
✔ Flow Rate: Estimated 50 - 300 m³/h (Varies based on head pressure and application requirements)
✔ Head (Pressure Capability): 30 - 60 meters (Can handle moderate-to-high head applications)
✔ Maximum Suction Lift: Up to 7.5 meters (Effective for applications requiring lift from underground or storage tanks)
✔ Efficiency: High-efficiency impeller design for energy-saving performance

3. Electrical & Mechanical Specifications

✔ Motor Power: Ranging from 7.5 kW to 75 kW (Depending on configuration)
✔ Voltage: 380V / 415V (Three-phase industrial standard)
✔ Frequency: 50Hz / 60Hz (Regional compatibility available)
✔ Insulation Class: Class F or H (Heat-resistant for prolonged operation in industrial settings)
✔ Ingress Protection (IP Rating): IP55 (Protected against dust and water jets for durability in harsh environments)

4. Material & Build Quality

✔ Pump Casing: Ductile Iron / Stainless Steel (Depending on model variant, for corrosion resistance and strength)
✔ Impeller Type: Enclosed / Semi-Open Impeller (Optimized for handling clean and slightly contaminated fluids)
✔ Shaft Material: Stainless Steel (Corrosion-resistant for long service life)
✔ Bearings: Heavy-duty sealed bearings (For smooth operation and reduced maintenance needs)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	12B20-B
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+80°C
Test Medium	Clean Water
Test Pressure	9 bar
Normal Operating Inlet Pressure	0.5 bar
Normal Operating Inlet Temperature	30°C
Normal Operating Outlet Pressure	3 to 6 bar
Orientation	Horizontal Installation
Upper Limit Design Pressure	10 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+90°C
Upper Limit Operating Temperature	+80°C
Lower Limit Ambient Operating Temperature	-10°C
Lower Limit Design Temperature	-10°C
Lower Limit Operating Inlet Pressure	0.3 bar
Lower Limit Operating Outlet Pressure	1.5 bar
Lower Limit Operating Volume Flow Rate	50 m³/h
Pump Type	Self-Priming Centrifugal Pump
Upper Limit Ambient Operating Temperature	+50°C
Upper Limit Operating Inlet Pressure	4.0 bar
Upper Limit Operating Outlet Pressure	6.0 bar
Upper Limit Operating Volume Flow Rate	300 m³/h
