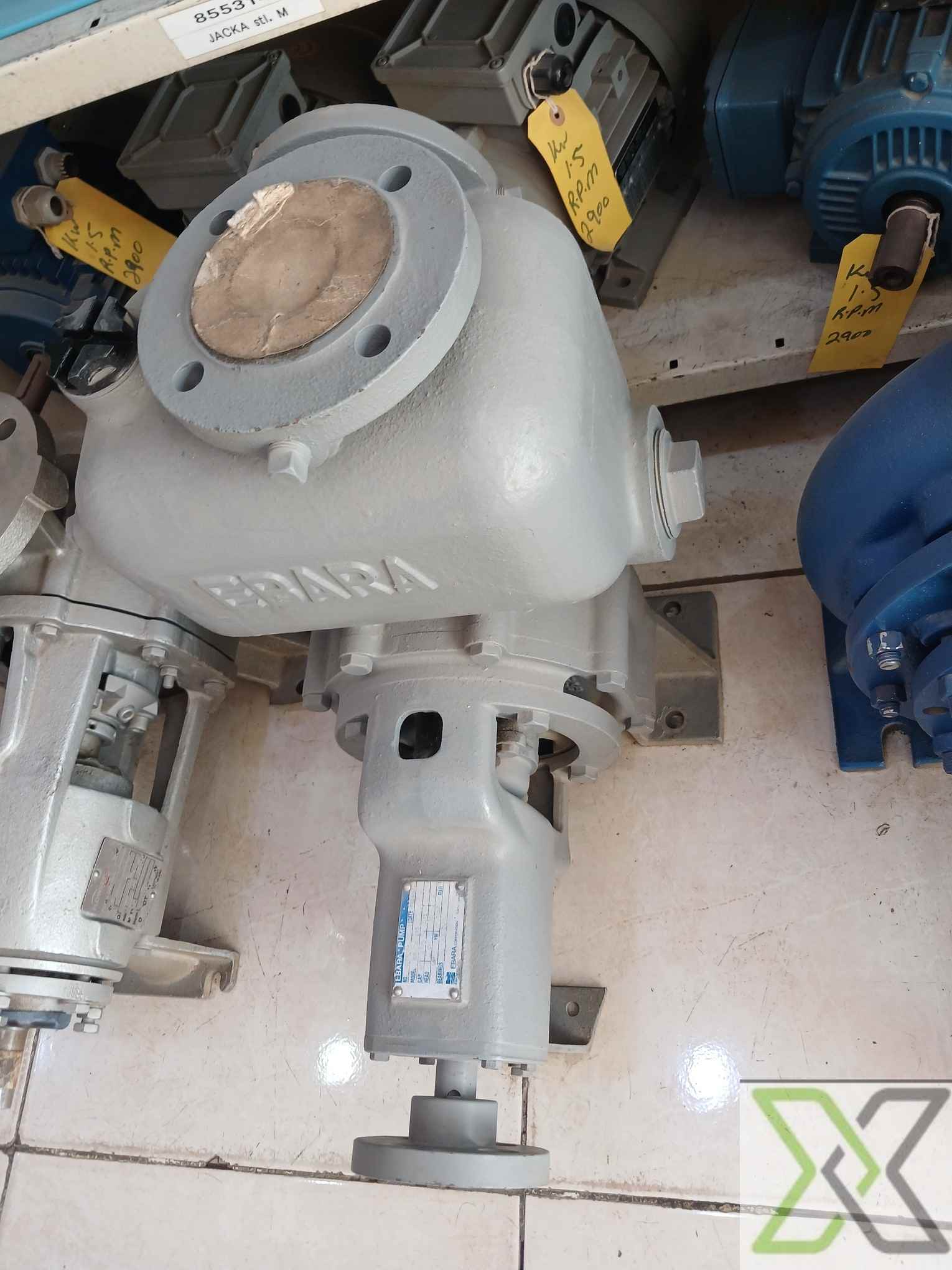

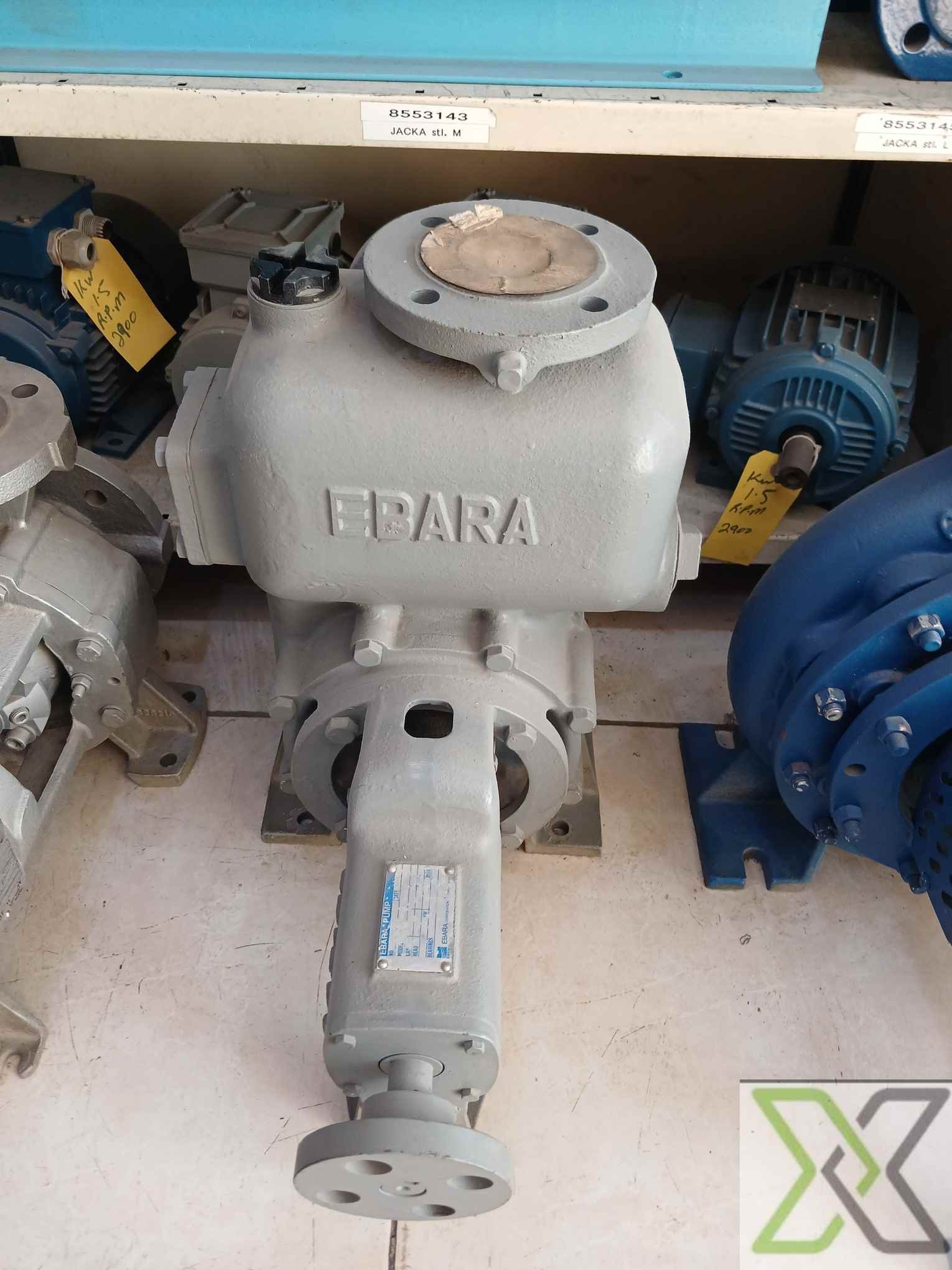

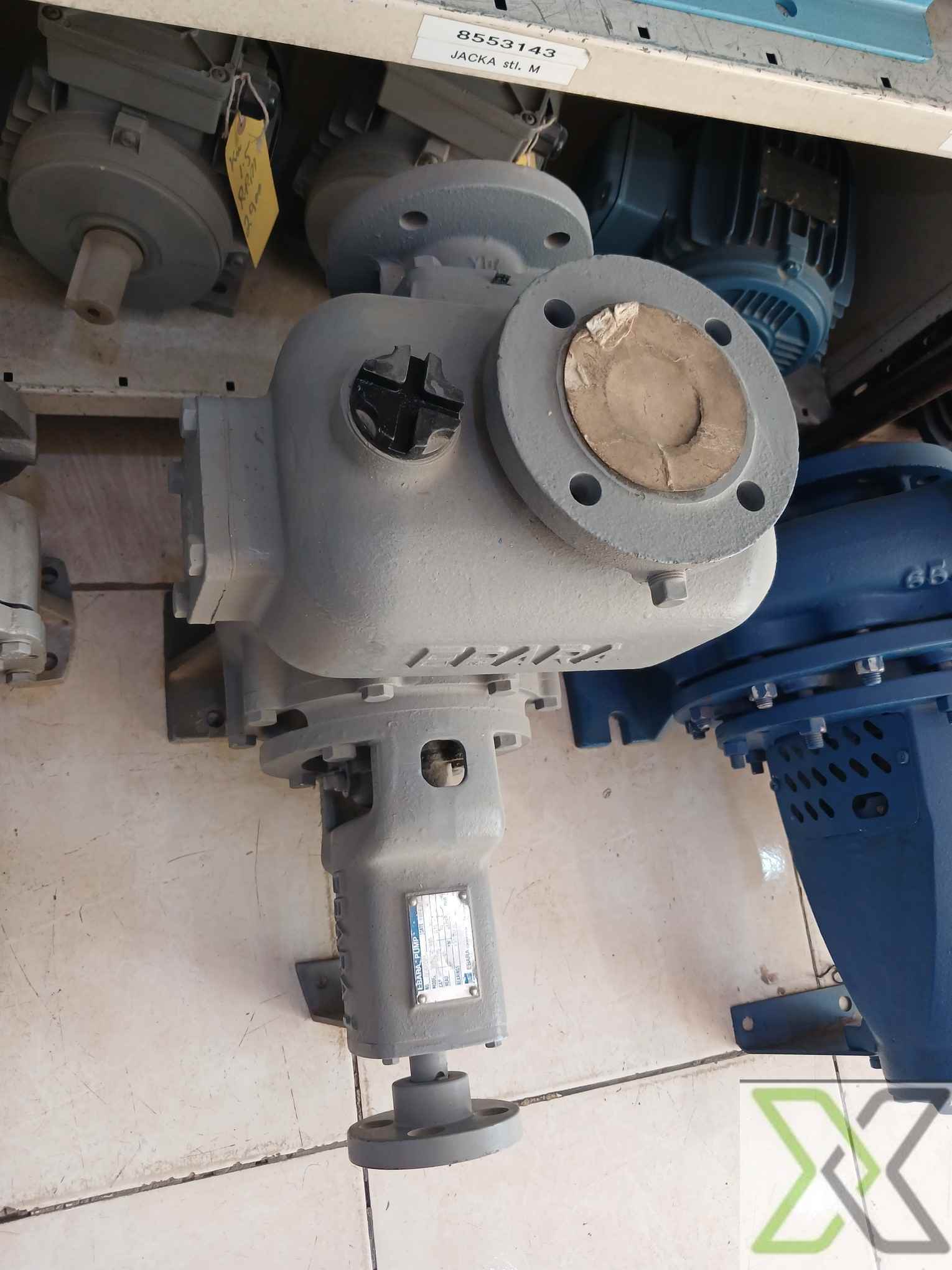

Self-Priming Centrifugal Pump - EBARA Corporation - 1994

ReflowX SKU: REF-7485

Product Details

Quantity

2
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Description

EBARA Corporation – Pump Specification (1994 Model)

General Information

✔ Manufacturer: EBARA Corporation (Tokyo, Japan) (Global leader in fluid machinery and environmental engineering solutions)
✔ Model: Not fully visible (Model number needed for precise details)
✔ Manufacturing Date: 1994 (Indicates a classic industrial pump design, still in use for reliable applications)
✔ Bearings: 63070U (High-performance bearing for extended operational life and durability in high-load conditions)

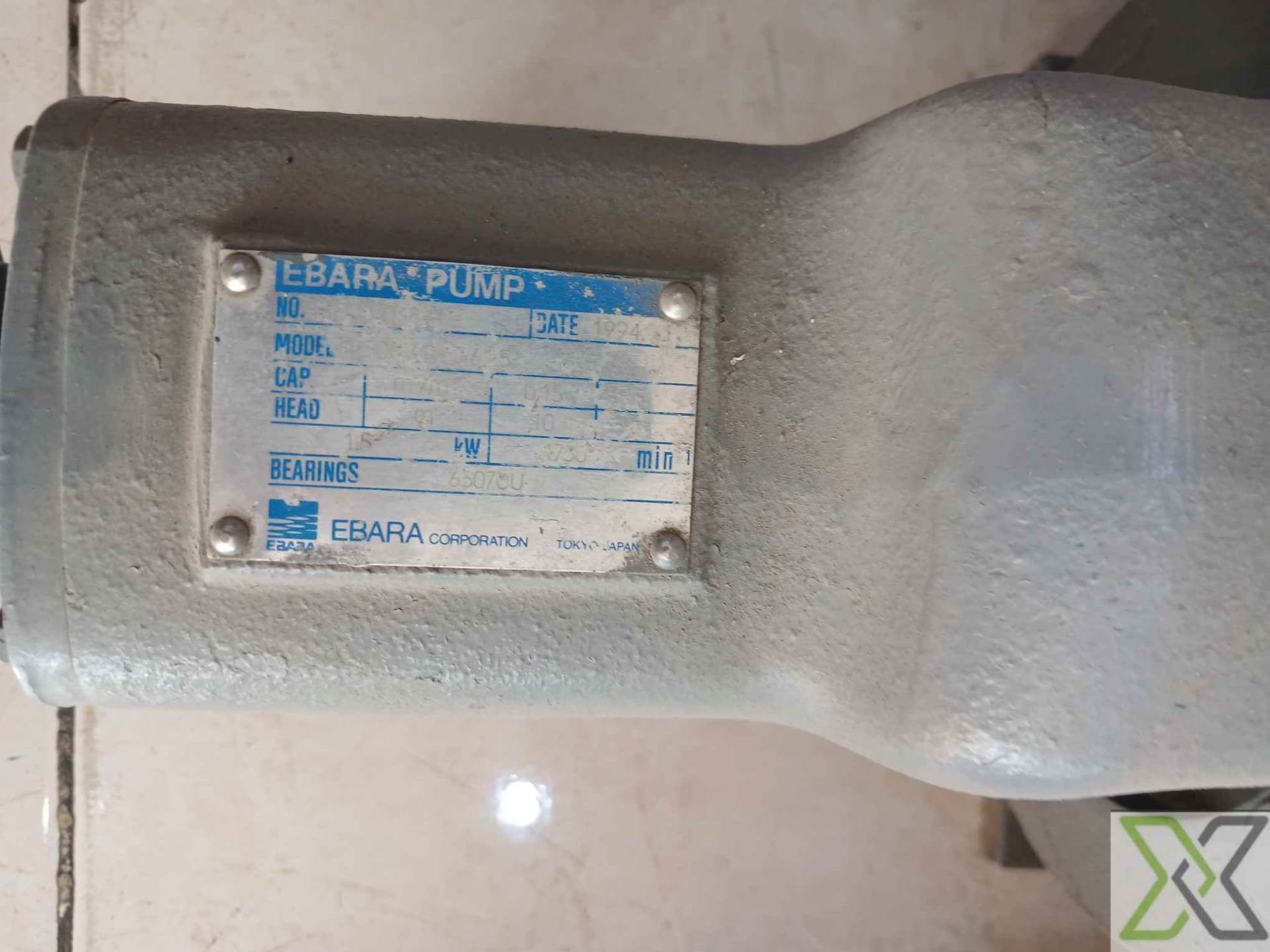

Performance & Operational Specifications (Some details missing – can be verified from the nameplate or technical manual)

✔ Capacity (CAP.): Not fully visible (Likely measured in cubic meters per hour or gallons per minute)
✔ Head: Not fully visible (Expressed in meters or feet – determines pressure generation capability)
✔ Flow Rate: *Typically ranges from 50 - 500 m³/h, depending on the pump series and size
✔ Total Dynamic Head (TDH): Estimated 50 - 150 meters (Varies based on impeller design and system resistance)
✔ Pump Type: *Centrifugal Pump (Common for EBARA’s industrial lineup, typically single or multi-stage design)

Mechanical & Electrical Specifications

✔ Motor Power: Likely between 5 HP - 100 HP (Depending on the size and application of the pump)
✔ Speed: *1,450 RPM or 2,900 RPM (Depending on motor configuration and system requirements)
✔ Shaft Material: Stainless Steel (Corrosion-resistant for longevity in harsh environments)
✔ Sealing System: Mechanical Seal / Gland Packing (Based on model and fluid type compatibility)

Material & Build Quality

✔ Casing Material: Cast Iron / Stainless Steel (Common materials used in EBARA pumps for different applications)
✔ Impeller Type: Enclosed or Semi-Open (Varies by model for efficiency and solid-handling capability)
✔ Bearings: Heavy-duty 63070U (Designed for smooth operation and extended lifespan)
✔ Flange Standards: ANSI / JIS (For compatibility with industrial piping systems)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	1994
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Lower Limit Operating Temperature	0°C
Operation Continuous Intermittent	Continuous Operation
Upper Limit Operating Temperature	+90°C
Test Medium	Water
Test Pressure	1.5 × Design Pressure
Normal Operating Inlet Pressure	1 to 2.5 bar
Normal Operating Inlet Temperature	5°C to 40°C
Normal Operating Outlet Pressure	3 to 6 bar
Orientation	Horizontal Installation
Upper Limit Design Pressure	10 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+95°C
Upper Limit Operating Temperature	+90°C
Lower Limit Ambient Operating Temperature	-5°C
Lower Limit Design Temperature	-5°C
Lower Limit Operating Inlet Pressure	0.3 bar
Lower Limit Operating Outlet Pressure	1.5 bar
Lower Limit Operating Volume Flow Rate	50 m³/h
Pump Type	Self-Priming Centrifugal Pump
Upper Limit Ambient Operating Temperature	+50°C
Upper Limit Operating Inlet Pressure	+90°C
Upper Limit Operating Outlet Pressure	8 bar
Upper Limit Operating Volume Flow Rate	500 m³/h
