Shin SVS 200 Vertical Centrifugal Pump with HICO 95 kW Motor – 5 m³/min, 70 m Head

ReflowX SKU: REF-7760

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Shin Shin Machinery Co., Ltd.
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Heavy-duty Shin SVS 200 vertical centrifugal pump paired with a HICO 95 kW motor, offering 5 m³/min flow and 70-meter head for continuous-duty industrial fluid handling.

Description

Shin SVS 200 Vertical Centrifugal Pump with HICO 95 kW Motor – 5 m³/min, 70 m Head

Description:

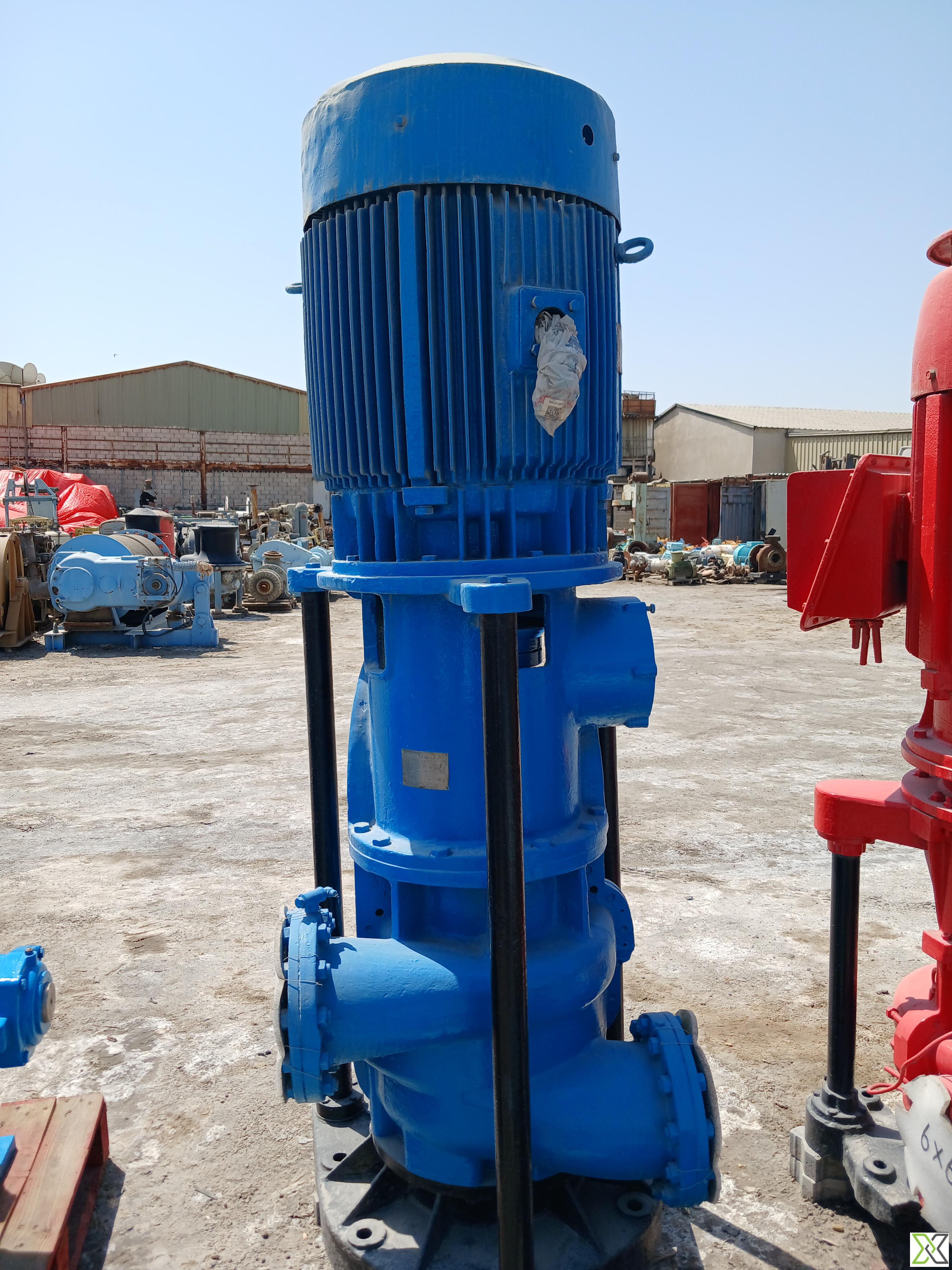

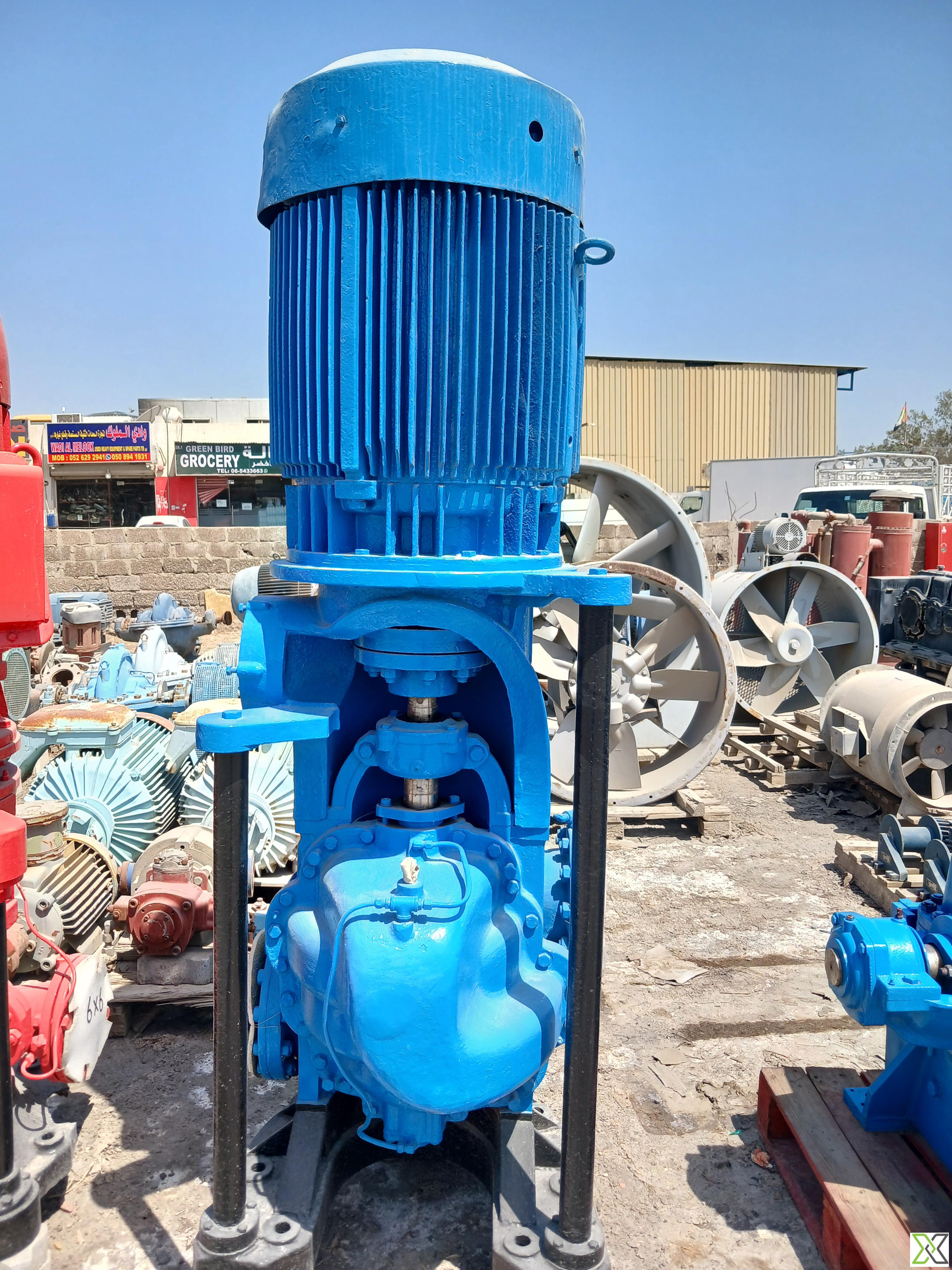

The Shin SVS 200 is a robust vertical centrifugal pump manufactured by Shin Shin Machinery Co., Ltd., designed for demanding industrial applications requiring high flow and pressure. Delivering a capacity of 5 m³/min (300 m³/h) at a total head of 70 meters, the pump operates at 1750 RPM and is coupled with a powerful 95 kW HICO motor. With an 8x8-inch inlet/outlet configuration and vertical baseplate mounting, it ensures efficient fluid transfer in continuous operation. The included HICO motor, built with a 4-pole design and insulation class B, provides reliable performance under 60 Hz, 440 V three-phase supply. Manufactured in 1987, this system is ideal for heavy-duty pumping operations in utilities, processing plants, and infrastructure systems.

Specifications

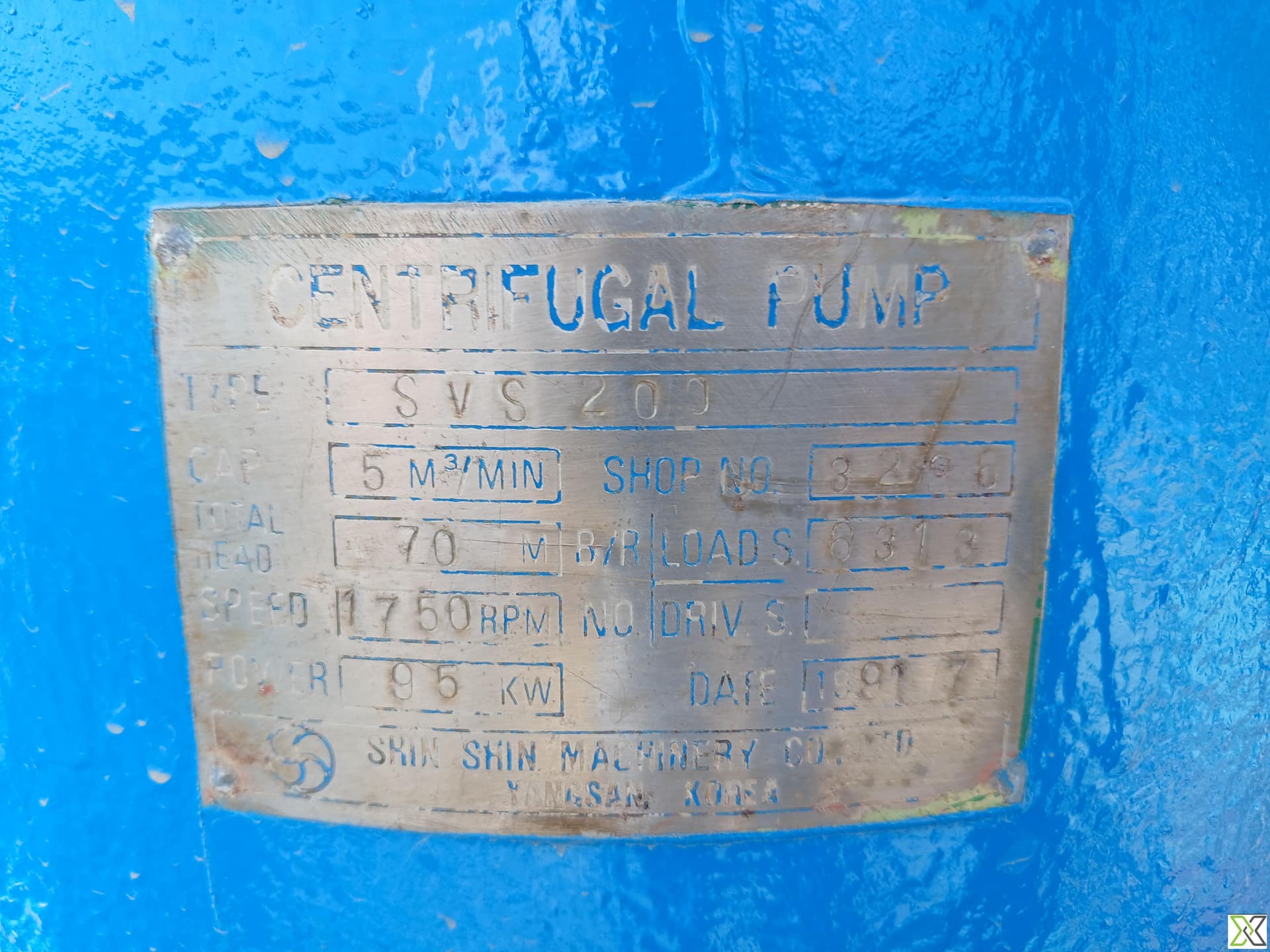

Pump Unit:

– Manufacturer: Shin Shin Machinery Co., Ltd.
– Model: SVS 200
– Type: Vertical Centrifugal Pump
– Flow Capacity: 5 m³/min (300 m³/h)
– Total Head: 70 m
– Speed: 1750 RPM
– Power Requirement: 95 kW
– Bearing Type: 6318
– Mounting: Vertical with heavy-duty base

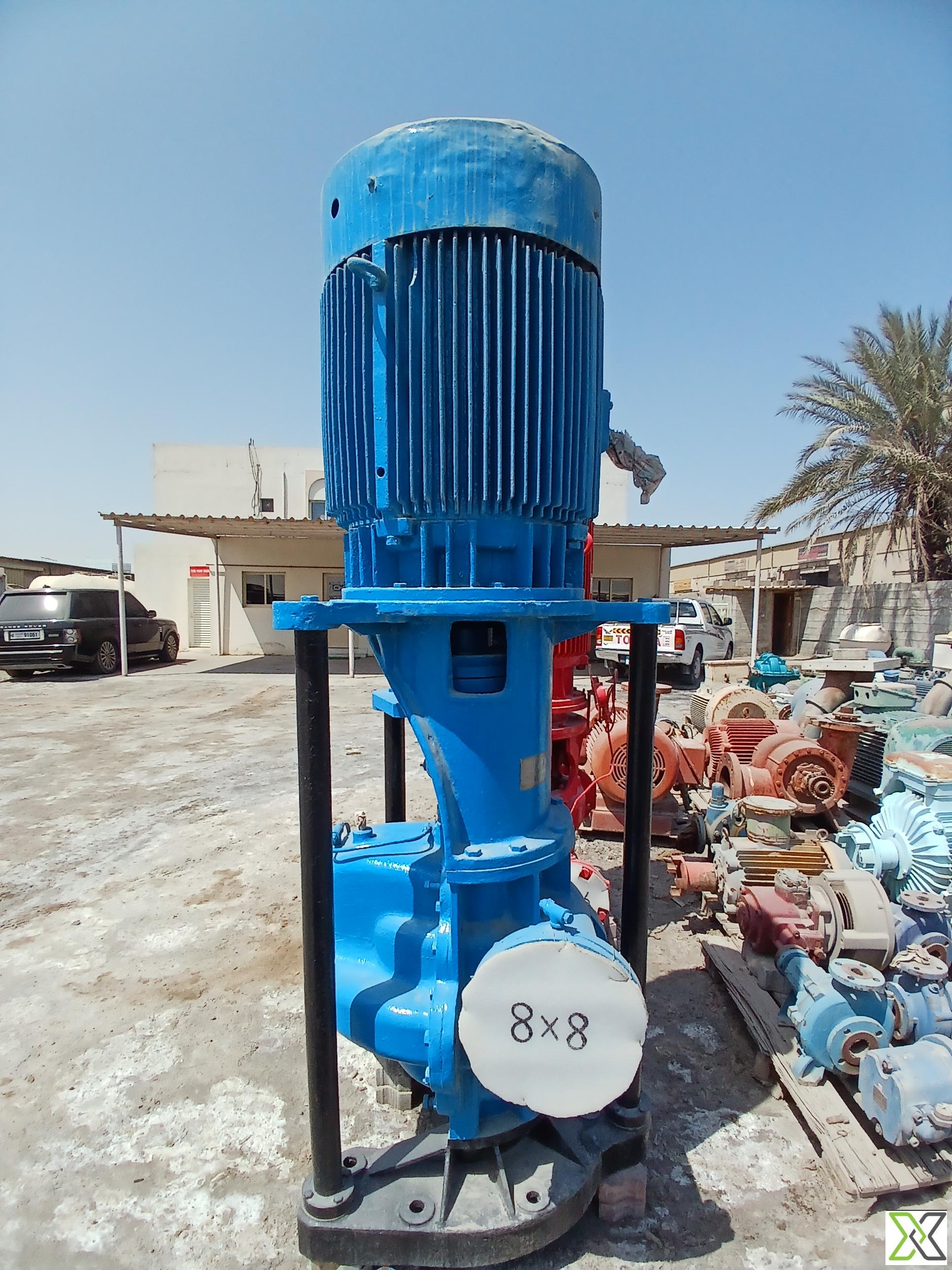

– Inlet Size: 8 inches
– Outlet Size: 8 inches
– Year of Manufacture: 1987

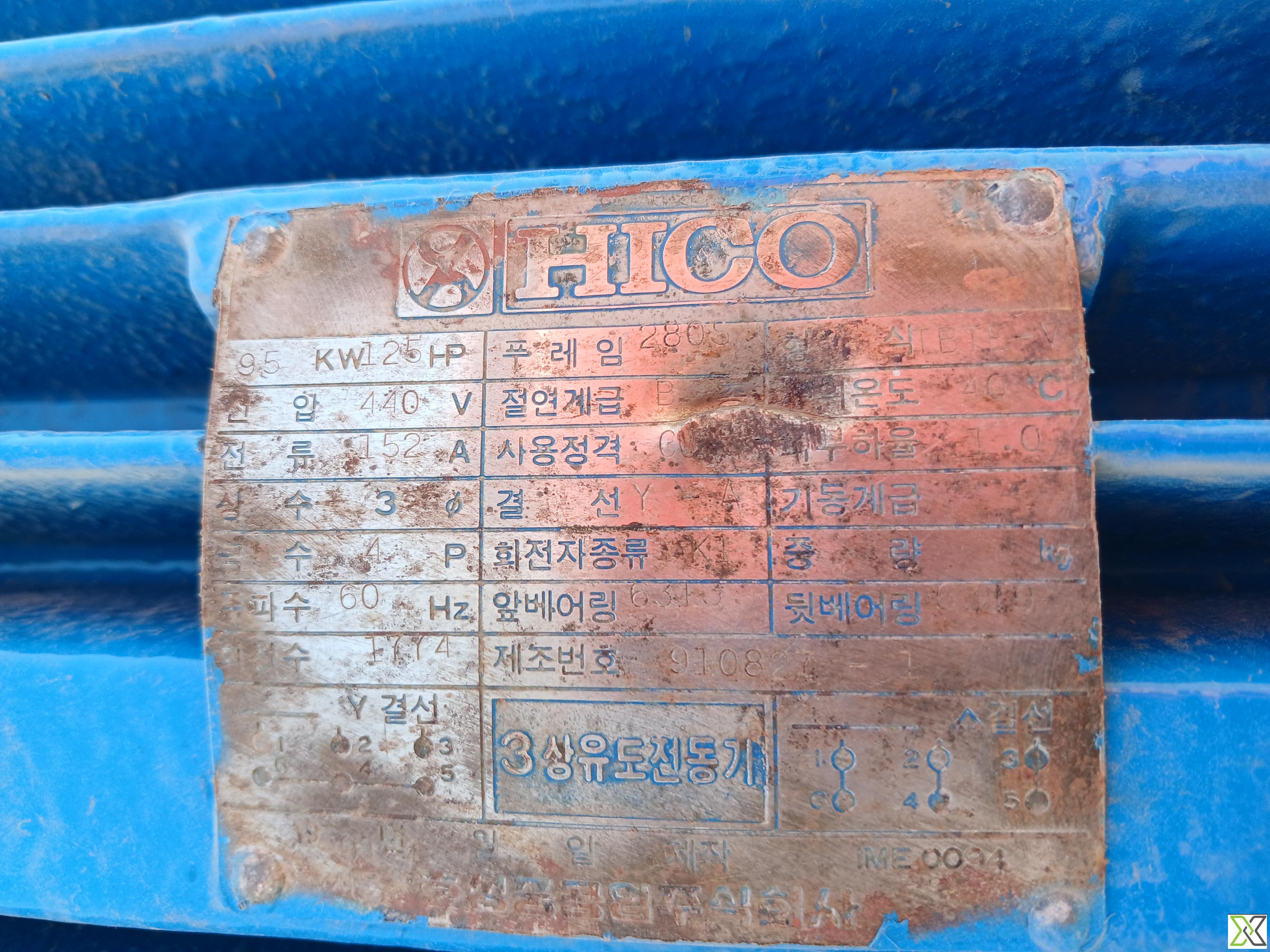

Motor Unit:

– Manufacturer: HICO (Korea)
– Power Rating: 95 kW
– Voltage: 440 V
– Current: 152 A
– Frequency: 60 Hz
– Poles: 4P
– Phase: 3-phase
– Speed: 1770 RPM
– Insulation Class: B
– Frame Size: 280S
– Duty Cycle: Continuous
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SVS 200
Year of Manufacturing	1987
Manufacturer Name	Shin Shin Machinery Co., Ltd.
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
IFC Class	IfcPump
Lower Limit Operating Temperature	–10 °C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+80 °C
Test Medium	Water
Test Pressure	10–12 bar
Normal Operating Inlet Pressure	1–2 bar
Normal Operating Inlet Temperature	50 °C
Normal Operating Outlet Pressure	8–9 bar
Orientation	Vertical
Upper Limit Design Pressure	12 bar
UNSPSC Code	40151500
Upper Limit Design Temperature	+90 °C
Upper Limit Operating Temperature	+80 °C
Lower Limit Ambient Operating Temperature	–10 °C
Lower Limit Design Temperature	–10 °C
Lower Limit Operating Inlet Pressure	0 bar
Lower Limit Operating Outlet Pressure	0.5–1 bar
Lower Limit Operating Volume Flow Rate	1 m³/min
Pump Type	Vertical Centrifugal Pump
Upper Limit Ambient Operating Temperature	+50 °C
Upper Limit Operating Inlet Pressure	3 bar
Upper Limit Operating Outlet Pressure	9–10 bar
Upper Limit Operating Volume Flow Rate	5 m³/min
