Becker Vacuum Pump – Rotary Vane/Screw Type - 2003

ReflowX SKU: REF-3183

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000550

Get Quotation Whatsapp

Short Description

Becker vacuum pump, manufactured in 2003, likely rotary vane or screw type, suitable for industrial vacuum applications up to 250 mbar. Operates on 50/60 Hz with base-mounted configuration.

Description

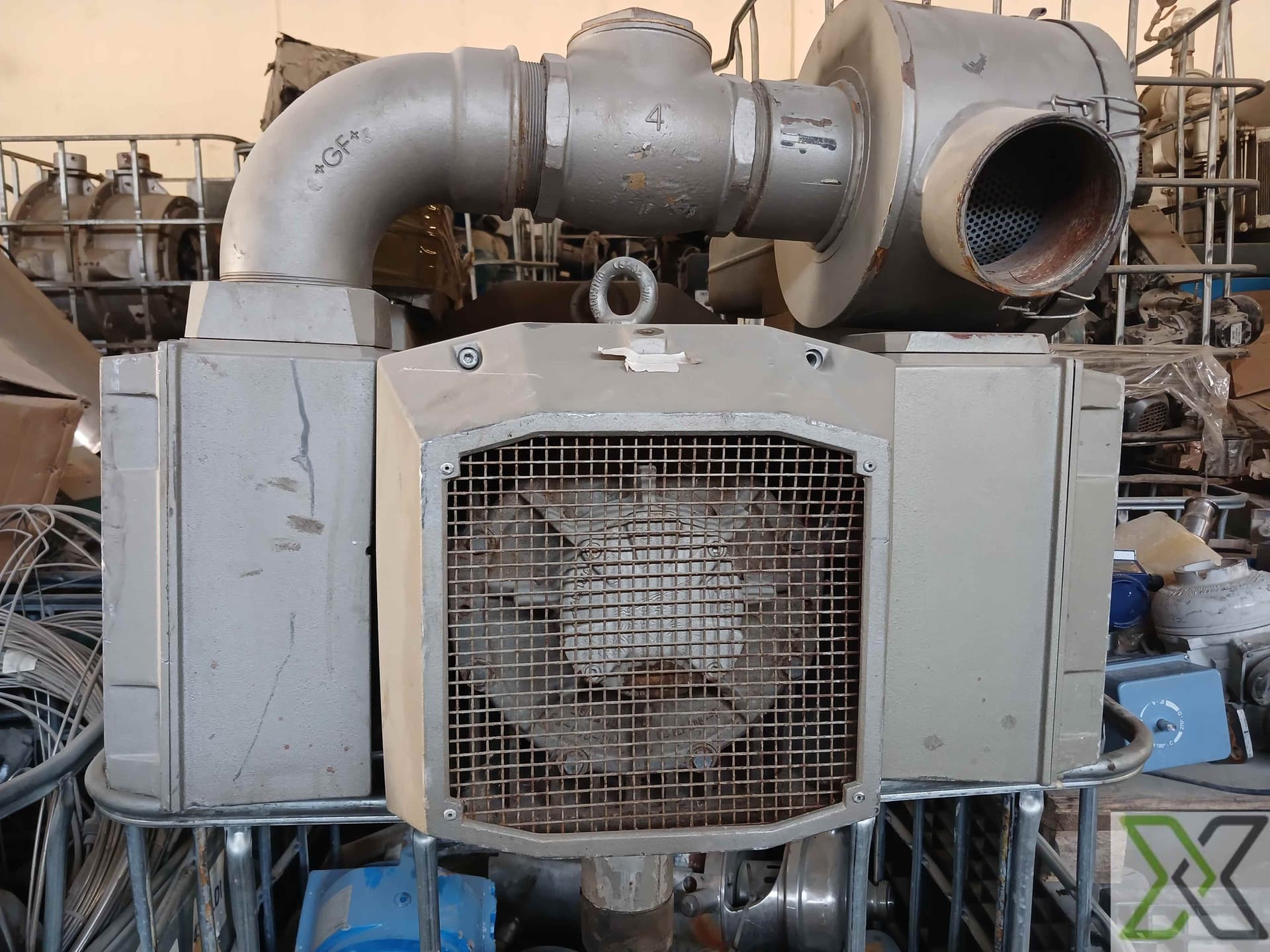

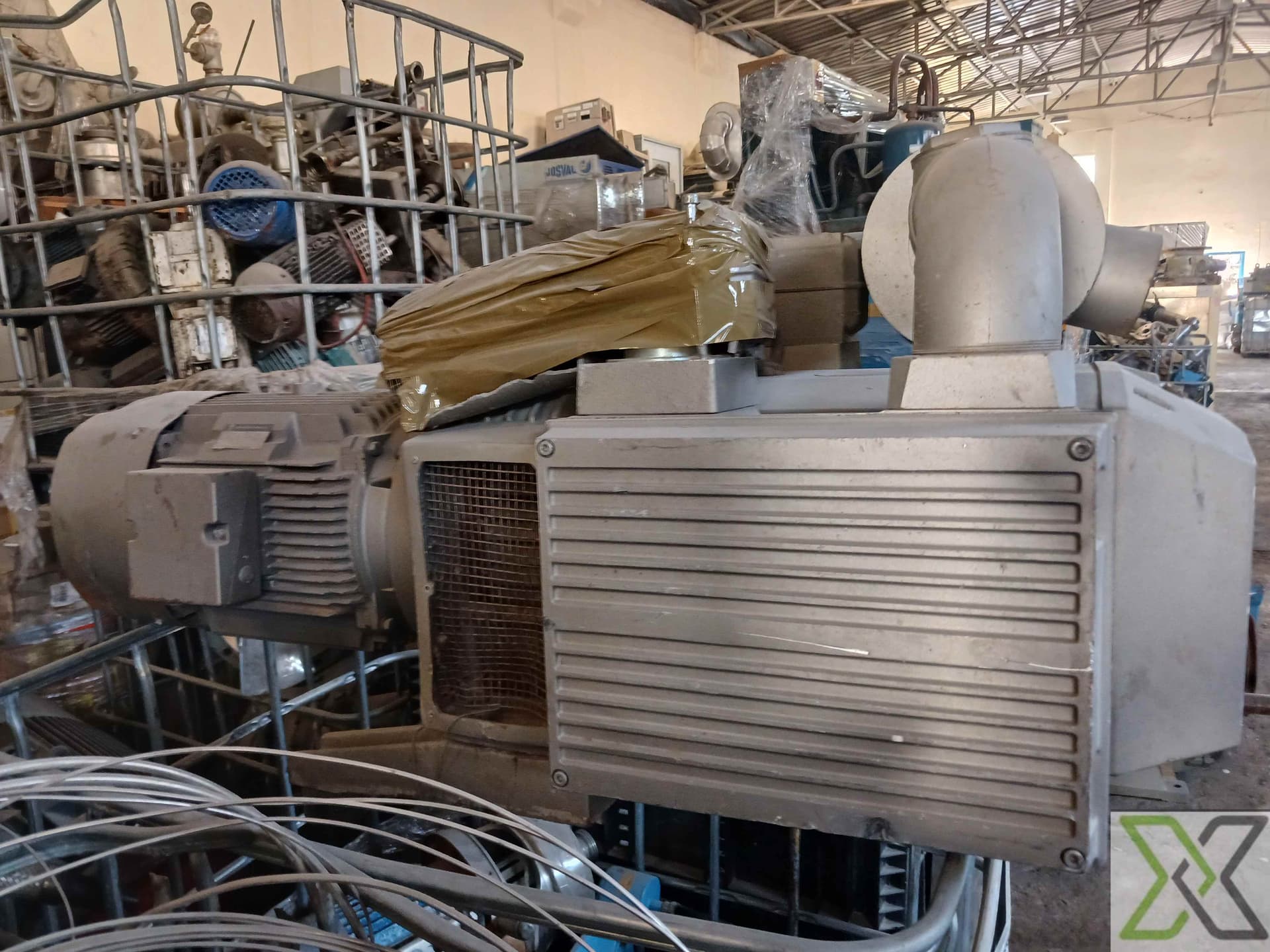

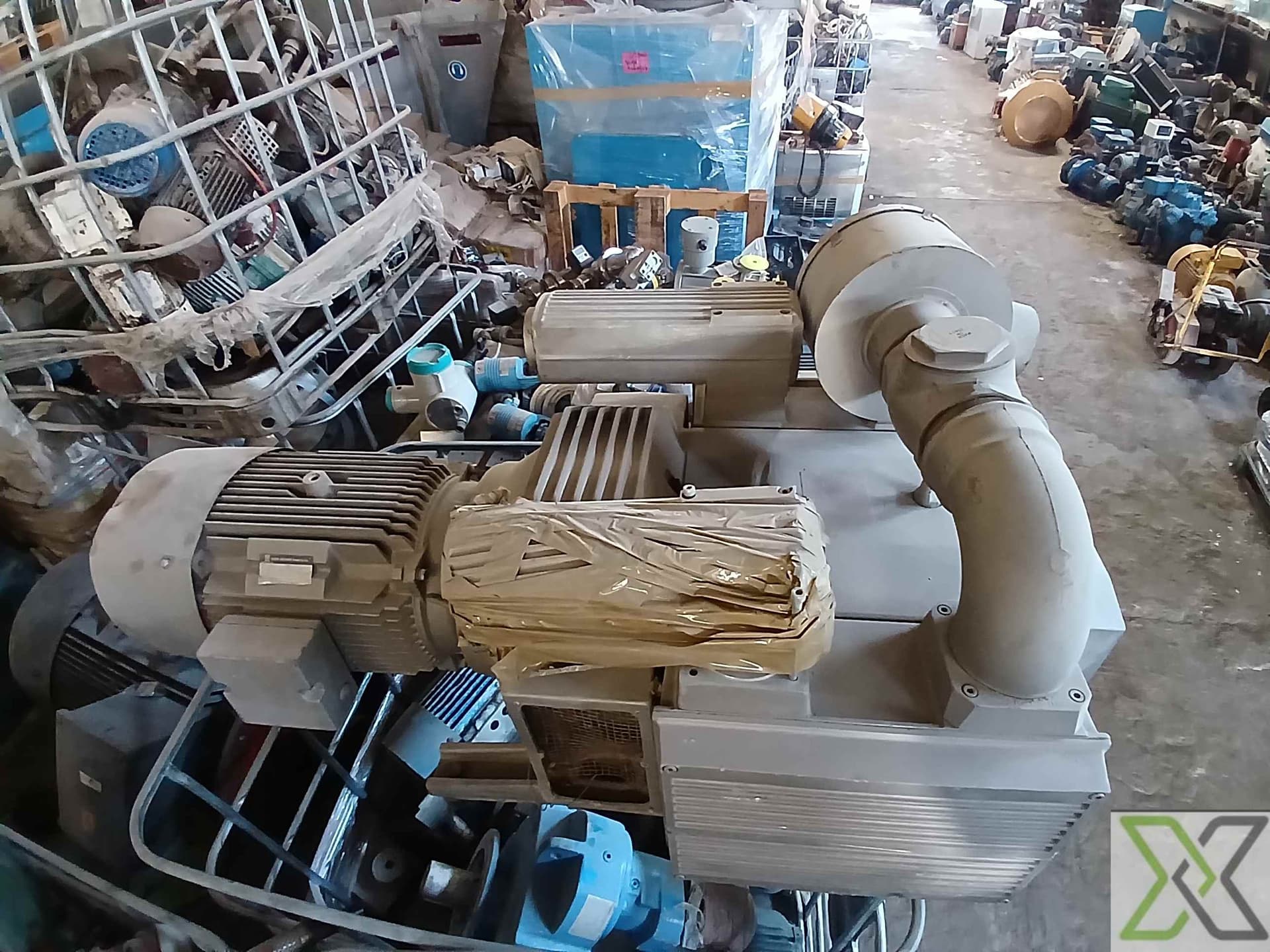

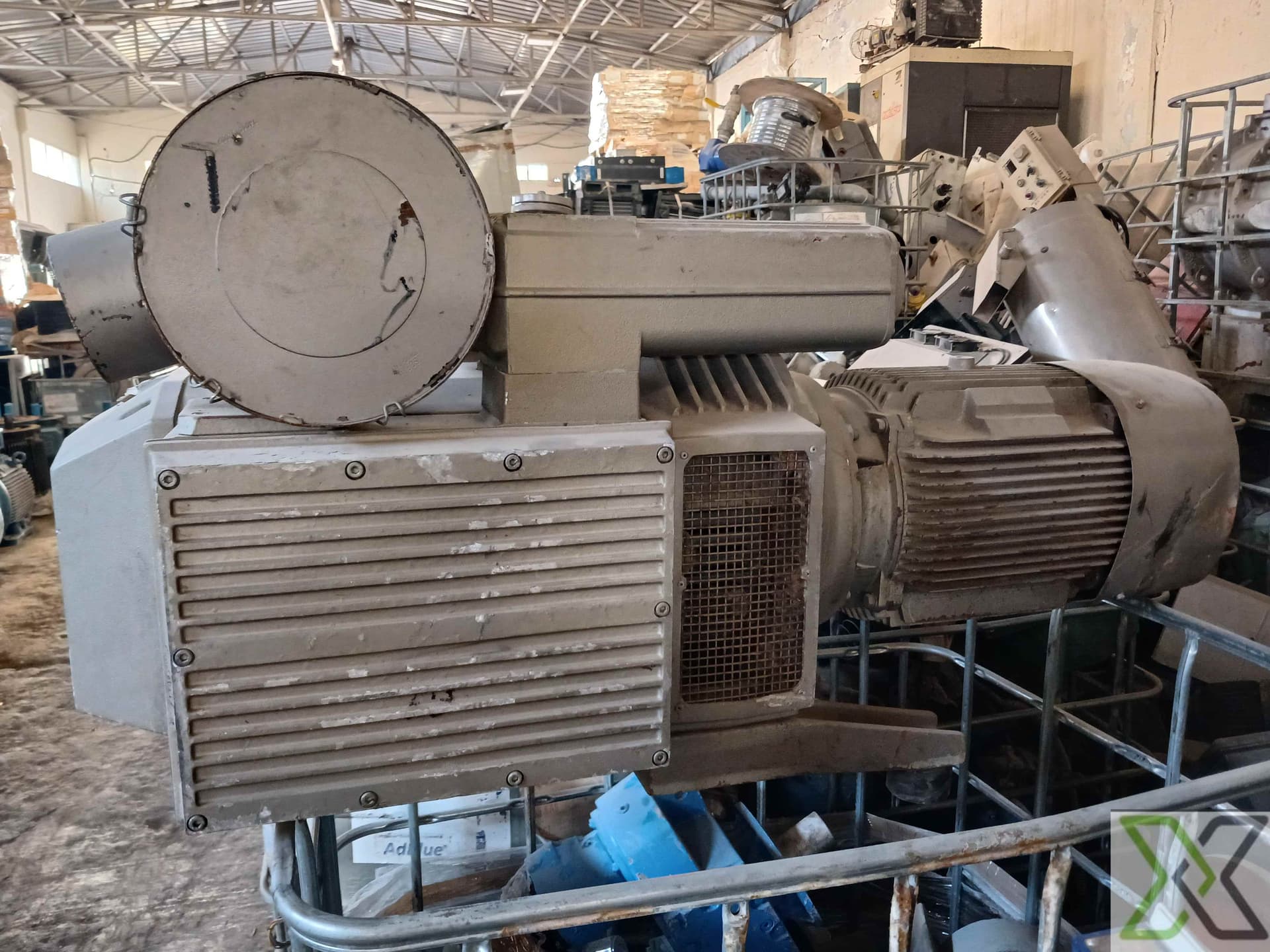

Becker Vacuum Pump – Rotary Vane/Screw Type - 2003

This Becker vacuum pump, manufactured in 2003, is a reliable industrial-grade vacuum system likely configured as a rotary vane or oil-lubricated screw pump, based on standard Becker designs from the period. It is built for medium vacuum applications with a maximum vacuum capacity of 500 to 250 mbar, suitable for continuous-duty operation in environments such as packaging, printing, medical suction systems, and process vacuum support.

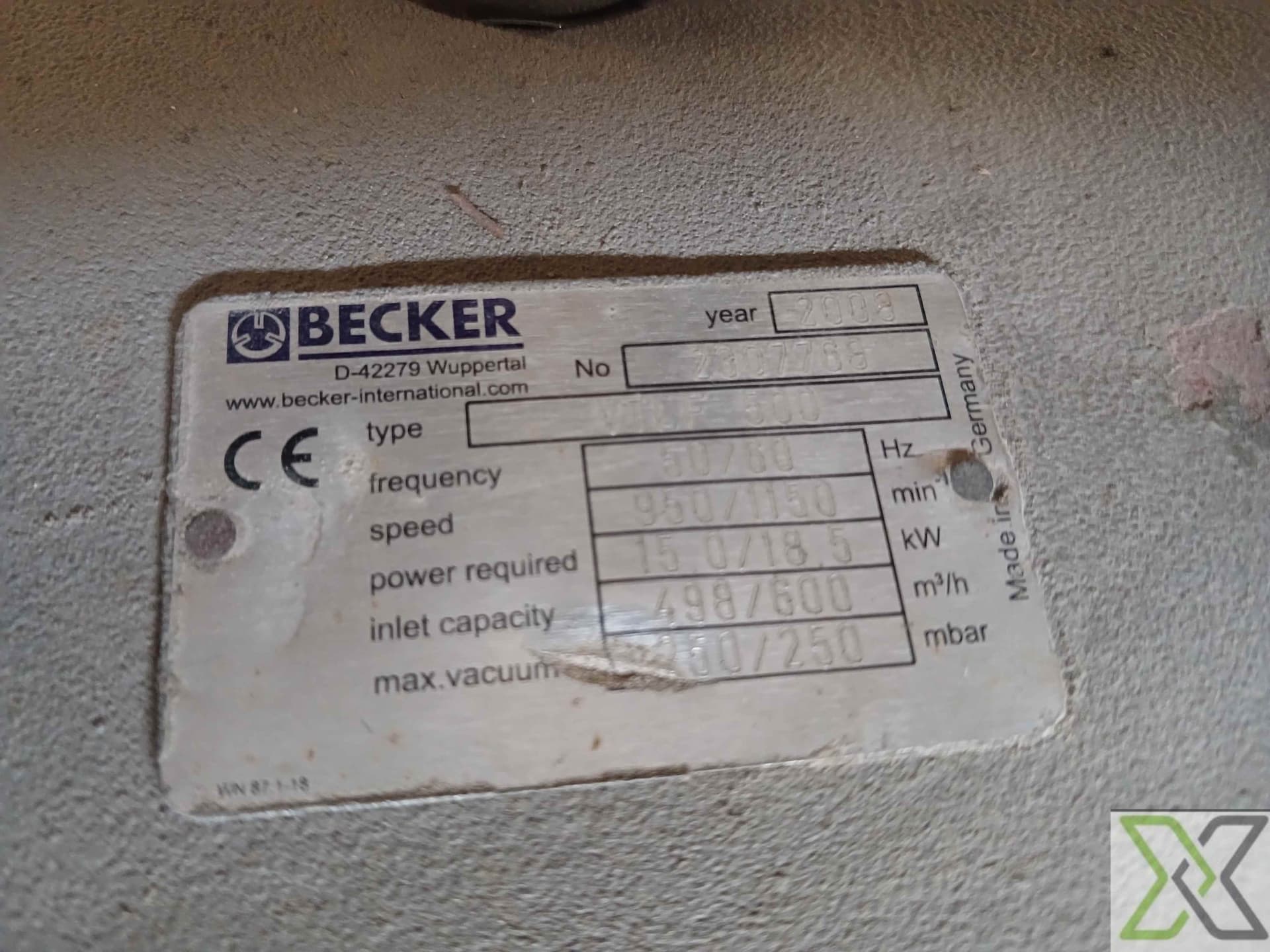

Though the nameplate details such as power rating, inlet capacity, and rotational speed are not clearly visible, the unit is built to function on 50/60 Hz frequency and is assumed to be three-phase. Its base-mounted design supports easy integration into centralized vacuum systems. Cooling is likely achieved through air cooling, consistent with typical Becker pump designs of this era.

Specifications:

– Brand: Becker
– Model Year: 2003
– Pump Type: Rotary Vane or Oil-Flooded Screw (typical Becker configuration)
– Maximum Vacuum Level: 500 to 250 mbar
– Power Requirement: [Unreadable – Estimated 1.5 to 7.5 kW depending on model]
– Speed: [Unreadable – Typically ~1,400 to 2,900 RPM]
– Frequency: 50/60 Hz
– Voltage: [Not visible – Typically 380–415V for 3-phase]
– Phase: Assumed Three-phase
– Cooling Type: Air-cooled (likely)
– Mounting Type: Base-mounted
– Protection Rating: [Not specified – Becker models typically IP54 or IP55]
– Inlet Capacity: [Unreadable – Likely 100–250 m³/h depending on model]
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2003
ISO 15926 Pt 4	7985
PCA RDS Code	RDS327239
CFIHOS ID	CFIHOS-30000550
Direction of Rotation	Clockwise
IFC Class	IfcPump
Lower Limit Operating Temperature	-10 °C
Orientation	Horizontal installation
UNSPSC Code	40151500
Upper Limit Design Temperature	71 °C
Lower Limit Ambient Operating Temperature	-10 °C
Lower Limit Operating Inlet Pressure	0.1 mbar
Lower Limit Operating Volume Flow Rate	4 m³/h
Pump Type	Oil-lubricated rotary vane vacuum pump
Upper Limit Ambient Operating Temperature	40 °C
Upper Limit Operating Inlet Pressure	1013 mbar
Upper Limit Operating Volume Flow Rate	732 m³/h
