Orion KHA400-309-G1 Dry Vacuum Pump – 400 m³/h, Oil-Free, Mitsubishi Motor, IP55

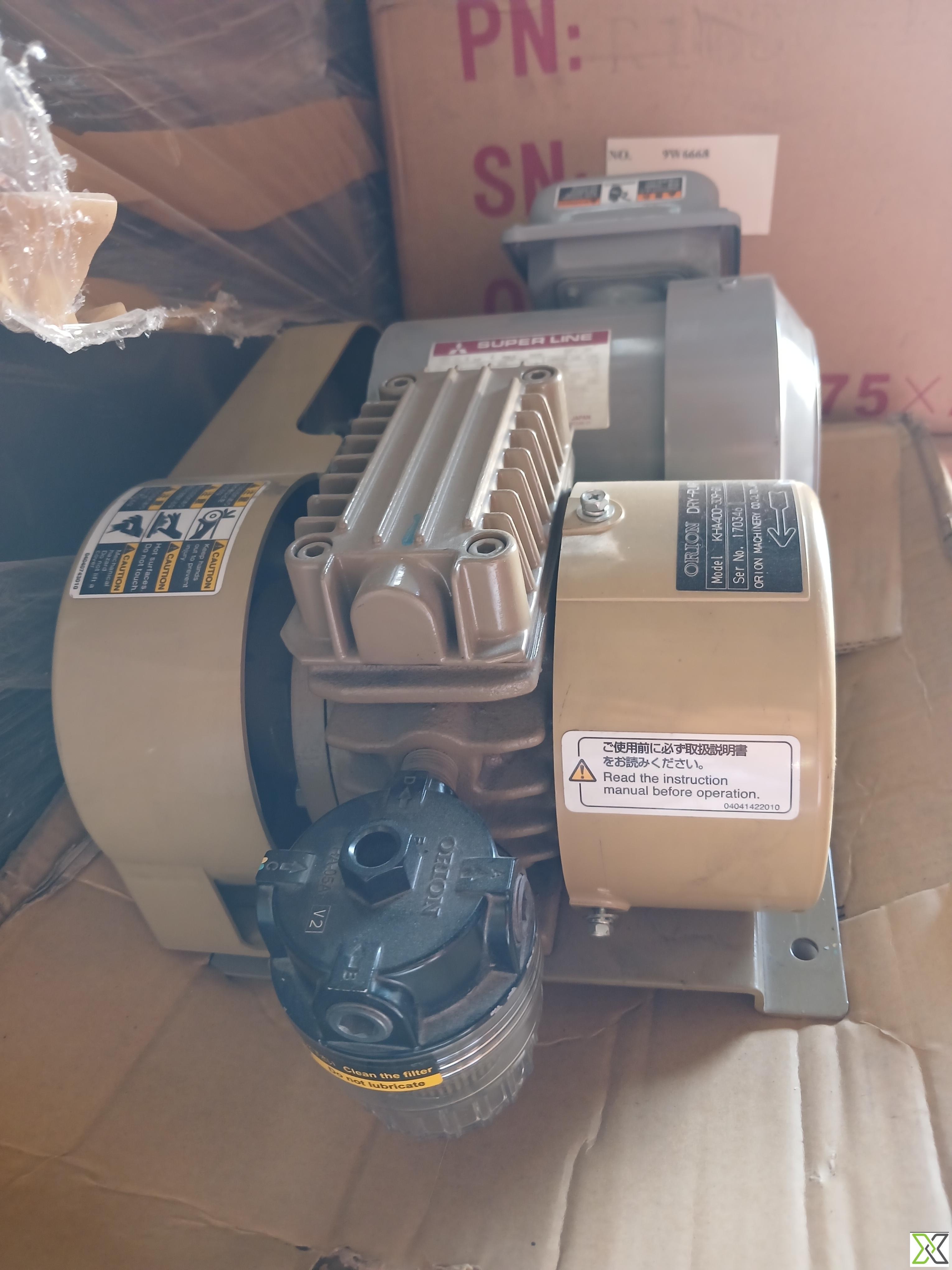

The Orion KHA400-309-G1 is a high-performance dry vacuum pump unit designed for industrial applications requiring clean, oil-free vacuum generation. Manufactured by Orion Machinery Co., Ltd., Japan, this unit is engineered with a dry-running mechanism—either screw-type or roots-type—ideal for sensitive processes in the semiconductor, chemical, and pharmaceutical industries. The system delivers a nominal pumping speed of 400 m³/h and achieves an ultimate vacuum of ≤ 0.01 mbar, making it suitable for low-pressure continuous-duty operations. The pump is integrated with a Mitsubishi Electric SUPER LINE three-phase induction motor (Model SF-JR) rated at 0.4 kW, featuring IP55 protection and Class E insulation, compliant with JEC 2137-2000 standards. Operating voltages range from 200V (50Hz) to 220V (60Hz), with corresponding RPMs between 1410 to 1700 RPM. The pump is skid-mounted, compact, and supports clockwise rotation (as viewed from the motor end). The robust design includes clear flow direction marking and ensures stable performance across a range of pressures from atmospheric down to 1 mbar inlet and up to 1.2 bar outlet. Ideal for precision vacuum systems where oil contamination is unacceptable.

Specifications:

– Product Type: Dry Vacuum Pump Unit

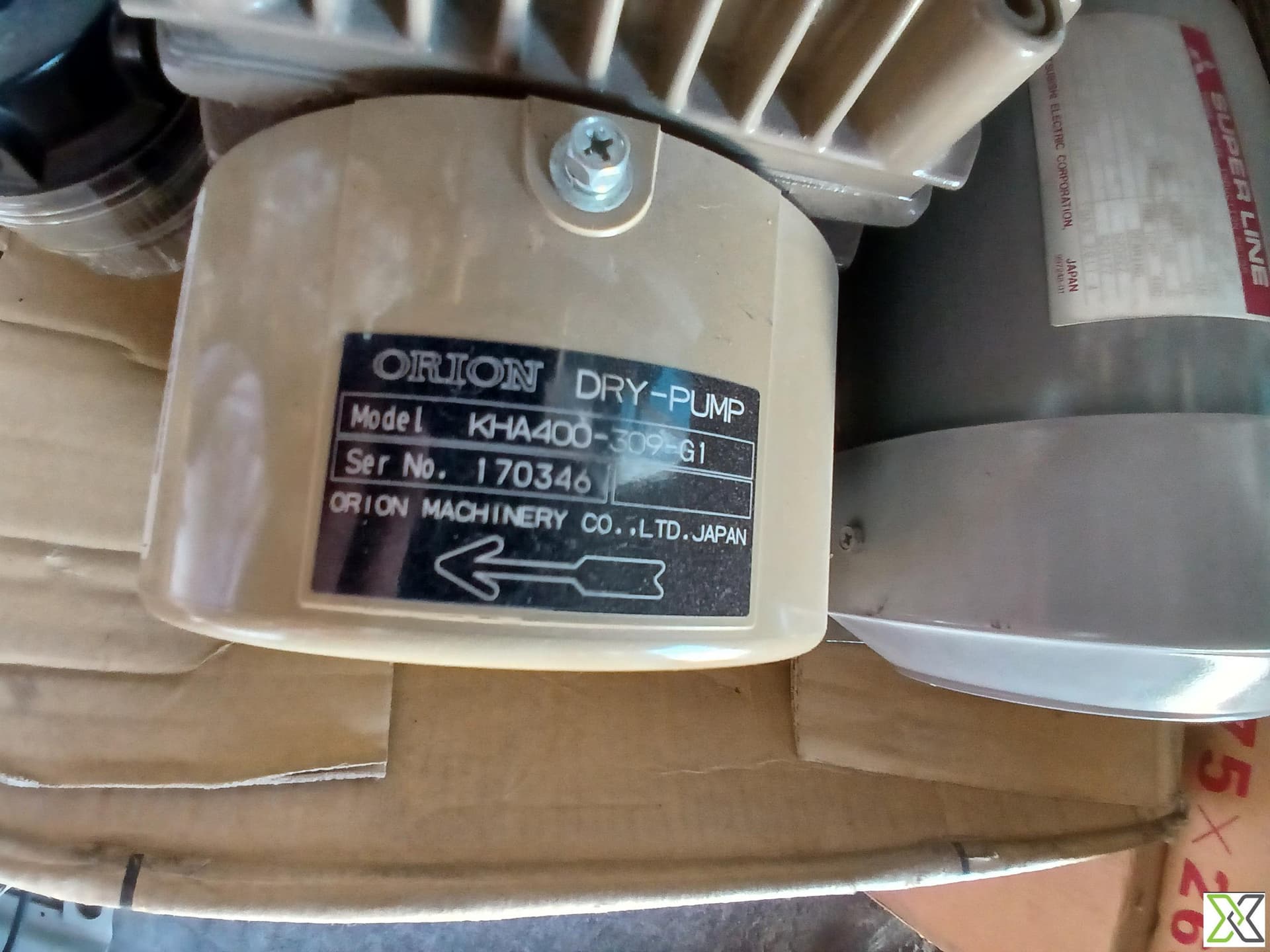

– Model Number: KHA400-309-G1
– Pump Technology: Dry-running, oil-free (screw-type or roots-type)
– Application: Clean vacuum generation in chemical, semiconductor, and pharmaceutical processes
– Manufacturer: Orion Machinery Co., Ltd.
– Country of Origin: Japan

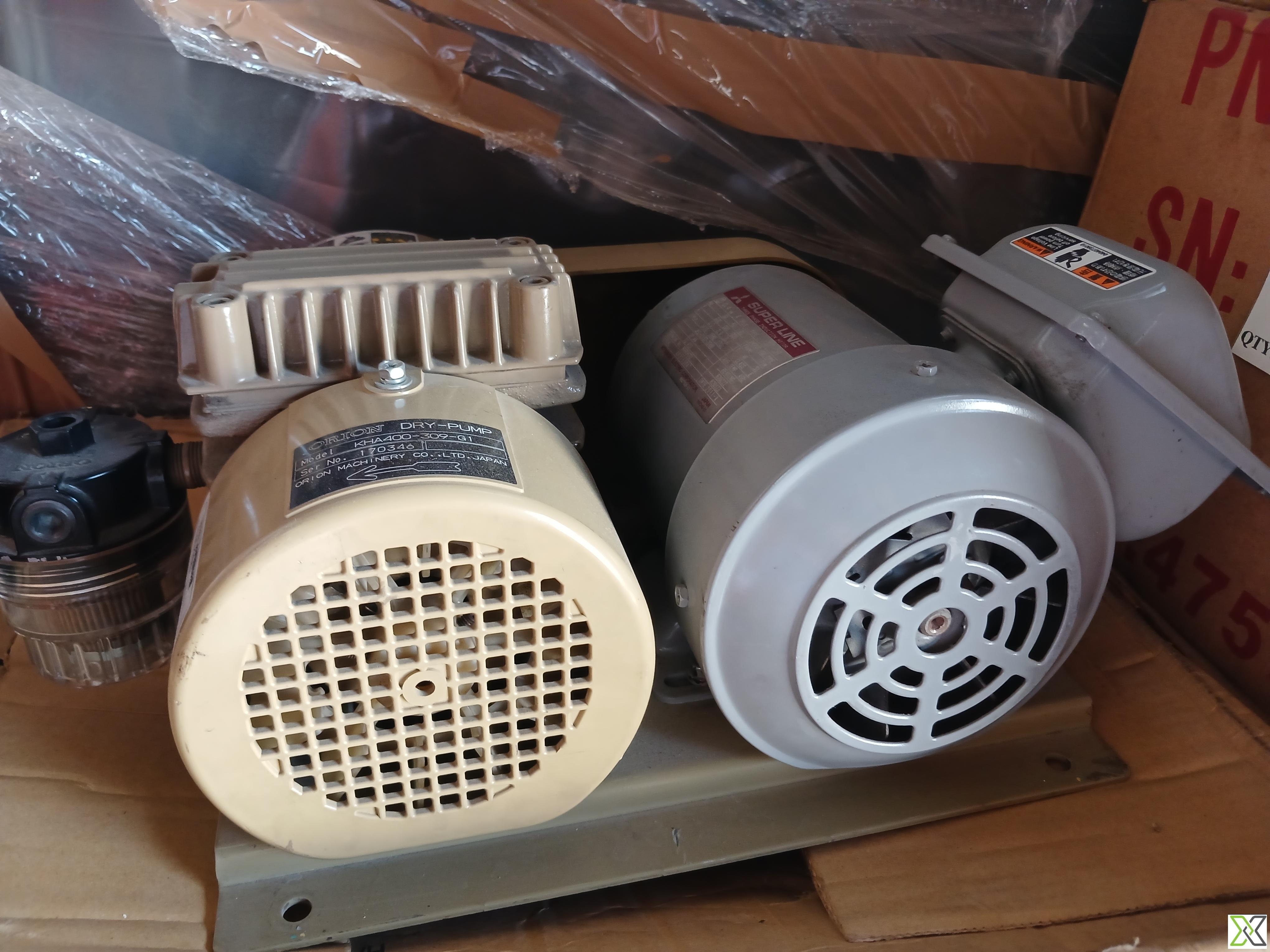

– Design Type: Skid-mounted integrated unit
– Direction of Flow: Marked on casing (leftward arrow)
– Direction of Rotation: Clockwise (viewed from motor end)
– Operation Type: Continuous duty (S1)

– Pumping Speed (Nominal): 400 m³/h
– Ultimate Pressure (End Vacuum): ≤ 0.01 mbar (absolute)
– Normal Operating Inlet Pressure: Atmospheric to 1 mbar
– Normal Operating Outlet Pressure: Up to 1.2 bar

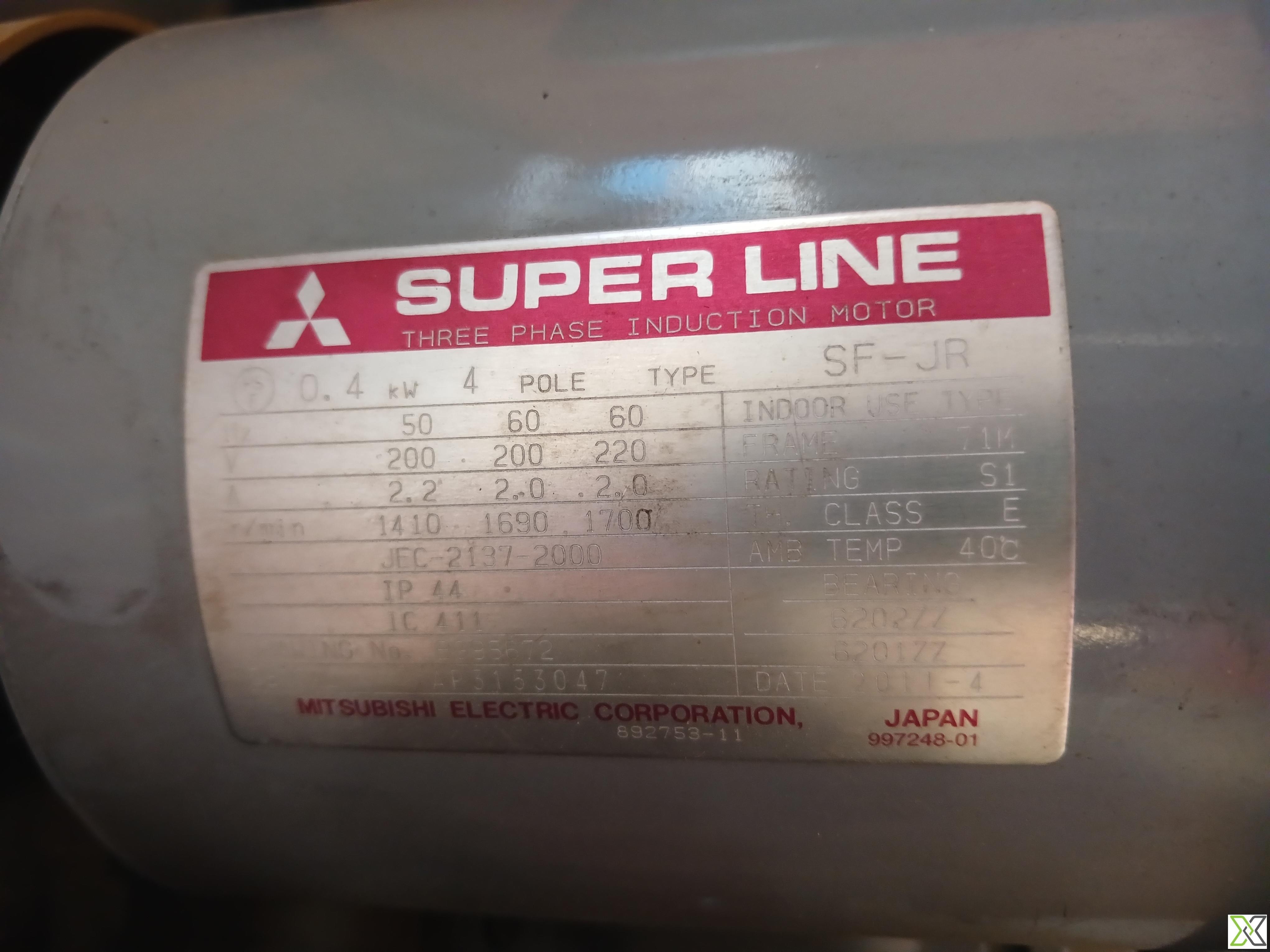

– Brand: Mitsubishi Electric – SUPER LINE
– Motor Model: SF-JR
– Type: Three-Phase Induction Motor
– Power Rating: 0.4 kW
– Poles: 4
– RPM: 50 Hz: 1410 RPM, 60 Hz: 1690 / 1700 RPM
– Voltage: 50 Hz: 200V, 60 Hz: 200/220V
– Frequency: 50 Hz / 60 Hz
– Insulation Class: E
– Protection Class: IP55
– Ambient Temperature: 40°C
– Standard Compliance: JEC 2137-2000
– Bearings: 6202ZZ
– Date Code: 2014

– Nominal Voltage: 400 V ±10%, 3-phase
– Insulation Class (Main Unit): F
– Speed (Main Drive Motor): [To be confirmed – typically 2900 RPM or VFD controlled]
– Main Motor Power: [To be confirmed – expected range: 15–22 kW]

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
