Leybold SOGEVAC SV65 BIFC Vacuum Pump with LS90L Motor

ReflowX SKU: REF-2332

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Leybold France S.A.S.
Equipment code

Get Quotation Whatsapp

Short Description

Leybold SOGEVAC SV65 BIFC vacuum pump with 1.5 kW Leroy Somer LS90L motor, CE marked, oil-lubricated, and equipped with gas ballast and labeled service ports. Ideal for industrial vacuum needs.

Description

Leybold SOGEVAC SV65 BIFC Vacuum Pump with LS90L Motor

The Leybold SOGEVAC SV65 BIFC is a high-performance oil-sealed rotary vane vacuum pump, built for continuous-duty applications across a wide range of industrial and laboratory systems. Manufactured by Leybold France S.A.S., this unit includes a Leroy Somer LS90L motor and is designed for efficient and reliable performance with synthetic LVO 700 oil.

Weighing 62 kg, the pump features convenient service access points including an oil filling port, oil drain, oil sight glass, and gas ballast control. With clear CE and ISO certifications, it adheres to international safety and performance standards. The unit’s labeled external ports (inlet, exhaust, lifting lug) make installation and servicing straightforward.

The motor operates at dual frequency (50/60 Hz) with power output of 1.5 kW and current ratings of 6.6 A (50 Hz) and 6.0 A (60 Hz). With an enclosure rating of IP40 and insulation class F, the LS90L motor is suitable for dependable operation in industrial environments.

Specifications:

– Model: SOGEVAC SV65 BIFC
– Serial Number: 960465Y013001
– Manufacturer: Leybold France S.A.S.
– Additional Reference Numbers:
– 37020205313
– 960465Y23334318A54122
– Oil Type: LVO 700 (Synthetic)
– Oil Sight Glass: Yes
– Weight: 62 kg
– Markings: CE, ISO certified

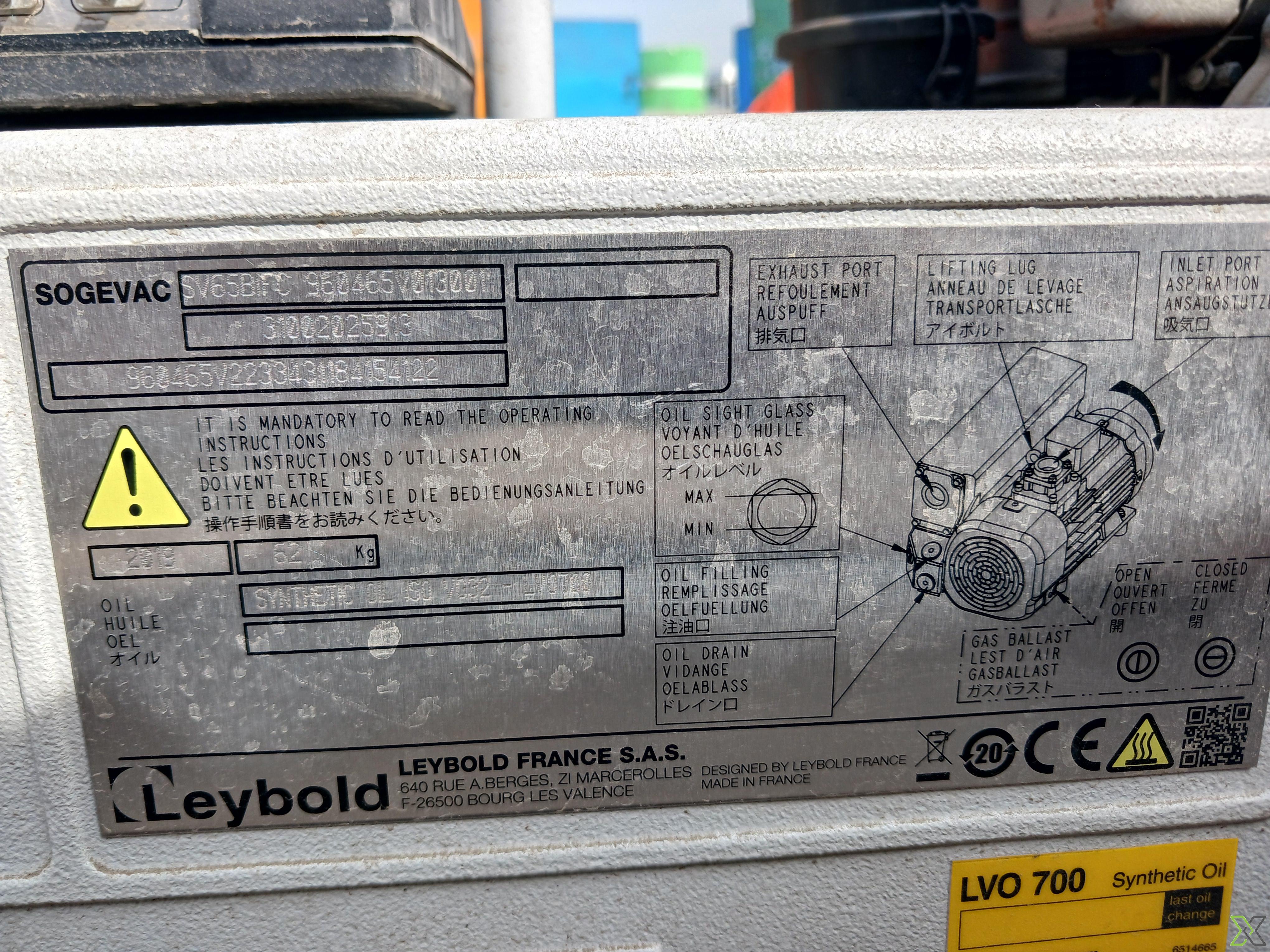

– Ports/Features (Labeled):
– Inlet Port
– Exhaust Port
– Oil Filling
– Oil Drain
– Oil Sight Glass
– Gas Ballast
– Lifting Lug

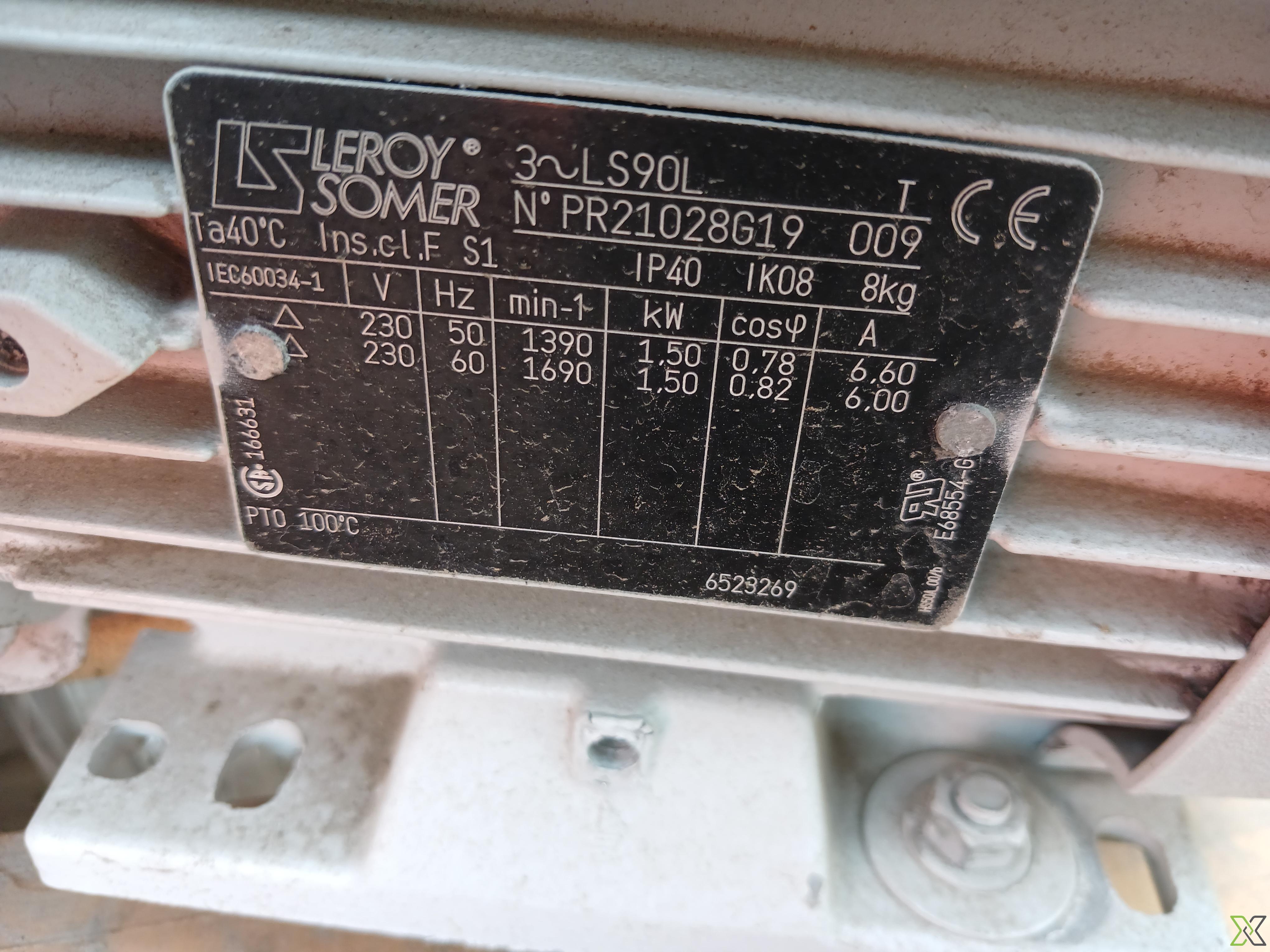

Motor Specifications (Leroy Somer):
– Brand: Leroy Somer
– Model: 3~ LS90L
– Serial Number: PR21028619 009
– Voltage: 230 V
– Frequency: 50/60 Hz
– Power: 1.5 kW
– Current Draw: 6.6 A (50 Hz), 6.0 A (60 Hz)
– Speed: 1390 RPM (50 Hz), 1690 RPM (60 Hz)
– Enclosure: IP40
– Impact Protection: IK08
– Thermal Rating: Ta 40°C
– Insulation Class: F
– Weight: 8 kg
– Standards: IEC 60034-1, CE marked
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SOGEVAC SV65 BIFC
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Direction of Rotation	Clockwise
Design Specification	Single-stage, oil-sealed rotary vane vacuum pump
Fluid Name	Air or inert gases
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 2
Insulation Class	Class F
Immersed	No
Normal Operating Inlet Pressure	approx. 1013 mbar
Normal Operating Inlet Temperature	12°C to 40°C
