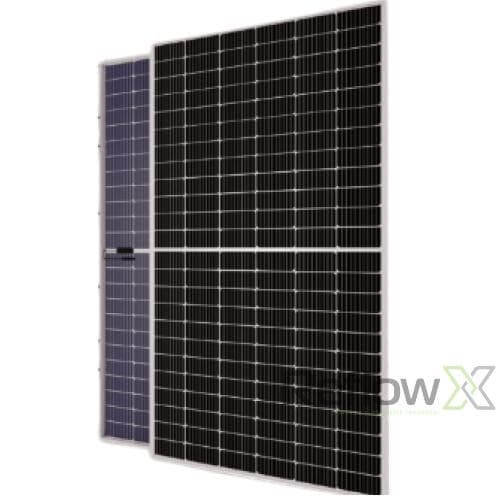

Jinko 540W Bifacial Solar Panel – High-Efficiency Dual-Sided Module

The Jinko 540W Bifacial Solar Panel delivers exceptional performance with its dual-sided energy harvesting technology. Leveraging bifacial cell architecture, this panel captures sunlight on both the front and rear surfaces, significantly increasing energy output—especially in high-albedo environments like deserts or rooftops with reflective surfaces.

Manufactured by industry leader Jinko Solar, this panel is built to withstand harsh environmental conditions with its durable glass-glass construction and reinforced frame. The module's high power output makes it well-suited for utility-scale installations, commercial rooftops, and ground-mounted systems seeking to maximize space efficiency and return on investment.

These panels are available as surplus stock in their current “as is” condition, offering a cost-effective solution for large-scale solar deployment.

Specifications:

– Model: 540W Bifacial
– Manufacturer: Jinko
– Type: Solar Panel
– Power Rating: 540W per unit
– Panel Type: Bifacial (glass-glass or glass-transparent backsheet)
– Cell Type: Monocrystalline PERC
– Efficiency: High efficiency with rear-side gain up to 20% (site-dependent)
– Dimensions: Approx. 2278 x 1134 x 30 mm
– Weight: Approx. 32.5 kg
– Operating Temperature: -40°C to +85°C
– Front Glass: 2.0 mm tempered glass, anti-reflective coating
– Rear Glass: 2.0 mm tempered or transparent sheet (depending on version)
– Frame: Anodized aluminum alloy
– Connector Type: MC4 compatible
– Protection Class: IP68 junction box
– Snow Load: Up to 5400 Pa
– Wind Load: Up to 2400 Pa
– Fire Rating: Class C (UL) / Class 1 (IEC)
– Condition: Sold in its current condition (Surplus Stock)
– Availability: Stock Item
– Item Location: France

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
