FRP Gratings – Glass Fibre Reinforced Plastic (GFRP), Corrosion-Resistant and Lightweight

The Glass Fibre Reinforced Plastic (GFRP) Gratings provide a strong, versatile, and maintenance-free flooring solution for demanding industrial and commercial environments. Manufactured using a high-strength matrix of resin and fiberglass, these gratings offer exceptional corrosion resistance, even in the harshest chemical or marine conditions.

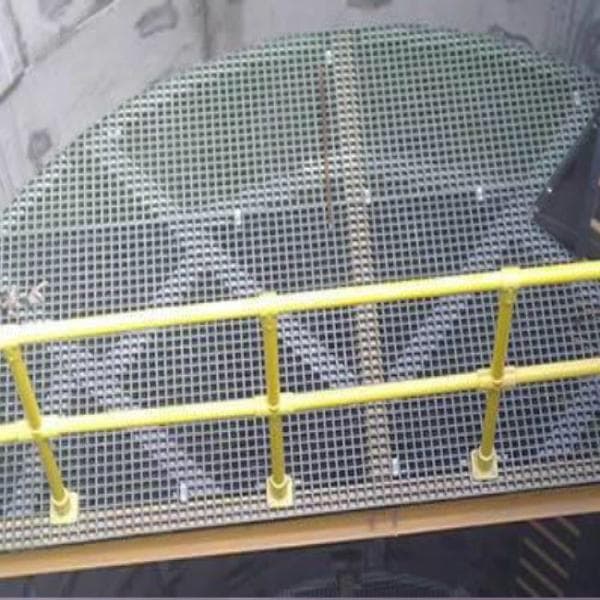

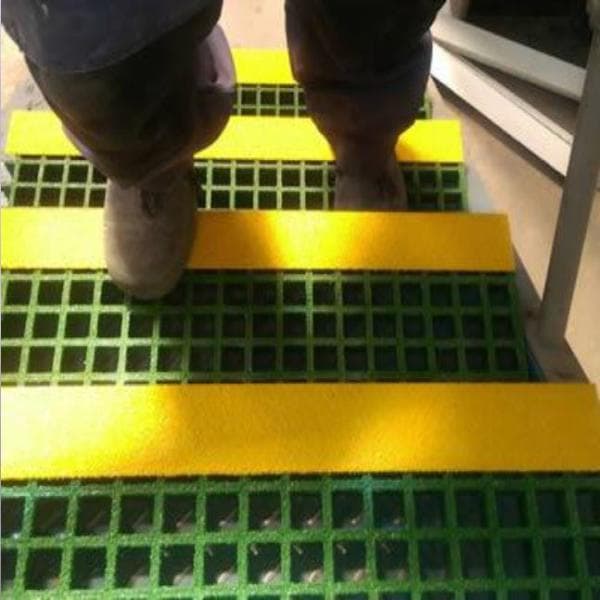

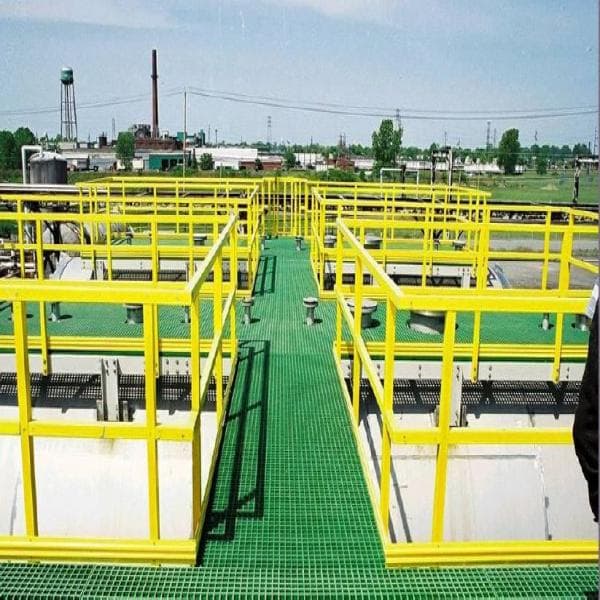

GFRP gratings are ideal for applications such as walkways, platforms, stair treads, rooftop access paths, and water treatment plants. Their non-conductive and lightweight structure makes them easy to transport and install, without compromising on strength or safety. With a projected service life of over 20 years, these gratings offer excellent return on investment and operational efficiency.

Available in molded and pultruded types, our gratings come in various thicknesses, panel sizes, and open area configurations to meet a wide range of application needs. Their consistent appearance enhances visual appeal while their robustness ensures long-term reliability.

Specifications:

Molded Gratings:
– FIBROGRT25X(38X38): Height: 25mm | Mesh Size: 38x38mm | Rib Thickness: 6/5mm | Open Area: 69% | Panel Size: 3660x1220mm
– FIBROGRT30X(38X38): Height: 30mm | Mesh Size: 38x38mm | Rib Thickness: 6.35/5mm | Open Area: 69% | Panel Size: 3660x1220mm
– FIBROGRT35X(38X38): Height: 35mm | Mesh Size: 38x38mm | Rib Thickness: 6.75/5mm | Open Area: 69% | Panel Size: 3660x1220mm
– FIBROGRT38X(38X38): Height: 38mm | Mesh Size: 38x38mm | Rib Thickness: 7/5mm | Open Area: 68% | Panel Size: 3660x1220mm

Pultruded Gratings:
– FIBROPULGRT25: Height: 25mm | Open Area: 40–60% | Panel Size: 1000x800mm
– FIBROPULGRT30: Height: 30mm | Open Area: 40–60% | Panel Size: 1000x1000mm
– FIBROPULGRT38: Height: 38mm | Open Area: 40–60% | Panel Size: 1200x1000mm
– FIBROPULGRT50: Height: 50mm | Open Area: 40–60% | Panel Size: 1500x1000mm

Material: Glass Fibre Reinforced Plastic (GFRP)
Design Types: Molded and Pultruded
Corrosion Resistance: Excellent against chemicals, saltwater, and industrial exposure
Non-Conductive: Suitable for electrical environments
Finish: Anti-slip surface available
Color Options: Standard industrial colors (customizable upon request)
Service Life: 20+ years
Maintenance: Minimal

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
