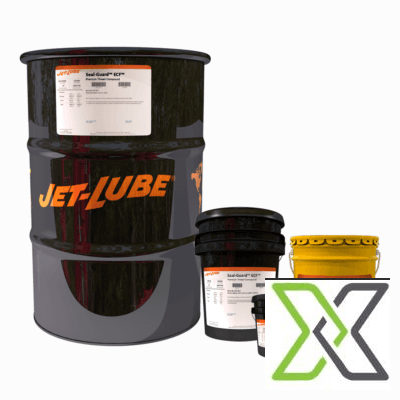

Jet-Lube SEAL-GUARD™ ECF™ Premium Thread Compound – 35 Lbs

Jet-Lube SEAL-GUARD™ ECF™ is an advanced metal-free compound formulated to meet the performance demands of premium proprietary metal-to-metal seals and high-interference connections used in critical drilling applications. Utilizing a patented blend of synthetic and vegetable oils with an extreme base grease thickener, SEAL-GUARD™ ECF™ delivers superior lubrication under extreme loads while offering high galling resistance and consistent friction performance.

Its advanced solids package contains submicron-sized particles for maximum sealing and reduced torque during make-up, ensuring optimal performance on 8-round and buttress threads. The compound adheres to wet or oily surfaces, remains stable under wide temperature ranges, and meets environmental safety standards with no detectable leachable metals.

Specifications:

– Product Number: 20915
– Packaging: 5 GAL Pail (Metal Yellow) – 35 LB
– Color: Dark Grey to Black
– Base Materials: Complex / Synthetic & Vegetable Oils
– Thickener Type: Complex
– Cone Penetration (ASTM D-217): 290–325
– Density (lb/gal): 10.60–11.65
– Specific Gravity: 1.27–1.40
– Oil Separation (ASTM D-6184): <3.0% by weight
– Dropping Point (ASTM D-2265): >450°F (232°C)
– Flash Point: >374°F (190°C)
– Weld Point (kgf) (ASTM D-2596): 800 typical
– Service Temperature: -20°F to 450°F (-29°C to 232°C)
– Friction Factor (Nut-Factor): 1.0 to 1.2 (Relative to API MODIFIED)
– Shelf Life: 3 years unopened, 9 months after opening
– Certifications: Eco-Certified | HOCNF Yellow Rating (UK/NL/Denmark)

Stock Quantity & Date of Manufacture:

– Available Stock: 57 Pails
– Manufactured: 18/04/2023 & 15/05/2023

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
