Honeywell Sensepoint XCD Fixed Gas Detector – IP66, Flameproof

ReflowX SKU: REF-4822

Product Details

Quantity

30
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Honeywell Analytics
Equipment code

Transmitters

Get Quotation Whatsapp

Short Description

Honeywell Analytics Sensepoint XCD fixed gas transmitter with IP66 enclosure, Ex d flameproof certification, and support for toxic, flammable, and oxygen gas detection in hazardous areas.

Description

Honeywell Sensepoint XCD Fixed Gas Detector – IP66, Flameproof

The Sensepoint XCD from Honeywell Analytics is a high-performance fixed gas detector engineered for the continuous monitoring of toxic gases, oxygen, and flammable gases in hazardous industrial environments. Manufactured in Korea, this unit features an IP66-rated enclosure and is certified for flameproof and dust ignition-proof protection under Ex d IIC Gb T6 and Ex tD IIIC Db T85°C standards. It supports operation in ambient temperatures ranging from -40°C to +65°C, ensuring reliable performance across a broad range of process conditions. Powered by a 32VDC input and consuming a maximum of 5.5 watts, the Sensepoint XCD is ideal for deployment in Zone 1/Zone 2 hazardous areas, where robust safety and gas detection are critical. Each unit is traceable via unique serial numbers, such as KO2536 or 18441127.

Specifications:

– Device Name: Fixed Gas Detector (Transmitters)
– Manufacturer: Honeywell Analytics
– Model: Sensepoint XCD

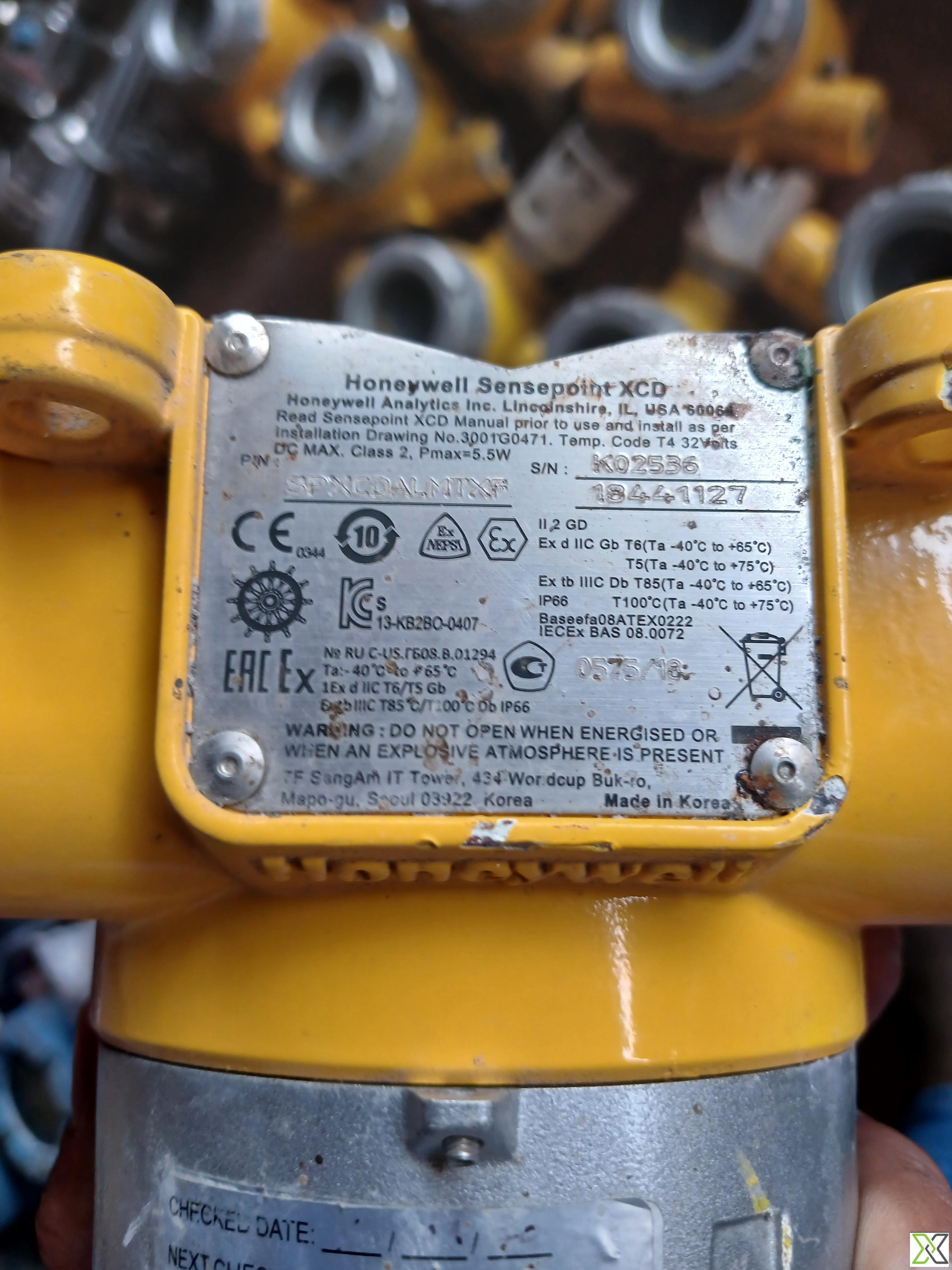

– Serial Numbers (Example): KO2536, 18441127
– Country of Manufacture: Made in Korea
– Voltage Supply: T4 rated for 32VDC
– Power Consumption: Maximum 5.5W
– Ambient Temperature Range: -40°C to +65°C
– Enclosure Protection: IP66
– Gas Group Certification: Ex d IIC Gb T6 (flameproof for gas)
– Dust Group Certification: Ex tD IIIC Db T85°C (dust ignition protection)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Sensepoint XCD
Width	145 mm
Length	190 mm
Weight	2.5 kg
ISO 15926 Pt 4	4818
PCA RDS Code	RDS267929
CFIHOS ID	CFIHOS-30000661
Explosion Protection Gas Group	Group IIC gases
Explosion Protection Temperature Class	T6
Explosion Protection Zone	Zone 1 and Zone 2
Safety Integrity Level	SIL 2 capable (per IEC 61508)
Set Point High	User-configurable via the transmitter's interface
Set Point Low	User-configurable via the transmitter's interface
