ABB ProcessMaster 300 Electromagnetic Flowmeter – DN100, 240 m³/h, PTFE Lining

ReflowX SKU: REF-7392

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000643

Get Quotation Whatsapp

Short Description

ABB ProcessMaster 300 Electromagnetic Flowmeter with 4" (DN100) bore, PTFE lining, 240 m³/h capacity, and IP67 protection for demanding flow measurement applications.

Description

ABB ProcessMaster 300 Electromagnetic Flowmeter – DN100, 240 m³/h, PTFE Lining
Description:

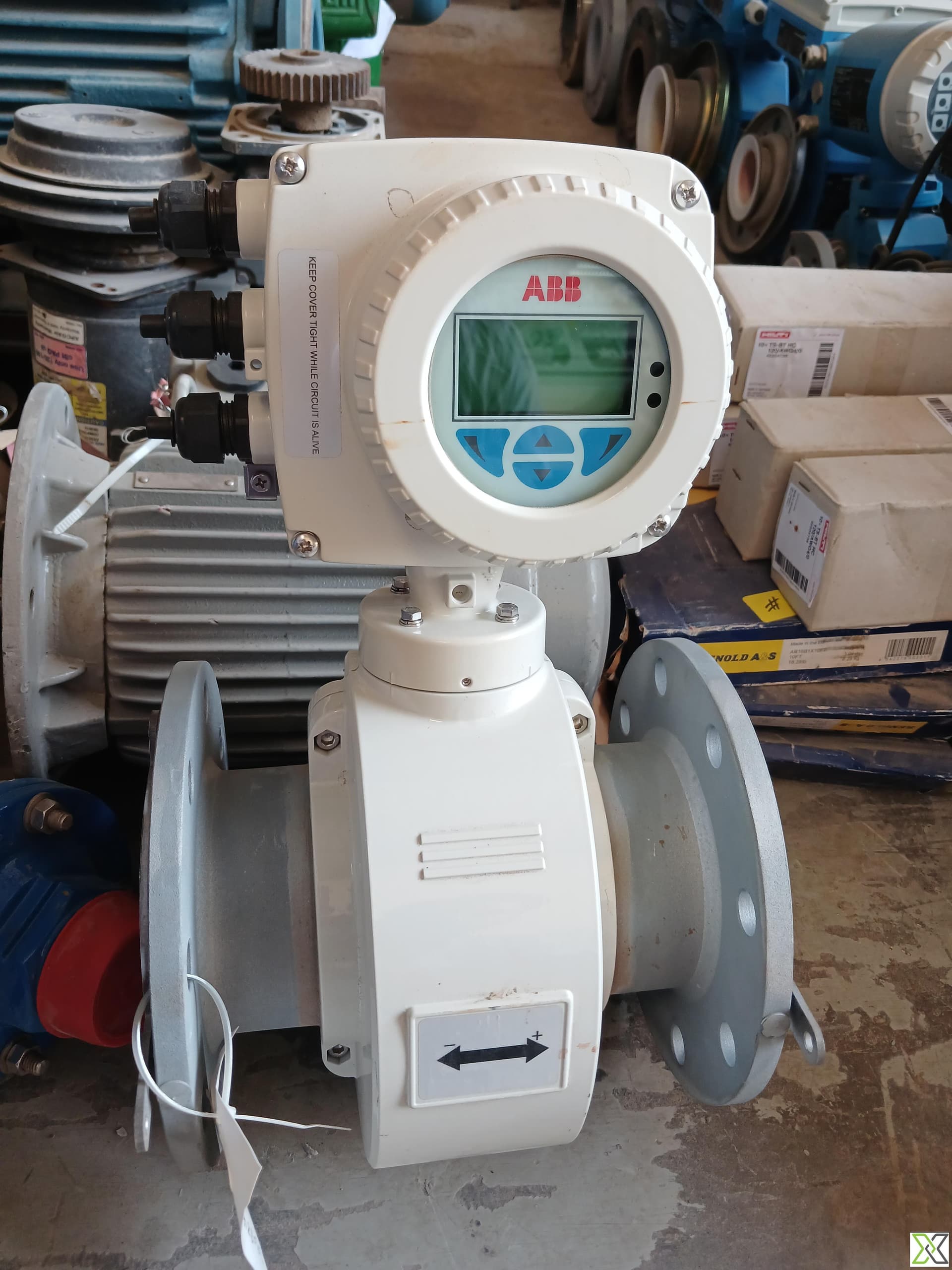

The ABB ProcessMaster 300 is a high-performance electromagnetic flowmeter designed for reliable and precise measurement of conductive liquids. Model FE3P31100AD4E4BA1A0CA2C1AYHM5 features a DN100 (4-inch) line size and supports a maximum flow rate of 240 m³/h. Engineered with PTFE lining and Hastelloy-C4 electrodes, it ensures compatibility with aggressive media at temperatures up to 130°C. Built to IP67 (NEMA 4X) standards, it offers full protection in challenging environments. This unit is AS2129 Table E compliant, non-PED, and was manufactured in April 2021 by ABB Engineering (Shanghai) Ltd. The device is calibrated with a calibration factor of 0.4 and operates at a 12.5 Hz electrode frequency. Suitable for use in chemical, water, wastewater, and industrial process systems.

Specifications:

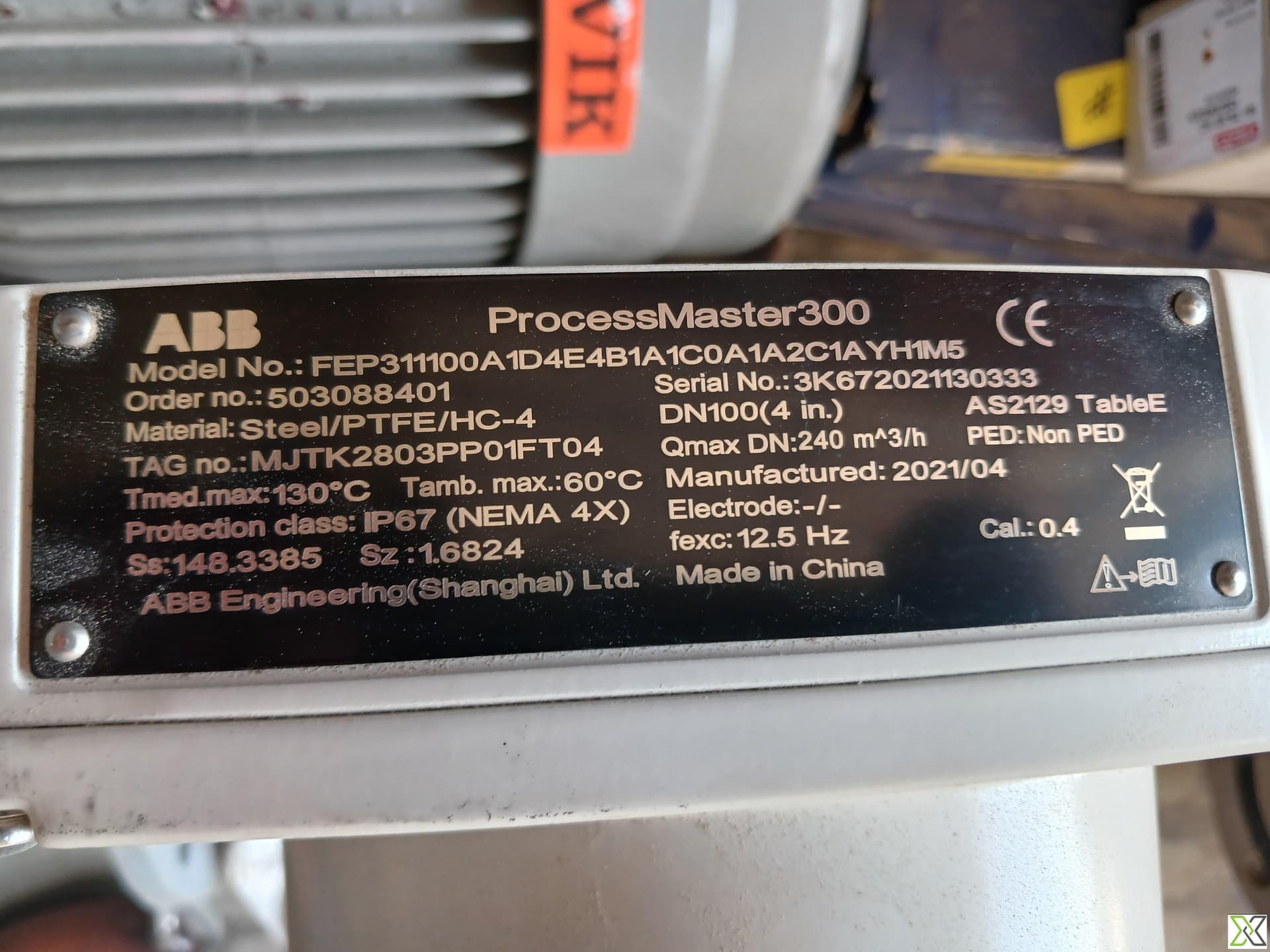

– Product Name: Electromagnetic Flowmeter
– Series: ABB ProcessMaster 300
– Model Number: FE3P31100AD4E4BA1A0CA2C1AYHM5
– Order Number: 505988101
– Serial Number: 3K67202130333
– Line Size: DN100 (4 inch)
– Maximum Flow Rate (Qmax): 240 m³/h
– Liner Material: PTFE
– Electrode Material: Hastelloy-C4 (HC-4)
– Body Material: Steel
– TAG Number: MJTK2803PP01FT04
– Medium Temperature Range: Max 130°C
– Ambient Temperature Range: Max 60°C
– Protection Class: IP67 (NEMA 4X)
– Electrode Frequency: 12.5 Hz
– Calibration Factor: 0.4
– Design Standard: AS2129 Table E
– PED Compliance: Non-PED
– Date of Manufacture: April 2021
– Country of Manufacture: China (ABB Engineering, Shanghai Ltd.)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	FE3P31100AD4E4BA1A0CA2C1AYHM5
Year of Manufacturing	April 2021
Height	350 mm
Width	220 mm
Length	250 mm
Weight	16–20 kg
Voltage	85–265 V AC or 18–36 V DC
Output Power	4–20 mA, Pulse, HART
