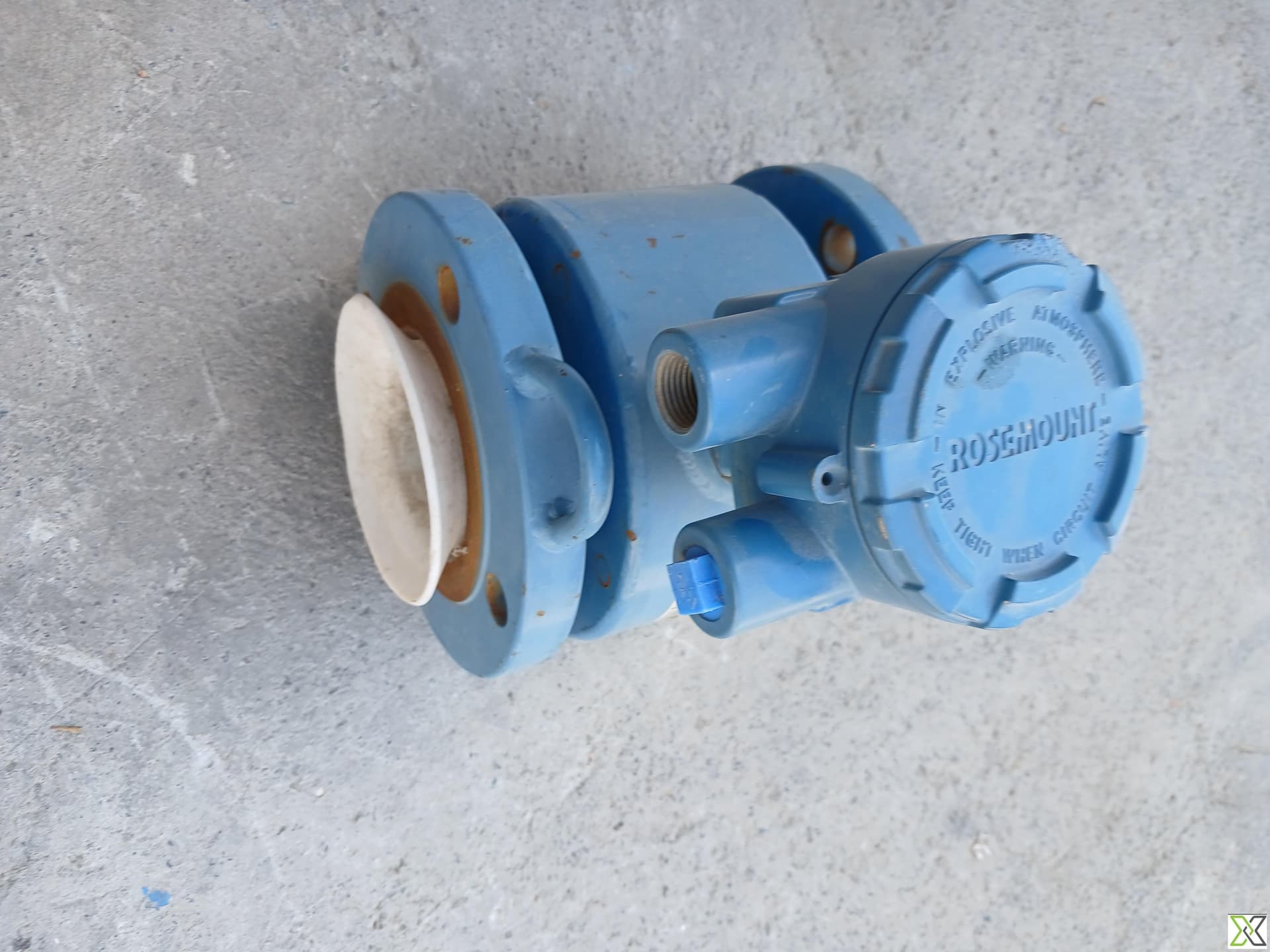

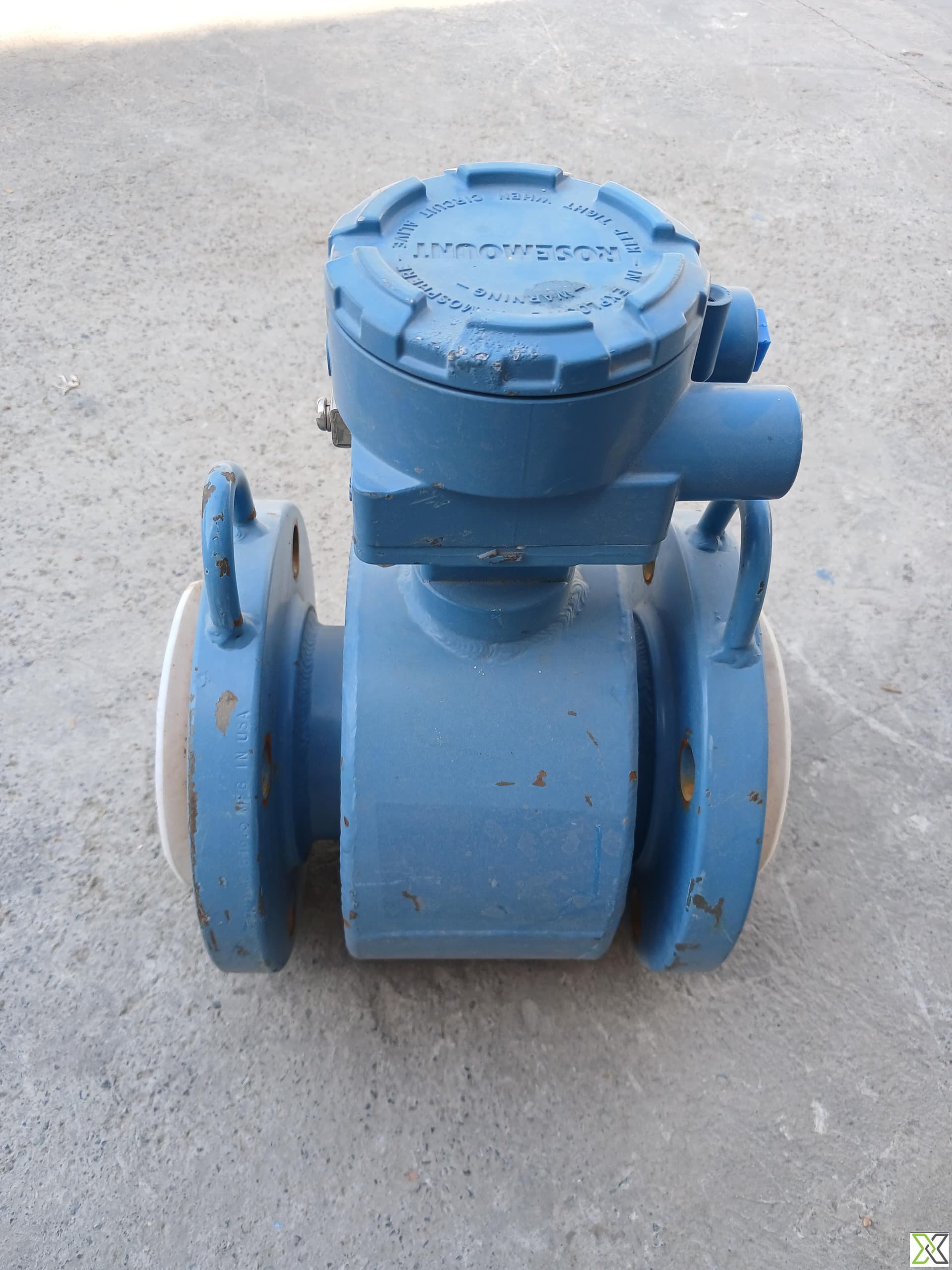

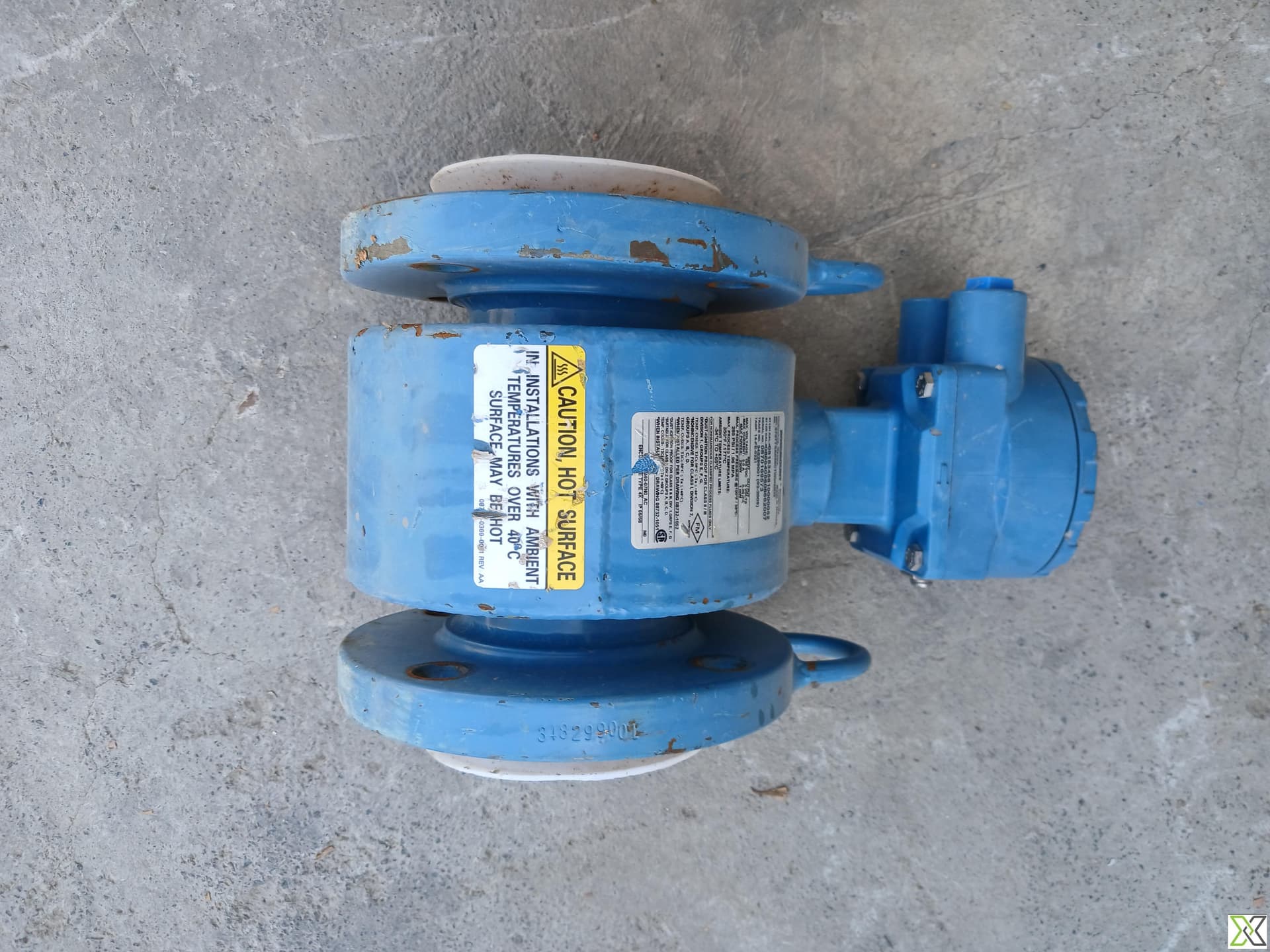

Rosemount 8705 Magnetic Flowmeter – 2" Flanged, 4–20 mA Output, PTFE Liner, IP66 Enclosure

Description:

The Rosemount 8705 Magnetic Flowmeter is a high-performance flow measurement device designed for precision in demanding industrial applications. With a 2-inch flanged process connection and chemically resistant PTFE liner, it is well-suited for corrosive fluids and challenging process media. The unit provides a standard 4–20 mA output signal and operates within an input voltage range of 12 to 42 VDC. It is capable of handling pressures up to 285 PSI (1.96 MPa) and temperatures up to 85°C (185°F). Housed in a rugged Type 4X / IP66-rated enclosure, the flowmeter ensures long-lasting durability in harsh environments. FM, CSA, and CE certifications affirm its compliance with global safety and performance standards. Manufactured by Emerson in Mexico, the Rosemount 8705 is widely used in industries such as water treatment, chemical processing, and pharmaceuticals for accurate and dependable flow monitoring.

Specifications:

– Product Name: Magnetic Flowmeter
– Model: 8705
– Brand: Rosemount
– Manufacturer: Emerson
– Country of Manufacture: Mexico

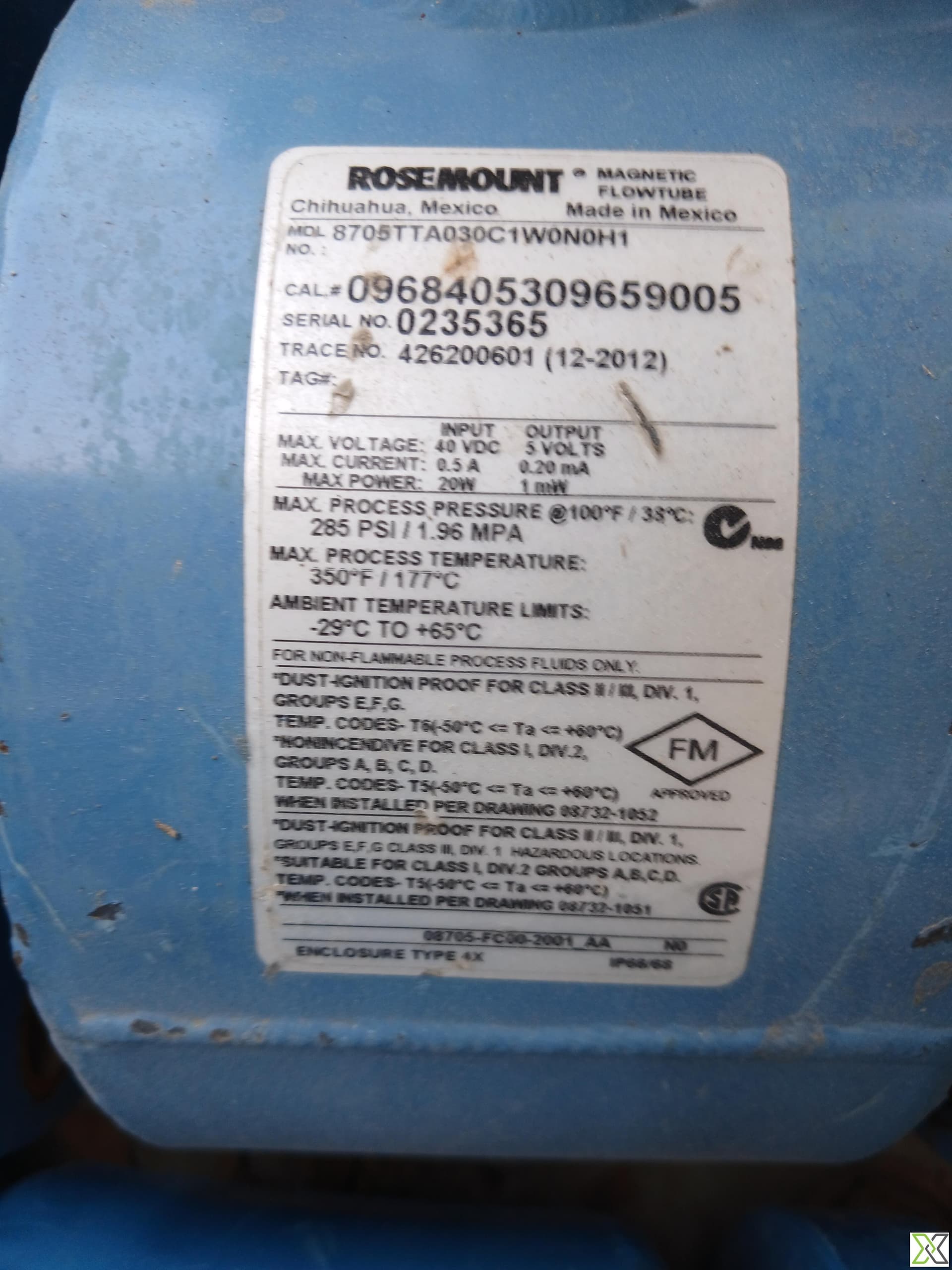

– Serial Number: 02335365
– Calibration Code: 09684053096559005

Electrical & Signal
– Output Signal: 4–20 mA
– Input Voltage: 12–42 VDC

Mechanical & Environmental
– Process Connection: 2" Flanged
– Liner Material: PTFE
– Enclosure Type: Type 4X / IP66
– Process Pressure: 285 PSI / 1.96 MPa
– Max Temperature: 85°C (185°F)

Certifications & Compliance
– Certifications: FM Approved, CSA, CE

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
