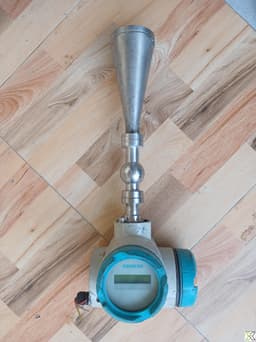

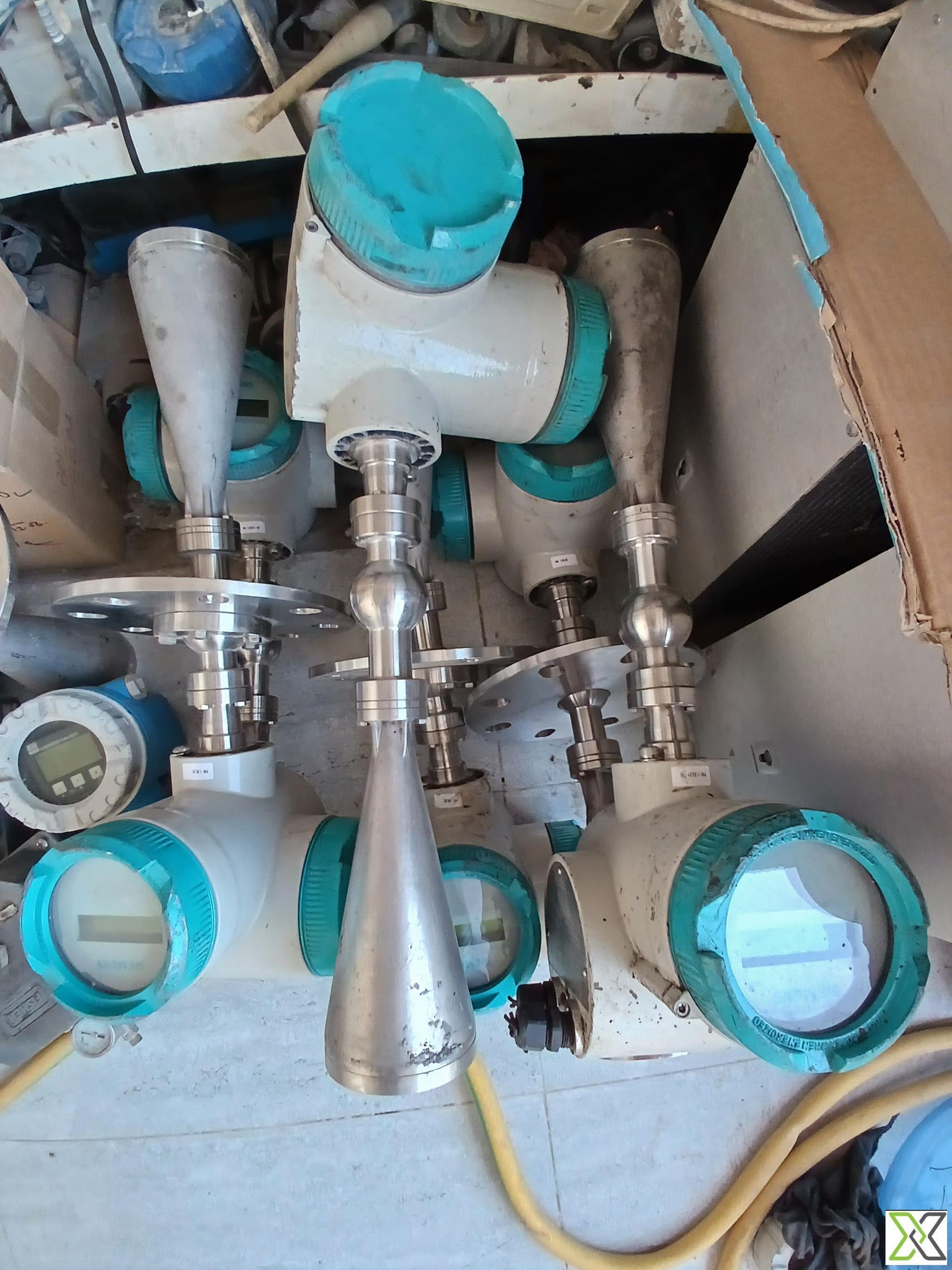

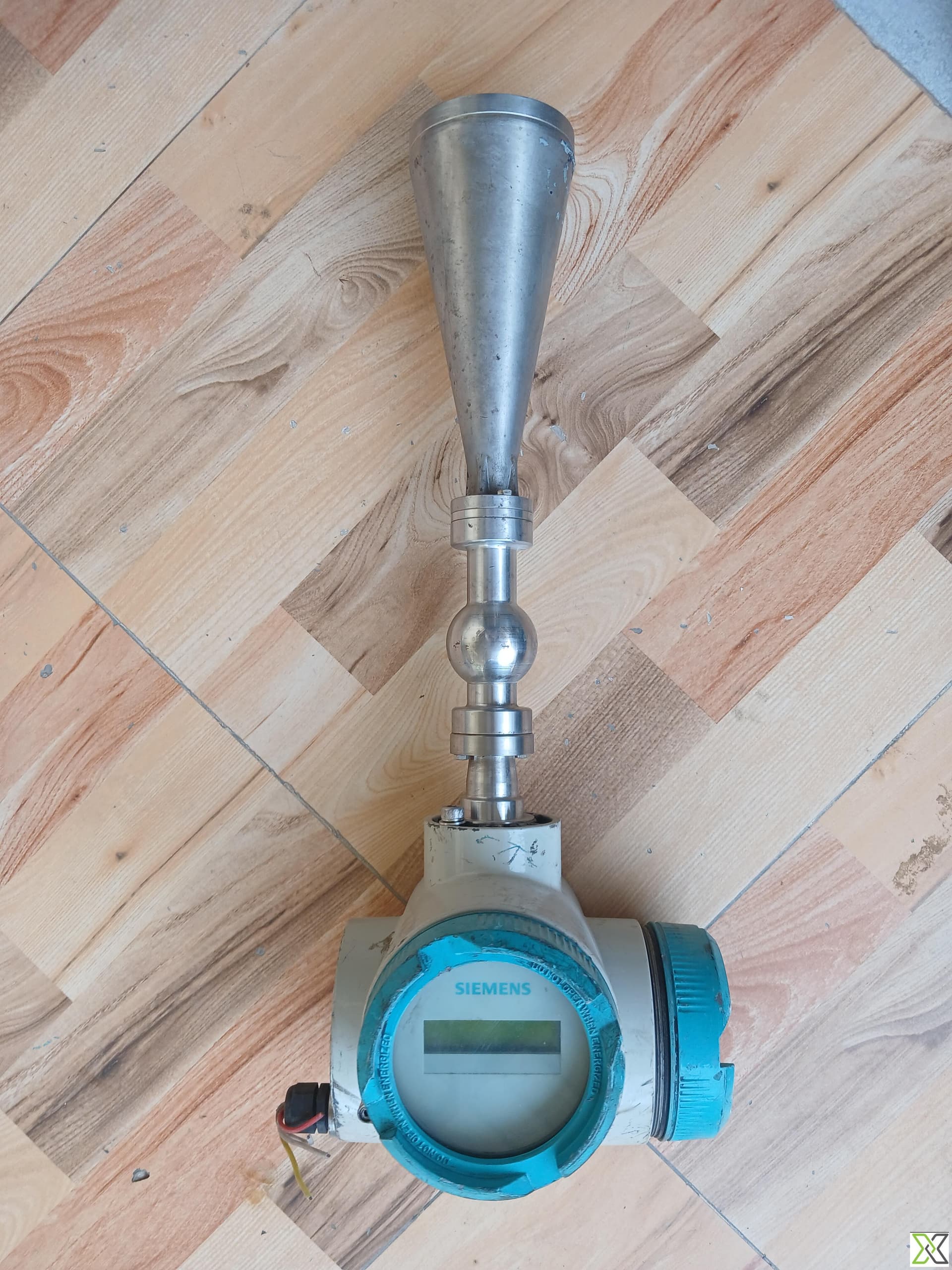

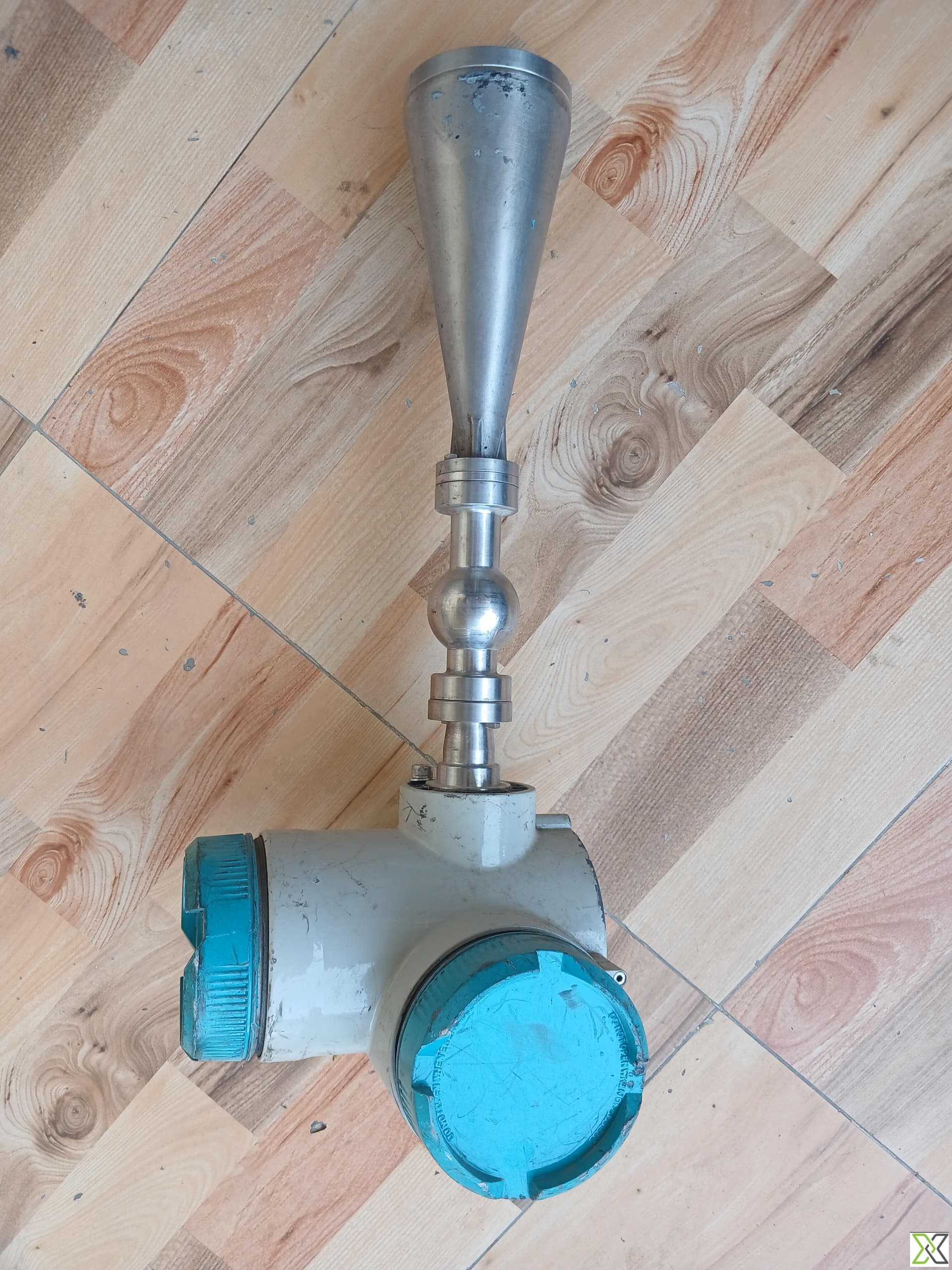

Siemens SITRANS LR460 Radar Level Transmitter – 4–20 mA HART, 2” Horn Antenna, IP66

ReflowX SKU: REF-4922

Product Details

Quantity

6
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Siemens
Equipment code

CFIHOS-30000646

Get Quotation Whatsapp

Short Description

Siemens SITRANS LR460 radar level transmitter with 2” horn antenna, 4–20 mA HART output, and Type 4 / IP66 enclosure. AC powered for continuous, high-accuracy level monitoring.

Description

Siemens SITRANS LR460 Radar Level Transmitter – 4–20 mA HART, 2” Horn Antenna, IP66
Description:

The Siemens SITRANS LR460 is a high-performance radar level transmitter designed for precise level measurement of solids and powders in silos, hoppers, and bulk storage vessels. Featuring a 2” horn antenna, this non-contact device uses 24 GHz FMCW radar technology to deliver accurate and stable readings even under dusty, turbulent conditions. The LR460 provides a 4–20 mA output signal with HART communication, allowing for easy integration into process control systems. Designed for harsh industrial environments, the unit operates reliably in ambient temperatures from -40°C to +60°C and is housed in a rugged enclosure rated Type 4 / NEMA 4X / IP66. The transmitter is powered by 115/230V AC and consumes only 6W, making it energy-efficient and maintenance-friendly. With its robust construction and proven technology, the SITRANS LR460 is ideal for cement, mining, and bulk solids applications requiring continuous, accurate level monitoring.

Specifications:

– Product Name: Radar Level Transmitter
– Model: SITRANS LR460
– Brand: Siemens

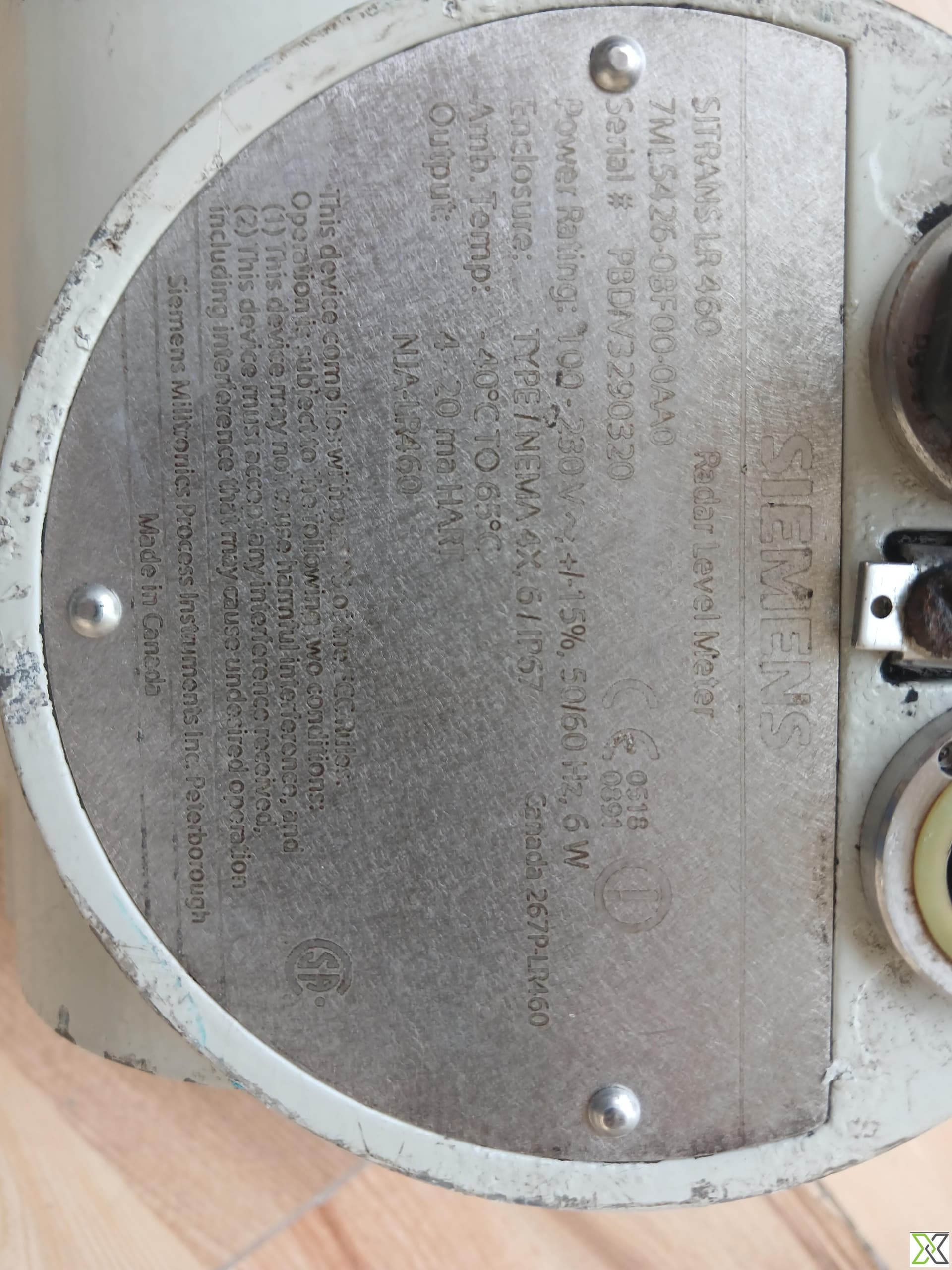

– Part Number: 7ML5426-0BF00-0AA0
– Serial Number: PBDM/32903320

Electrical & Output
– Power Supply: 115/230V AC, 50/60 Hz
– Power Consumption: 6W
– Output Signal: 4–20 mA with HART

Mechanical & Construction
– Antenna Type: 2” Horn Antenna
– Enclosure Rating: Type 4 / NEMA 4X / IP66
– Ambient Temperature Range: -40°C to +60°C
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SITRANS LR460
Manufacturer Name	Siemens
Height	360 mm
Width	220 mm
Length	180 mm
Weight	6.5 kg
Voltage	15/230 V AC
