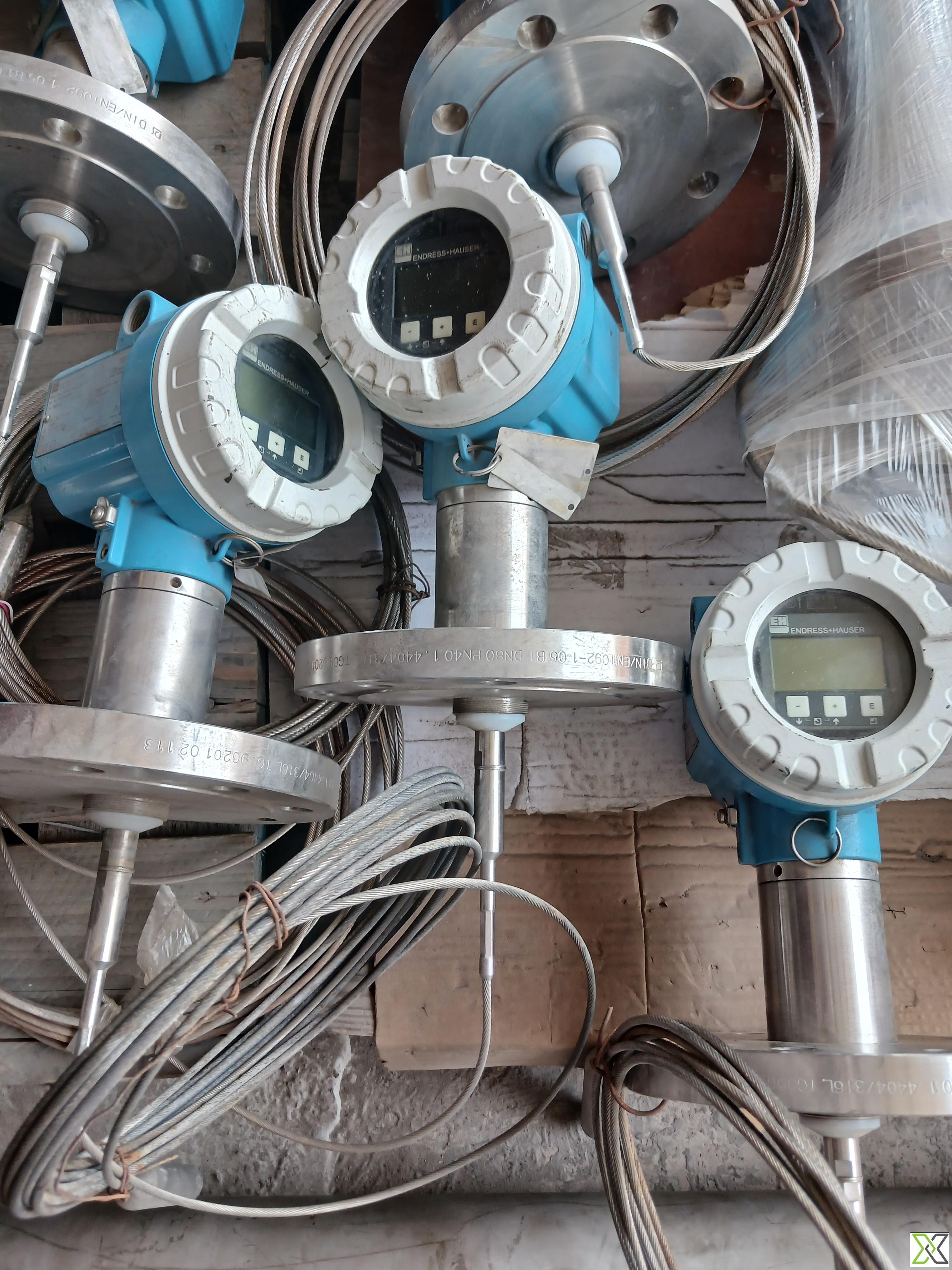

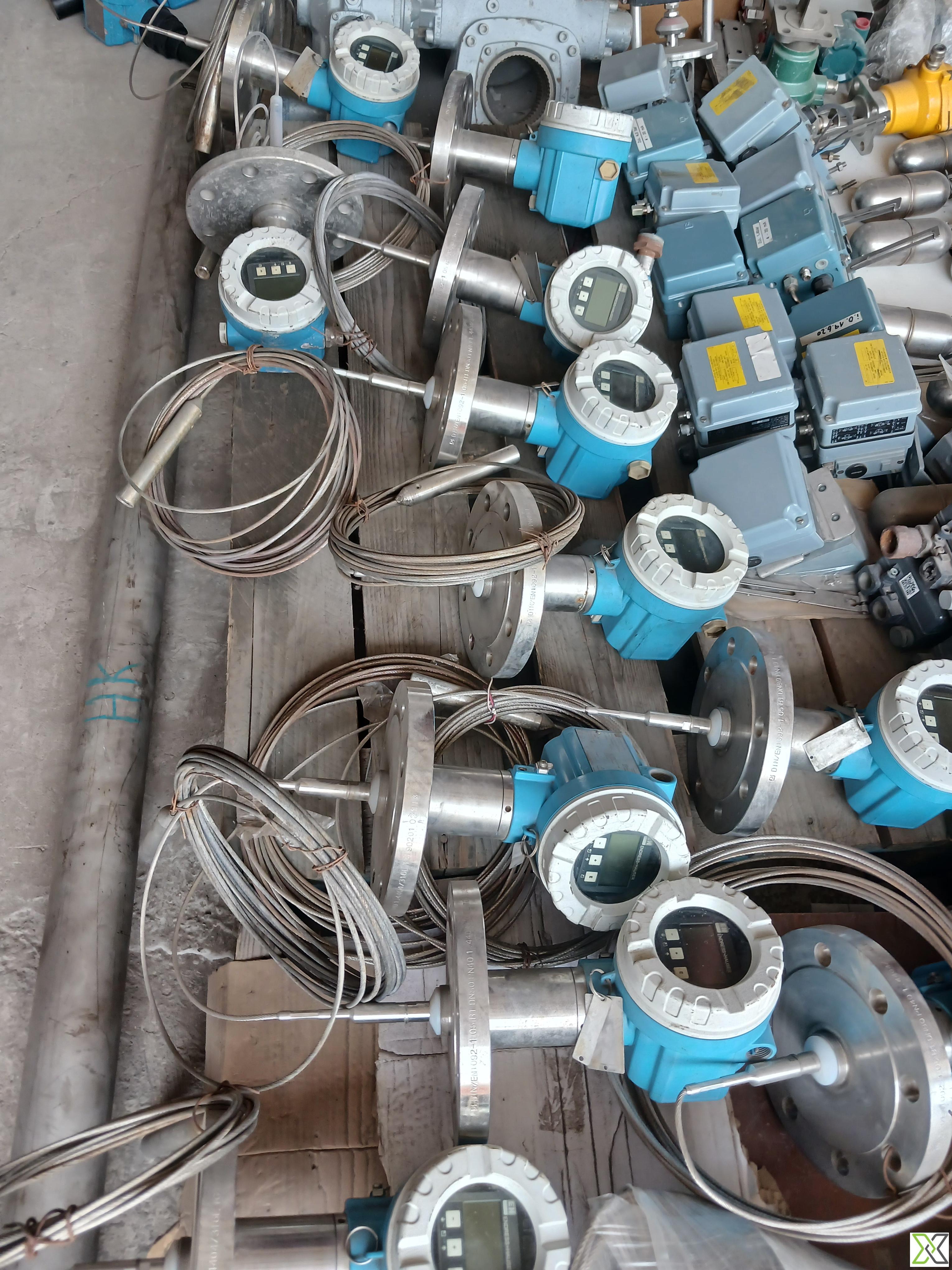

Endress+Hauser YTA610 Temperature/Level Transmitter – 4–20 mA HART

The Endress+Hauser YTA610 is a highly adaptable transmitter engineered for process temperature or level measurement applications in industrial environments. This unit supports a wide range of sensor inputs, including RTDs, thermocouples, and resistance or voltage-based sensors. Primarily used for temperature monitoring, the YTA610 can also be configured for level detection in tanks or vessels when paired with suitable sensing elements.

Equipped with a flanged mounting interface compliant with EN1092-1 standards, the transmitter is ideal for vertical installation in tanks or wells. The output signal is a 4–20 mA DC current loop with HART communication, with optional support for FOUNDATION Fieldbus or PROFIBUS for advanced integration. The transmitter is loop-powered and operates within a supply voltage range of 11 to 42 VDC. Its robust design and flexible configuration options make it suitable for demanding applications in the chemical, oil & gas, food, and water treatment industries.

Specifications:

– Product Name: Temperature/Level Transmitter
– Model: YTA610
– Manufacturer: Endress+Hauser (E+H)
– Primary Function: Temperature measurement
– Optional Function: Level measurement (if configured with compatible sensors)
– Application Areas: Tanks, vessels, pipelines

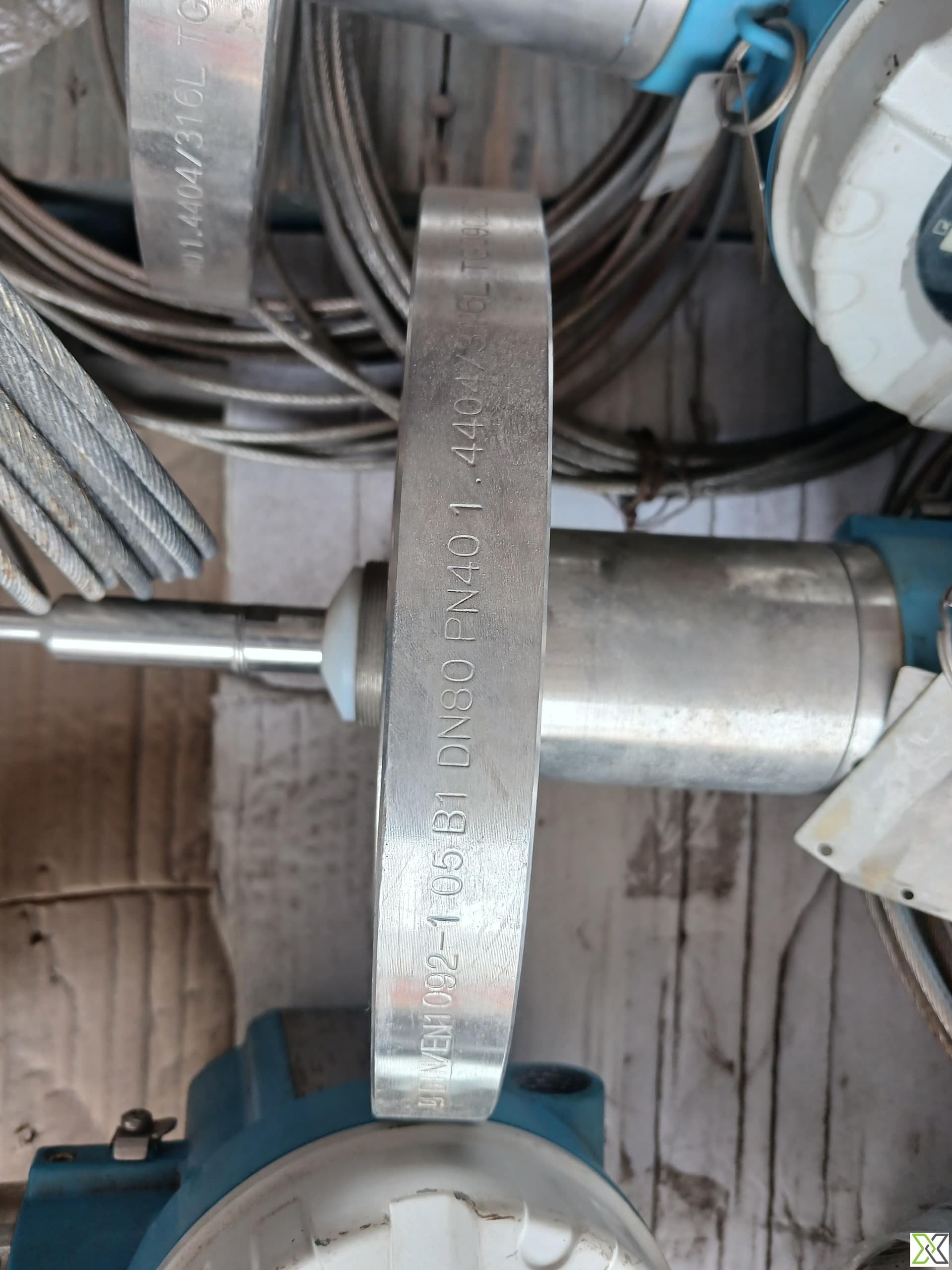

– Mounting Type: Flanged connection (EN1092-1 standard)
– Installation Orientation: Vertical
– Sensor Input Types:
 – RTD: Pt100, Pt1000
 – Thermocouple: Types J, K, T, E, etc.
 – Resistance/Voltage: For linearized sensors
– Output Signal: 4–20 mA DC with HART protocol
– Communication Protocols:
 – HART (standard)
 – Optional: FOUNDATION Fieldbus, PROFIBUS
– Supply Voltage: 11 to 42 VDC (loop-powered)
– Construction: Industrial-grade housing
– Operating Environment: Process plants, hazardous or standard zones (based on configuration)
– Adaptability: Supports both temperature and level applications (configurable)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
