12” Butterfly Valve with Actuator & Control System - 2014

ReflowX SKU: REF-9127

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Morin (Rotary Actuator, Birmingham, AL, USA)
Equipment code

Get Quotation Whatsapp Chat With Seller

Share on Facebook

Share on Twitter

Share on LinkedIn

Short Description

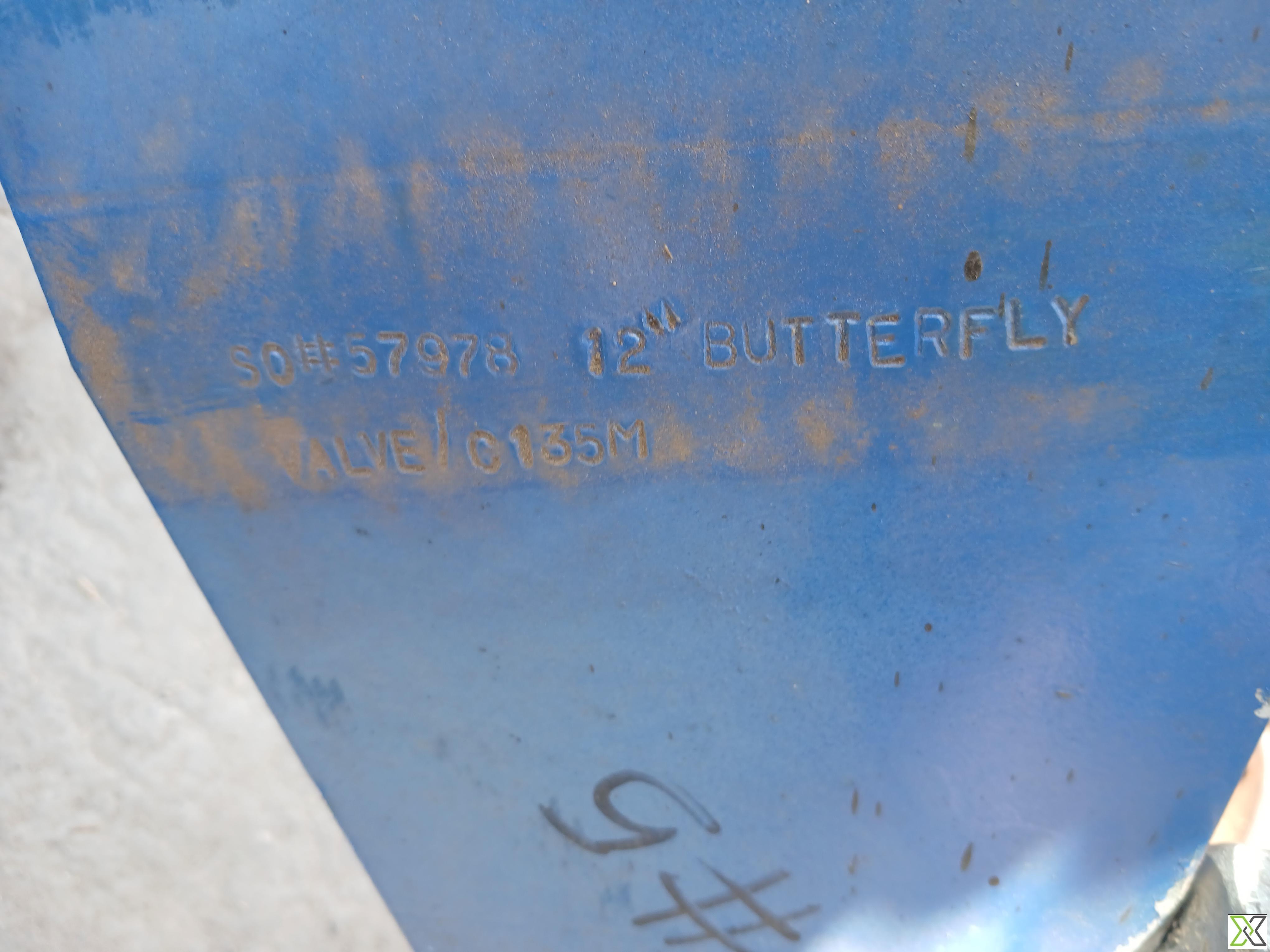

Valve and Actuator 12” Butterfly Valve Model: C-135MC-S090

Description

Valve Component:

• Valve Type: 12-Inch Butterfly Valve – Lug or Wafer Type (specific mounting not specified)
• Nominal Diameter: 12" (DN300)
• Valve Code / Model: C135M (likely corresponds to a matched actuator system)
• Pressure Rating: Likely ANSI 150 or ANSI 300 (inferred from actuator pressure and industrial application)
• Material Construction: Not fully specified – typically carbon steel, ductile iron, or stainless steel for this size/class of industrial valves
• Seating Type: Presumed resilient or metal-seated depending on application (e.g., oil & gas, water, chemical)
• End Connections: Likely Flanged or Wafer-style compatible with ANSI B16.5
• Design Standard: Typical design based on API 609 or equivalent industry standards
• Tag: SO#57978 (for asset traceability)

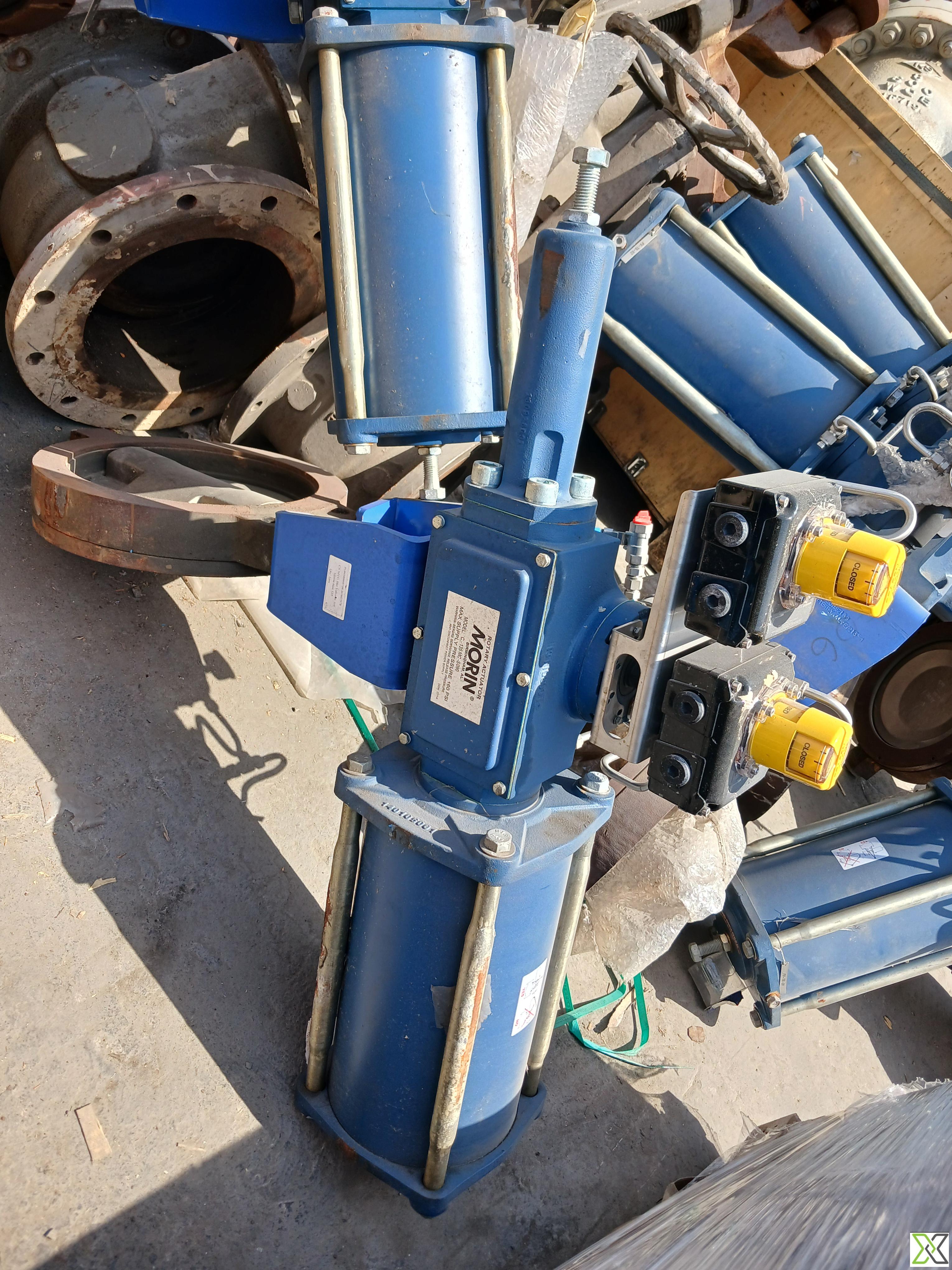

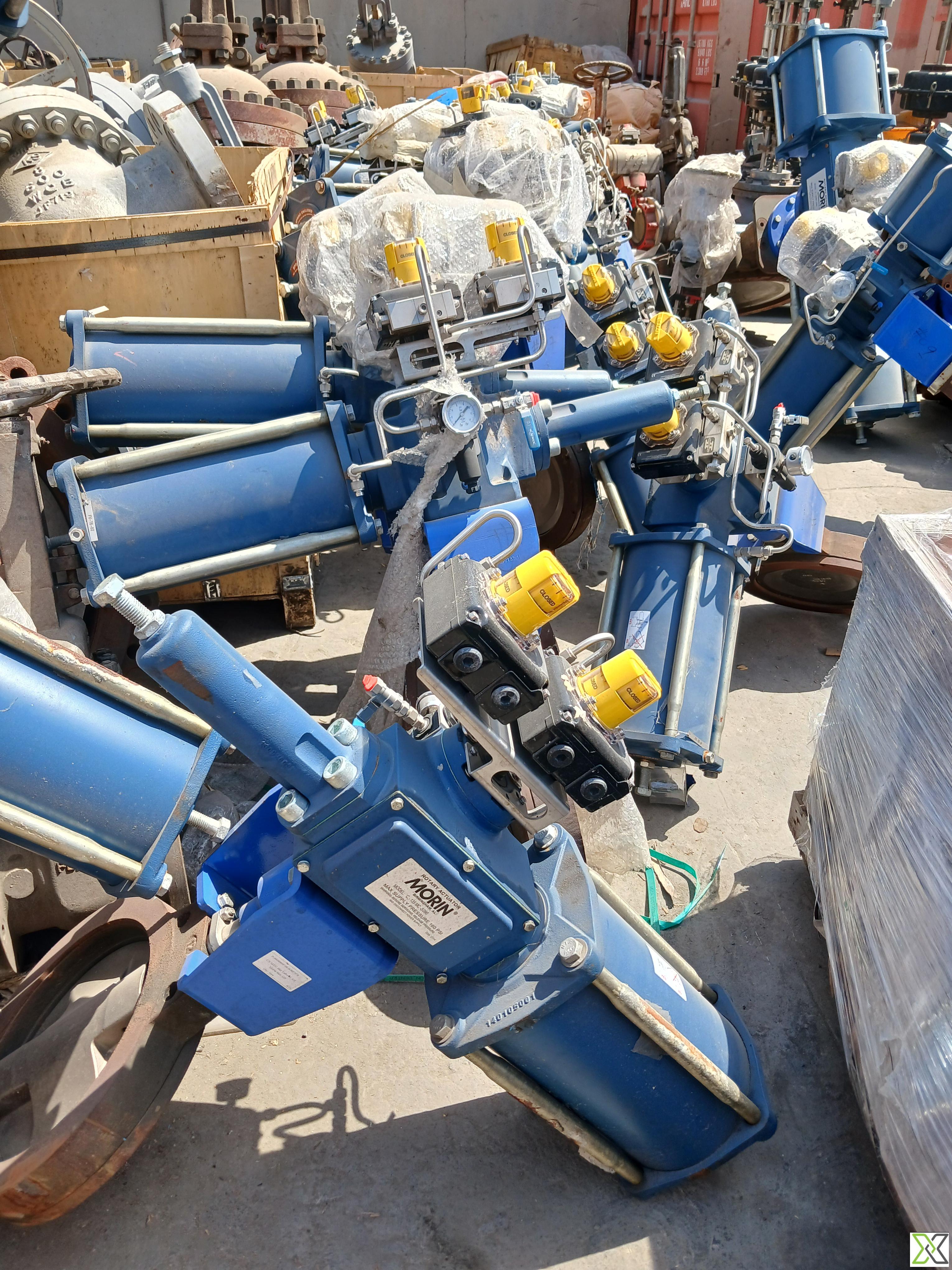

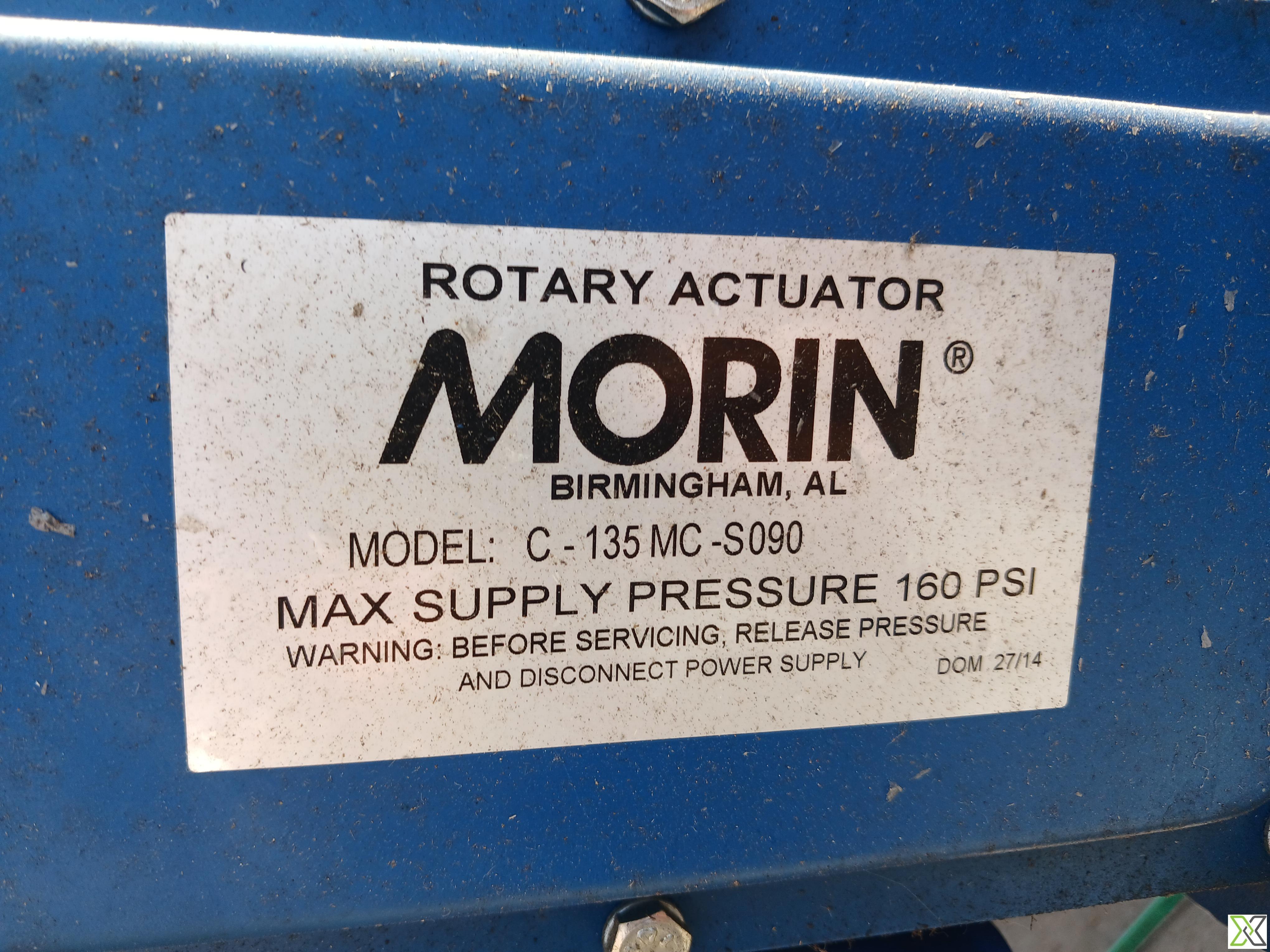

Actuator Unit – Morin C-135MC-S090:

• Manufacturer: Morin Actuator Co. (Birmingham, Alabama, USA)
• Model: C-135MC-S090
• Actuation Type: Pneumatic Rotary Actuator
• Torque Output: Not specified, but Model C-135 typically supports large torque ranges suitable for 12” valve
• Max Supply Pressure: 160 PSI (11 bar)
• Mounting Type: Direct mounted to valve body (top flange drilling pattern matches ISO 5211)
• Date of Manufacture: 2014 (Week 27)
• Rotation: Quarter-turn (90° rotation)
• Operation Mode: Fail-safe (spring return or double-acting – not specified)

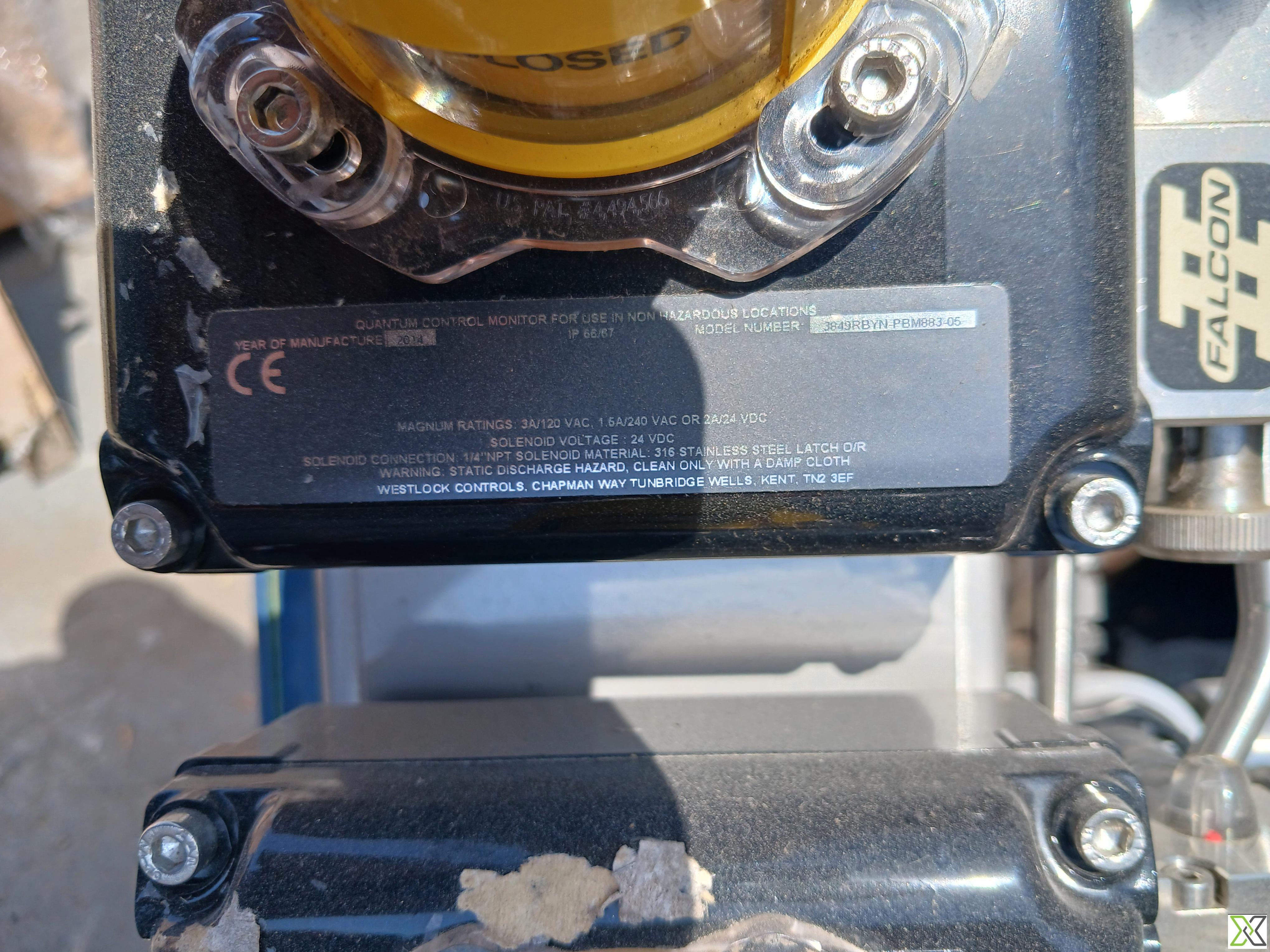

Control System – Westlock Controls:

• Control Monitor Type: Quantum Control Monitor
• Model Number: 3849RBYN-PEMB83-05
• Ingress Protection: IP66/IP67 (dust-tight, water-immersion resistant – suitable for hazardous locations)
• Solenoid Valve Ratings:
• 3A / 120 VAC
• 1.5A / 30 VDC
• 24 VDC Control Voltage Support
• Solenoid Connection Type: 1/4" NPT Stainless Steel Porting
• Features:
• Limit switch feedback
• Visual position indicator
• Weatherproof & explosion-proof enclosure
• Potential integration with DCS or SCADA

Operating Parameters:

• Design Pressure: Typically up to 150 PSI (10 bar) for standard butterfly valves
• Operating Temperature Range: -20°C to +180°C (depending on seat & seal material)
• Media Compatibility: Water, Oil, Steam, Chemicals, Natural Gas, Air
• Flow Control: Bi-directional, throttling or shutoff service

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

Year of Manufacturing	2014
ISO 15926 Pt 4	10554
Model Number	C-135MC-S090
Year of Manufacturing	2014
Manufacturer Name	Morin Actuator
Height	610 mm
Width	508 mm
Length	305 mm
Weight	68 kg
Color	Industrial Grey
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Spring-return or double-acting
Fluid Name	Water, Air, Natural Gas, Hydrocarbons
Full Opening Valve	Yes
Nominal Diameter	DN300 (12 inches)
Normal Operating Pressure	up to 10 bar (150 PSI)
Normal Operating Temperature	-20°C to +180°C
Piping Class	ANSI 150 / ANSI 300
UNSPSC Code	40141600
