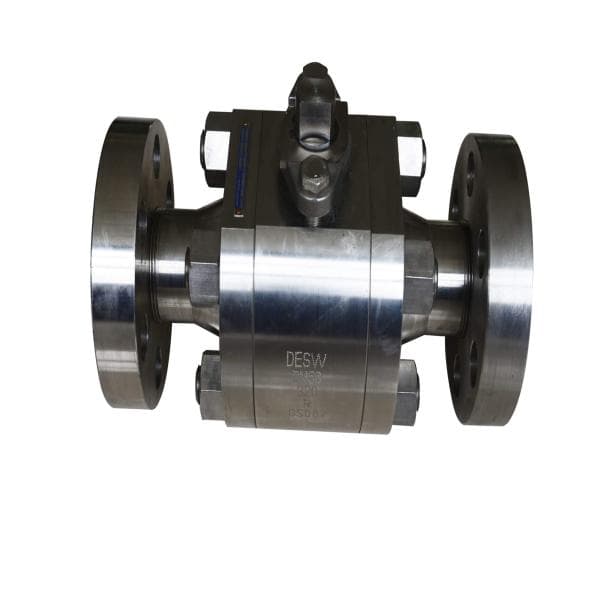

HANDA 2 PCS Metal-Seated Ball Valve – Flanged Ends, Full Bore

The HANDA 2 PCS Metal-Sealed Ball Valve is a rugged, industrial-grade valve engineered for severe service conditions involving high temperatures, pressure, and abrasive or corrosive media. Built from precision-machined stainless or alloy steel, this flanged ball valve features a two-piece (2 PCS) body construction with bolted connection and robust flanged ends conforming to ANSI B16.5 standards.

The valve incorporates a hard-coated or alloy-overlaid metal seat structure, delivering long-lasting sealing performance and excellent wear resistance. Designed for applications requiring zero leakage and extended operational cycles, it is ideal for use in oil & gas, petrochemical, power generation, and refining sectors. The fire-safe design ensures reliable shut-off even under extreme conditions.

Specifications:

– Valve Type: Metal-seated ball valve
– Body Design: 2-piece bolted body
– Operation: Lever or gear operated (manual)
– Bore Type: Full bore
– End Connections: Flanged (ANSI B16.5)
– Pressure Class: Typically CL150~CL600
– Body Material: Stainless Steel / Alloy Steel (based on specific HANDA configuration)
– Seat Material: Metal-seated (hard alloy overlay)
– Ball Material: Hard-coated or solid metal
– Temperature Range: Suitable up to 550°C (based on seat material)
– Face-to-Face: ASME B16.10
– Design Standards: API 6D / API 608 / ASME B16.34
– Fire-Safe Design: API 607 / ISO 10497 compliant
